fabiosun

comunque gli ultimi ccc funzionano anche con big sur 11.2 beta 2.. ma a dire il vero già da un po' io clono cosi'

la voce built-in 🙂 che mi ero dimenticato..io ti mettevo la "fuffa come dice @Gengik84 , alla fine sei riuscito 🙂 prova a capire ora se disabilitando externalicons dal config riesci a mettere anche l'altro disco interno se e solo se nel caso diventasse arancione dopo la rimozione di quel quirk 🙂

welcome here @boolean 🙂 you have to lock in your bios your great cpu @32 cores 32 threads or 64 core without SMT (better for performance) this is an OSX limits

cosi con il tuo editor controlla se ho fatto bene non conosco questo editor e ho fato la volo sul config che hai postato config_max.zip

controlla il plist che hai messo qui su tu (dentro archive .zip) la sezione del tuo disco la devi copiare pari pari come "figlio /child) all'interno di add

non so che editor usi comunque questo e' un esempio di come si inseriscono due device..nel caso specifico una scheda grqafica e un controller thunderbolt <key>DeviceProperties</key> <dict> <key>Add</key> <dict> <key>PciRoot(0x0)/Pci(0x1b,0x0)</key> <dict> <key>layout-id</key> <data>AQAAAA==</data> </dict> <key>PciRoot(0x1)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Slot 1</string> <key>device_type</key> <string>VGA compatible controller</string> <key>model</key> <string>Radeon PRO WX 9100</string> </dict> <key>PciRoot(0x2)/Pci(0x1,0x3)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Slot 4</string> <key>device_type</key> <string>USB controller</string> <key>model</key> <string>JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018]</string> </dict> </dict> <key>Delete</key> questo e' il percorso che a te manca....(non questo di esempio..ma devi mettere il tuo <key>PciRoot(0x1)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)</key>

comunque e' colpa mia che ti ho messo nello spoiler solo le proprietà guarda una riga sopra nel plist se usi plisteditor basta che copi ed incolli dentro ADD tutto da PCI root in giu (del solo oggetto che ti serve naturalmente)

no😂 manca il percorso del device

PciRoot etc e' il percorso della periferica nel tuo caso il disco poi come sotto voci ci sono le altre che lo definiscono in pratica item1 deve essere nome percorso e lo devi mettere all'interno di add

no non hai fatto giusto vedi dal sample list full presente in OC Item1 non ci deve essere purtroppo in windows non ho messo gli strumenti per editare il config se riesco a usarli in OSX provo a fartelo io pero' se leggi e vedi nel samplefull.plist c'e' un esempio se non sbaglio

ciao @SQA i am not in OSX because my new GPU is not supported by now so for me it is more complex to help you. Try to understand the same my advices 😛 Regarding internal audio (chip o motherboard Realtek USB 2.0 audio---> it is called so) take a look to these pictures: if you connect your case audio cable here..you can use audio without any problems! if instead you have a speaker connected on green backplate jack, audio is not detected. to have it detected you have to off your pc, then disconnect speaker jack from green backplate place then, on your pc and whe it is in OSX attach again speaker jack to backplate... regarding BT and WIFI..you have to ask to some users using it like @Arrakis, @Ploddles or @Driftwood then regarding MMIO part of your hope to have a perfect system: 🙂 read and try to understand here (thanks @iGPUwho writes this detailed article after we have discovered the "immense" potential of MMIO areas for our systems : TRX40 Bare Metal - Vanilla Patches (Yes it works...but..Proxmox is better?) - Page 33 - General - MacOS86 About your dual monitor detection: Check if you use weg or not (Whatevergreen.kext) try to enable or disable it if you have the same problem you have to try different GPU port On my radeon XFX in the past one DP port was not detected in any condition from OSX...but..i have ha Mojave in those time 🙂 be happy..now your system starts..you have to refine better with a little effort to do yet

<dict> <key>AAPL,slot-name</key> <string>Internal@0,1,1/0,0</string> <key>device_type</key> <string>Non-Volatile memory controller</string> <key>model</key> <string>NVMe SSD Controller SM981/PM981/PM983</string> </dict> questo e' il tuo disco Samsung inseriscilo in Device Properties nel config.plist...dopo aver fatto un backup del config stesso e vedi se l'icona ti diventa interna (se e' arancione <dict> <key>AAPL,slot-name</key> <string>Internal@0,1,2/0,0/1,0/0,0</string> <key>device_type</key> <string>Non-Volatile memory controller</string> <key>model</key> <string>E12 NVMe Controller</string> </dict> questo invece e' l'altro Nvme..puoi fare la stessa cosa sono in windows e al momento non ho un plist editor da usare... ma e' abbastanza semplice fare da se in questo caso disaabilita anche external icons e vedi se almeno questi due ti diventano grigi

about your lan Acquantia is seen by default in catalina/ bigsur (you may need a patch , i have inserted in EFI previously posted ) Dragon RTL needs a kext updated (LucyRL8125Ethernet), but here i have no experience. You have to put in in Kext folder and declare it in config.plist

You should see Realtek usb 2.0 audio device it works with internal usb audio kext so that empty audio output is weird check if you have applealc kext enabled in config this is useful for hdmi/dp audio if you have... ah now remember for audio detach green speaker jack from motherboard backplate plate Cold boot and then you will see audio device connect after booting green speaker jack i have solved this connecting speaker output to my case green speaker jack

You have to insert a kext for your Ethernet if your keyboard is an usb one I do not know try to change USB port to use WiFi or Bluetooth you have also to declare others kext you have also to build your mmio part....

no, it seems it always like before..better 🙂

you have to use an icon called macintosh HD or similar after the first reboot (after first installation step i see above Then you have called Untitled2 your main OSX disk??? 🙂 🙂 no problem but is weird (untiltled 1 is usually windows)

Could you try from terminal this? lipo -info Then space, then drag and drop binary inside show contents Photoshop macOS or similar path inside Lightroom path? maybe they compiled it for arm thank you

Yes for now for the error you have it seems usb was built badly you have to download macOS Catalina again and to do again step above with installMaker app or similar

@SQA From your Imac 1) download instalmaker from our download area 2) download from apple OSX you want to install 3) insert an empty USB pen on your Imac 4) Run InstallMaker app and follow the instructions it will ask to select an OSX installer (previously downloaded from apple store /site) then it will ask to choose USB for installation it will format it and it will put inside all OSX installation files 5) then with Clover Configurator mount the EFI inside in this USB pen Put my EFI inside it sorry I cannot explain better of this 🙂

confirmed! it hangs in early stage, no way also virtualizing all MMIO group.. It is enough deselect that option and system boots again I have no checked if MMIO have been changed by new bios , i will check when 6900 xt will be supported 🙂

well well well.. Big Sur does not start anymore i thing some changement in MMIO group... tomorrow i will investigate about it

updating by now 🙂

benvenuto! 🙂

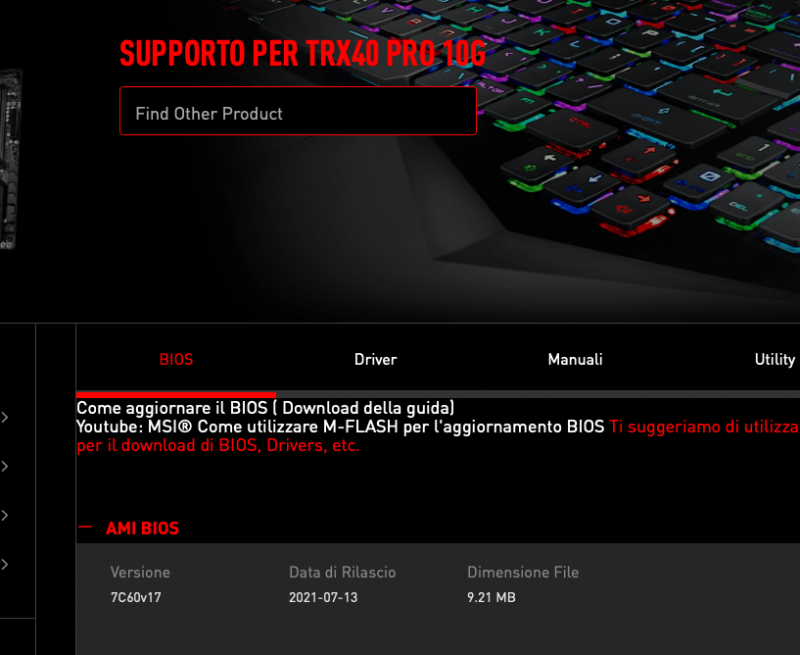

@Ploddles frequency in bios is at 3200 osx see it in that way it happens sometime but it is pretty cosmetic thing
