fabiosun

for gpu problem have you tried without any Overclock in a default bios situation ? Only PBO enabled If you have a good cooling system Clover ha solved a problem with TSC in its latest revison Maybe it works bad with OC settings To speed up a bit initial clover steps you can disable log writing on Boot Config plist section

For Aquantia have you tried this in clover? For others problem with OpenCore I have to think about it and for now no proper idea on it I do not know OBS Studio app and if its codec is supported properly in Monterey

ciao se escludiamo un problema hardware..io proverei a riflashare il bios della tua piastra

Hi @valmeida your EFI had some problems this attached should be corrected you had also an error on Aquantia definition I do not know if it solves your problem I suggest to learn this simple app to update OC: https://github.com/ic005k/OCAuxiliaryTools EFI-078 valmeida.zip

Shrisha OC 078.zipAnd this is a new 078 EFI to try In boot menu Reset NVRAM before trying it

clover.plist.zip @shrisha try this

Penso di No se hai una discreta come GPU

La 6500 xt in generale non so se sia compatibile le 6600 invece solo da Monterey 12.1 in su La rx 570 va bene invece con tutto 🙂

no @shrishahere works I have had sometime that errors if I mix different Opencore version (eg one I use for my virtual setup with Unraid or clover boot loader) I had to reset my bios and clear NVRAM with both bootloader which config plist are you using? if Resize bar is enabled put 0 in resize bar quirk now it should be to -1 (disabled) but it should work with -1 also if you have it enabled in bios

@shrishasome people use this from Big Sur fino to Monterey 12.2.1 aquantia.plist.zip it needs a clover conversion and its place is in kext to patch

it should be this post your config.plist without sensible data (smbios)

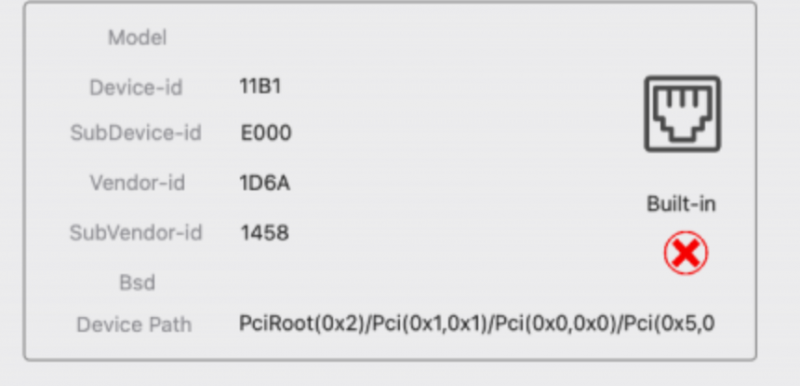

@shrishafor Aquantia download Hack Check from our download area : and check Device ID of your board

1) it could be impossible (you have to try) 2) yes

Ethernet in Monterey is a different story Aquantia could work but intel one has some problem from a bit About GPU performance with clover is about 5/10 % lower than Opencore in many user testing By the way Your CPU seems a bit overclocked

about ethernet, in Monterey could be problematic you have these ethernet on board : 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN) 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN) Second one is not working for sure if it is a i211 or similar first one (Aquantia could work with a kext patch) but it could be problematic in Monterey in the past which kexts have you to use for them?

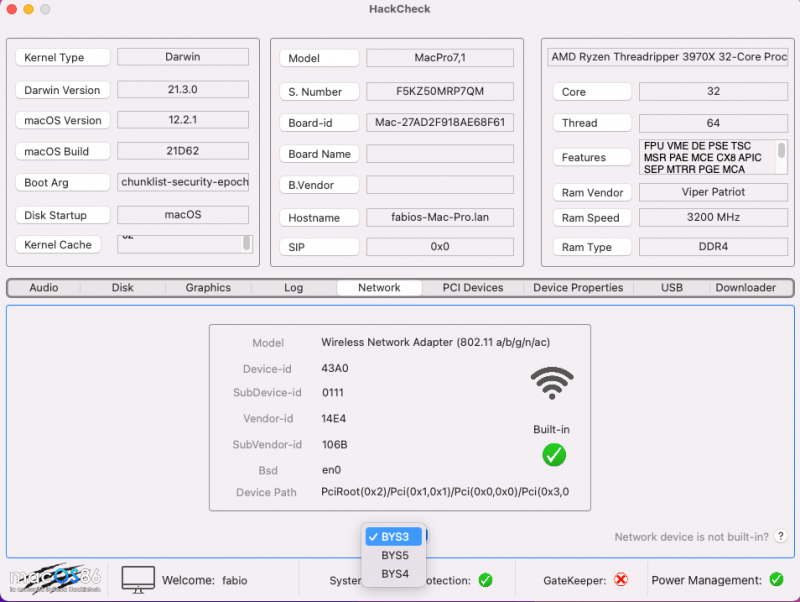

@shrishapost an IOReg and also a pic like this:

then if you tested previous advised two things, you can try this complete EFI EFI-shrisha.zip

EFI-clover-Shrisha 2.zipThis instead is my Clover working EFI with inside your MMIO whitelist

Archive.zip this (change ACPI folder and config.plist) in previous EFI posted

4g is ON,CSM OFF, UEFI on, Resize bar off? no overclock on your CPU I hope in BIOS?

OK MMIO is ok may I ask if this problem started adding a NVME new disk?

config.plist.zip try this

Ok now is all clear if nothing is broken..we will fix it here we fixed all problem for many trx40 users! 🙂

@shrishaour first problem is to have a proper MMIO list and to achieve it we have to find optimal bios setup and then stay fixed with it 🙂 then we will try to understand why your pc does not complete its installation have you downloaded a full installer of Monterey? if so which version? Have you ever had in this PC OSX working? thank you

questo errore lo devi correggere a mano, in pratica, o usare il driver o attivare l'opzione nella sezione corrispondente
