  1. backinblackx86
    that appears to have done the trick...I will test the stability with iperf3 if it is available on the cli. Appears to be stable, at least at 1000baseT, my 10GbE equipment is in another area. iperf3 -c 96.57.56.82 -f M Connecting to host xxx.xxx.xxx.xxx, port 5201 [ 4] local 192.168.50.154 port 49224 connected to xxx.xxx.xxx.xxx port 5201 [ ID] Interval Transfer Bandwidth [ 4] 0.00-1.00 sec 116 MBytes 116 MBytes/sec [ 4] 1.00-2.00 sec 112 MBytes 112 MBytes/sec [ 4] 2.00-3.00 sec 112 MBytes 112 MBytes/sec [ 4] 3.00-4.00 sec 112 MBytes 112 MBytes/sec [ 4] 4.00-5.00 sec 112 MBytes 112 MBytes/sec [ 4] 5.00-6.00 sec 112 MBytes 112 MBytes/sec [ 4] 6.00-7.00 sec 112 MBytes 112 MBytes/sec [ 4] 7.00-8.00 sec 112 MBytes 112 MBytes/sec [ 4] 8.00-9.00 sec 112 MBytes 112 MBytes/sec [ 4] 9.00-10.00 sec 112 MBytes 112 MBytes/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bandwidth [ 4] 0.00-10.00 sec 1.10 GBytes 113 MBytes/sec sender [ 4] 0.00-10.00 sec 1.10 GBytes 112 MBytes/sec receive
  2. backinblackx86
    Drum roll....Aquantia AQX113 now shows in the system profiler, it does attempt to make connection with my switch, however it fails to maintain a negotiation.
  3. backinblackx86
    Aq has not yet appeared in the system profiler, now attempting the new revision of AQC113 aml
  4. backinblackx86
    Okay Set 2 patches were added along with the AQC113 SSDT...rebooting now...stand by
  5. backinblackx86
    I do believe the CPU name was originally corrected by RestrictEvents.kext. I do need to add the Bootpicker GUI resources, it did fallback to the text based picker, however. Okay, doing so now...
  6. backinblackx86
    Here is the IOReg for AQC113 backinblackx86_IOREG_v5_SSDT-AQC113.zip
  7. backinblackx86
    Here is the IOREG for SSDT-BRG0...note I have many USB devices plugged in now backinblackx86_IOREG_v5_SSDT-BRG0.zip
  8. backinblackx86
    I tested all of the USB ports with various flash drives I have on hand including ones which identify as 2.0 Type A, 3.1 Gen1 Type C, 3.2 Type A, all do appear to be working although I have yet to conduct read/write tests. attempting BRg0 now...stand by
  9. backinblackx86
    Stand By, rebooting now... Here is the IOREG after adding SSDT-XHC.aml backinblackx86_IOREG_v5_SSDT-XHC.zip
  10. backinblackx86
    Here is the new IOREG for v4 with the added .aml. No Aquantia yet, hmmm. backinblackx86_IOREG_v4.zip
  11. backinblackx86
    Fabiosun's "V4" booted...now adding Lorys89 "SSDT-DISABLE-D0F0.aml." I added SSDT-DISABLE-D0F0.aml to the ACPI section, rebooting now...
  12. backinblackx86
    Ok, stand by
  13. backinblackx86
    I’ll give it a try, 4 in the morning here in rainy ny.
  14. backinblackx86

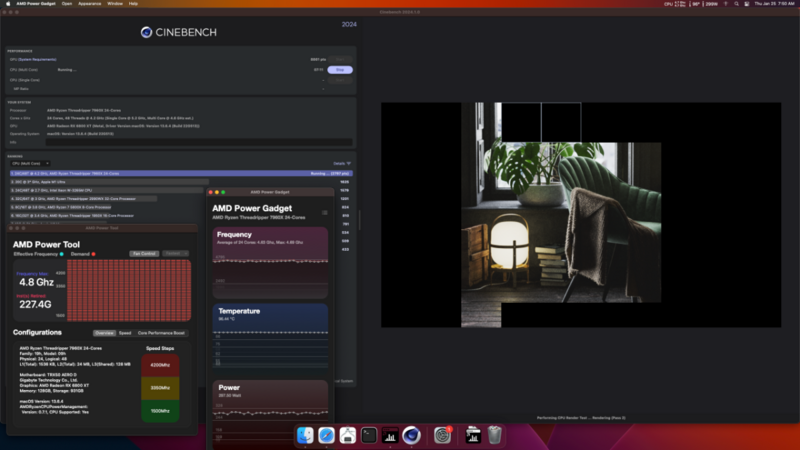

    Enabled PBO and EXPO in the BIOS and here it an updated Geekbench: https://browser.geekbench.com/v6/cpu/4551232
  15. backinblackx86
    Single Core / Multi-Core: https://browser.geekbench.com/v6/cpu/4550973 OpenCL: https://browser.geekbench.com/v6/compute/1648711 Metal: https://browser.geekbench.com/v6/compute/1648706 note, EXPO has not been enabled in the BIOS.
  16. backinblackx86
    Here is my current IOREG with the 6800 XT and the SATA III now connected to A_SATA according to the motherboard block diagram. backinblackx86_IOREG_v3.zip Not much has changed with the EFI but here is what I am currently booting with, still in debug mode. backinblackx86_EFI_v3.zip
  17. backinblackx86
    Rainy night here in NY. Computer troubleshooting time well spent. I have only tried Set 2. I also set "DisableIOMapper." Stand by... Yes, this EFI booted! However, I no longer have active USB ports.
  18. backinblackx86
    While the temporary SATA iii SSD is still hanging outside the case, I swapped the Gigabyte RX 560 4GB for the AsRock 6800 XT 16GB gpu. I added the appropriate pikera bootflag and am in the system. Next I will test the EFI that Lorys89 shared above.
  19. backinblackx86
    For reference here is my current EFI backinblackx86_trx50_v2.zip
  20. backinblackx86
    After I re-enabled usb4 in the bios, I tested one of the USB-C ports with a flash drive and it did mount automatically. In the past I have only used USBMap in python. https://github.com/corpnewt/USBMap I am open to all suggestions to improve the stability and performance of this system. Issues currently: 10GbE is disconnected - Have attempted the Casey set 2 patches and quirk. Internal Sata identified as External - In the past I have used Innie.kext (https://github.com/cdf/Innie) Open Core Boot picker is very long, perhaps because of all the debug kexts and flags. None the less, a major achievement. I will pull the 6800 from another system.
  21. backinblackx86
    all the thunderbolt 4 devices at my local stores appear to be docks or displays Okay, I am booted back in with Shanee’s patch enabled. Going to boot back into BIOS and enable USB4…still no 10gbE RestrictEvents is working…
  22. backinblackx86
    well….without the algrey patch, I believe….there was display as a bright yellow and now it has reached the desktop extremely slow graphical performance without either patch enabled…
  23. backinblackx86
    I do not have any TB4 devices to test with but I may go shopping for one. The AQ ethernet has still yet to populate even with the patches set to true and the quirk, I am attempting to boot now with the algrey patch OFF. I will then give USB4 enabled a try…stand by….these reboot take a very long time….2 minutes to see the boot picker
  24. backinblackx86
    Okay, I enabled both 18 and 19, rebooting now.... Will do...rebooting now
  25. backinblackx86
    Here is the IOREG with the tool linked by Lorys89. Keep in mind, I have yet to boot with Maple Ridge/USB4 Enabled backinblackx86_IOREG_v2.zip
×
×
