fabiosun

19:891 0:010 OCAK: Local relocs 686 on FFFFFF8004315000 19:895 0:004 OC: Prelinked injection Kexts\Other\AMDRyzenCPUPowerManagement.kext () - Success 19:899 0:003 OCAK: as.vit9696.RestrictEvents got KXLD 0 0 19:903 0:004 OCAK: Requesting __LINKEDIT for as.vit9696.RestrictEvents - AEA09438 at 41D5000 19:907 0:004 OCAK: Requesting SymbolTable for as.vit9696.RestrictEvents - 520 19:916 0:008 OC: Prelinked injection Kexts\Other\RestrictEvents.kext () - Invalid Parameter 19:919 0:003 OC: Prelink size 69029888 kext offset 67031040 reserved 2048000 19:928 0:008 OCAK: KC TEXT is 65536 bytes with 63800 Mach-O headers need 456 not possible to open an issue because Opencore devs does not support others bootloader Interesting thing (I hope is not a Nvram "feature" , I have no memory popup error with MAcPro7.1 inMonterey beta 4, I have that problem with Big Sur 11.5.1)

No @iGPUi am using newest version (app and kext) no problem In these days I am testing my system with clover bootloader to try solving two little problems I have with it : 1) RestrictEvents.kext does not load with clover in my system 2) this error as you said beforre I will try new AMDPower Gadget app also in Opencore today and I will report No problem, tested for a couple of hours.It works I am testing exclusively in beta 4

@tuxyexplain better because I do not understand well!

072 OC release-AMD_3970x Patches.plist.zip These are the patches i use to boot from BigSur to latest Monterey b4 if you use a PR opencore edition you can disable first two (0,1)

https://9to5mac.com/2021/08/03/apple-updates-intel-mac-pro-with-three-new-graphics-card-modules/?fbclid=IwAR2Vd0Dc9oLVr3H8bAMzy2xAIigpOxvGJMzEvgfuoBzK9dfkZYgshIwynK0

Se guardi nell'area internazionale vedrai che ci son diverse configurazioni funzionanti Alcune piu' semplicemente da far andare tipo la mia..altre leggermente piu' complesse. Alla fine si riesce a far andare perfettamente tutte le marche 🙂

@TheGreatArtist Benvenuto e grazie per i complimenti A seconda dei programmi che utilizzi, credo sia un'ottima scelta il threadripper

ciao non credo sia possibile, e nel caso la gp interna non e' supportata Se cerchi nel forum trovi qualche tentativo

Da un po' di tempo abbiamo iniziato un lavoro di riduzione delle patches utilizzate nei sistemi AMD, un gruppo di volenterosi ha fatto negli ultimi mesi diverse prove. Fatte molteplici comparazioni con il bootloader di riferimento (OpenCore), alla fine siamo riusciti a estrapolare una serie di patches utili e, cosa piu' importante , abbiamo avuto un riconoscimento dai gestori delle patches che, grazie a noi, hanno rinvigorito un ramo oramai vecchio del loro github. Per chi volesse dare un'occhiata : https://github.com/AMD-OSX/AMD_Vanilla/tree/clover abbiamo anche un nostro fork per dare una mano a successivi sviluppi! https://github.com/macos86/AMD_Vanilla

a questo punto lo segnalerei a quelli di Opencore aprendo una issue su whaterevergreen 🙂

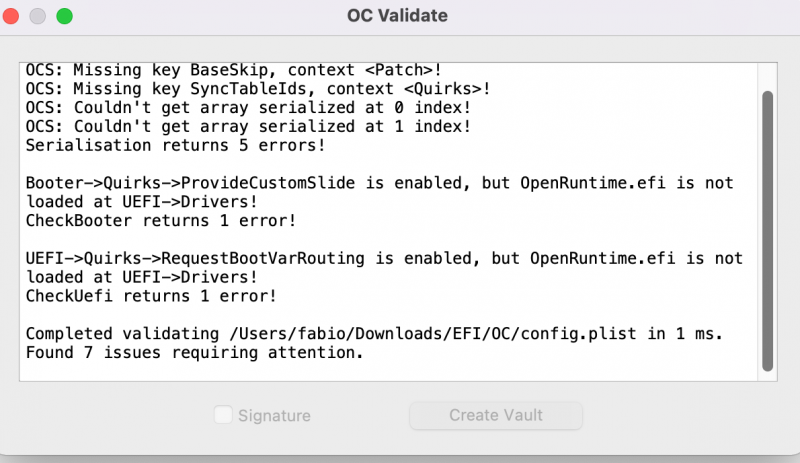

solo per scrupolo puoi lanciare: kextstat | grep -v com.apple e poi anche un OCValidate del config?

virtualsmc lo hai aggiornato alla 1.26? cmq no non ho questo problema

nessun problema anche qui... io provenivo da una beta 072 quindi molti aggiustamenti già li avevo fatti!

https://github.com/acidanthera/OpenCorePkg/pull/277 you can find here in the comments more information about PR

Smbios piu' corretto e' iMac 19.2 poi hai integrata attiva e nel caso configurata? CSM off Multimonitor on dvmt=128 auto (se usi sia integrata che PEG) oppure la disabiliti e metti come primario PEG nel bios

@Sundrawparliamo della macchina in firma? nel caso metti 0 a processor typype sotto platform generic poi ci sono anche dei quirk che forse possono essere disabilitati pero' intanto vediamo se con 0 ti da il nome della cpu io poi proverei CSM off WEG disable SMBIOS MacPro7.1

prova a selezionare come da immagine mostra tutti i device (se già non sei cosi')

ciao e benvenuto leggendo le due prime righe..avendo fatto tutto bene come dici..sembrerebbe impossibile dare una mano :) Scherzi a parte, se puoi metti in firma il tuo hardware e posta la cartella EFI che stai utilizzando (senza la cartella APPLE o i temi che hai in uso) Sarebbe anche utile anche solo una foto di dove si riavvia, che chi sa e puo' ti darà una mano a sistemare grazie

@tuxyun po' in OT e mi scuso hai anche provato clover? 😉

I'm glad you succeeded Allow me to give you a little advice use a debug version of opencore until you are sure everything is fine for your system Activate debugging by putting the value of 67 in place of 3 (debug/target) Then check if in the debug the mmio you have set is on skip 1 If you have any problems check our main thread All the TRX40 users have passed through this forum who in one way or another now have their system working! So here's the guide! 🙂 😛

I do not think Dortania is a good guide for trx40 users 😉 Problem could be high Sierra related (many problems with trx40 and Nvidia drivers) Also usb in HighSierra for us is a problem And I'm talking about a topic that I tried on my skin, wasting hours on it (I had a TitanXp GPU) try with this config.plist (rename it and put ssdt in ACPI folder also I have enabled dummypowermanagement kext Archive.zip if it does not work try with a newer OS or download again HS installer from scratch

Ei @jude🙂 Your MMIO is fine Explain what do you want to achieve and also which problems your rig has now I do not understand well if it boots or not 🙂

I take back this interesting conversion made by iGPU, making only a small modification. In the empty slots I added: Type = DDR4 if clover's config plist is left blank in that memory section we have a non-destructive formal error. to download : Clover Config Plist Validator Clover_memory_mapping.plist.zip

ah also this if you change some bios configuration MMIO list could change So we have to start from a proper bios configuration and then start to configure your plist

@jude please put your hardware in signature in your profile option. about your MMIO, see this: 0xC2500000 (0x81 pages, 0x8000000000000001) skip 0 0xC3580000 (0x81 pages, 0x8000000000000001) skip 0 0xDA100000 (0x181 pages, 0x8000000000000001) skip 0 0xFA180000 (0x81 pages, 0x8000000000000001) skip 0 0xFA300000 (0x100 pages, 0x8000000000000001) skip 0 0xFEA00000 (0x100 pages, 0x8000000000000001) skip 0 0xFEC00000 (0x1 pages, 0x8000000000000001) skip 0 0xFEC10000 (0x1 pages, 0x8000000000000001) skip 0 0xFED00000 (0x1 pages, 0x8000000000000001) skip 0 0xFED40000 (0x5 pages, 0x8000000000000001) skip 0 0xFED80000 (0x10 pages, 0x8000000000000001) skip 0 0xFEDC2000 (0xE pages, 0x8000000000000001) skip 0 0xFEDD4000 (0x2 pages, 0x8000000000000001) skip 0 0xFEE00000 (0x100 pages, 0x8000000000000001) skip 0 0xFF000000 (0x1000 pages, 0x8000000000000001) skip 0 0x10000000000 (0x10400 pages, 0x8000000000000001) skip 0 0x3CB90000000 (0x10400 pages, 0x8000000000000001) skip 0 0x3CBC0000000 (0x10400 pages, 0x8000000000000001) skip 0 0x69750000000 (0x10400 pages, 0x8000000000000001) skip 0 You can leave to skip 0 latest four to converti hexadecimal in decimal you can use a scientific calculator (windows or OSX are fine) or download powertool app from our download area and using it to convert in decimal value I will do first 3 for you 0xC2500000 = 3260022784 0xC3580000 = 3277324288 0xDA100000 = 3658481664 go on in this way then post here again also a your complete config.plist Thank you
