trx40 [Discussion] - TRX40 Bare Metal - Vanilla Patches

[fabiosun]

13.0 build 22A380

[fabiosun]

@trx40 and also all others  AMD users 🙂

What does it happen to your rig if you press for a click your case power button?



here happens this:



[Ploddles]

2 hours ago, fabiosun said:

@trx40 and also all others  AMD users 🙂

What does it happen to your rig if you press for a click your case power button?





Nothing on mine now. A few versions back it used to do the same as yours.

[Jaidy]

On 10/18/2022 at 2:59 PM, Ploddles said:

Mine is the Gigabyte Xtreme. I think there are only 2 of us on here with this board, @Jaidyand myself. I've asked Jaidy if he has tried it.

I have not tried Ventura yet, so can't say if my EFI will boot that or not. However, it's rock solid on Monterey for the most part (bluetooth does not work, I use a dongle for it). Here is the link to my EFI https://drive.google.com/drive/folders/1SaxLP_tLRZSVED5YaAhMyenvRHJudubw?usp=sharing

[fabiosun]

@JaidyWelcome Back 🙂

your solid EFi with a minimal effort will be good also with Ventura OS

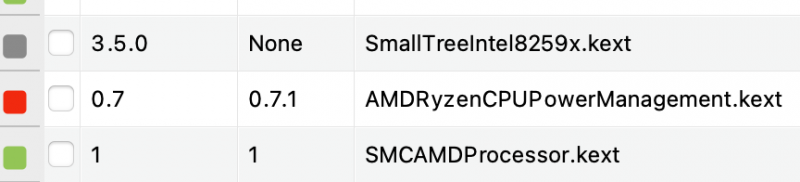

you have to update this kext to 071 and update also Kernel Patches





Smalltree kext shouldn't work in Ventura (but also in Monterey if I am not wrong)



[Jaidy]

38 minutes ago, fabiosun said:

@JaidyWelcome Back 🙂

your solid EFi with a minimal effort will be good also with Ventura OS



you have to update this kext to 071 and update also Kernel Patches





Smalltree kext shouldn't work in Ventura (but also in Monterey if I am not wrong)



thanks so much @fabiosun I just updated the kext. What kernel patches need to be updated?

[fabiosun]

9 minutes ago, Jaidy said:

thanks so much @fabiosun I just updated the kext. What kernel patches need to be updated?

check in this file

leaf7 patch

and all maxKernel patches are to update

3970x and ventura.plist.zip

[Jaidy]

thanks a ton @fabiosun. Just updated and now looking forward to Ventura! Now if only AMD would release Zen 4 threadrippers 😉

[fabiosun]

22 minutes ago, Jaidy said:

thanks a ton @fabiosun. Just updated and now looking forward to Ventura! Now if only AMD would release Zen 4 threadrippers 😉

Pay attention that ethernet card could not work in Ventura

so have a solid backup before updating



I am using it from the first beta and it is solid but many Ethernet cards as Aquantia, I210 and i211 we have in our trx40 does not work anymore



I have bypassed this problem with a Fenvi T919 BT/WIFI card and with a cheap USB Realtek 2.5 Gbit ethernet card



[Ploddles]

14 minutes ago, fabiosun said:

Pay attention that ethernet card could not work in Ventura

so have a solid backup before updating



I am using it from the first beta and it is solid but many Ethernet card as Aquantia, I210 and i211 we have in our trx40 does not work anymore



I have bypassed this problem with a Fenvi T919 BT/WIFI card and with a cheap USB Realtek 2.5 Gbit ethernet card

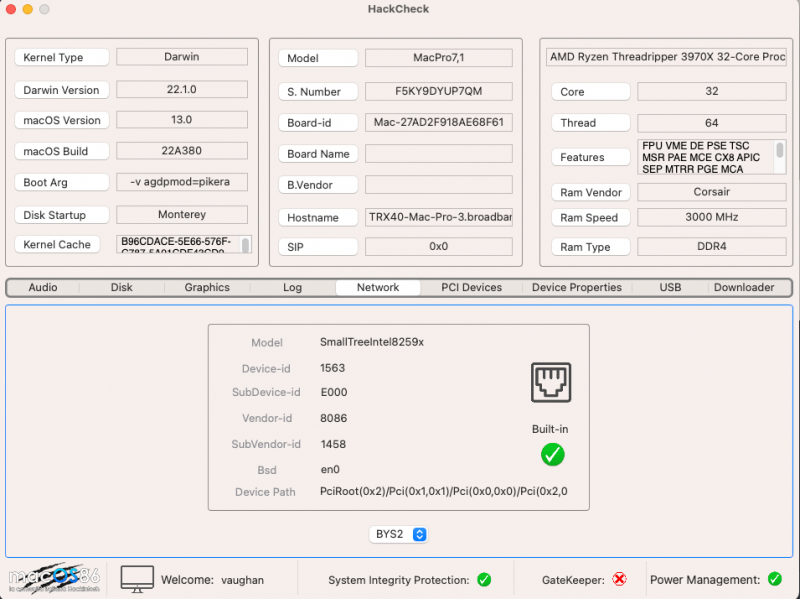

I decided to "bite the bullet" and finally managed to install Ventura RC2 over my Monterey. I can confirm that our network cards do work fine with it.





[fabiosun]

@Ploddlesis it an i210 or i211? however great news 🙂



Have you understood which problem have you had before to update?

[Ploddles]

35 minutes ago, fabiosun said:

@Ploddlesis it an i210 or i211? however great news 🙂



Have you understood which problem have you had before to update?



I am not sure which card it is but I use the SmallTreeIntel8259x.kext. My built in WiFi and Bluetooth card works as well.



I still cannot install a fresh version of any macOS versions. I used chris1111's app to install a Developer Beta Access profile and just ran the software upgrade from within Monterey.

[fabiosun]

I have tried to use your kext adding in it my device id for i211

but system hangs

happy that some trx40 boards have support for their internal ethernet card



[Jaidy]

2 hours ago, fabiosun said:

Pay attention that ethernet card could not work in Ventura

so have a solid backup before updating



I am using it from the first beta and it is solid but many Ethernet cards as Aquantia, I210 and i211 we have in our trx40 does not work anymore



I have bypassed this problem with a Fenvi T919 BT/WIFI card and with a cheap USB Realtek 2.5 Gbit ethernet card



I can live with wireless connections for my work, though it would be good to get ethernet working too. Not a deal breaker personally for me..

[fabiosun]

15 hours ago, Ploddles said:

I am not sure which card it is but I use the SmallTreeIntel8259x.kext.

Intel® X550-AT2 Dual 10GbE BASE-T LAN with cFosSpeed



and this has yet support (good to know for Aorus Extreme Gigabyte users)

[fabiosun]

On 10/20/2022 at 7:25 PM, fabiosun said:

13.0 build 22A380

this is the release also!

[Jaidy]

On 10/22/2022 at 6:11 PM, Ploddles said:



I am not sure which card it is but I use the SmallTreeIntel8259x.kext. My built in WiFi and Bluetooth card works as well.



I still cannot install a fresh version of any macOS versions. I used chris1111's app to install a Developer Beta Access profile and just ran the software upgrade from within Monterey.

were you able to install Ventura? I just updated but it restarts with a kernel panic for IONetworkingFamilyLegacy and a whole bunch of those

[fabiosun]

Just now, Jaidy said:

were you able to install Ventura? I just updated but it restarts with a kernel panic for IONetworkingFamilyLegacy and a whole bunch of those

have you added leaf7 patches, updated OC kext and driver and also all maxKernel of your kernel patches?



[Jaidy]

Just now, fabiosun said:

this is the release also!

will the mmio list change with Ventura? My system gets to desktop, gives me a notification that status bar has erred, move to trash, and then restarts. In the brief time that I can see the report for the previous crash, it has IONetworkingFamilyLegacy that was in the trace at the top. Or how do I tackle this?

Just now, fabiosun said:

have you added leaf7 patches, updated OC kext and driver and also all maxKernel of your kernel patches?



Yes I did. Added the leaf7 patch you gave me, and increased the maxKernel value to 22.99.99 from 20.99.99 (or something, I remember the first one was 20 that needed to changed to 22)

[Jaidy]

panic(cpu 16 caller 0xffffff8017f4aee3): Kernel trap at 0xffffff8017b01057, type 14=page fault, registers:
CR0: 0x0000000080010033, CR2: 0x0000000000000000, CR3: 0x0000003f5de68000, CR4: 0x00000000003406e0
RAX: 0x0000000000000000, RBX: 0xffffff9196c5d800, RCX: 0x00000000000000f8, RDX: 0x00000000000000f8
RSP: 0xffffffffffd6b5e8, RBP: 0xffffffffffd6b620, RSI: 0xffffff8808369b08, RDI: 0x0000000000000000
R8:  0x00000000000000f8, R9:  0x0000000000000001, R10: 0xffffff8ccecd3200, R11: 0xffffff8ccf82e0a8
R12: 0xffffff8ccecd3200, R13: 0x0000000000000000, R14: 0xffffffffffd6bb38, R15: 0x0000000000000000
RFL: 0x0000000000010282, RIP: 0xffffff8017b01057, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x0000000000000000, Error code: 0x0000000000000002, Fault CPU: 0x10, PL: 0, VF: 0

Panicked task 0xffffff9196356df8: 34 threads: pid 228: airportd
Backtrace (CPU 16), panicked thread: 0xffffff8808730598, Frame : Return Address
0xffffffffffd6afc0 : 0xffffff8017dedf9d
0xffffffffffd6b010 : 0xffffff8017f5b786
0xffffffffffd6b050 : 0xffffff8017f4aa10
0xffffffffffd6b0a0 : 0xffffff8017d88951
0xffffffffffd6b0c0 : 0xffffff8017dee27d
0xffffffffffd6b1b0 : 0xffffff8017ded929
0xffffffffffd6b210 : 0xffffff80185e0ecb
0xffffffffffd6b300 : 0xffffff8017f4aee3
0xffffffffffd6b480 : 0xffffff8017f4abd2
0xffffffffffd6b4d0 : 0xffffff8017d88951
0xffffffffffd6b4f0 : 0xffffff8017b01057
0xffffffffffd6b620 : 0xffffff801bdc2765
0xffffffffffd6b6a0 : 0xffffff8019aba4c0
0xffffffffffd6baf0 : 0xffffff8019ad1dfe
0xffffffffffd6bb20 : 0xffffff8019ad5917
0xffffffffffd6bb80 : 0xffffff801a5a8ef2
0xffffffffffd6bbb0 : 0xffffff80185162f4
0xffffffffffd6bc10 : 0xffffff801a5a8f6a
0xffffffffffd6bc70 : 0xffffff8019ad57d5
0xffffffffffd6bca0 : 0xffffff8018053f87
0xffffffffffd6bd00 : 0xffffff801804ae4e
0xffffffffffd6bdb0 : 0xffffff80180513af
0xffffffffffd6bde0 : 0xffffff8018351765
0xffffffffffd6be40 : 0xffffff801834c44e
0xffffffffffd6bf40 : 0xffffff801845606b
0xffffffffffd6bfa0 : 0xffffff8017d88d96
      Kernel Extensions in backtrace:
         com.apple.iokit.IONetworkingFamily(3.4)[B4C9DF98-D9E5-3460-967C-55853B28D162]@0xffffff801a59e000->0xffffff801a5b4fff
         com.apple.iokit.IO80211FamilyLegacy(1200.12.2b1)[E84C2807-ECFC-38F9-9EFB-91740FDC2199]@0xffffff8019a3f000->0xffffff8019b84fff
            dependency: com.apple.driver.AppleMobileFileIntegrity(1.0.5)[2E7C729D-2485-32DC-B478-D490A81E1419]@0xffffff8019391000->0xffffff80193bffff
            dependency: com.apple.driver.corecapture(1.0.4)[EB19F50F-F267-3463-BBCF-777D4AAFD797]@0xffffff801afee000->0xffffff801b010fff
            dependency: com.apple.iokit.CoreAnalyticsFamily(1)[72620FD1-D89B-3033-B43E-D883078906E1]@0xffffff80196db000->0xffffff80196e4fff
            dependency: com.apple.iokit.IONetworkingFamily(3.4)[B4C9DF98-D9E5-3460-967C-55853B28D162]@0xffffff801a59e000->0xffffff801a5b4fff
            dependency: com.apple.iokit.IOSkywalkFamily(1.0)[91CA74BE-8DD8-38F9-9584-6C872AC07072]@0xffffff801a8e8000->0xffffff801a915fff
            dependency: com.apple.kec.corecrypto(12.0)[A589451C-2D9B-3094-B16B-9FBA03EF7EAD]@0xffffff801b01f000->0xffffff801b096fff
         com.zxystd.AirportItlwm(2.1)[FA02D059-D593-3D8E-A031-1F99EA4D67EB]@0xffffff801bd0b000->0xffffff801cca4fff
            dependency: com.apple.iokit.IO80211FamilyLegacy(1200.12.2b1)[E84C2807-ECFC-38F9-9EFB-91740FDC2199]@0xffffff8019a3f000->0xffffff8019b84fff
            dependency: com.apple.iokit.IONetworkingFamily(3.4)[B4C9DF98-D9E5-3460-967C-55853B28D162]@0xffffff801a59e000->0xffffff801a5b4fff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[E2CE416B-59DA-3836-9985-FDC527C5E6C7]@0xffffff801a7ff000->0xffffff801a82efff

Process name corresponding to current thread (0xffffff8808730598): airportd
Boot args: -v agdpmod=pikera

Mac OS version:
22A380

Kernel version:
Darwin Kernel Version 22.1.0: Sun Oct  9 20:14:54 PDT 2022; root:xnu-8792.41.9~2/RELEASE_X86_64
Kernel UUID: BF7C9676-EF23-3E8D-A2E2-25DAC63091B6
roots installed: 0
KernelCache slide: 0x0000000017a00000
KernelCache base:  0xffffff8017c00000
Kernel slide:      0x0000000017adc000
Kernel text base:  0xffffff8017cdc000
__HIB  text base: 0xffffff8017b00000
System model name: MacPro7,1 (Mac-27AD2F918AE68F61)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 100981203458
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x0000001782f2e482
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x00000027b0ebcac3 0x0000000000000000
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
  Zone map: 0xffffff8187063000 - 0xffffffa187063000
  . PGZ   : 0xffffff8187063000 - 0xffffff81a7060000
  . VM    : 0xffffff81a7060000 - 0xffffff866f060000
  . RO    : 0xffffff866f060000 - 0xffffff8807060000
  . GEN0  : 0xffffff8807060000 - 0xffffff8ccf060000
  . GEN1  : 0xffffff8ccf060000 - 0xffffff9197060000
  . GEN2  : 0xffffff9197060000 - 0xffffff965f060000
  . GEN3  : 0xffffff965f060000 - 0xffffff9b27061000
  . DATA  : 0xffffff9b27061000 - 0xffffffa187063000
  Metadata: 0xffffffc035dee000 - 0xffffffc055dee000
  Bitmaps : 0xffffffc055dee000 - 0xffffffc075dee000

before the system restarts, lemme paste the panic. Please help @fabiosun @Ploddles

[Ploddles]

33 minutes ago, Jaidy said:

were you able to install Ventura? I just updated but it restarts with a kernel panic for IONetworkingFamilyLegacy and a whole bunch of those

I only managed to install by updating Monterey. I haven’t tried an install from scratch with the latest release. It just reboots on the 2nd part of the install and goes to the Monterey recovery consol with the last few betas. I just exited the Monterey recovery consol to get back into Monterey.
I’ll leave it a couple of days and then try another fresh install once the mad rush for the download is over.

[Jaidy]

4 minutes ago, Ploddles said:

I only managed to install by updating Monterey. I haven’t tried an install from scratch with the latest release. It just reboots on the 2nd part of the install and goes to the Monterey recovery consol with the last few betas. I just exited the Monterey recovery consol to get back into Monterey.
I’ll leave it a couple of days and then try another fresh install once the mad rush for the download is over.

there's something funny happening. When I boot from USB, it boots and does not restart. So I replaced the EFI on my internal disk with the EFI on the USB. And then booting from the internal SSD still reboots. This is strange!

[Jaidy]

@fabiosun @Ploddles @iGPU so I can detect a pattern now. There are times when my WiFi does not connect, but it is attempting to connect. That times it reboots. Other times when it can connect to my WiFi, it does not restart. Any ideas how to fix it?



I must mention that I have a USB WiFi dongle too. But I have tried uninstalling it completely and disconnecting from my machine, and the above pattern still holds.

[shrisha]

Got notification this morning 🙂

Fabio, can you please tell if there is any difference in graphics performance compare to Monterey? Since Ventura is introducing Metal 3 I'm curious if it will worth to upgrade.

[fabiosun]

3 minutes ago, shrisha said:

Got notification this morning 🙂

Fabio, can you please tell if there is any difference in graphics performance compare to Monterey? Since Ventura is introducing Metal 3 I'm curious if it will worth to upgrade.



In apps I use performances is pretty the same

for me it is always worth to update 🙂
