trx40 [Discussion] - TRX40 Bare Metal - Vanilla Patches

valmeida · October 29, 2020

On 10/27/2020 at 8:22 PM, iGPU said:

Hi all.

I got COVID two weeks ago. I self-treated at home and did well until this past weekend when the "cytokine storm" hit me (I was too conservative with steroid use). A 3-day hospital admission tuned me up and excluded some really serious stuff that I fortunately did not have (DVT/PE). I left hospital today; now back at home and reading this thread on my laptop with supplemental oxygen (and lots of steroids and blood thinners).

BTW, I sero-converted, meaning I now have antibodies to COVID. This means I now have natural immunity with no need for a vaccine. (The idea of herd immunity is to either naturally develop antibodies from COVID directly, or, develop antibodies by receiving a vaccine.)

Hopefully this week I'll get to use the TRX40 again. (Actually, it's been on for past 2 weeks as I was editing a video-documentary on it when I got sick and was unable to easily turn it off. Very stable machine!)

Feel better great to have you back . Both my sisters and brother in laws had it and recovered. God bless your ok and welcome back.

fabiosun · October 29, 2020

Ploddles · October 29, 2020

I saw a post late yesterday on another site, but it seems to have disappeared now, that suggested it was an update to better support the new AMD 6000 cards when they are released. Probably just a rumour as it was released on the same day as the announcement, but who knows.

Driftwood · October 29, 2020

Big Sur Update to macOS 11.0.1 (20B5012d) all good and Sleep/restart working fine.

Jaidy · October 29, 2020

8 hours ago, AllubzV said:

@fabiosunHah, ow, woops! I remember something going wrong there a while back. I'll stick to the account that actually has posts then 😄 Sorry for going offtopic. When all is ready, I'll jump on the B550 (Probably VISION D), 5900X, and 6800XT bandwagon. I got a feeling macOS support is going to be A-OK, so let's hope that holds up.

@ckrueger99 There's indeed a good chance of Radeon VII's coming available, but the people who have them would sell them to upgrade, and seeing their price point and thermal limitations, I think most new userse would opt for a 6800 (XT) as well. Still, the VII's are great cards!

@Jaidy This really is the drag between Apple and NVIDIA. NVIDIA writes all their stuff as closed-source as possible, so reverse-engineering an up-to-date driver for macOS, especially with full-feature support like CUDA, seems highly unlikely. AMD GPU's simply can't produce CUDA results, because they lack the specific cores in their architecture; it's NVIDIA-only as far as I know. AMD uses Stream Processors and Compute Units, which serve a similar function but are ran on OpenGL rather than CUDA. Besides, with the 6000-series AMD GPU's around the corner, there is little reason to prefer NVIDIA over its AMD counterpart.

You are correct to the point that CUDA is closed source, and leverages nVidia's specific hardware. Though OpenCL can do much of what CUDA does, in the sense of freeing us from the worries of allocating and de-allocating memory manually, and also moving data between VRAM and system RAM. I am a Ph.D. student in computer science, and I do numerical linear algebra, and its applications in machine learning. I need to perform computations with huge matrices. They can be parallelized in openCL too, just that the CUDA wrappers are way too sweet. If someone writes similar wrappers for AMD GPUs using openCL (I am not sure about Vulkan if that is another API?), AMD has had higher theoretical TFLOPs till last generation!

And Apple and Nvidia need to grow up. Besides Apple too likes to keep things proprietary (just look at the lightening connector). Anyway, the Navi 2 series is awesome, and I am so looking forward to getting my hands on one of these! 🙂

Edited October 29, 2020 by Jaidy

meina222 · October 31, 2020

No Catalina update for me on Proxmox either. I wonder why that is. Big Sur 11.0.1 installed without a problem as with others.

fabiosun · November 2, 2020

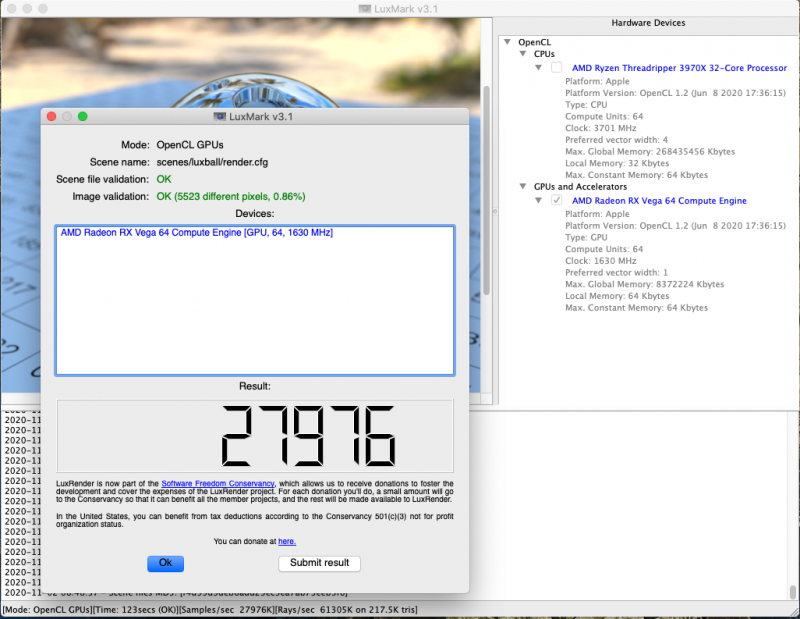

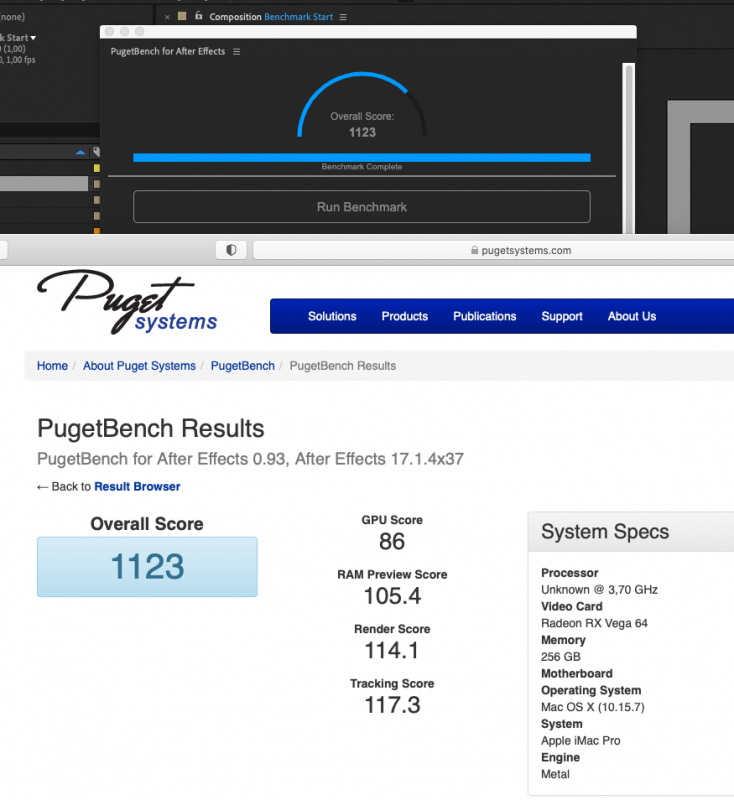

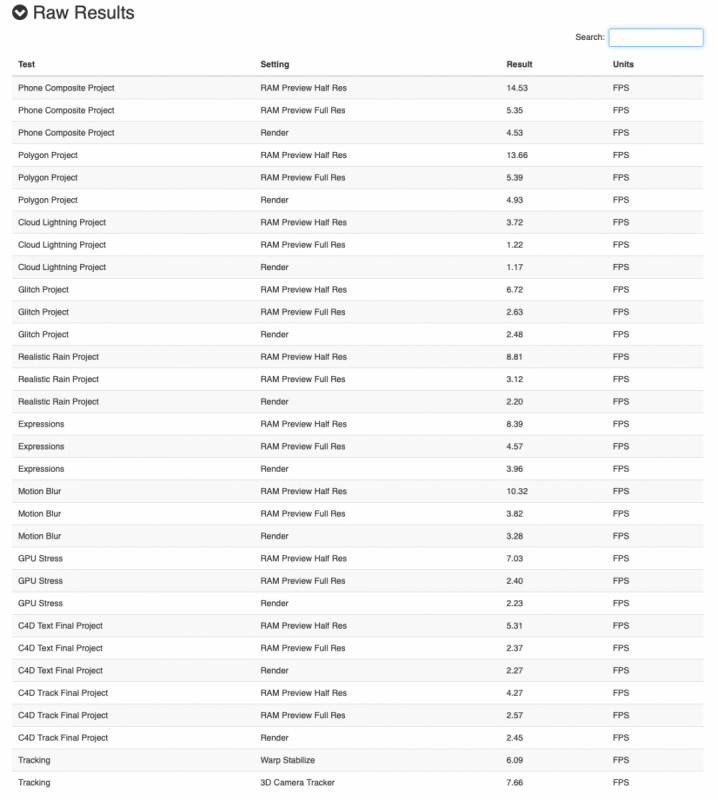

macOS Catalina 10.15.7 (19H4) benchmarks (Sabrent NVME 1 Tb Disk):

fabiosun · November 2, 2020

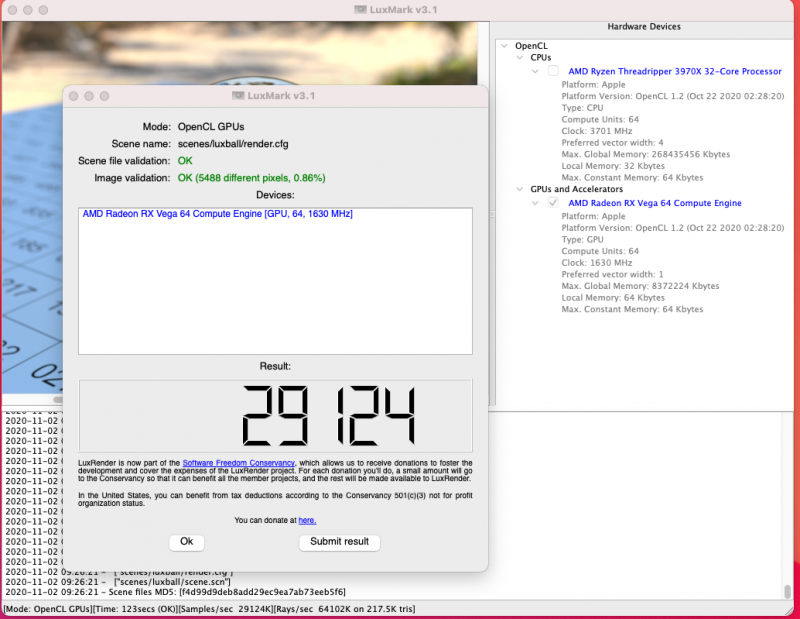

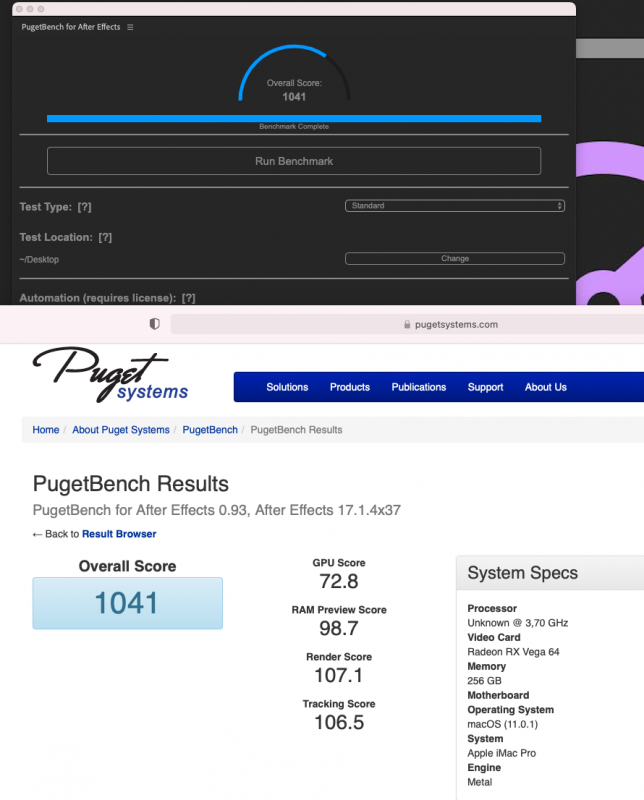

macOS Big Sur 11.0.1(20B5012d) benchmarks Samsung Pro 840 SSD Disk:

Rox67er · November 2, 2020

On 10/31/2020 at 1:15 AM, meina222 said:

No Catalina update for me on Proxmox either. I wonder why that is. Big Sur 11.0.1 installed without a problem as with others.

Strange, I also don't see it. Both on TRX40 and my MacBook Pro still at 19H2

I did find out why I'm not getting the Big Sur update when enrolling in developer seed. I had some weird csr-active-config setting. After resetting to 00000000 it now works fine, but still no 19H4 upgrade.

Rox67er · November 2, 2020

@fabiosun Some impressive benchmarks, looks like Big Sur is really reaching GM status soon.

fabiosun · November 2, 2020

Now @Rox67erI am using it as my primary system

It works in my daily tasks as Catalina does or previously macOS High Sierra did

Rox67er · November 2, 2020

54 minutes ago, fabiosun said:

Now @Rox67erI am using it as my primary system

It works in my daily tasks as Catalina does or previously macOS High Sierra did

Interesting, I have been holding off to really switching over but didn't update latest beta versions. I just tried and now my Big Sur disk will not boot. Freezes immediately at start. Installed 0.6.3 debug but must have screwed up my plist somewhere...

fabiosun · November 2, 2020

and......for Clover Bootloader Lovers!

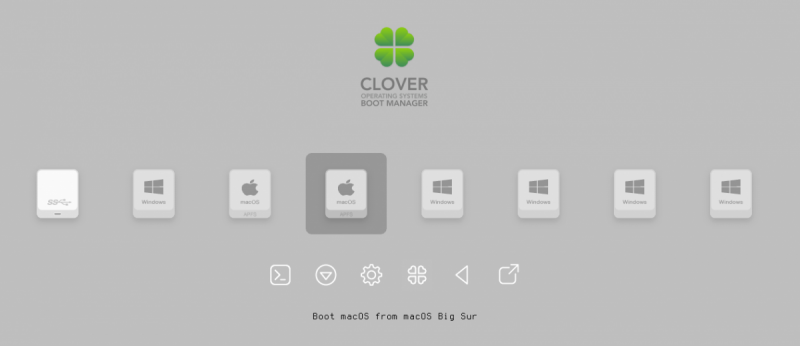

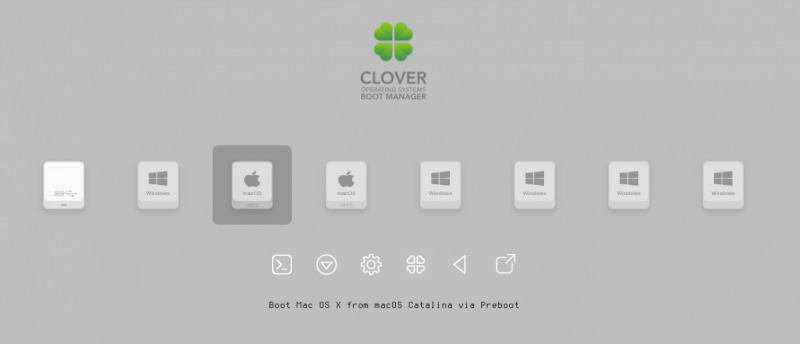

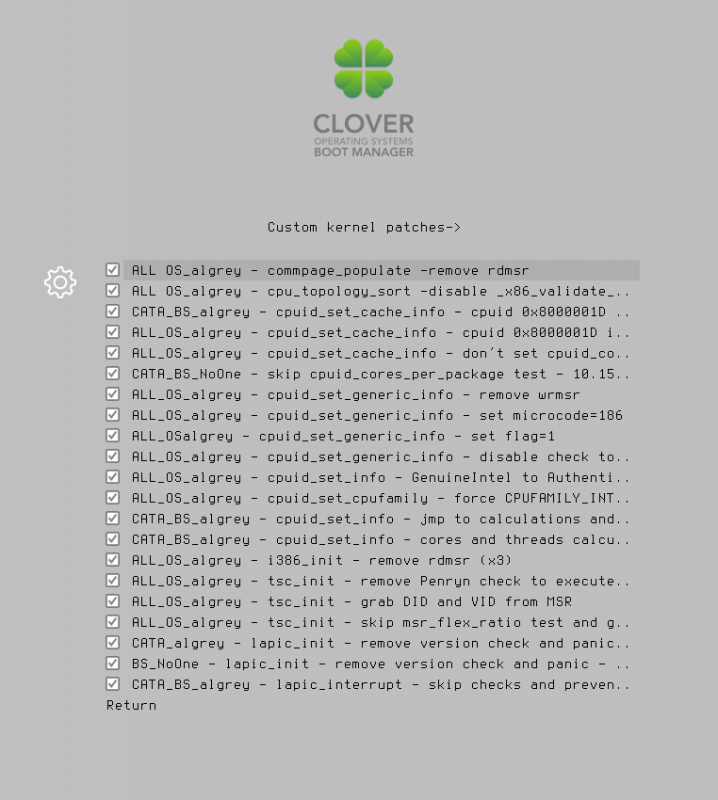

complete config.plist, it installs and boots macOS Catalina 10.15.7 (19H4) and Big Sur 11.0.1 (20B5012d)

and these attached are debugs for both booting systems:

Spoiler


<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>#DisableDrivers</key>
	<array>
		<string>CsmVideoDxe</string>
		<string>VBoxExt4</string>
	</array>
	<key>ACPI</key>
	<dict>
		<key>#PatchAPIC</key>
		<false/>
		<key>#ResetAddress</key>
		<string>0x64</string>
		<key>#ResetValue</key>
		<string>0xFE</string>
		<key>#SortedOrder</key>
		<array>
			<string>SSDT-3.aml</string>
			<string>SSDT-1.aml</string>
			<string>SSDT-2.aml</string>
		</array>
		<key>#smartUPS</key>
		<false/>
		<key>AutoMerge</key>
		<false/>
		<key>DSDT</key>
		<dict>
			<key>#Rtc8Allowed</key>
			<false/>
			<key>#SuspendOverride</key>
			<false/>
			<key>Debug</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP</key>
				<false/>
				<key>AddHDMI</key>
				<true/>
				<key>AddIMEI</key>
				<false/>
				<key>AddMCHC</key>
				<false/>
				<key>AddPNLF</key>
				<true/>
				<key>DeleteUnused</key>
				<true/>
				<key>FakeLPC</key>
				<false/>
				<key>FixACST</key>
				<true/>
				<key>FixADP1</key>
				<true/>
				<key>FixAirport</key>
				<false/>
				<key>FixDarwin</key>
				<false/>
				<key>FixDarwin7</key>
				<true/>
				<key>FixDisplay</key>
				<false/>
				<key>FixFirewire</key>
				<false/>
				<key>FixHDA</key>
				<false/>
				<key>FixHPET</key>
				<false/>
				<key>FixIDE</key>
				<false/>
				<key>FixIPIC</key>
				<false/>
				<key>FixIntelGfx</key>
				<false/>
				<key>FixLAN</key>
				<false/>
				<key>FixMutex</key>
				<false/>
				<key>FixRTC</key>
				<true/>
				<key>FixRegions</key>
				<true/>
				<key>FixS3D</key>
				<true/>
				<key>FixSATA</key>
				<false/>
				<key>FixSBUS</key>
				<false/>
				<key>FixShutdown</key>
				<false/>
				<key>FixTMR</key>
				<true/>
				<key>FixUSB</key>
				<false/>
				<key>FixWAK</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>PNLF_UID</key>
			<string>0x0A</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DisableASPM</key>
		<false/>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>#Length</key>
				<integer>720</integer>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
			<dict>
				<key>DropForAllOS</key>
				<true/>
				<key>Signature</key>
				<string>BGRT</string>
			</dict>
		</array>
		<key>FixHeaders</key>
		<false/>
		<key>FixMCFG</key>
		<false/>
		<key>HaltEnabler</key>
		<false/>
		<key>RenameDevices</key>
		<dict>
			<key>#_SB.PCI0.RP01.PXSX</key>
			<string>ARPT</string>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>#C3Latency</key>
			<string>0x03E7</string>
			<key>#DoubleFirstState</key>
			<true/>
			<key>#DropOem</key>
			<true/>
			<key>#EnableC2</key>
			<false/>
			<key>#EnableC4</key>
			<false/>
			<key>#EnableC6</key>
			<true/>
			<key>#EnableC7</key>
			<false/>
			<key>#MaxMultiplier</key>
			<integer>12</integer>
			<key>#MinMultiplier</key>
			<integer>8</integer>
			<key>#NoDynamicExtract</key>
			<false/>
			<key>#NoOemTableId</key>
			<false/>
			<key>#PLimitDict</key>
			<integer>1</integer>
			<key>#PluginType</key>
			<integer>0</integer>
			<key>#UnderVoltStep</key>
			<integer>1</integer>
			<key>#UseSystemIO</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>#APLF</key>
				<false/>
				<key>#APSN</key>
				<false/>
				<key>#PluginType</key>
				<false/>
				<key>CStates</key>
				<true/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>#Arguments</key>
		<string>slide=0 darkwake=0</string>
		<key>#DefaultLoader</key>
		<string>boot.efi</string>
		<key>#LegacyBiosDefaultEntry</key>
		<integer>0</integer>
		<key>#XMPDetection</key>
		<string>-1</string>
		<key>Arguments</key>
		<string>-v</string>
		<key>CustomLogo</key>
		<false/>
		<key>Debug</key>
		<true/>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
		<key>DisableCloverHotkeys</key>
		<false/>
		<key>Legacy</key>
		<string>PBR</string>
		<key>NeverDoRecovery</key>
		<true/>
		<key>NeverHibernate</key>
		<false/>
		<key>RtcHibernateAware</key>
		<false/>
		<key>SignatureFixup</key>
		<false/>
		<key>SkipHibernateTimeout</key>
		<false/>
		<key>StrictHibernate</key>
		<false/>
		<key>Timeout</key>
		<integer>25</integer>
	</dict>
	<key>BootGraphics</key>
	<dict>
		<key>#DefaultBackgroundColor</key>
		<string>0xF0F0F0</string>
		<key>EFILoginHiDPI</key>
		<integer>1</integer>
		<key>UIScale</key>
		<integer>1</integer>
	</dict>
	<key>CPU</key>
	<dict>
		<key>#BusSpeedkHz</key>
		<integer>133330</integer>
		<key>#FrequencyMHz</key>
		<integer>3140</integer>
		<key>#HWPEnable</key>
		<true/>
		<key>#HWPValue</key>
		<string>0x30002a01</string>
		<key>#QPI</key>
		<integer>4800</integer>
		<key>#SavingMode</key>
		<integer>7</integer>
		<key>#TDP</key>
		<integer>95</integer>
		<key>#TurboDisable</key>
		<true/>
		<key>#Type</key>
		<string>0x0201</string>
		<key>#UseARTFrequency</key>
		<true/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>#DisableFunctions</key>
		<string>0x18F6</string>
		<key>#FakeID</key>
		<dict>
			<key>#ATI</key>
			<string>0x67501002</string>
			<key>#IMEI</key>
			<string>0x1e208086</string>
			<key>#IntelGFX</key>
			<string>0x01668086</string>
			<key>#LAN</key>
			<string>0x100E8086</string>
			<key>#NVidia</key>
			<string>0x11de10de</string>
			<key>#SATA</key>
			<string>0x26818086</string>
			<key>#WIFI</key>
			<string>0x0030168C</string>
			<key>#XHCI</key>
			<string>0x0</string>
		</dict>
		<key>#ForceHPET</key>
		<false/>
		<key>#IntelMaxValue</key>
		<string>0x710</string>
		<key>#NoDefaultProperties</key>
		<true/>
		<key>#Properties</key>
		<dict>
			<key>PciRoot(0x0)/Pci(0x14,0x0)</key>
			<dict>
				<key>#Comment</key>
				<string>This is USB3.0</string>
				<key>AAPL,clock-id</key>
				<data>
				AA==
				</data>
				<key>AAPL,current-available</key>
				<data>
				sAQ=
				</data>
				<key>AAPL,current-extra</key>
				<data>
				vAI=
				</data>
				<key>AAPL,current-in-sleep</key>
				<data>
				6AM=
				</data>
				<key>built-in</key>
				<data>
				AA==
				</data>
				<key>device_type</key>
				<string>XHCI</string>
			</dict>
			<key>PciRoot(0x0)/Pci(0x19,0x0)</key>
			<dict>
				<key>built-in</key>
				<data>
				AQ==
				</data>
			</dict>
			<key>PciRoot(0x0)/Pci(0x1a,0x0)</key>
			<dict>
				<key>AAPL,clock-id</key>
				<data>
				AQ==
				</data>
				<key>AAPL,current-available</key>
				<data>
				sAQ=
				</data>
				<key>AAPL,current-extra</key>
				<data>
				vAI=
				</data>
				<key>AAPL,current-in-sleep</key>
				<data>
				6AM=
				</data>
				<key>built-in</key>
				<data>
				AA==
				</data>
				<key>device_type</key>
				<string>EHCI</string>
			</dict>
			<key>PciRoot(0x0)/Pci(0x1b,0x0)</key>
			<dict>
				<key>hda-gfx</key>
				<string>onboard-1</string>
			</dict>
			<key>PciRoot(0x0)/Pci(0x1c,0x1)/Pci(0x0,0x0)</key>
			<dict>
				<key>device_type</key>
				<string>Airport</string>
				<key>model</key>
				<string>Apple WiFi card</string>
				<key>name</key>
				<string>AirPort Extreme</string>
				<key>subsystem-vendor-id</key>
				<data>
				axAAAA==
				</data>
			</dict>
			<key>PciRoot(0x0)/Pci(0x1c,0x5)/Pci(0x0,0x0)</key>
			<dict>
				<key>compatible</key>
				<string>pci14e4,16bc</string>
				<key>device_type</key>
				<string>Media controller</string>
				<key>model</key>
				<string>O2 Micro SD card reader</string>
				<key>name</key>
				<string>AirPort Extreme</string>
				<key>subsystem-vendor-id</key>
				<data>
				axAAAA==
				</data>
			</dict>
			<key>PciRoot(0x0)/Pci(0x1d,0x0)</key>
			<dict>
				<key>AAPL,clock-id</key>
				<data>
				Ag==
				</data>
				<key>AAPL,current-available</key>
				<data>
				sAQ=
				</data>
				<key>AAPL,current-extra</key>
				<data>
				vAI=
				</data>
				<key>AAPL,current-in-sleep</key>
				<data>
				6AM=
				</data>
				<key>built-in</key>
				<data>
				AA==
				</data>
				<key>device_type</key>
				<string>EHCI</string>
			</dict>
			<key>PciRoot(0x0)/Pci(0x2,0x0)</key>
			<dict>
				<key>#AAPL00,override-no-connect</key>
				<data>
				AP///////wANr2kUAAAAABYWAQSgHxF4AtFFm1lXjisj
				UFQAAAABAQEBAQEBAQEBAQEBAQEBEhtWclAADDAQZCYA
				Na4QAAAaDBJWclAADDAQIiYANa4QAAAaAAAA/gA3SlJU
				OYAxNDBCR0UKAAAAAAAAQTGUAAAAAAEBCiAgAMU=
				</data>
				<key>@0,backlight-control</key>
				<data>
				AQAAAA==
				</data>
				<key>AAPL,HasLid</key>
				<data>
				AQAAAA==
				</data>
				<key>AAPL,HasPanel</key>
				<data>
				AQAAAA==
				</data>
				<key>AAPL,backlight-control</key>
				<data>
				AQAAAA==
				</data>
				<key>AAPL,ig-platform-id</key>
				<data>
				AwBmAQ==
				</data>
				<key>class-code</key>
				<data>
				AAADAA==
				</data>
				<key>device-id</key>
				<data>
				ZgEAAA==
				</data>
				<key>graphic-options</key>
				<data>
				DAAAAA==
				</data>
				<key>model</key>
				<string>Intel HD Graphics 4000</string>
				<key>subsystem-vendor-id</key>
				<data>
				axAAAA==
				</data>
				<key>vendor-id</key>
				<data>
				hoAAAA==
				</data>
			</dict>
			<key>SecondaryGPU</key>
			<dict>
				<key>device-id</key>
				<data>
				/////w==
				</data>
			</dict>
		</dict>
		<key>#SetIntelBacklight</key>
		<false/>
		<key>#SetIntelMaxBacklight</key>
		<true/>
		<key>Audio</key>
		<dict>
			<key>#Inject</key>
			<string>12</string>
			<key>AFGLowPowerState</key>
			<true/>
			<key>ResetHDA</key>
			<true/>
		</dict>
		<key>HDMIInjection</key>
		<false/>
		<key>LANInjection</key>
		<false/>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<true/>
			<key>HighCurrent</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
		<key>UseIntelHDMI</key>
		<false/>
	</dict>
	<key>GUI</key>
	<dict>
		<key>#ConsoleMode</key>
		<string>0</string>
		<key>#Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>Hidden</key>
					<false/>
					<key>Image</key>
					<string>os_mageia</string>
					<key>Path</key>
					<string>\EFI\MAGEIA\GRUBX64.efi</string>
					<key>Title</key>
					<string>Mageia Linux</string>
					<key>Type</key>
					<string>Linux</string>
				</dict>
				<dict>
					<key>AddArguments</key>
					<string>-v</string>
					<key>Arguments</key>
					<string>Kernel=mach_kernel</string>
					<key>Disabled</key>
					<true/>
					<key>Hidden</key>
					<false/>
					<key>Hotkey</key>
					<string>M</string>
					<key>InjectKexts</key>
					<false/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\EFI\BOOT\BOOTX64.efi</string>
					<key>Title</key>
					<string>MyCustomEntry</string>
					<key>Type</key>
					<string>OSXRecovery</string>
					<key>Volume</key>
					<string>D68F1885-571C-4441-8DD5-F14803EFEF54</string>
				</dict>
				<dict>
					<key>Hidden</key>
					<false/>
					<key>InjectKexts</key>
					<false/>
					<key>NoCaches</key>
					<false/>
					<key>SubEntries</key>
					<array>
						<dict>
							<key>AddArguments</key>
							<string>-v</string>
							<key>Title</key>
							<string>Boot OS X 10.8.5 (12F36) Mountain Lion in Verbose Mode</string>
						</dict>
					</array>
					<key>Title</key>
					<string>OS X 10.8.5 (12F36) Mountain Lion</string>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>454794AC-760D-46E8-8F77-D6EB23D2FD32</string>
				</dict>
			</array>
			<key>Legacy</key>
			<array>
				<dict>
					<key>Disabled</key>
					<true/>
					<key>Hidden</key>
					<false/>
					<key>Hotkey</key>
					<string>L</string>
					<key>Title</key>
					<string>MyLegacyEntry</string>
					<key>Type</key>
					<string>Windows</string>
					<key>Volume</key>
					<string>89433CD3-21F2-4D3C-95FC-722C48066D3A</string>
				</dict>
			</array>
			<key>Tool</key>
			<array>
				<dict>
					<key>Arguments</key>
					<string>-b</string>
					<key>Disabled</key>
					<false/>
					<key>Hidden</key>
					<false/>
					<key>Hotkey</key>
					<string>S</string>
					<key>Path</key>
					<string>\EFI\CLOVER\TOOLS\Shell64-v1.efi</string>
					<key>Title</key>
					<string>MyCustomShell</string>
					<key>Volume</key>
					<string>D68F1885-571C-4441-8DD5-F14803EFEF54</string>
				</dict>
			</array>
		</dict>
		<key>#CustomIcons</key>
		<false/>
		<key>#Hide</key>
		<array>
			<string>Windows</string>
			<string>BOOTX64.EFI</string>
		</array>
		<key>#KbdPrevLang</key>
		<false/>
		<key>#Language</key>
		<string>ru:0</string>
		<key>#Mouse</key>
		<dict>
			<key>Enabled</key>
			<true/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>2</integer>
		</dict>
		<key>#Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<false/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>#TextOnly</key>
		<false/>
		<key>EmbeddedThemeType</key>
		<string>Daytime</string>
		<key>Hide</key>
		<array>
			<string>System Reserved</string>
			<string>Update</string>
		</array>
		<key>Language</key>
		<string>it:4</string>
		<key>PlayAsync</key>
		<false/>
		<key>Scan</key>
		<dict>
			<key>Kernel</key>
			<string>All</string>
		</dict>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
		<key>ShowOptimus</key>
		<false/>
		<key>Theme</key>
		<string>embedded</string>
		<key>Timezone</key>
		<integer>3</integer>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>#Connectors</key>
		<array/>
		<key>#DualLink</key>
		<integer>0</integer>
		<key>#FBName</key>
		<string>Makakakakala</string>
		<key>#Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>#LoadVBios</key>
		<false/>
		<key>#NVCAP</key>
		<string>04000000000003000C0000000000000A00000000</string>
		<key>#NvidiaGeneric</key>
		<true/>
		<key>#NvidiaNoEFI</key>
		<false/>
		<key>#NvidiaSingle</key>
		<false/>
		<key>#PatchVBios</key>
		<false/>
		<key>#PatchVBiosBytes</key>
		<array>
			<dict>
				<key>Find</key>
				<data>
				gAeoAqAF
				</data>
				<key>Replace</key>
				<data>
				gAeoAjgE
				</data>
			</dict>
		</array>
		<key>#RadeonDeInit</key>
		<true/>
		<key>#VRAM</key>
		<integer>1024</integer>
		<key>#VideoPorts</key>
		<integer>2</integer>
		<key>#display-cfg</key>
		<string>03010300FFFF0001</string>
		<key>#ig-platform-id</key>
		<string>0x01620005</string>
		<key>EDID</key>
		<dict>
			<key>#Custom</key>
			<data>
			AP///////wAGECGSAAAAAAASAQOAIRV4CunVmVlTjigmUFQAAAAB
			AQEBAQEBAQEBAQEBAQEB3iGgcFCEHzAgIFYAS88QAAAY3iGgcFCE
			HzAgIFYAS88QAAAAAAAA/gBXNjU3RwAxNTRXUDEKAAAA/gAjMz1I
			ZYSq/wIBCiAgAJo=
			</data>
			<key>#HorizontalSyncPulseWidth</key>
			<string>0x11</string>
			<key>#Inject</key>
			<true/>
			<key>#ProductID</key>
			<string>0x9221</string>
			<key>#VendorID</key>
			<string>0x1006</string>
			<key>#VideoInputSignal</key>
			<string>0xA1</string>
		</dict>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>#ATIConnectorsController</key>
		<string>6000</string>
		<key>#ATIConnectorsData</key>
		<string>000400000403000000010000210302040400000014020000000100000000040310000000100000000001000000000001</string>
		<key>#ATIConnectorsPatch</key>
		<string>040000001402000000010000000004040004000004030000000100001102010500000000000000000000000000000000</string>
		<key>#BootPatches</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Example</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>MatchOS</key>
				<string>All</string>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
			</dict>
		</array>
		<key>#FakeCPUID</key>
		<string>0x010676</string>
		<key>#ForceKextsToLoad</key>
		<array>
			<string>\System\Library\Extensions\AMD6000Controller.kext</string>
			<string>\System\Library\Extensions\AMDFramebuffer.kext</string>
		</array>
		<key>AppleIntelCPUPM</key>
		<false/>
		<key>AppleRTC</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>DellSMBIOSPatch</key>
		<false/>
		<key>EightApple</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<false/>
		<key>KernelToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>ALL OS_algrey - commpage_populate -remove rdmsr</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uaABAAAPMg==
				</data>
				<key>MaskFind</key>
				<data>
				</data>
				<key>MaskReplace</key>
				<data>
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				Dx+AAAAAAA==
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				6AAA//8=
				</data>
				<key>MaskFind</key>
				<data>
				/wAA//8=
				</data>
				<key>MaskReplace</key>
				<data>
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Procedure</key>
				<string>_cpu_topology_sort</string>
				<key>Replace</key>
				<data>
				Dx9EAAA=
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				McAx2zHJMdIPokGJxgAAAAAAAAB0
				</data>
				<key>MaskFind</key>
				<data>
				/////////////////wAAAAAA////
				</data>
				<key>MaskReplace</key>
				<data>
				</data>
				<key>MatchOS</key>
				<string>10.15.x,11.x</string>
				<key>Replace</key>
				<data>
				uB0AAIAx2zHJMdIPokGJxg8fQADr
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uAQAAABEifFEiQ==
				</data>
				<key>MaskReplace</key>
				<data>
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				uB0AAIBEifFEiQ==
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				weAa/8A=
				</data>
				<key>MaskFind</key>
				<data>
				//D///A=
				</data>
				<key>MaskReplace</key>
				<data>
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				Dx8A6wY=
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16</string>
				<key>Count</key>
				<integer>0</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				gz0AAAAAAA8AAAAAAIsAvA==
				</data>
				<key>MaskFind</key>
				<data>
				//8AAAD///8AAAAA//8A/w==
				</data>
				<key>MaskReplace</key>
				<data>
				AAAAAAAADwAAAAAAAAAAAA==
				</data>
				<key>MatchOS</key>
				<string>10.15.x,11.x</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAQAAAAAAAAAAAA==
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uYsAAAAxwDHSDzA=
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				Zg8fhAAAAAAAZpA=
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - cpuid_set_generic_info - set microcode=186</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uYsAAAAPMg==
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				uroAAABmkA==
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OSalgrey - cpuid_set_generic_info - set flag=1</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uRcAAAAPMsHqEoDiBw==
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				sgFmDx+EAAAAAABmkA==
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				ADoPgg==
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				AAAPgg==
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				R2VudWluZUludGVsAA==
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				QXV0aGVudGljQU1EAA==
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				MduAPQAAAAAGdQA=
				</data>
				<key>MaskFind</key>
				<data>
				/////wAAAP///wA=
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				u7xP6njpXQAAAJA=
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				dXHoAAAAAEiLBQAAAABIiQUAAAAA
				</data>
				<key>MaskFind</key>
				<data>
				////AAAAAP///wAAAAD///8AAAAA
				</data>
				<key>MaskReplace</key>
				<data>
				//8AAAAAAP///wAAAAD/////////
				</data>
				<key>MatchOS</key>
				<string>10.15.x,11.x</string>
				<key>Procedure</key>
				<string>_cpuid_set_info</string>
				<key>Replace</key>
				<data>
				dE4AAAAAAJCJDQAAAADpfgAAAGaQ
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uTUAAAAPMkjB4iCJwUgJ0bkBAAEAD0XID7fBwekQg+EP
				6x65NQAAAA8ySMHiIInBSAnRuQEAAQAPRcgPt8HB6RA=
				</data>
				<key>MatchOS</key>
				<string>10.15.x,11.x</string>
				<key>Procedure</key>
				<string>_cpuid_set_info</string>
				<key>Replace</key>
				<data>
				uAgAAIAx2zHJMdIPokGJzkUPtvZB/8a4HgAAgDHbMckx
				0g+iD7b3/8ZEifEx0onI9/aJwUSJ8Ol8////Dx9EAAA=
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - i386_init - remove rdmsr (x3)</string>
				<key>Count</key>
				<integer>0</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uZkBAAAPMkjB4iCJxkgJ1rmYAQAADzJIweIgicBICcK/
				WAIxBTHJRTHA
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				Zg8fhAAAAAAAZg8fhAAAAAAAZg8fhAAAAAAAZg8fhAAA
				AAAAZg8fRAAA
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - tsc_init - remove Penryn check to execute default case</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				PbxP6ngPhAABAAA=
				</data>
				<key>MaskFind</key>
				<data>
				/////////wD///8=
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				ZmZmDx+EAAAAAAA=
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - tsc_init - grab DID and VID from MSR</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uZQBAAAPMonDuc4AAAAPMg+2zokNAAAAAA+2xIkFAAAA
				AA==
				</data>
				<key>MaskFind</key>
				<data>
				////////////////////////////AAAA////////AAAA
				/w==
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Replace</key>
				<data>
				uWQAAcAPMg+2yInGwe4Ig+Y/RTH/MdJIichI9/ZIAcBm
				kA==
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				98MAAAEAdA==
				</data>
				<key>MatchOS</key>
				<string>10.13.x, 10.14.x, 10.15.x, 11.x</string>
				<key>Procedure</key>
				<string>_tsc_init</string>
				<key>Replace</key>
				<data>
				Zg8fRAAA6w==
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>CATA_algrey - lapic_init - remove version check and panic - 10.15</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g/gTdl4=
				</data>
				<key>MatchOS</key>
				<string>10.15.x</string>
				<key>Replace</key>
				<data>
				Dx9EAAA=
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>BS_NoOne - lapic_init - remove version check and panic - 10.16</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g/gTD4aBAAAA
				</data>
				<key>MatchOS</key>
				<string>11.x</string>
				<key>Replace</key>
				<data>
				kJCQkJCQkJCQ
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
			<dict>
				<key>Comment</key>
				<string>CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				gz0AAAAAAHQO
				</data>
				<key>MaskFind</key>
				<data>
				//8AAAD/////
				</data>
				<key>MatchOS</key>
				<string>10.15.x,11.x</string>
				<key>Replace</key>
				<data>
				6zkPH4AAAAAA
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>
		</array>
		<key>KernelXCPM</key>
		<false/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Aquantia BigSur</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				D4TAAgAA
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MaskReplace</key>
				<data>
				/////wAA
				</data>
				<key>MatchOS</key>
				<string>11.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleEthernetAquantiaAqtion</string>
				<key>Replace</key>
				<data>
				Zg8fRAAA
				</data>
			</dict>
		</array>
		<key>PanicNoKextDump</key>
		<true/>
	</dict>
	<key>Quirks</key>
	<dict>
		<key>AppleXcpmExtraMsrs</key>
		<false/>
		<key>AppleXcpmForceBoost</key>
		<false/>
		<key>AvoidRuntimeDefrag</key>
		<true/>
		<key>DevirtualiseMmio</key>
		<true/>
		<key>DisableIoMapper</key>
		<false/>
		<key>DisableLinkeditJettison</key>
		<true/>
		<key>DisableRtcChecksum</key>
		<false/>
		<key>DisableSingleUser</key>
		<false/>
		<key>DisableVariableWrite</key>
		<false/>
		<key>DiscardHibernateMap</key>
		<false/>
		<key>DummyPowerManagement</key>
		<false/>
		<key>EnableSafeModeSlide</key>
		<true/>
		<key>EnableWriteUnprotector</key>
		<true/>
		<key>ExternalDiskIcons</key>
		<true/>
		<key>ForceExitBootServices</key>
		<false/>
		<key>FuzzyMatch</key>
		<true/>
		<key>IncreasePciBarSize</key>
		<false/>
		<key>KernelCache</key>
		<string>Auto</string>
		<key>MmioWhitelist</key>
		<array>
			<dict>
				<key>Address</key>
				<integer>3792699392</integer>
				<key>Comment</key>
				<string>MMIO       00000000E2100000-00000000E2180FFF 0000000000000081 8000000000000001</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>3810000896</integer>
				<key>Comment</key>
				<string>MMIO       00000000E3180000-00000000E3200FFF 0000000000000081 8000000000000001</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4010803200</integer>
				<key>Comment</key>
				<string>MMIO devirt 0xEF100000 (0x181 pages, 0x8000000000000001) skip 0</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4195876864</integer>
				<key>Comment</key>
				<string>FA180000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4197449728</integer>
				<key>Comment</key>
				<string>0xFA300000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4271898624</integer>
				<key>Comment</key>
				<string>0xFEA00000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4273995776</integer>
				<key>Comment</key>
				<string>0xFEC00000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4274061312</integer>
				<key>Comment</key>
				<string>0xFEC10000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4275044352</integer>
				<key>Comment</key>
				<string>0xFED00000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4275306496</integer>
				<key>Comment</key>
				<string>0xFED40000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4275568640</integer>
				<key>Comment</key>
				<string>0xFED80000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4275838976</integer>
				<key>Comment</key>
				<string>0xFEDC2000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4275912704</integer>
				<key>Comment</key>
				<string>0xFEDD4000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4276092928</integer>
				<key>Comment</key>
				<string>0xFEE00000</string>
				<key>Enabled</key>
				<false/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>4278190080</integer>
				<key>Comment</key>
				<string>0xFF000000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>275951648768</integer>
				<key>Comment</key>
				<string>0x4040000000</string>
				<key>Enabled</key>
				<true/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>599953244160</integer>
				<key>Comment</key>
				<string>0x8BB0000000</string>
				<key>Enabled</key>
				<false/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>600758550528</integer>
				<key>Comment</key>
				<string>0x8BE0000000</string>
				<key>Enabled</key>
				<false/>
			</dict>
			<dict>
				<key>Address</key>
				<integer>924760145920</integer>
				<key>Comment</key>
				<string>0xD750000000</string>
				<key>Enabled</key>
				<false/>
			</dict>
		</array>
		<key>PowerTimeoutKernelPanic</key>
		<false/>
		<key>ProtectMemoryRegions</key>
		<false/>
		<key>ProtectSecureBoot</key>
		<false/>
		<key>ProtectUefiServices</key>
		<false/>
		<key>ProvideConsoleGopEnable</key>
		<true/>
		<key>ProvideCustomSlide</key>
		<true/>
		<key>ProvideMaxSlide</key>
		<integer>0</integer>
		<key>RebuildAppleMemoryMap</key>
		<false/>
		<key>SetupVirtualMap</key>
		<false/>
		<key>SignalAppleOS</key>
		<false/>
		<key>SyncRuntimePermissions</key>
		<true/>
		<key>ThirdPartyDrives</key>
		<false/>
		<key>XhciPortLimit</key>
		<false/>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x3E7</string>
		<key>MLB</key>
		<string>C02032109R5DC771H</string>
		<key>ROM</key>
		<string>UseMacAddr0</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>07/12/2020</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>your data</string>
		<key>Board-ID</key>
		<string>your data</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>your data</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>BoardVersion</key>
		<string>1.0</string>
		<key>ChassisAssetTag</key>
		<string>iMacPro-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>0x09</string>
		<key>EfiVersion</key>
		<string>1539.0.0.0.1</string>
		<key>Family</key>
		<string>iMac Pro</string>
		<key>FirmwareFeatures</key>
		<string>your data</string>
		<key>FirmwareFeaturesMask</key>
		<string>your data</string>
		<key>LocationInChassis</key>
		<string>Part Component</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<false/>
		<key>NoRomInfo</key>
		<true/>
		<key>PlatformFeature</key>
		<string>0x20</string>
		<key>ProductName</key>
		<string>iMacPro1,1</string>
		<key>SerialNumber</key>
		<string>your data</string>
		<key>SmUUID</key>
		<string>your data</string>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>#BacklightLevel</key>
		<string>0x0501</string>
		<key>#CustomUUID</key>
		<string>511CE201-1000-4000-9999-010203040506</string>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
		<key>NvidiaWeb</key>
		<false/>
	</dict>
</dict>
</plist>

macOS Catalina 10.15.7 (19H4)

Spoiler


0:100  0:100  MemLog inited, TSC freq: 3700545380
0:100  0:000  CPU was calibrated with RTC
0:100  0:000  CloverX64 : Image base = 0xB4A60000
0:100  0:000
0:100  0:000  Now is 02.11.2020,  12:01:46 (GMT)
0:100  0:000  Starting Clover revision: 5126 (master, commit 9e7b4311c) on American Megatrends EFI
0:100  0:000  Build id: 20201028201150-9e7b431-5126
0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG -t GCC53 | -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG --conf=/Users/sergey/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC53 -n 5 | OS: 10.14.6]
0:100  0:000  SimpleTextEx Status=Success
0:100  0:000  === [ GetDefaultSettings ] ======================
0:100  0:000  === [ Get Smbios ] ==============================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 8
0:100  0:000  Type 17 Index = 0
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/1, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL A DIMM 0
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 1
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/2, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL A DIMM 1
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 2
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/3, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL B DIMM 0
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 3
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/4, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL B DIMM 1
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 4
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/5, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL C DIMM 0
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 5
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/6, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL C DIMM 1
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 6
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/7, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL D DIMM 0
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 7
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/8, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL D DIMM 1
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'MS-7C60' with board 'TRX40 PRO 10G (MS-7C60)'
0:100  0:000  === [ GetCPUProperties ] ========================
0:100  0:000  CPU Vendor = 68747541 Model=830F10
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = AMD Ryzen Threadripper 3970X 32-Core Processor
0:100  0:000  	Looking to disable C1E if is already enabled by the BIOS:
0:100  0:000  CurrentSpeed: 3700
0:100  0:000  maxratio 72
0:100  0:000  cpudid_zen 8
0:100  0:000  FSBFrequency = 52 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 36.0/22
0:100  0:000  Turbo: 0/0/0/0
0:100  0:000  Features: 0x76D8320B178BFBFF
0:100  0:000  Threads: 64
0:100  0:000  Cores: 32
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3699 MHz
0:100  0:000  TSC: 3700 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ==============================
0:100  0:000  GOP found at: PciRoot(0x1)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/AcpiAdr(0x80010302)
0:100  0:000  PCI (00|00:00.00) : 1022 1480 class=060000
0:100  0:000  PCI (00|00:00.02) : 1022 1481 class=080600
0:100  0:000  PCI (00|00:01.00) : 1022 1482 class=060000
0:100  0:000  PCI (00|00:01.01) : 1022 1483 class=060400
0:100  0:000  PCI (00|01:00.00) : 144D A804 class=010802
0:100  0:000  PCI (00|00:01.02) : 1022 1483 class=060400
0:101  0:000  PCI (00|02:00.00) : 1987 5012 class=010802
0:101  0:000  PCI (00|00:02.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|00:03.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|00:04.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|00:05.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|00:07.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|00:07.01) : 1022 1484 class=060400
0:101  0:000  PCI (00|03:00.00) : 1022 148A class=130000
0:101  0:000  PCI (00|00:08.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|00:08.01) : 1022 1484 class=060400
0:101  0:000  PCI (00|04:00.00) : 1022 1485 class=130000
0:101  0:000  PCI (00|04:00.03) : 1022 148C class=0C0330
0:101  0:000  PCI (00|00:14.00) : 1022 790B class=0C0500
0:101  0:000  PCI (00|00:14.03) : 1022 790E class=060100
0:101  0:000  PCI (00|00:18.00) : 1022 1490 class=060000
0:101  0:000  PCI (00|00:18.01) : 1022 1491 class=060000
0:101  0:000  PCI (00|00:18.02) : 1022 1492 class=060000
0:101  0:000  PCI (00|00:18.03) : 1022 1493 class=060000
0:101  0:000  PCI (00|00:18.04) : 1022 1494 class=060000
0:101  0:000  PCI (00|00:18.05) : 1022 1495 class=060000
0:101  0:000  PCI (00|00:18.06) : 1022 1496 class=060000
0:101  0:000  PCI (00|00:18.07) : 1022 1497 class=060000
0:101  0:000  PCI (00|20:00.00) : 1022 1480 class=060000
0:101  0:000  PCI (00|20:00.02) : 1022 1481 class=080600
0:101  0:000  PCI (00|20:01.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:02.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:03.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:03.01) : 1022 1483 class=060400
0:101  0:000  PCI (00|21:00.00) : 1022 1470 class=060400
0:101  0:000  PCI (00|22:00.00) : 1022 1471 class=060400
0:101  0:000  PCI (00|23:00.00) : 1002 687F class=030000
0:101  0:000   - GOP: Provided by device
0:101  0:000   - GFX: Model=AMD Radeon Vega 64 (ATI/AMD)
0:101  0:000  PCI (00|23:00.01) : 1002 AAF8 class=040300
0:101  0:000   - HDMI Audio:
0:101  0:000  PCI (00|20:04.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:05.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:07.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:07.01) : 1022 1484 class=060400
0:101  0:000  PCI (00|24:00.00) : 1022 148A class=130000
0:101  0:000  PCI (00|20:08.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:08.01) : 1022 1484 class=060400
0:101  0:000  PCI (00|25:00.00) : 1022 1485 class=130000
0:101  0:000  PCI (00|25:00.01) : 1022 1486 class=108000
0:101  0:000  PCI (00|25:00.03) : 1022 148C class=0C0330
0:101  0:000  PCI (00|25:00.04) : 1022 1487 class=040300
0:101  0:000  PCI (00|40:00.00) : 1022 1480 class=060000
0:101  0:000  PCI (00|40:00.02) : 1022 1481 class=080600
0:101  0:000  PCI (00|40:01.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|40:01.01) : 1022 1483 class=060400
0:101  0:000  PCI (00|41:00.00) : 1022 57AD class=060400
0:101  0:000  PCI (00|42:02.00) : 1022 57A3 class=060400
0:101  0:000  PCI (00|43:00.00) : 1B21 3242 class=0C0330
0:101  0:000  PCI (00|42:04.00) : 1022 57A3 class=060400
0:101  0:000  PCI (00|44:00.00) : 8086 1539 class=020000
0:101  0:000   - LAN: 0 Vendor=Intel
0:101  0:000  PCI (00|42:05.00) : 1022 57A3 class=060400
0:101  0:000  PCI (00|45:00.00) : 8086 1539 class=020000
0:101  0:000   - LAN: 1 Vendor=Intel
0:101  0:000  PCI (00|42:08.00) : 1022 57A4 class=060400
0:101  0:000  PCI (00|46:00.00) : 1022 1485 class=130000
0:102  0:000  PCI (00|46:00.01) : 1022 149C class=0C0330
0:102  0:000  PCI (00|46:00.03) : 1022 149C class=0C0330
0:102  0:000  PCI (00|42:09.00) : 1022 57A4 class=060400
0:102  0:000  PCI (00|47:00.00) : 1022 7901 class=010601
0:102  0:000  PCI (00|42:0A.00) : 1022 57A4 class=060400
0:102  0:000  PCI (00|48:00.00) : 1022 7901 class=010601
0:102  0:000  PCI (00|40:01.03) : 1022 1483 class=060400
0:102  0:000  PCI (00|49:00.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|4A:00.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|4B:00.00) : 8086 15EB class=088000
0:102  0:000  PCI (00|4A:01.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|4A:02.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|4D:00.00) : 8086 15EC class=0C0330
0:102  0:000  PCI (00|4A:04.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|40:02.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:03.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:03.01) : 1022 1483 class=060400
0:102  0:000  PCI (00|4F:00.00) : 1D6A 07B1 class=020000
0:102  0:000   - LAN: 2 Vendor=Unknown
0:102  0:000  PCI (00|40:04.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:05.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:07.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:07.01) : 1022 1484 class=060400
0:102  0:000  PCI (00|50:00.00) : 1022 148A class=130000
0:102  0:000  PCI (00|40:08.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:08.01) : 1022 1484 class=060400
0:102  0:000  PCI (00|51:00.00) : 1022 1485 class=130000
0:102  0:000  PCI (00|60:00.00) : 1022 1480 class=060000
0:102  0:000  PCI (00|60:00.02) : 1022 1481 class=080600
0:102  0:000  PCI (00|60:01.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:02.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:03.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:04.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:05.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:07.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:07.01) : 1022 1484 class=060400
0:102  0:000  PCI (00|61:00.00) : 1022 148A class=130000
0:102  0:000  PCI (00|60:08.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:08.01) : 1022 1484 class=060400
0:102  0:000  PCI (00|62:00.00) : 1022 1485 class=130000
0:102  0:000  Clover load options size = 0 bytes
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60--00-00-00-00-00-00'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60--00-00-00-00-00-00'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60--00-00-00-00-00-00'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\TRX40 PRO 10G (MS-7C60)\UEFI'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60-3699'. Dir doesn't exist.
0:103  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\TRX40 PRO 10G (MS-7C60)'. Dir doesn't exist.
0:103  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\TRX40 PRO 10G (MS-7C60)-3699'. Dir doesn't exist.
0:103  0:000  Using config.plist at path: \EFI\CLOVER
0:104  0:000  \EFI\CLOVER\config.plist  loaded: Success
0:104  0:000  === [ GetListOfThemes ] =========================
0:104  0:000  === [ Found config plists ] =====================
0:105  0:000  - config.plist
0:105  0:000  - config copy.plist
0:105  0:000  === [ GetEarlyUserSettings ] ====================
0:105  0:000  timeout set to 25
0:105  0:000  Custom boot CUSTOM_BOOT_USER_DISABLED (0x0)
0:105  0:000  KextsToPatch: 1 requested
0:105  0:000   - [00]: com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur) :: MatchOS: 11.x :: BinPatch :: data len: 6
0:105  0:000  KernelToPatch: 34 requested
0:105  0:000   - [00]: BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8 :: MatchOS: 11.x :: data len: 14
0:105  0:000   - [01]: ALL OS_algrey - commpage_populate -remove rdmsr :: data len: 7
0:105  0:000   - [02]: ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology :: data len: 5
0:105  0:000   - [03]: CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 21
0:105  0:000   - [04]: HS_MOJ_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 23
0:105  0:000   - [05]: ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4 :: data len: 10
0:105  0:000   - [06]: ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package :: data len: 5
0:105  0:000   - [07]: CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 16
0:105  0:000   - [08]: HS_MOJalgrey - skip cpuid_cores_per_package test - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 12
0:105  0:000   - [09]: ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr :: data len: 11
0:105  0:000   - [10]: ALL_OS_algrey - cpuid_set_generic_info - set microcode=186 :: data len: 7
0:105  0:000   - [11]: ALL_OSalgrey - cpuid_set_generic_info - set flag=1 :: data len: 13
0:105  0:000   - [12]: ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7 :: data len: 4
0:105  0:000   - [13]: ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD :: data len: 13
0:105  0:000   - [14]: ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN :: data len: 11
0:105  0:000   - [15]: CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 21
0:105  0:000   - [16]: CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 65
0:105  0:000   - [17]: HS_algrey - cpuid_set_info - ryzen cores and logicals count - part 1 - 10.13 :: MatchOS: 10.13.x :: data len: 7
0:105  0:000   - [18]: MOJ_algrey - cpuid_set_info - ryzen cores and logicals count - part 1 - 10.14 :: MatchOS: 10.14.x :: data len: 7
0:105  0:000   - [19]: HS_MOJ_algrey - cpuid_set_info - ryzen cores and logicals count - part 2 - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 32
0:105  0:000   - [20]: HS_algrey - cpuid_set_info - ryzen cores and logicals count - part 3 - 10.13 :: MatchOS: 10.13.x :: data len: 16
0:105  0:000   - [21]: MOJ_algrey - cpuid_set_info - ryzen cores and logicals count - part 3 - 10.14 :: MatchOS: 10.14.x :: data len: 3
0:105  0:000   - [22]: HS_algrey - cpuid_set_info - ryzen cores and logicals count - part 4 - 10.13 :: MatchOS: 10.13.x :: data len: 14
0:105  0:000   - [23]: MOJ_algrey - cpuid_set_info - ryzen cores and logicals count - part 4 - 10.14 :: MatchOS: 10.14.x :: data len: 14
0:105  0:000   - [24]: ALL_OS_algrey - i386_init - remove rdmsr (x3) :: data len: 42
0:105  0:000   - [25]: MOJ_algrey - tsc_init - remove Penryn check to execute default case 10.14 :: MatchOS: 10.14.x :: data len: 12
0:105  0:000   - [26]: ALL_OS_algrey - tsc_init - remove Penryn check to execute default case :: data len: 11
0:105  0:000   - [27]: ALL_OS_algrey - tsc_init - grab DID and VID from MSR :: data len: 34
0:105  0:000   - [28]: ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI :: data len: 7
0:105  0:000   - [29]: CATA_algrey - lapic_init - remove version check and panic - 10.15 :: MatchOS: 10.15.x :: data len: 5
0:105  0:000   - [30]: BS_NoOne - lapic_init - remove version check and panic - 10.16 :: MatchOS: 11.x :: data len: 9
0:105  0:000   - [31]: HS_MOJ_algrey - lapic_init - remove version check and panic - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 8
0:105  0:000   - [32]: CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 9
0:105  0:000   - [33]: HS_MOJ_algrey - lapic_interrupt - skip checks and prevent panic - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 9
0:105  0:000  Default theme: embedded
0:105  0:000  Hiding entries with string System Reserved
0:105  0:000  Hiding entries with string Update
0:105  0:000  === [ LoadDrivers ] =============================
0:106  0:001  Loading FSInject.efi  status=Success
0:107  0:000  Loading SMCHelper.efi  status=Success
0:108  0:001  Loading Fat.efi  status=Success
0:109  0:000   - driver needs connecting
0:109  0:000  Loading VBoxHfs.efi  status=Success
0:181  0:072   - driver needs connecting
0:181  0:000  Loading DataHubDxe.efi  status=Success
0:184  0:003  Loading ApfsDriverLoader.efi  status=Success
0:185  0:000   - driver needs connecting
0:185  0:000  Loading AudioDxe.efi  status=Success
0:186  0:000   - driver needs connecting
0:186  0:000  4 drivers needs connecting ...
0:186  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:186  0:000  Searching for invalid DiskIo BY_DRIVER connects:
0:199  0:012   - Handle b73b2f18 with DiskIo, is Partition, no Fs, BY_DRIVER Agent: b7e83998, Disconnect: Success
0:209  0:009   - Handle b7331798 with DiskIo, is Partition, no Fs, BY_DRIVER Agent: b7e83998, Disconnect: Success
0:209  0:000  1
8:098  7:889  === [ InitScreen ] ==============================
8:098  0:000  Console modes reported: 4, available modes:
8:098  0:000   - [01]: 80x25
8:098  0:000   - [02]: 80x50
8:098  0:000   - [03]: 100x31
8:098  0:000   - [04]: 128x40 (current mode)
8:098  0:000  SetScreenResolution: 1920x1080 - not found!
8:098  0:000  SetMaxResolution: found best mode 0: 3840x2160
8:272  0:173  Video mode change to mode #0: Success
8:272  0:000   - set
8:272  0:000  SetScreenResolution: 3840x2160 - already set
8:273  0:001  Using embedded font
8:274  0:000  === [ GetMacAddress ] ===========================
8:274  0:000  MAC address of LAN #0= 00:D8:61:BD:83:BD:
8:274  0:000  === [ ScanSPD ] =================================
8:276  0:001  === [ GetAcpiTablesList ] =======================
8:276  0:000  Get Acpi Tables List from RSDT:
8:276  0:000   - [00]: FACP  A M I  len=276
8:276  0:000   - [01]: SSDT  AmdTable len=35992
8:276  0:000   - [02]: SSDT  AMD AOD len=14535
8:276  0:000   - [03]: FIDT  A M I len=156
8:276  0:000   - [04]: MCFG  A M I len=60
8:276  0:000   - [05]: SSDT  CPUSSDT len=876
8:276  0:000   - [06]: HPET  A M I len=56
8:276  0:000   - [07]: SSDT  BIXBY len=36
8:276  0:000   - [08]: VFCT  A M I  len=61060
8:276  0:000   - [09]: IVRS  AmdTable len=496
8:276  0:000   - [10]: PCCT  AmdTable len=110
8:276  0:000   - [11]: SSDT  AmdTable len=64073
8:276  0:000   - [12]: CRAT  AmdTable len=15016
8:276  0:000   - [13]: CDIT  AmdTable len=41
8:276  0:000   - [14]: SSDT  SHAKTOOH len=11113
8:276  0:000   - [15]: WSMT  A M I  len=40
8:276  0:000   - [16]: APIC  A M I  len=1154
8:276  0:000   - [17]: SSDT  SHAKTOOH len=4271
8:276  0:000   - [18]: FPDT  A M I  len=68
8:276  0:000  Calibrated TSC Frequency = 3700545380 = 3700MHz
8:276  0:000  === [ GetUserSettings ] =========================
8:276  0:000  USB FixOwnership: yes
8:276  0:000  Dropping 4 tables:
8:276  0:000   - [00]: Drop table  signature="DMAR" (52414D44)
8:276  0:000  ----
8:276  0:000           - set table: 52414D44,                0 to drop: no
8:276  0:000   - [01]: Drop table  signature="SSDT" (54445353)
8:276  0:000   table-id="CpuPm" (      6D50757043)
8:276  0:000  ----
8:276  0:000           - set table: 54445353,       6d50757043 to drop: no
8:276  0:000   - [02]: Drop table  signature="SSDT" (54445353)
8:276  0:000   table-id="Cpu0Ist" (  74734930757043)
8:276  0:000  ----
8:276  0:000           - set table: 54445353,   74734930757043 to drop: no
8:276  0:000   - [03]: Drop table  signature="BGRT" (54524742)
8:276  0:000  ----
8:276  0:000           - set table: 54524742,                0 to drop: no
8:276  0:000   - final DSDT Fix mask=1FE70000
8:276  0:000  Devices to rename 1
8:276  0:000  PXSX:RP01:PCI0:#_SB:->will be renamed to ARPT
8:276  0:000  Using ProductName from config: iMacPro1,1
8:276  0:000  Using latest BiosVersion from config
8:276  0:000  BiosVersion: IMP11.88Z.F000.B00.2007121438
8:276  0:000  BiosReleaseDate: 07/12/2020
8:276  0:000  Using latest EfiVersion from config: 1539.0.0.0.1
8:276  0:000  Using FirmwareFeatures from config: 0xFD8FF53F
8:276  0:000  Using FirmwareFeaturesMask from config: 0xFF9FFF3F
8:276  0:000  Board-ID set from config as Mac-7BA5B2D9E42DDD94
8:276  0:000  BoardType: 0xA
8:276  0:000  ChassisType: 0x9
8:276  0:000  Cannot find smbios.plist at path '\EFI\CLOVER' : Not Found
8:277  0:000  === [ Found DSDT tables ] =======================
8:278  0:001  Added Kext=Other\Lilu.kext
8:278  0:000  Added Kext=Other\SmallTreeIntel82576.kext
8:289  0:010  Added Kext=Other\AppleALC.kext
8:290  0:000  Added Kext=Other\WhateverGreen.kext
8:292  0:001  Added Kext=Other\VirtualSMC.kext
8:292  0:000  Added Kext=Other\AMDRyzenCPUPowerManagement.kext
8:292  0:000  === [ ScanVolumes ] =============================
8:292  0:000  Found 37 volumes with blockIO
8:292  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)
8:293  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(1,GPT,04BC09C8-01CE-11EB-8D48-00D861CA94CC,0x800,0x19000)
8:293  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:293  0:000            label : System Reserved
8:293  0:000          hiding this volume
8:293  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(2,GPT,04BC09C9-01CE-11EB-8D48-00D861CA94CC,0x19800,0x77273A8D)
8:293  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:293  0:000            label : Unknown HD2
8:293  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)
8:293  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:293  0:000            label : EFI
8:293  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(4,GPT,04BC09CB-01CE-11EB-8D48-00D861CA94CC,0x772BF800,0xFC800)
8:293  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:293  0:000            label : Unknown HD4
8:293  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)
8:293  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(1,GPT,09EEB79F-C000-498B-9C83-1A7F593C32D7,0x6,0x12C00)
8:294  0:000            label : EFI
8:294  0:000          This is SelfVolume !!
8:294  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)
8:294  0:000  - [08]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)
8:296  0:002  - [09]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)
8:297  0:001  - [10]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)
8:297  0:000          Result of bootcode detection: bootable unknown (legacy)
8:297  0:000  - [11]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,6A39DCEB-5BA5-4D82-B5DD-AC2A8F241610,0x28,0x64000)
8:298  0:000          Result of bootcode detection: bootable unknown (legacy)
8:299  0:001            label : EFI
8:299  0:000  - [12]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)
8:300  0:000          Result of bootcode detection: bootable unknown (legacy)
8:300  0:000  - [13]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,1395C915-F702-4C67-9969-BAFF4B10C422,0x28,0x64000)
8:300  0:000          Result of bootcode detection: bootable unknown (legacy)
8:307  0:006            label : EFI
8:307  0:000  - [14]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,16D8AA6B-8E9C-4A6D-8E41-06D7BA16A7ED,0x64800,0x48C39B000)
8:307  0:000          Result of bootcode detection: bootable unknown (legacy)
8:307  0:000  - [15]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,1E0975EF-7D7A-485A-8E25-DF6199CE6CD5,0x28,0x64000)
8:308  0:000          Result of bootcode detection: bootable unknown (legacy)
8:309  0:001            label : EFI
8:309  0:000  - [16]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,148EBB84-7D7E-4069-9791-FE0F51F30C41,0x64028,0x48C39AFD8)
8:310  0:000          Result of bootcode detection: bootable unknown (legacy)
8:310  0:000  - [17]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)
8:310  0:000          Result of bootcode detection: bootable unknown (legacy)
8:310  0:000  - [18]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)
8:311  0:000          Result of bootcode detection: bootable unknown (legacy)
8:311  0:000  - [19]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x4,0xFFFF,0x0)
8:311  0:000  - [20]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,9031FA78-053E-11E9-8767-E0D55E2FD271,0x22,0x800)
8:315  0:004  - [21]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,624C68D2-E597-4F56-893E-602A47484128,0x822,0x77DE)
8:316  0:000  - [22]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,9031FA7B-053E-11E9-8767-E0D55E2FD271,0x8000,0x2BAA0748F)
8:316  0:000          Result of bootcode detection: bootable unknown (legacy)
8:316  0:000  - [23]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,9031FA6F-053E-11E9-8767-E0D55E2FD271,0x22,0x800)
8:319  0:002  - [24]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,81C93AD7-40CC-4566-9732-29F3C9E2ABEF,0x822,0x77DE)
8:320  0:000  - [25]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,9031FA72-053E-11E9-8767-E0D55E2FD271,0x8000,0x2BAA0748F)
8:320  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:321  0:000  - [26]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)
8:321  0:000            apfsFileSystemUUID=1AE19862-7291-4E55-B1D2-0D3BE088A124, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x10
8:321  0:000            label : Preboot
8:321  0:000  - [27]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D1B0CE44B3919C4AB3FABD589833E960)
8:321  0:000            apfsFileSystemUUID=44CEB0D1-91B3-4A9C-B3FA-BD589833E960, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x40
8:326  0:004            label : macOS Catalina - Data
8:326  0:000  - [28]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,826B7F6944DC6D4DB6DD029130AFD976)
8:326  0:000            apfsFileSystemUUID=697F6B82-DC44-4D6D-B6DD-029130AFD976, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x4
8:326  0:000            label : Recovery
8:326  0:000  - [29]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,966A6459FCFB0040A262D3E130F542EB)
8:326  0:000            apfsFileSystemUUID=59646A96-FBFC-4000-A262-D3E130F542EB, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x8
8:326  0:000            label : VM
8:326  0:000  - [30]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D593B60572D2534BA5DAB43CC2A6428C)
8:326  0:000            apfsFileSystemUUID=05B693D5-D272-4B53-A5DA-B43CC2A6428C, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x1
8:328  0:001            label : macOS Big Sur
8:328  0:000  - [31]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,9B2B4FF63141064BBFC2AB96CD113AB6)
8:328  0:000            apfsFileSystemUUID=F64F2B9B-4131-4B06-BFC2-AB96CD113AB6, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0xc0
8:328  0:000            label : Update
8:328  0:000          hiding this volume
8:328  0:000  - [32]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2ADB6EFB5910624689D04E42E3BF1759)
8:329  0:000            apfsFileSystemUUID=FB6EDB2A-1059-4662-89D0-4E42E3BF1759, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x10
8:330  0:001            label : Preboot
8:330  0:000  - [33]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,CD8E6C45F93B0D468A1CFC516EB37362)
8:330  0:000            apfsFileSystemUUID=456C8ECD-3BF9-460D-8A1C-FC516EB37362, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x40
8:338  0:007            label : macOS 19h4 - Data
8:338  0:000  - [34]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
8:338  0:000            apfsFileSystemUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x1
8:344  0:006            label : macOS 19h4
8:344  0:000  - [35]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F304039E87FFB549BB589AD6C680AFCA)
8:344  0:000            apfsFileSystemUUID=9E0304F3-FF87-49B5-BB58-9AD6C680AFCA, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x4
8:344  0:000            label : Recovery
8:344  0:000  - [36]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,3B9536D141B72646BF90A52EB7E76A89)
8:344  0:000            apfsFileSystemUUID=D136953B-B741-4626-BF90-A52EB7E76A89, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x8
8:344  0:000            label : VM
8:344  0:000  found 1 handles with audio
8:345  0:000  No AudioIoDevice stored
8:345  0:000  no stored audio parameters
8:345  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 0
8:345  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 1
8:345  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 2
8:345  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 3
8:345  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 4
8:345  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 5
8:345  0:000  === [ InitXTheme ] ==============================
8:345  0:000  use Daylight theme
8:345  0:000   using embedded theme
8:362  0:017  sound play end with status=Device Error
8:363  0:001  Using embedded font
8:363  0:000  theme inited
8:363  0:000  Chosen embedded theme
8:363  0:000  after NVRAM boot-args=-v
8:363  0:000  === [ Dump SMC keys from NVRAM ] ================
8:363  0:000  found AppleSMC protocol
8:394  0:030  Registered 13 SMC keys
8:402  0:008  === [ ScanLoader ] ==============================
8:402  0:000  - [01]: 'System Reserved'
8:402  0:000  - [02]: 'Unknown HD2'
8:402  0:000  - [03]: 'EFI'
8:403  0:001      AddLoaderEntry for Volume Name=EFI, idx=0
8:403  0:000      IconName=vista,win comma=5 size=9
8:403  0:000      first=os_vista
8:403  0:000      Second=os_win
8:403  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)\EFI\microsoft\Boot\bootmgfw.efi'
8:405  0:001      AddLoaderEntry for Volume Name=EFI, idx=1
8:405  0:000      IconName=unknown comma=-1 size=7
8:405  0:000      Full=unknown
8:405  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)\EFI\BOOT\BOOTX64.efi'
8:405  0:000  - [04]: 'Unknown HD4'
8:405  0:000  - [06]: 'EFI'
8:407  0:002      AddLoaderEntry for Volume Name=EFI, idx=2
8:407  0:000      IconName=unknown comma=-1 size=7
8:407  0:000      Full=unknown
8:407  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(1,GPT,09EEB79F-C000-498B-9C83-1A7F593C32D7,0x6,0x12C00)\EFI\BOOT\BOOTX64.efi'
8:407  0:000  - [11]: 'EFI'
8:422  0:014  - [13]: 'EFI'
8:444  0:022  - [15]: 'EFI'
8:465  0:020  - [26]: 'Preboot'
8:466  0:000  contentDetails name:macOS Catalina
8:466  0:000      AddLoaderEntry for Volume Name=Preboot, idx=3
8:466  0:000      ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E
8:466  0:000      ApfsFileSystemUUID=1AE19862-7291-4E55-B1D2-0D3BE088A124
8:466  0:000      APFSTargetUUID=44CEB0D1-91B3-4A9C-B3FA-BD589833E960
8:466  0:000      Check if volume Is Hibernated:
8:466  0:000      Check sleep image 'by signature':
8:466  0:000      using default sleep image name = \private\var\vm\sleepimage
8:466  0:000      sleepimage not found -> Not Found
8:466  0:000      hibernated: no - sign
8:466  0:000      IconName=bigsur,mac comma=6 size=10
8:466  0:000      first=os_bigsur
8:466  0:000      Second=os_mac
8:466  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)\44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\boot.efi'
8:466  0:000  - [27]: 'macOS Catalina - Data'
8:468  0:001  - [28]: 'Recovery'
8:468  0:000  contentDetails name:macOS Catalina
8:468  0:000  - [29]: 'VM'
8:468  0:000  - [30]: 'macOS Big Sur'
8:473  0:004      AddLoaderEntry for Volume Name=macOS Big Sur, idx=4
8:473  0:000      ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E
8:473  0:000      ApfsFileSystemUUID=05B693D5-D272-4B53-A5DA-B43CC2A6428C
8:473  0:000      Check if volume Is Hibernated:
8:473  0:000      Check sleep image 'by signature':
8:473  0:000      using default sleep image name = \private\var\vm\sleepimage
8:473  0:000      sleepimage not found -> Not Found
8:473  0:000      hibernated: no - sign
8:473  0:000      IconName=bigsur,mac comma=6 size=10
8:473  0:000      first=os_bigsur
8:473  0:000      Second=os_mac
8:473  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D593B60572D2534BA5DAB43CC2A6428C)\System\Library\CoreServices\boot.efi'
8:474  0:000  - [31]: 'Update'
8:474  0:000  - [32]: 'Preboot'
8:475  0:000      AddLoaderEntry for Volume Name=Preboot, idx=5
8:475  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
8:475  0:000      ApfsFileSystemUUID=FB6EDB2A-1059-4662-89D0-4E42E3BF1759
8:475  0:000      APFSTargetUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
8:475  0:000      Check if volume Is Hibernated:
8:475  0:000      Check sleep image 'by signature':
8:475  0:000      using default sleep image name = \private\var\vm\sleepimage
8:476  0:000      sleepimage not found -> Not Found
8:476  0:000      hibernated: no - sign
8:476  0:000      IconName=cata,mac comma=4 size=8
8:476  0:000      first=os_cata
8:476  0:000      Second=os_mac
8:476  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2ADB6EFB5910624689D04E42E3BF1759)\7D8AFF50-2660-46A6-8B75-2367DE4CBB04\System\Library\CoreServices\boot.efi'
8:476  0:000  - [33]: 'macOS 19h4 - Data'
8:482  0:006  - [34]: 'macOS 19h4'
8:499  0:017      AddLoaderEntry for Volume Name=macOS 19h4, idx=6
8:499  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
8:499  0:000      ApfsFileSystemUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
8:500  0:000      Check if volume Is Hibernated:
8:500  0:000      Check sleep image 'by signature':
8:500  0:000      using default sleep image name = \private\var\vm\sleepimage
8:500  0:000      sleepimage not found -> Not Found
8:500  0:000      hibernated: no - sign
8:500  0:000      IconName=cata,mac comma=4 size=8
8:500  0:000      first=os_cata
8:500  0:000      Second=os_mac
8:500  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)\System\Library\CoreServices\boot.efi'
8:501  0:000  - [35]: 'Recovery'
8:501  0:000      AddLoaderEntry for Volume Name=Recovery, idx=7
8:501  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
8:501  0:000      ApfsFileSystemUUID=9E0304F3-FF87-49B5-BB58-9AD6C680AFCA
8:501  0:000      APFSTargetUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
8:502  0:000      IconName=cata,mac comma=4 size=8
8:502  0:000      first=os_cata
8:502  0:000      Second=os_mac
8:502  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F304039E87FFB549BB589AD6C680AFCA)\7D8AFF50-2660-46A6-8B75-2367DE4CBB04\boot.efi'
8:503  0:000  - [36]: 'VM'
8:503  0:000  Scanning legacy ...
8:503  0:000   hidden
8:503  0:000      IconName=vista,win comma=5 size=9
8:503  0:000      first=os_vista
8:503  0:000      Second=os_win
8:503  0:000      IconName=vista,win comma=5 size=9
8:503  0:000      first=os_vista
8:503  0:000      Second=os_win
8:503  0:000      IconName=vista,win comma=5 size=9
8:503  0:000      first=os_vista
8:503  0:000      Second=os_win
8:503  0:000      IconName=vista,win comma=5 size=9
8:503  0:000      first=os_vista
8:503  0:000      Second=os_win
8:503  0:000  === [ AddCustomTool ] ===========================
8:504  0:000  === [ GetEfiBootDeviceFromNvram ] ===============
8:504  0:000   - efi-boot-device-data: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
8:504  0:000    - Volume: 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)'
8:504  0:000    - LoaderPath: ''
8:504  0:000    - Guid = CAF32F96-C98C-40B1-8F10-283A8AD2F8C0
8:504  0:000  === [ FindStartupDiskVolume ] ===================
8:504  0:000    - Volume: partition = PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
8:504  0:000     - searching for that partition
8:504  0:000      - found entry 3. 'Boot macOS from macOS 19h4', Volume 'macOS 19h4'
8:504  0:000  Boot redirected to Entry 3. 'Boot macOS from macOS 19h4'
8:504  0:000  BannerPlace at Clear Screen [1856,764]
8:532  0:027  AnimeRun=0
8:562  0:030  GUI ready
17:007  8:445  Using config copy.plist at path: \EFI\CLOVER
17:012  0:004  === [ GetUserSettings ] =========================
17:012  0:000  USB FixOwnership: yes
17:012  0:000  Dropping 4 tables:
17:012  0:000   - [00]: Drop table  signature="DMAR" (52414D44)
17:012  0:000  ----
17:012  0:000           - set table: 52414D44,                0 to drop: no
17:012  0:000   - [01]: Drop table  signature="SSDT" (54445353)
17:012  0:000   table-id="CpuPm" (      6D50757043)
17:012  0:000  ----
17:012  0:000           - set table: 54445353,       6d50757043 to drop: no
17:012  0:000   - [02]: Drop table  signature="SSDT" (54445353)
17:012  0:000   table-id="Cpu0Ist" (  74734930757043)
17:012  0:000  ----
17:012  0:000           - set table: 54445353,   74734930757043 to drop: no
17:012  0:000   - [03]: Drop table  signature="BGRT" (54524742)
17:012  0:000  ----
17:012  0:000           - set table: 54524742,                0 to drop: no
17:012  0:000   - final DSDT Fix mask=1FE70000
17:012  0:000  Devices to rename 1
17:012  0:000  PXSX:RP01:PCI0:#_SB:->will be renamed to ARPT
17:012  0:000  Using ProductName from config: iMacPro1,1
17:012  0:000  Using latest BiosVersion from config
17:012  0:000  BiosVersion: IMP11.88Z.F000.B00.2007121438
17:012  0:000  BiosReleaseDate: 07/12/2020
17:012  0:000  Using latest EfiVersion from config: 1539.0.0.0.1
17:012  0:000  Using FirmwareFeatures from config: 0xFD8FF53F
17:012  0:000  Using FirmwareFeaturesMask from config: 0xFF9FFF3F
17:012  0:000  Board-ID set from config as Mac-7BA5B2D9E42DDD94
17:012  0:000  BoardType: 0xA
17:012  0:000  ChassisType: 0x9
17:012  0:000  refill kernel patches bcoz gBootChanged
17:012  0:000  FakeCPUID: 0
17:012  0:000  KextsToPatch: 1 requested
17:012  0:000   - [00]: com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur) :: MatchOS: 11.x :: BinPatch :: data len: 6
17:012  0:000  KernelToPatch: 22 requested
17:012  0:000   - [00]: BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8 :: MatchOS: 11.x :: data len: 14
17:012  0:000   - [01]: ALL OS_algrey - commpage_populate -remove rdmsr :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 7
17:012  0:000   - [02]: ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 5
17:012  0:000   - [03]: CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 21
17:012  0:000   - [04]: ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4 :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 10
17:012  0:000   - [05]: ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 5
17:012  0:000   - [06]: CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 16
17:012  0:000   - [07]: ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 11
17:012  0:000   - [08]: ALL_OS_algrey - cpuid_set_generic_info - set microcode=186 :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 7
17:012  0:000   - [09]: ALL_OSalgrey - cpuid_set_generic_info - set flag=1 :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 13
17:012  0:000   - [10]: ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7 :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 4
17:012  0:000   - [11]: ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 13
17:012  0:000   - [12]: ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 11
17:012  0:000   - [13]: CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 21
17:012  0:000   - [14]: CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 65
17:012  0:000   - [15]: ALL_OS_algrey - i386_init - remove rdmsr (x3) :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 42
17:012  0:000   - [16]: ALL_OS_algrey - tsc_init - remove Penryn check to execute default case :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 11
17:012  0:000   - [17]: ALL_OS_algrey - tsc_init - grab DID and VID from MSR :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 34
17:012  0:000   - [18]: ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 7
17:012  0:000   - [19]: CATA_algrey - lapic_init - remove version check and panic - 10.15 :: MatchOS: 10.15.x :: data len: 5
17:012  0:000   - [20]: BS_NoOne - lapic_init - remove version check and panic - 10.16 :: MatchOS: 11.x :: data len: 9
17:012  0:000   - [21]: CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 9
17:012  0:000  Theme from new config: embedded
19:878  2:865  ReinitRefitLib after theme change
19:878  0:000  === [ Found DSDT tables ] =======================
19:879  0:000  === [ ScanVolumes ] =============================
19:879  0:000  Found 37 volumes with blockIO
19:879  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)
19:879  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(1,GPT,04BC09C8-01CE-11EB-8D48-00D861CA94CC,0x800,0x19000)
19:879  0:000          Result of bootcode detection: bootable Windows (vista,win)
19:879  0:000            label : System Reserved
19:879  0:000          hiding this volume
19:879  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(2,GPT,04BC09C9-01CE-11EB-8D48-00D861CA94CC,0x19800,0x77273A8D)
19:879  0:000          Result of bootcode detection: bootable Windows (vista,win)
19:879  0:000            label : Unknown HD2
19:879  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)
19:879  0:000          Result of bootcode detection: bootable Windows (vista,win)
19:879  0:000            label : EFI
19:879  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(4,GPT,04BC09CB-01CE-11EB-8D48-00D861CA94CC,0x772BF800,0xFC800)
19:879  0:000          Result of bootcode detection: bootable Windows (vista,win)
19:880  0:000            label : Unknown HD4
19:880  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)
19:880  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(1,GPT,09EEB79F-C000-498B-9C83-1A7F593C32D7,0x6,0x12C00)
19:880  0:000            label : EFI
19:880  0:000          This is SelfVolume !!
19:880  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)
19:880  0:000  - [08]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)
19:880  0:000  - [09]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)
19:881  0:000  - [10]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)
19:881  0:000          Result of bootcode detection: bootable unknown (legacy)
19:881  0:000  - [11]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,6A39DCEB-5BA5-4D82-B5DD-AC2A8F241610,0x28,0x64000)
19:882  0:000          Result of bootcode detection: bootable unknown (legacy)
19:883  0:001            label : EFI
19:883  0:000  - [12]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)
19:884  0:000          Result of bootcode detection: bootable unknown (legacy)
19:884  0:000  - [13]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,1395C915-F702-4C67-9969-BAFF4B10C422,0x28,0x64000)
19:885  0:000          Result of bootcode detection: bootable unknown (legacy)
19:886  0:001            label : EFI
19:886  0:000  - [14]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,16D8AA6B-8E9C-4A6D-8E41-06D7BA16A7ED,0x64800,0x48C39B000)
19:886  0:000          Result of bootcode detection: bootable unknown (legacy)
19:886  0:000  - [15]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,1E0975EF-7D7A-485A-8E25-DF6199CE6CD5,0x28,0x64000)
19:887  0:000          Result of bootcode detection: bootable unknown (legacy)
19:888  0:001            label : EFI
19:888  0:000  - [16]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,148EBB84-7D7E-4069-9791-FE0F51F30C41,0x64028,0x48C39AFD8)
19:889  0:000          Result of bootcode detection: bootable unknown (legacy)
19:889  0:000  - [17]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)
19:889  0:000          Result of bootcode detection: bootable unknown (legacy)
19:889  0:000  - [18]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)
19:890  0:000          Result of bootcode detection: bootable unknown (legacy)
19:890  0:000  - [19]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x4,0xFFFF,0x0)
19:890  0:000  - [20]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,9031FA78-053E-11E9-8767-E0D55E2FD271,0x22,0x800)
19:890  0:000  - [21]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,624C68D2-E597-4F56-893E-602A47484128,0x822,0x77DE)
19:891  0:000  - [22]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,9031FA7B-053E-11E9-8767-E0D55E2FD271,0x8000,0x2BAA0748F)
19:892  0:000          Result of bootcode detection: bootable unknown (legacy)
19:892  0:000  - [23]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,9031FA6F-053E-11E9-8767-E0D55E2FD271,0x22,0x800)
19:892  0:000  - [24]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,81C93AD7-40CC-4566-9732-29F3C9E2ABEF,0x822,0x77DE)
19:893  0:000  - [25]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,9031FA72-053E-11E9-8767-E0D55E2FD271,0x8000,0x2BAA0748F)
19:893  0:000          Result of bootcode detection: bootable Windows (vista,win)
19:894  0:000  - [26]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)
19:894  0:000            apfsFileSystemUUID=1AE19862-7291-4E55-B1D2-0D3BE088A124, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x10
19:894  0:000            label : Preboot
19:894  0:000  - [27]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D1B0CE44B3919C4AB3FABD589833E960)
19:894  0:000            apfsFileSystemUUID=44CEB0D1-91B3-4A9C-B3FA-BD589833E960, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x40
19:894  0:000            label : macOS Catalina - Data
19:894  0:000  - [28]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,826B7F6944DC6D4DB6DD029130AFD976)
19:895  0:000            apfsFileSystemUUID=697F6B82-DC44-4D6D-B6DD-029130AFD976, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x4
19:895  0:000            label : Recovery
19:895  0:000  - [29]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,966A6459FCFB0040A262D3E130F542EB)
19:895  0:000            apfsFileSystemUUID=59646A96-FBFC-4000-A262-D3E130F542EB, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x8
19:895  0:000            label : VM
19:895  0:000  - [30]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D593B60572D2534BA5DAB43CC2A6428C)
19:895  0:000            apfsFileSystemUUID=05B693D5-D272-4B53-A5DA-B43CC2A6428C, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x1
19:895  0:000            label : macOS Big Sur
19:895  0:000  - [31]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,9B2B4FF63141064BBFC2AB96CD113AB6)
19:895  0:000            apfsFileSystemUUID=F64F2B9B-4131-4B06-BFC2-AB96CD113AB6, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0xc0
19:895  0:000            label : Update
19:895  0:000          hiding this volume
19:895  0:000  - [32]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2ADB6EFB5910624689D04E42E3BF1759)
19:895  0:000            apfsFileSystemUUID=FB6EDB2A-1059-4662-89D0-4E42E3BF1759, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x10
19:895  0:000            label : Preboot
19:895  0:000  - [33]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,CD8E6C45F93B0D468A1CFC516EB37362)
19:896  0:000            apfsFileSystemUUID=456C8ECD-3BF9-460D-8A1C-FC516EB37362, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x40
19:896  0:000            label : macOS 19h4 - Data
19:896  0:000  - [34]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
19:896  0:000            apfsFileSystemUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x1
19:896  0:000            label : macOS 19h4
19:896  0:000  - [35]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F304039E87FFB549BB589AD6C680AFCA)
19:896  0:000            apfsFileSystemUUID=9E0304F3-FF87-49B5-BB58-9AD6C680AFCA, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x4
19:896  0:000            label : Recovery
19:896  0:000  - [36]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,3B9536D141B72646BF90A52EB7E76A89)
19:896  0:000            apfsFileSystemUUID=D136953B-B741-4626-BF90-A52EB7E76A89, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x8
19:896  0:000            label : VM
19:896  0:000  found 1 handles with audio
19:896  0:000  No AudioIoDevice stored
19:896  0:000  no stored audio parameters
19:896  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 0
19:896  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 1
19:896  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 2
19:896  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 3
19:896  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 4
19:896  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 5
19:896  0:000  change theme
19:896  0:000  === [ InitXTheme ] ==============================
19:896  0:000  use Daylight theme
19:896  0:000   using embedded theme
19:911  0:014  sound play end with status=Device Error
19:912  0:000  Using embedded font
19:912  0:000  theme inited
19:912  0:000  Chosen embedded theme
19:912  0:000  after NVRAM boot-args=-v
19:912  0:000  === [ ScanLoader ] ==============================
19:912  0:000  - [01]: 'System Reserved'
19:912  0:000  - [02]: 'Unknown HD2'
19:912  0:000  - [03]: 'EFI'
19:913  0:000      AddLoaderEntry for Volume Name=EFI, idx=0
19:913  0:000      IconName=vista,win comma=5 size=9
19:913  0:000      first=os_vista
19:913  0:000      Second=os_win
19:913  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)\EFI\microsoft\Boot\bootmgfw.efi'
19:914  0:001      AddLoaderEntry for Volume Name=EFI, idx=1
19:915  0:000      IconName=unknown comma=-1 size=7
19:915  0:000      Full=unknown
19:915  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)\EFI\BOOT\BOOTX64.efi'
19:915  0:000  - [04]: 'Unknown HD4'
19:915  0:000  - [06]: 'EFI'
19:917  0:002      AddLoaderEntry for Volume Name=EFI, idx=2
19:917  0:000      IconName=unknown comma=-1 size=7
19:917  0:000      Full=unknown
19:917  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(1,GPT,09EEB79F-C000-498B-9C83-1A7F593C32D7,0x6,0x12C00)\EFI\BOOT\BOOTX64.efi'
19:918  0:000  - [11]: 'EFI'
19:933  0:015  - [13]: 'EFI'
19:947  0:014  - [15]: 'EFI'
19:970  0:022  - [26]: 'Preboot'
19:970  0:000  contentDetails name:macOS Catalina
19:970  0:000      AddLoaderEntry for Volume Name=Preboot, idx=3
19:970  0:000      ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E
19:970  0:000      ApfsFileSystemUUID=1AE19862-7291-4E55-B1D2-0D3BE088A124
19:970  0:000      APFSTargetUUID=44CEB0D1-91B3-4A9C-B3FA-BD589833E960
19:970  0:000      Check if volume Is Hibernated:
19:970  0:000      Check sleep image 'by signature':
19:970  0:000      using default sleep image name = \private\var\vm\sleepimage
19:970  0:000      sleepimage not found -> Not Found
19:970  0:000      hibernated: no - sign
19:970  0:000      IconName=bigsur,mac comma=6 size=10
19:970  0:000      first=os_bigsur
19:970  0:000      Second=os_mac
19:970  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)\44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\boot.efi'
19:971  0:000  - [27]: 'macOS Catalina - Data'
19:972  0:001  - [28]: 'Recovery'
19:973  0:000  contentDetails name:macOS Catalina
19:973  0:000  - [29]: 'VM'
19:973  0:000  - [30]: 'macOS Big Sur'
19:974  0:000      AddLoaderEntry for Volume Name=macOS Big Sur, idx=4
19:974  0:000      ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E
19:974  0:000      ApfsFileSystemUUID=05B693D5-D272-4B53-A5DA-B43CC2A6428C
19:974  0:000      Check if volume Is Hibernated:
19:974  0:000      Check sleep image 'by signature':
19:974  0:000      using default sleep image name = \private\var\vm\sleepimage
19:974  0:000      sleepimage not found -> Not Found
19:974  0:000      hibernated: no - sign
19:974  0:000      IconName=bigsur,mac comma=6 size=10
19:974  0:000      first=os_bigsur
19:974  0:000      Second=os_mac
19:974  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D593B60572D2534BA5DAB43CC2A6428C)\System\Library\CoreServices\boot.efi'
19:975  0:000  - [31]: 'Update'
19:975  0:000  - [32]: 'Preboot'
19:975  0:000      AddLoaderEntry for Volume Name=Preboot, idx=5
19:975  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
19:975  0:000      ApfsFileSystemUUID=FB6EDB2A-1059-4662-89D0-4E42E3BF1759
19:975  0:000      APFSTargetUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
19:976  0:000      Check if volume Is Hibernated:
19:976  0:000      Check sleep image 'by signature':
19:976  0:000      using default sleep image name = \private\var\vm\sleepimage
19:976  0:000      sleepimage not found -> Not Found
19:976  0:000      hibernated: no - sign
19:976  0:000      IconName=cata,mac comma=4 size=8
19:976  0:000      first=os_cata
19:976  0:000      Second=os_mac
19:976  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2ADB6EFB5910624689D04E42E3BF1759)\7D8AFF50-2660-46A6-8B75-2367DE4CBB04\System\Library\CoreServices\boot.efi'
19:976  0:000  - [33]: 'macOS 19h4 - Data'
19:976  0:000  - [34]: 'macOS 19h4'
19:978  0:001      AddLoaderEntry for Volume Name=macOS 19h4, idx=6
19:978  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
19:978  0:000      ApfsFileSystemUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
19:978  0:000      Check if volume Is Hibernated:
19:978  0:000      Check sleep image 'by signature':
19:978  0:000      using default sleep image name = \private\var\vm\sleepimage
19:978  0:000      sleepimage not found -> Not Found
19:978  0:000      hibernated: no - sign
19:978  0:000      IconName=cata,mac comma=4 size=8
19:978  0:000      first=os_cata
19:978  0:000      Second=os_mac
19:978  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)\System\Library\CoreServices\boot.efi'
19:979  0:000  - [35]: 'Recovery'
19:979  0:000      AddLoaderEntry for Volume Name=Recovery, idx=7
19:979  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
19:979  0:000      ApfsFileSystemUUID=9E0304F3-FF87-49B5-BB58-9AD6C680AFCA
19:979  0:000      APFSTargetUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
19:980  0:000      IconName=cata,mac comma=4 size=8
19:980  0:000      first=os_cata
19:980  0:000      Second=os_mac
19:980  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F304039E87FFB549BB589AD6C680AFCA)\7D8AFF50-2660-46A6-8B75-2367DE4CBB04\boot.efi'
19:980  0:000  - [36]: 'VM'
19:980  0:000  Scanning legacy ...
19:980  0:000   hidden
19:980  0:000      IconName=vista,win comma=5 size=9
19:980  0:000      first=os_vista
19:980  0:000      Second=os_win
19:980  0:000      IconName=vista,win comma=5 size=9
19:980  0:000      first=os_vista
19:980  0:000      Second=os_win
19:981  0:000      IconName=vista,win comma=5 size=9
19:981  0:000      first=os_vista
19:981  0:000      Second=os_win
19:981  0:000      IconName=vista,win comma=5 size=9
19:981  0:000      first=os_vista
19:981  0:000      Second=os_win
19:981  0:000  === [ AddCustomTool ] ===========================
19:982  0:001  === [ GetEfiBootDeviceFromNvram ] ===============
19:982  0:000  === [ FindStartupDiskVolume ] ===================
19:982  0:000    - Volume: partition = PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
19:982  0:000     - searching for that partition
19:982  0:000      - found entry 3. 'Boot macOS from macOS 19h4', Volume 'macOS 19h4'
19:982  0:000  Boot redirected to Entry 3. 'Boot macOS from macOS 19h4'
19:982  0:000  BannerPlace at Clear Screen [1856,764]
20:009  0:027  AnimeRun=0
21:053  1:043  BootVariable of the entry is empty
21:053  0:000  === [ StartLoader ] =============================
21:053  0:000  Starting PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)\System\Library\CoreServices\boot.efi
21:053  0:000  Finally: ExternalClock=26MHz BusSpeed=102793kHz CPUFreq=3701MHz PIS: hw.busfrequency=104000000Hz
21:053  0:000  Beginning OC
21:053  0:000  config-oc.plist isn't use at all
21:053  0:000  Bridge mmioWhiteList[0] to OC : comment=MMIO       00000000E2100000-00000000E2180FFF 0000000000000081 8000000000000001
21:053  0:000  Bridge mmioWhiteList[1] to OC : comment=MMIO       00000000E3180000-00000000E3200FFF 0000000000000081 8000000000000001
21:053  0:000  Bridge mmioWhiteList[2] to OC : comment=MMIO devirt 0xEF100000 (0x181 pages, 0x8000000000000001) skip 0
21:053  0:000  Bridge mmioWhiteList[3] to OC : comment=FA180000
21:053  0:000  Bridge mmioWhiteList[4] to OC : comment=0xFA300000
21:053  0:000  Bridge mmioWhiteList[5] to OC : comment=0xFEA00000
21:053  0:000  Bridge mmioWhiteList[6] to OC : comment=0xFEC00000
21:053  0:000  Bridge mmioWhiteList[7] to OC : comment=0xFEC10000
21:053  0:000  Bridge mmioWhiteList[8] to OC : comment=0xFED00000
21:053  0:000  Bridge mmioWhiteList[9] to OC : comment=0xFED40000
21:053  0:000  Bridge mmioWhiteList[10] to OC : comment=0xFED80000
21:053  0:000  Bridge mmioWhiteList[11] to OC : comment=0xFEDC2000
21:053  0:000  Bridge mmioWhiteList[12] to OC : comment=0xFEDD4000
21:053  0:000  Bridge mmioWhiteList[13] to OC : comment=0xFEE00000
21:053  0:000  Bridge mmioWhiteList[14] to OC : comment=0xFF000000
21:053  0:000  Bridge mmioWhiteList[15] to OC : comment=0x4040000000
21:053  0:000  Bridge mmioWhiteList[16] to OC : comment=0x8BB0000000
21:053  0:000  Bridge mmioWhiteList[17] to OC : comment=0x8BE0000000
21:053  0:000  Bridge mmioWhiteList[18] to OC : comment=0xD750000000
21:053  0:000  UniOSVersion == 10.15.7
21:053  0:000  UniShortOSVersion == 10.15
21:053  0:000  AddKextsInArray from Other
21:053  0:000  ->Extra kext: Other\Lilu.kext (v.1.4.8)
21:053  0:000  ->Extra kext: Other\SmallTreeIntel82576.kext (v.1.0.6)
21:053  0:000  ->Extra kext: Other\AppleALC.kext (v.1.5.3)
21:053  0:000  ->Extra kext: Other\WhateverGreen.kext (v.1.4.3)
21:053  0:000  ->Extra kext: Other\VirtualSMC.kext (v.1.1.7)
21:053  0:000  ->Extra kext: Other\AMDRyzenCPUPowerManagement.kext (v.0.6.5)
21:053  0:000  GetOtherKextsDir(FALSE) return NULL
21:053  0:000  AddKextsInArray from 10
21:053  0:000  AddKextsInArray from 10_normal
21:053  0:000  AddKextsInArray from 10.15
21:053  0:000  AddKextsInArray from 10.15_normal
21:053  0:000  AddKextsInArray from 10.15.7
21:053  0:000  AddKextsInArray from 10.15.7_normal
21:053  0:000  Bridge kext to OC : Path=Lilu.kext
21:053  0:000  info plist path: Kexts\Other\Lilu.kext\Contents\Info.plist
21:054  0:000  assign executable as 'Contents\MacOS\Lilu'
21:054  0:000  Bridge kext to OC : Path=VirtualSMC.kext
21:054  0:000  info plist path: Kexts\Other\VirtualSMC.kext\Contents\Info.plist
21:055  0:001  assign executable as 'Contents\MacOS\VirtualSMC'
21:055  0:000  Bridge kext to OC : Path=WhateverGreen.kext
21:055  0:000  info plist path: Kexts\Other\WhateverGreen.kext\Contents\Info.plist
21:056  0:001  assign executable as 'Contents\MacOS\WhateverGreen'
21:056  0:000  Bridge kext to OC : Path=AppleALC.kext
21:056  0:000  info plist path: Kexts\Other\AppleALC.kext\Contents\Info.plist
21:068  0:011  assign executable as 'Contents\MacOS\AppleALC'
21:068  0:000  Bridge kext to OC : Path=SmallTreeIntel82576.kext
21:068  0:000  info plist path: Kexts\Other\SmallTreeIntel82576.kext\Contents\Info.plist
21:068  0:000  assign executable as 'Contents\MacOS\SmallTreeIntel82576'
21:068  0:000  Bridge kext to OC : Path=AMDRyzenCPUPowerManagement.kext
21:068  0:000  info plist path: Kexts\Other\AMDRyzenCPUPowerManagement.kext\Contents\Info.plist
21:069  0:000  assign executable as 'Contents\MacOS\AMDRyzenCPUPowerManagement'
21:069  0:000  OCST: Missing vault data, ignoring...
21:072  0:003  Load OpenRuntime.efi : Status Success
21:073  0:000  Start OpenRuntime.efi : Status Success
21:073  0:000  OC: OcMiscEarlyInit...
21:073  0:000  OC: Watchdog status is 1
21:074  0:000  OC: OpenCore DBG-061-2020-10-29 is loading in Optional mode (0/0)...
21:074  0:000  OC: Boot timestamp - 2020.11.02 12:02:07
21:075  0:000  OCCPU: MP services threads 64 (enabled 64) - Success
21:076  0:000  OCCPU: MP services Pkg 1 Cores 1 Threads 1 - Success
21:076  0:000  OCCPU: Found AMD Ryzen Threadripper 3970X 32-Core Processor
21:078  0:001  OCCPU: Signature 830F10 Stepping 0 Model 31 Family F Type 0 ExtModel 3 ExtFamily 8 uCode 0
21:179  0:101  TscFrequency 3699994508
21:181  0:002  OCCPU: FID 148 DID 8 Divisor 0 MaxBR 36
21:181  0:000  OCCPU: CPUFrequencyFromTSC  3699994508Hz  3699MHz
21:186  0:004  OCCPU: CPUFrequency  3699994508Hz  3699MHz
21:187  0:000  OCCPU: FSBFrequency   102777625Hz   102MHz
21:187  0:000  OCCPU: Pkg 1 Cores 32 Threads 64
21:188  0:000  OC: OcLoadNvramSupport...
21:189  0:000  OC: Current version is DBG-061-2020-10-29
21:190  0:000  OC: OcMiscMiddleInit...
21:190  0:000  OC: LoadHandle 0 with BootProtect in  mode - Unsupported
21:192  0:001  OC: OcLoadUefiSupport...
21:193  0:000  OcAppleEventInstallProtocol
21:194  0:000  InternalCreateQueueEvent
21:194  0:000  EventCreateSimplePointerInstallNotifyEvent
21:195  0:000  InternalSimplePointerInstallNotifyFunction
21:196  0:000  InternalRegisterSimplePointerInterface
21:196  0:000  InternalRegisterSimplePointerInterface
21:197  0:000  OcOSInfoInstallProtocol
21:197  0:000  OCRTC: OcAppleRtcRamInstallProtocol
21:198  0:000  OCRTC: Wake log is 0x00 0x00   0 0x00
21:199  0:000  OcAppleFbInfoInstallProtocol
21:199  0:000  OC: Loading Apple Secure Boot with Disabled (level 0)
21:201  0:002  OCABC: RTDFRG 1 DEVMMIO 1 NOSU 0 NOVRWR 0 NOSB 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 1
21:202  0:000  OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 0 APPLOS 0 RTPERMS 1
21:203  0:000  OCABC: Got rendezvous with OpenRuntime r11
21:203  0:000  OCABC: MAT support is 1
21:204  0:000  OC: RBVR 0 DDBR 0
21:207  0:002  OC: Got 0 drivers
21:207  0:000  OCC: Installing GOP (Unsupported) on ConsoleOutHandle...
21:208  0:000  OC: Requested resolution is 1920x1080@0 (max: 0) from 1920x1080
21:209  0:000  OCC: Requesting 1920x1080@0 (max: 0) resolution, curr 0, total 8
21:209  0:000  OCC: Mode 0 - 3840x2160:1
21:211  0:001  OCC: Mode 1 - 640x480:1
21:211  0:000  OCC: Mode 2 - 800x600:1
21:212  0:000  OCC: Mode 3 - 1024x768:1
21:213  0:000  OCC: Mode 4 - 1280x1024:1
21:213  0:000  OCC: Mode 5 - 1400x1050:1
21:214  0:000  OCC: Mode 6 - 1600x1200:1
21:214  0:000  OCC: Mode 7 - 1280x960:1
21:215  0:000  OCC: No compatible mode for 1920x1080@0 (max: 0) resolution
21:216  0:000  OC: Changed resolution to 1920x1080@0 (max: 0) from 1920x1080 - Not Found
21:216  0:000  OCC: Using builtin text renderer with 1 scale
21:231  0:014  OCC: Install console control (B4B9D090/0/0), current - Success
21:231  0:000  OCC: Setup ASCII Output - Success
21:232  0:000  OC: Requested console mode is 0x0 (max: 0) from
21:232  0:000  OC: Requested not to use audio
21:233  0:000  OC: OcLoadPlatformSupport...
21:234  0:000  OC: OcLoadDevPropsSupport...
21:234  0:000  OC: OcMiscLateInit...
21:235  0:000  OC: Invalid HibernateMode:
21:236  0:000  OC: Translated HibernateMode  to 0
21:236  0:000  OC: Hibernation detection status is Not Found
21:237  0:000  OC: Panic log does not exist
21:238  0:000  OC: OcLoadKernelSupport...
21:238  0:000  OC: All green, starting boot management...
21:239  0:000  DevicePath = PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)/\System\Library\CoreServices\boot.efi
21:246  0:006  OCB: Arch filtering B3217018(621112)->B3217018(621112) caps 4 - Success
21:260  0:014  GetOSVersion: 10.15.7 (19H4)
21:260  0:000  Filtering KextPatches:
21:260  0:000   - [00]: com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur) :: BinPatch :: [OS: 10.15.7 | MatchOS: 11.x | MatchBuild: All] ==> not allowed
21:260  0:000  Filtering KernelPatches:
21:260  0:000   - [00]: BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8 :: [OS: 10.15.7 | MatchOS: 11.x | MatchBuild: no] ==> not allowed by OS
21:260  0:000   - [01]: ALL OS_algrey - commpage_populate -remove rdmsr :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:260  0:000   - [02]: ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [03]: CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16 :: [OS: 10.15.7 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [04]: ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4 :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [05]: ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [06]: CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16 :: [OS: 10.15.7 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [07]: ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [08]: ALL_OS_algrey - cpuid_set_generic_info - set microcode=186 :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [09]: ALL_OSalgrey - cpuid_set_generic_info - set flag=1 :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [10]: ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7 :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [11]: ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [12]: ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [13]: CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16 :: [OS: 10.15.7 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [14]: CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16 :: [OS: 10.15.7 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [15]: ALL_OS_algrey - i386_init - remove rdmsr (x3) :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:261  0:000   - [16]: ALL_OS_algrey - tsc_init - remove Penryn check to execute default case :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:262  0:000   - [17]: ALL_OS_algrey - tsc_init - grab DID and VID from MSR :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:262  0:000   - [18]: ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI :: [OS: 10.15.7 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
21:262  0:000   - [19]: CATA_algrey - lapic_init - remove version check and panic - 10.15 :: [OS: 10.15.7 | MatchOS: 10.15.x | MatchBuild: no] ==> allowed by OS
21:262  0:000   - [20]: BS_NoOne - lapic_init - remove version check and panic - 10.16 :: [OS: 10.15.7 | MatchOS: 11.x | MatchBuild: no] ==> not allowed by OS
21:262  0:000   - [21]: CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16 :: [OS: 10.15.7 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
21:262  0:000  Will not patch boot.efi
21:262  0:000  Bridge kernel patch to OC : ALL OS_algrey - commpage_populate -remove rdmsr
21:262  0:000  Bridge kernel patch to OC : ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology
21:262  0:000  Bridge kernel patch to OC : CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package
21:262  0:000  Bridge kernel patch to OC : CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_generic_info - set microcode=186
21:262  0:000  Bridge kernel patch to OC : ALL_OSalgrey - cpuid_set_generic_info - set flag=1
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN
21:262  0:000  Bridge kernel patch to OC : CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16
21:262  0:000  Bridge kernel patch to OC : CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - i386_init - remove rdmsr (x3)
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - tsc_init - remove Penryn check to execute default case
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - tsc_init - grab DID and VID from MSR
21:262  0:000  Bridge kernel patch to OC : ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI
21:262  0:000  Bridge kernel patch to OC : CATA_algrey - lapic_init - remove version check and panic - 10.15
21:262  0:000  Bridge kernel patch to OC : CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16
21:262  0:000  === [ PatchSmbios ] =============================
21:262  0:000  insert table 9 for dev 0:0
21:262  0:000  insert table 9 for dev 0:1
21:262  0:000  insert table 9 for dev 0:0
21:263  0:000  Trusting SMBIOS...
21:263  0:000  Detected alternating SMBIOS channel banks
21:263  0:000  Channels: 4
21:263  0:000  Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23
21:263  0:000  trusted SMBIOS data:
21:263  0:000  SmbiosTable.Type17->Vendor = Unknown
21:263  0:000  SmbiosTable.Type17->SerialNumber = 00000000
21:263  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
21:263  0:000   partNum=3200 C16 Series
21:263  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
21:263  0:000  SMBIOS Type 17 Index = 0 => 0 0:
21:263  0:000  BANK 0 DIMM0 3200MHz 32767MB(Ext:32768MB)
21:263  0:000  trusted SMBIOS data:
21:263  0:000  SmbiosTable.Type17->Vendor = Unknown
21:263  0:000  SmbiosTable.Type17->SerialNumber = 00000000
21:263  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
21:263  0:000   partNum=3200 C16 Series
21:263  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
21:263  0:000  SMBIOS Type 17 Index = 1 => 1 2:
21:263  0:000  BANK 1 DIMM0 3200MHz 32767MB(Ext:32768MB)
21:263  0:000  trusted SMBIOS data:
21:263  0:000  SmbiosTable.Type17->Vendor = Unknown
21:263  0:000  SmbiosTable.Type17->SerialNumber = 00000000
21:263  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
21:263  0:000   partNum=3200 C16 Series
21:263  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
21:263  0:000  SMBIOS Type 17 Index = 2 => 2 4:
21:263  0:000  BANK 2 DIMM0 3200MHz 32767MB(Ext:32768MB)
21:263  0:000  trusted SMBIOS data:
21:263  0:000  SmbiosTable.Type17->Vendor = Unknown
21:263  0:000  SmbiosTable.Type17->SerialNumber = 00000000
21:263  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
21:263  0:000   partNum=3200 C16 Series
21:263  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
21:263  0:000  SMBIOS Type 17 Index = 3 => 3 6:
21:263  0:000  BANK 3 DIMM0 3200MHz 32767MB(Ext:32768MB)
21:263  0:000  trusted SMBIOS data:
21:263  0:000  SmbiosTable.Type17->Vendor = Unknown
21:263  0:000  SmbiosTable.Type17->SerialNumber = 00000000
21:263  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
21:263  0:000   partNum=3200 C16 Series
21:263  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
21:263  0:000  SMBIOS Type 17 Index = 4 => 4 1:
21:263  0:000  BANK 0 DIMM1 3200MHz 32767MB(Ext:32768MB)
21:263  0:000  trusted SMBIOS data:
21:263  0:000  SmbiosTable.Type17->Vendor = Unknown
21:263  0:000  SmbiosTable.Type17->SerialNumber = 00000000
21:263  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
21:263  0:000   partNum=3200 C16 Series
21:263  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
21:263  0:000  SMBIOS Type 17 Index = 5 => 5 3:
21:263  0:000  BANK 1 DIMM1 3200MHz 32767MB(Ext:32768MB)
21:263  0:000  trusted SMBIOS data:
21:263  0:000  SmbiosTable.Type17->Vendor = Unknown
21:263  0:000  SmbiosTable.Type17->SerialNumber = 00000000
21:263  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
21:263  0:000   partNum=3200 C16 Series
21:263  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
21:263  0:000  SMBIOS Type 17 Index = 6 => 6 5:
21:263  0:000  BANK 2 DIMM1 3200MHz 32767MB(Ext:32768MB)
21:263  0:000  trusted SMBIOS data:
21:263  0:000  SmbiosTable.Type17->Vendor = Unknown
21:263  0:000  SmbiosTable.Type17->SerialNumber = 00000000
21:263  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
21:263  0:000   partNum=3200 C16 Series
21:263  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
21:263  0:000  SMBIOS Type 17 Index = 7 => 7 7:
21:263  0:000  BANK 3 DIMM1 3200MHz 32767MB(Ext:32768MB)
21:263  0:000  mTotalSystemMemory = 262144
21:263  0:000  NumberOfMemoryDevices = 8
21:263  0:000  === [ PatchACPI ] ===============================
21:263  0:000  Xsdt reallocation done
21:263  0:000  old FADT length=114
21:263  0:000   SignatureFixup: 0x902F56EE -> 0x0
21:263  0:000  Found OperationRegion(GSMM, SystemMemory, FED80000, ...)
21:263  0:000  Found OperationRegion(IOMX, SystemMemory, FED80D00, ...)
21:263  0:000  Found OperationRegion(FACR, SystemMemory, FED81E00, ...)
21:263  0:000  Found OperationRegion(EMMX, SystemMemory, FEDD5800, ...)
21:263  0:000  Found OperationRegion(EMMB, SystemMemory, FEDD5800, ...)
21:263  0:000  Found OperationRegion(LUIE, SystemMemory, FEDC0020, ...)
21:263  0:000  Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
21:263  0:000  Found OperationRegion(CRBD, SystemMemory, FED40000, ...)
21:263  0:000  Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)
21:263  0:000  Found OperationRegion(ATNV, SystemMemory, BA3C6D18, ...)
21:263  0:000  Found OperationRegion(WMIM, SystemMemory, BA2FDA98, ...)
21:263  0:000  Apply DsdtFixMask=0x1FE70000
21:263  0:000  === [ FixBiosDsdt ] =============================
21:265  0:001  Name: PXSX, Bridge: RP01, Replace: ARPT
21:265  0:000    0 replacements
21:266  0:000   deleting device CRT_
21:267  0:000   deleting device DVI_
21:268  0:000   deleting device SPKR
21:268  0:000   deleting device ECP_
21:269  0:000   deleting device LPT_
21:270  0:001   deleting device FDC0
21:271  0:000   deleting device ECP1
21:272  0:000   deleting device LPT1
21:274  0:001    indirect name=TPMM
21:274  0:000    indirect name=FTPM
21:274  0:000    indirect name=PPIM
21:274  0:000    indirect name=WMIO
21:274  0:000  no device(AC) exists
21:274  0:000  Name _OSI present at 0x33E, renaming to OOSI
21:274  0:000  Name _OSI present at 0x345, renaming to OOSI
21:274  0:000  Name _OSI present at 0x360, renaming to OOSI
21:274  0:000  Name _OSI present at 0x37D, renaming to OOSI
21:274  0:000  Name _OSI present at 0x393, renaming to OOSI
21:274  0:000  Name _OSI present at 0x3A7, renaming to OOSI
21:274  0:000  Name _OSI present at 0x3BD, renaming to OOSI
21:274  0:000  Name _OSI present at 0x3DC, renaming to OOSI
21:274  0:000  Name _OSI present at 0x3FB, renaming to OOSI
21:274  0:000  Name _OSI present at 0x41A, renaming to OOSI
21:274  0:000  Name _OSI present at 0x435, renaming to OOSI
21:274  0:000  Name _OSI present at 0x454, renaming to OOSI
21:274  0:000  Name _OSI present at 0x46F, renaming to OOSI
21:274  0:000  Name _OSI present at 0x48A, renaming to OOSI
21:274  0:000  Name _OSI present at 0xB84F, renaming to OOSI
21:274  0:000  Name _OSI present at 0xB856, renaming to OOSI
21:274  0:000  Name _OSI present at 0xB871, renaming to OOSI
21:274  0:000  PreCleanup XSDT: count=19, length=188
21:274  0:000  PreCleanup XSDT, corrected XSDT: count=19, length=188
21:274  0:000  === [ ACPIDropTables ] ==========================
21:274  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
21:274  0:000    0 replacements
21:274  0:000  Found OperationRegion(A093, SystemMemory, F0000000, ...)
21:274  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
21:274  0:000    0 replacements
21:274  0:000  Found OperationRegion(AODT, SystemMemory, BA3C7018, ...)
21:274  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
21:274  0:000    0 replacements
21:274  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
21:274  0:000    0 replacements
21:274  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
21:275  0:000    0 replacements
21:275  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
21:275  0:000    0 replacements
21:275  0:000  Found OperationRegion(CPNV, SystemMemory, BA3CC018, ...)
21:275  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
21:275  0:000    0 replacements
21:275  0:000  Out of control with CPU numbers
21:275  0:000  ApicCPUNum=64
21:275  0:000  SSDT with CPU C-States generated successfully
21:275  0:000  Cleanup XSDT: count=20, length=196
21:275  0:000  corrected XSDT count=20, length=196
21:275  0:000  === [ RestSetup macOS ] =========================
21:275  0:000   RCBA disabled; cannot use it
21:275  0:000  ATI injection not set
21:277  0:001  CurrentMode: Width=3840 Height=2160
21:285  0:007  Use origin smbios table type 1 guid.
21:303  0:018  SetStartupDiskVolume:
21:303  0:000    * Volume: 'macOS 19h4'
21:303  0:000    * LoaderPath: ''
21:303  0:000    * DevPath: macOS 19h4
21:303  0:000    * GUID = CAF32F96-C98C-40B1-8F10-283A8AD2F8C0
21:303  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>CAF32F96-C98C-40B1-8F10-283A8AD2F8C0</string></dict></dict></dict></array>
21:303  0:000  Custom boot screen not used because entry has unset use graphics
21:304  0:001  Closing log
21:305  0:000  OCABC: Found first 0 at off 760A
21:306  0:000  OCABC: Found second at off 761B
21:306  0:000  OCABC: Trying next match...
21:307  0:000  OCABC: Found first 0 at off 77F9
21:307  0:000  OCABC: Found second at off 780A
21:308  0:000  OCABC: Trying next match...
21:309  0:000  OCABC: Found first 1 at off 10C97
21:310  0:000  OCABC: Patching new safe mode aslr check...
21:311  0:000  OC: Supported boot capabilities 4
21:312  0:000  OCABC: MMIO devirt start
21:312  0:000  OCABC: MMIO devirt 0xE2100000 (0x81 pages, 0x8000000000000001) skip 1
21:313  0:000  OCABC: MMIO devirt 0xE3180000 (0x81 pages, 0x8000000000000001) skip 1
21:314  0:000  OCABC: MMIO devirt 0xEF100000 (0x181 pages, 0x8000000000000001) skip 1
21:314  0:000  OCABC: MMIO devirt 0xFA180000 (0x81 pages, 0x8000000000000001) skip 1
21:315  0:000  OCABC: MMIO devirt 0xFA300000 (0x100 pages, 0x8000000000000001) skip 1
21:316  0:000  OCABC: MMIO devirt 0xFEA00000 (0x100 pages, 0x8000000000000001) skip 1
21:316  0:000  OCABC: MMIO devirt 0xFEC00000 (0x1 pages, 0x8000000000000001) skip 1
21:317  0:000  OCABC: MMIO devirt 0xFEC10000 (0x1 pages, 0x8000000000000001) skip 1
21:317  0:000  OCABC: MMIO devirt 0xFED00000 (0x1 pages, 0x8000000000000001) skip 1
21:318  0:000  OCABC: MMIO devirt 0xFED40000 (0x5 pages, 0x8000000000000001) skip 1
21:319  0:000  OCABC: MMIO devirt 0xFED80000 (0x10 pages, 0x8000000000000001) skip 1
21:319  0:000  OCABC: MMIO devirt 0xFEDC2000 (0xE pages, 0x8000000000000001) skip 1
21:320  0:000  OCABC: MMIO devirt 0xFEDD4000 (0x2 pages, 0x8000000000000001) skip 1
21:321  0:000  OCABC: MMIO devirt 0xFEE00000 (0x100 pages, 0x8000000000000001) skip 0
21:321  0:000  OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x8000000000000001) skip 1
21:322  0:000  OCABC: MMIO devirt 0x4040000000 (0x10400 pages, 0x8000000000000001) skip 1
21:322  0:000  OCABC: MMIO devirt 0x8BB0000000 (0x10400 pages, 0x8000000000000001) skip 0
21:323  0:000  OCABC: MMIO devirt 0x8BE0000000 (0x10400 pages, 0x8000000000000001) skip 0
21:324  0:000  OCABC: MMIO devirt 0xD750000000 (0x10400 pages, 0x8000000000000001) skip 0
21:325  0:001  OCABC: MMIO devirt end, saved 799744 KB
21:326  0:000  OCCPU: Discovered CpuFamily 23 CpuModel 1 CpuStepping 0 CpuGeneration 0
21:327  0:000  OCABC: Only 128/256 slide values are usable!
21:327  0:000  OCABC: Valid slides - 128-255
21:328  0:000  OCOS: OS set: <null> Mac OS X 10.15
21:329  0:000  OCOS: OS set: Apple Inc. Mac OS X 10.15
21:329  0:000  OCOS: Should use black background
21:337  0:007  OC: Opening file System\Library\Kernels\kernel with 1 mode gave - Success
21:338  0:000  OC: Opening file \System\Library\CoreServices\com.apple.Boot.plist with 1 mode gave - Not Found
21:339  0:000  OC: Opening file Library\Preferences\SystemConfiguration\com.apple.Boot.plist with 1 mode gave - Not Found
21:341  0:002  OC: Opening file \System\Library\CoreServices\PlatformSupport.plist with 1 mode gave - Success
21:347  0:005  OC: Opening file \System\Library\CoreServices\boot.efi with 1 mode gave - Success
21:374  0:027  OC: Opening file System\Library\PrelinkedKernels\prelinkedkernel.development with 1 mode gave - Not Found
21:391  0:016  OC: Opening file System\Library\PrelinkedKernels\prelinkedkernel with 1 mode gave - Success
21:396  0:005  OC: Kext reservation size info 553000 exe 279000
21:397  0:000  OC: Trying 64-bit XNU hook on System\Library\PrelinkedKernels\prelinkedkernel
22:152  0:754  OCAK: Compressed result has A8ECC018 magic
22:152  0:000  OCAK: Found 64-bit Mach-O compressed 1 offset 28 size 106606592
22:153  0:000  OC: Result of 64-bit XNU hook on System\Library\PrelinkedKernels\prelinkedkernel (00000000) is Success
22:194  0:040  OCAK: Read kernel version 19.6.0 (190600)
22:195  0:000  OC: Kernel patch [0] ALL OS_algrey - commpage_populate -remove rdmsr
22:206  0:011  Replace B9A00100000F32 by 0F1F8000000000 at ofs:249EF2
22:206  0:000  OCAK: ALL OS_algrey - commpage_populate -remove rdmsr replace count - 1
22:207  0:000  OC: Kernel patcher result 0 for kernel (ALL OS_algrey - commpage_populate -remove rdmsr) - Success
22:208  0:000  OC: Kernel patch [1] ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology
22:209  0:001  Replace E80000FFFF/FF0000FFFF(E8E4F5FFFF) by 0F1F440000 at ofs:2F7
22:209  0:000  OCAK: ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology replace count - 1
22:210  0:000  OC: Kernel patcher result 1 for kernel (ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology) - Success
22:210  0:000  OC: Kernel patch [2] CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16
22:218  0:007  Replace 31C031DB31C931D20FA24189C60000000000000074/FFFFFFFFFFFFFFFFFFFFFFFFFF0000000000FFFFFF(31C031DB31C931D20FA24189C6833DF454A2000074) by B81D00008031DB31C931D20FA24189C60F1F4000EB at ofs:22FC00
22:218  0:000  OCAK: CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16 replace count - 1
22:219  0:000  OC: Kernel patcher result 2 for kernel (CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16) - Success
22:219  0:000  OC: Kernel patch [3] ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4
22:231  0:011  Replace B8040000004489F14489 by B81D0000804489F14489 at ofs:22FC53
22:231  0:000  OCAK: ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4 replace count - 1
22:232  0:000  OC: Kernel patcher result 3 for kernel (ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4) - Success
22:232  0:000  OC: Kernel patch [4] ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package
22:242  0:009  Replace C1E01AFFC0/FFF0FFFFF0(C1EA1AFFC2) by 0F1F00EB06 at ofs:22FC9E
22:242  0:000  OCAK: ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package replace count - 1
22:242  0:000  OC: Kernel patcher result 4 for kernel (ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package) - Success
22:243  0:000  OC: Kernel patch [5] CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16
22:252  0:009  Replace 833D00000000000F00000000008B00BC/FFFF000000FFFFFF00000000FFFF00FF(833D7C53A200000F849B0100008B5DBC) by 00000000000001000000000000000000/0000000000000F000000000000000000(833D7C53A200010F849B0100008B5DBC) at ofs:22FE55
22:667  0:414  OCAK: CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16 replace count - 1
22:668  0:001  OC: Kernel patcher result 5 for kernel (CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16) - Success
22:668  0:000  OC: Kernel patch [6] ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr
22:680  0:011  Replace B98B00000031C031D20F30 by 660F1F8400000000006690 at ofs:22E2A5
22:680  0:000  OCAK: ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr replace count - 1
22:681  0:000  OC: Kernel patcher result 6 for kernel (ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr) - Success
22:681  0:000  OC: Kernel patch [7] ALL_OS_algrey - cpuid_set_generic_info - set microcode=186
22:693  0:011  Replace B98B0000000F32 by BABA0000006690 at ofs:22E2ED
22:693  0:000  OCAK: ALL_OS_algrey - cpuid_set_generic_info - set microcode=186 replace count - 1
22:693  0:000  OC: Kernel patcher result 7 for kernel (ALL_OS_algrey - cpuid_set_generic_info - set microcode=186) - Success
22:694  0:000  OC: Kernel patch [8] ALL_OSalgrey - cpuid_set_generic_info - set flag=1
22:706  0:011  Replace B9170000000F32C1EA1280E207 by B201660F1F8400000000006690 at ofs:22E365
22:706  0:000  OCAK: ALL_OSalgrey - cpuid_set_generic_info - set flag=1 replace count - 1
22:706  0:000  OC: Kernel patcher result 8 for kernel (ALL_OSalgrey - cpuid_set_generic_info - set flag=1) - Success
22:707  0:000  OC: Kernel patch [9] ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7
22:719  0:012  Replace 003A0F82 by 00000F82 at ofs:22ED8C
22:719  0:000  OCAK: ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7 replace count - 1
22:720  0:000  OC: Kernel patcher result 9 for kernel (ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7) - Success
22:721  0:001  OC: Kernel patch [10] ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD
22:766  0:044  Replace 47656E75696E65496E74656C00 by 41757468656E746963414D4400 at ofs:924B3E
22:766  0:000  OCAK: ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD replace count - 1
22:767  0:000  OC: Kernel patcher result 10 for kernel (ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD) - Success
22:767  0:000  OC: Kernel patch [11] ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN
22:776  0:008  Replace 31DB803D00000000067500/FFFFFFFF000000FFFFFF00(31DB803D0962A20006756A) by BBBC4FEA78E95D00000090 at ofs:22EF4A
22:776  0:000  OCAK: ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN replace count - 1
22:777  0:000  OC: Kernel patcher result 11 for kernel (ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN) - Success
22:777  0:000  OC: Kernel patch [12] CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16
22:779  0:001  Replace 7571E800000000488B050000000048890500000000/FFFFFF00000000FFFFFF00000000FFFFFF00000000(7571E8C7090000488B051861A200488905D961A200) by 744E000000000090890D00000000E97E0000006690/FFFF0000000000FFFFFF00000000FFFFFFFFFFFFFF(744EE8C709000090890D1861A200E97E0000006690) at ofs:1282
22:779  0:000  OCAK: CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16 replace count - 1
22:779  0:000  OC: Kernel patcher result 12 for kernel (CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16) - Success
22:780  0:000  OC: Kernel patch [13] CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16
22:781  0:001  Replace B9350000000F3248C1E22089C14809D1B9010001000F45C80FB7C1C1E91083E10FEB1EB9350000000F3248C1E22089C14809D1B9010001000F45C80FB7C1C1E910 by B80800008031DB31C931D20FA24189CE450FB6F641FFC6B81E00008031DB31C931D20FA20FB6F7FFC64489F131D289C8F7F689C14489F0E97CFFFFFF0F1F440000 at ofs:12D2
22:781  0:000  OCAK: CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16 replace count - 1
22:782  0:000  OC: Kernel patcher result 13 for kernel (CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16) - Success
22:783  0:000  OC: Kernel patch [14] ALL_OS_algrey - i386_init - remove rdmsr (x3)
22:796  0:013  Replace B9990100000F3248C1E22089C64809D6B9980100000F3248C1E22089C04809C2BF5802310531C94531C0 by 660F1F840000000000660F1F840000000000660F1F840000000000660F1F840000000000660F1F440000 at ofs:237ECF
22:796  0:000  Replace B9990100000F3248C1E22089C64809D6B9980100000F3248C1E22089C04809C2BF5802310531C94531C0 by 660F1F840000000000660F1F840000000000660F1F840000000000660F1F840000000000660F1F440000 at ofs:238259
22:796  0:000  Replace B9990100000F3248C1E22089C64809D6B9980100000F3248C1E22089C04809C2BF5802310531C94531C0 by 660F1F840000000000660F1F840000000000660F1F840000000000660F1F840000000000660F1F440000 at ofs:238354
23:359  0:563  OCAK: ALL_OS_algrey - i386_init - remove rdmsr (x3) replace count - 3
23:360  0:000  OC: Kernel patcher result 14 for kernel (ALL_OS_algrey - i386_init - remove rdmsr (x3)) - Success
23:361  0:000  OC: Kernel patch [15] ALL_OS_algrey - tsc_init - remove Penryn check to execute default case
23:370  0:009  Replace 3DBC4FEA780F8400010000/FFFFFFFFFFFFFF00FFFFFF(3DBC4FEA780F84F4010000) by 6666660F1F840000000000 at ofs:249417
23:370  0:000  OCAK: ALL_OS_algrey - tsc_init - remove Penryn check to execute default case replace count - 1
23:371  0:000  OC: Kernel patcher result 15 for kernel (ALL_OS_algrey - tsc_init - remove Penryn check to execute default case) - Success
23:371  0:000  OC: Kernel patch [16] ALL_OS_algrey - tsc_init - grab DID and VID from MSR
23:379  0:007  Replace B9940100000F3289C3B9CE0000000F320FB6CE890D000000000FB6C4890500000000/FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF000000FFFFFFFFFFFF000000FF(B9940100000F3289C3B9CE0000000F320FB6CE890D60419A000FB6C489055B419A00) by B9640001C00F320FB6C889C6C1EE0883E63F4531FF31D24889C848F7F64801C06690 at ofs:24965B
23:379  0:000  OCAK: ALL_OS_algrey - tsc_init - grab DID and VID from MSR replace count - 1
23:380  0:000  OC: Kernel patcher result 16 for kernel (ALL_OS_algrey - tsc_init - grab DID and VID from MSR) - Success
23:380  0:000  OC: Kernel patch [17] ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI
23:382  0:001  Replace F7C30000010074 by 660F1F440000EB at ofs:2E4
23:382  0:000  OCAK: ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI replace count - 1
23:383  0:000  OC: Kernel patcher result 17 for kernel (ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI) - Success
23:383  0:000  OC: Kernel patch [18] CATA_algrey - lapic_init - remove version check and panic - 10.15
23:396  0:012  Replace 83F813765E by 0F1F440000 at ofs:24D00A
23:396  0:000  OCAK: CATA_algrey - lapic_init - remove version check and panic - 10.15 replace count - 1
23:396  0:000  OC: Kernel patcher result 18 for kernel (CATA_algrey - lapic_init - remove version check and panic - 10.15) - Success
23:397  0:000  OC: Kernel patch [19] CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16
23:401  0:004  Replace 833D0000000000740E/FFFF000000FFFFFFFF(833DF61E9B0000740E) by EB390F1F8000000000 at ofs:EB89B
23:401  0:000  OCAK: CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16 replace count - 1
23:402  0:000  OC: Kernel patcher result 19 for kernel (CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16) - Success
23:458  0:056  Replace 00252E2A7300 by 00002E2A7300 at ofs:9D96FC
23:458  0:000  OCAK: PanicKextDump replace count - 1
23:459  0:000  OCAK: Patch success kext dump
23:460  0:000  OCAK: Skipping SegmentJettison on 190600
23:496  0:036  OCAK: Reducing prelink size from 65AB000 to 62DB000 via plist
23:497  0:000  OCAK: as.vit9696.Lilu got KXLD 0 0
23:497  0:000  OCAK: Requesting __LINKEDIT for as.vit9696.Lilu - AF1A7438 at 62DB000
23:498  0:001  OCAK: Requesting SymbolTable for as.vit9696.Lilu - 516
23:499  0:000  OCAK: Requesting __LINKEDIT for __kernel__ - 0 at 0
23:500  0:000  OCAK: Requesting SymbolTable for __kernel__ - 25622
23:515  0:015  OCAK: com.apple.kpi.bsd got KXLD 0 0
23:516  0:000  OCAK: Requesting __LINKEDIT for com.apple.kpi.bsd - A9E51038 at F85000
23:516  0:000  OCAK: Requesting SymbolTable for com.apple.kpi.bsd - 845
23:518  0:001  OCAK: com.apple.kpi.dsep got KXLD 0 0
23:518  0:000  OCAK: Requesting __LINKEDIT for com.apple.kpi.dsep - AA2D9038 at 140D000
23:519  0:000  OCAK: Requesting SymbolTable for com.apple.kpi.dsep - 41
23:520  0:000  OCAK: com.apple.kpi.iokit got KXLD 0 0
23:520  0:000  OCAK: Requesting __LINKEDIT for com.apple.kpi.iokit - A9E1A038 at F4E000
23:521  0:000  OCAK: Requesting SymbolTable for com.apple.kpi.iokit - 2250
23:522  0:000  OCAK: com.apple.kpi.libkern got KXLD 0 0
23:522  0:000  OCAK: Requesting __LINKEDIT for com.apple.kpi.libkern - A9E40038 at F74000
23:523  0:000  OCAK: Requesting SymbolTable for com.apple.kpi.libkern - 935
23:524  0:000  OCAK: com.apple.kpi.mach got KXLD 0 0
23:524  0:000  OCAK: Requesting __LINKEDIT for com.apple.kpi.mach - A9E13038 at F47000
23:525  0:000  OCAK: Requesting SymbolTable for com.apple.kpi.mach - 72
23:526  0:000  OCAK: com.apple.kpi.unsupported got KXLD 0 0
23:526  0:000  OCAK: Requesting __LINKEDIT for com.apple.kpi.unsupported - A9E5E038 at F92000
23:527  0:000  OCAK: Requesting SymbolTable for com.apple.kpi.unsupported - 263
23:535  0:008  OC: Prelinked injection Kexts\Other\Lilu.kext () - Success
23:536  0:000  OCAK: as.vit9696.VirtualSMC got KXLD 0 0
23:537  0:000  OCAK: Requesting __LINKEDIT for as.vit9696.VirtualSMC - AF1D3438 at 6307000
23:537  0:000  OCAK: Requesting SymbolTable for as.vit9696.VirtualSMC - 452
23:538  0:000  OCAK: Requesting SymbolTable for as.vit9696.Lilu - 133
23:539  0:001  OCAK: com.apple.iokit.IOACPIFamily got KXLD 0 0
23:540  0:000  OCAK: Requesting __LINKEDIT for com.apple.iokit.IOACPIFamily - AA4C8398 at 15FC000
23:540  0:000  OCAK: Requesting SymbolTable for com.apple.iokit.IOACPIFamily - 167
23:541  0:000  OCAK: com.apple.kpi.private got KXLD 0 0
23:542  0:000  OCAK: Requesting __LINKEDIT for com.apple.kpi.private - A9E67038 at F9B000
23:542  0:000  OCAK: Requesting SymbolTable for com.apple.kpi.private - 1044
23:553  0:010  OC: Prelinked injection Kexts\Other\VirtualSMC.kext () - Success
23:554  0:000  OCAK: as.vit9696.WhateverGreen got KXLD 0 0
23:554  0:000  OCAK: Requesting __LINKEDIT for as.vit9696.WhateverGreen - AF1ED3E8 at 6321000
23:555  0:000  OCAK: Requesting SymbolTable for as.vit9696.WhateverGreen - 409
23:556  0:000  OCAK: com.apple.iokit.IOPCIFamily got KXLD 0 0
23:556  0:000  OCAK: Requesting __LINKEDIT for com.apple.iokit.IOPCIFamily - A9F443E8 at 1078000
23:557  0:000  OCAK: Requesting SymbolTable for com.apple.iokit.IOPCIFamily - 754
23:569  0:012  OC: Prelinked injection Kexts\Other\WhateverGreen.kext () - Success
23:573  0:004  OCAK: as.vit9696.AppleALC got KXLD 0 0
23:574  0:000  OCAK: Requesting __LINKEDIT for as.vit9696.AppleALC - AF26C3E8 at 63A0000
23:574  0:000  OCAK: Requesting SymbolTable for as.vit9696.AppleALC - 355
23:589  0:014  OC: Prelinked injection Kexts\Other\AppleALC.kext () - Success
23:590  0:000  OCAK: com.smalltree.driver.SmallTreeIntel82576 got KXLD 0 0
23:590  0:000  OCAK: Requesting __LINKEDIT for com.smalltree.driver.SmallTreeIntel82576 - AF3D2398 at 6506000
23:591  0:000  OCAK: Requesting SymbolTable for com.smalltree.driver.SmallTreeIntel82576 - 974
23:592  0:000  OCAK: com.apple.iokit.IONetworkingFamily got KXLD 0 0
23:593  0:000  OCAK: Requesting __LINKEDIT for com.apple.iokit.IONetworkingFamily - A9E783E8 at FAC000
23:593  0:000  OCAK: Requesting SymbolTable for com.apple.iokit.IONetworkingFamily - 1038
23:610  0:016  OC: Prelinked injection Kexts\Other\SmallTreeIntel82576.kext () - Success
23:610  0:000  OCAK: wtf.spinach.AMDRyzenCPUPowerManagement got KXLD 0 0
23:611  0:000  OCAK: Requesting __LINKEDIT for wtf.spinach.AMDRyzenCPUPowerManagement - AF400438 at 6534000
23:612  0:001  OCAK: Requesting SymbolTable for wtf.spinach.AMDRyzenCPUPowerManagement - 1195
23:613  0:000  OCAK: com.apple.kec.Libm got KXLD 0 0
23:614  0:000  OCAK: Requesting __LINKEDIT for com.apple.kec.Libm - AA39F1B8 at 14D3000
23:614  0:000  OCAK: Requesting SymbolTable for com.apple.kec.Libm - 77
23:624  0:009  OC: Prelinked injection Kexts\Other\AMDRyzenCPUPowerManagement.kext () - Success
23:624  0:000  OC: Prelink size 106250240 kext offset 103657472 reserved 2592768
23:636  0:011  OC: Kernel patch skipped [0] ALL OS_algrey - commpage_populate -remove rdmsr
23:637  0:000  OC: Kernel patch skipped [1] ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology
23:637  0:000  OC: Kernel patch skipped [2] CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16
23:638  0:000  OC: Kernel patch skipped [3] ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4
23:638  0:000  OC: Kernel patch skipped [4] ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package
23:639  0:000  OC: Kernel patch skipped [5] CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16
23:640  0:000  OC: Kernel patch skipped [6] ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr
23:640  0:000  OC: Kernel patch skipped [7] ALL_OS_algrey - cpuid_set_generic_info - set microcode=186
23:641  0:000  OC: Kernel patch skipped [8] ALL_OSalgrey - cpuid_set_generic_info - set flag=1
23:642  0:000  OC: Kernel patch skipped [9] ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7
23:642  0:000  OC: Kernel patch skipped [10] ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD
23:643  0:000  OC: Kernel patch skipped [11] ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN
23:644  0:000  OC: Kernel patch skipped [12] CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16
23:644  0:000  OC: Kernel patch skipped [13] CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16
23:645  0:000  OC: Kernel patch skipped [14] ALL_OS_algrey - i386_init - remove rdmsr (x3)
23:645  0:000  OC: Kernel patch skipped [15] ALL_OS_algrey - tsc_init - remove Penryn check to execute default case
23:646  0:000  OC: Kernel patch skipped [16] ALL_OS_algrey - tsc_init - grab DID and VID from MSR
23:647  0:000  OC: Kernel patch skipped [17] ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI
23:647  0:000  OC: Kernel patch skipped [18] CATA_algrey - lapic_init - remove version check and panic - 10.15
23:648  0:000  OC: Kernel patch skipped [19] CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16
23:651  0:003  OCAK: com.apple.driver.AppleAHCIPort got KXLD 0 0
23:652  0:000  Replace 45787465726E616C by 496E7465726E616C at ofs:9535
23:652  0:000  OCAK: IOAHCIPort replace count - 1
23:653  0:000  OCAK: Patch success com.apple.driver.AppleAHCIPort
23:725  0:072  OC: Prelinked status - Success
23:813  0:087  ++++++++++++++++++++++++++++++++

Big Sur 11.0.1 (20B5012d)

Spoiler


0:100  0:100  MemLog inited, TSC freq: 3700567580
0:100  0:000  CPU was calibrated with RTC
0:100  0:000  CloverX64 : Image base = 0xB4A61000
0:100  0:000
0:100  0:000  Now is 02.11.2020,  12:05:56 (GMT)
0:100  0:000  Starting Clover revision: 5126 (master, commit 9e7b4311c) on American Megatrends EFI
0:100  0:000  Build id: 20201028201150-9e7b431-5126
0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG -t GCC53 | -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG --conf=/Users/sergey/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC53 -n 5 | OS: 10.14.6]
0:100  0:000  SimpleTextEx Status=Success
0:100  0:000  === [ GetDefaultSettings ] ======================
0:100  0:000  === [ Get Smbios ] ==============================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 8
0:100  0:000  Type 17 Index = 0
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/1, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL A DIMM 0
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 1
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/2, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL A DIMM 1
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 2
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/3, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL B DIMM 0
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 3
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/4, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL B DIMM 1
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 4
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/5, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL C DIMM 0
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 5
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/6, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL C DIMM 1
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 6
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/7, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL D DIMM 0
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Type 17 Index = 7
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/8, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 3200MHz
0:100  0:000  SmbiosTable.Type17->Size = 32768MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = P0 CHANNEL D DIMM 1
0:100  0:000  SmbiosTable.Type17->Vendor = Unknown
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'MS-7C60' with board 'TRX40 PRO 10G (MS-7C60)'
0:100  0:000  === [ GetCPUProperties ] ========================
0:100  0:000  CPU Vendor = 68747541 Model=830F10
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = AMD Ryzen Threadripper 3970X 32-Core Processor
0:100  0:000  	Looking to disable C1E if is already enabled by the BIOS:
0:100  0:000  CurrentSpeed: 3700
0:100  0:000  maxratio 72
0:100  0:000  cpudid_zen 8
0:100  0:000  FSBFrequency = 52 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 36.0/22
0:100  0:000  Turbo: 0/0/0/0
0:100  0:000  Features: 0x76D8320B178BFBFF
0:100  0:000  Threads: 64
0:100  0:000  Cores: 32
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3699 MHz
0:100  0:000  TSC: 3700 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ==============================
0:100  0:000  GOP found at: PciRoot(0x1)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/AcpiAdr(0x80010302)
0:100  0:000  PCI (00|00:00.00) : 1022 1480 class=060000
0:100  0:000  PCI (00|00:00.02) : 1022 1481 class=080600
0:100  0:000  PCI (00|00:01.00) : 1022 1482 class=060000
0:100  0:000  PCI (00|00:01.01) : 1022 1483 class=060400
0:100  0:000  PCI (00|01:00.00) : 144D A804 class=010802
0:100  0:000  PCI (00|00:01.02) : 1022 1483 class=060400
0:100  0:000  PCI (00|02:00.00) : 1987 5012 class=010802
0:100  0:000  PCI (00|00:02.00) : 1022 1482 class=060000
0:100  0:000  PCI (00|00:03.00) : 1022 1482 class=060000
0:100  0:000  PCI (00|00:04.00) : 1022 1482 class=060000
0:100  0:000  PCI (00|00:05.00) : 1022 1482 class=060000
0:100  0:000  PCI (00|00:07.00) : 1022 1482 class=060000
0:100  0:000  PCI (00|00:07.01) : 1022 1484 class=060400
0:100  0:000  PCI (00|03:00.00) : 1022 148A class=130000
0:101  0:000  PCI (00|00:08.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|00:08.01) : 1022 1484 class=060400
0:101  0:000  PCI (00|04:00.00) : 1022 1485 class=130000
0:101  0:000  PCI (00|04:00.03) : 1022 148C class=0C0330
0:101  0:000  PCI (00|00:14.00) : 1022 790B class=0C0500
0:101  0:000  PCI (00|00:14.03) : 1022 790E class=060100
0:101  0:000  PCI (00|00:18.00) : 1022 1490 class=060000
0:101  0:000  PCI (00|00:18.01) : 1022 1491 class=060000
0:101  0:000  PCI (00|00:18.02) : 1022 1492 class=060000
0:101  0:000  PCI (00|00:18.03) : 1022 1493 class=060000
0:101  0:000  PCI (00|00:18.04) : 1022 1494 class=060000
0:101  0:000  PCI (00|00:18.05) : 1022 1495 class=060000
0:101  0:000  PCI (00|00:18.06) : 1022 1496 class=060000
0:101  0:000  PCI (00|00:18.07) : 1022 1497 class=060000
0:101  0:000  PCI (00|20:00.00) : 1022 1480 class=060000
0:101  0:000  PCI (00|20:00.02) : 1022 1481 class=080600
0:101  0:000  PCI (00|20:01.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:02.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:03.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:03.01) : 1022 1483 class=060400
0:101  0:000  PCI (00|21:00.00) : 1022 1470 class=060400
0:101  0:000  PCI (00|22:00.00) : 1022 1471 class=060400
0:101  0:000  PCI (00|23:00.00) : 1002 687F class=030000
0:101  0:000   - GOP: Provided by device
0:101  0:000   - GFX: Model=AMD Radeon Vega 64 (ATI/AMD)
0:101  0:000  PCI (00|23:00.01) : 1002 AAF8 class=040300
0:101  0:000   - HDMI Audio:
0:101  0:000  PCI (00|20:04.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:05.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:07.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:07.01) : 1022 1484 class=060400
0:101  0:000  PCI (00|24:00.00) : 1022 148A class=130000
0:101  0:000  PCI (00|20:08.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|20:08.01) : 1022 1484 class=060400
0:101  0:000  PCI (00|25:00.00) : 1022 1485 class=130000
0:101  0:000  PCI (00|25:00.01) : 1022 1486 class=108000
0:101  0:000  PCI (00|25:00.03) : 1022 148C class=0C0330
0:101  0:000  PCI (00|25:00.04) : 1022 1487 class=040300
0:101  0:000  PCI (00|40:00.00) : 1022 1480 class=060000
0:101  0:000  PCI (00|40:00.02) : 1022 1481 class=080600
0:101  0:000  PCI (00|40:01.00) : 1022 1482 class=060000
0:101  0:000  PCI (00|40:01.01) : 1022 1483 class=060400
0:101  0:000  PCI (00|41:00.00) : 1022 57AD class=060400
0:101  0:000  PCI (00|42:02.00) : 1022 57A3 class=060400
0:101  0:000  PCI (00|43:00.00) : 1B21 3242 class=0C0330
0:101  0:000  PCI (00|42:04.00) : 1022 57A3 class=060400
0:101  0:000  PCI (00|44:00.00) : 8086 1539 class=020000
0:101  0:000   - LAN: 0 Vendor=Intel
0:101  0:000  PCI (00|42:05.00) : 1022 57A3 class=060400
0:101  0:000  PCI (00|45:00.00) : 8086 1539 class=020000
0:101  0:000   - LAN: 1 Vendor=Intel
0:101  0:000  PCI (00|42:08.00) : 1022 57A4 class=060400
0:101  0:000  PCI (00|46:00.00) : 1022 1485 class=130000
0:101  0:000  PCI (00|46:00.01) : 1022 149C class=0C0330
0:101  0:000  PCI (00|46:00.03) : 1022 149C class=0C0330
0:101  0:000  PCI (00|42:09.00) : 1022 57A4 class=060400
0:102  0:000  PCI (00|47:00.00) : 1022 7901 class=010601
0:102  0:000  PCI (00|42:0A.00) : 1022 57A4 class=060400
0:102  0:000  PCI (00|48:00.00) : 1022 7901 class=010601
0:102  0:000  PCI (00|40:01.03) : 1022 1483 class=060400
0:102  0:000  PCI (00|49:00.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|4A:00.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|4B:00.00) : 8086 15EB class=088000
0:102  0:000  PCI (00|4A:01.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|4A:02.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|4D:00.00) : 8086 15EC class=0C0330
0:102  0:000  PCI (00|4A:04.00) : 8086 15EA class=060400
0:102  0:000  PCI (00|40:02.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:03.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:03.01) : 1022 1483 class=060400
0:102  0:000  PCI (00|4F:00.00) : 1D6A 07B1 class=020000
0:102  0:000   - LAN: 2 Vendor=Unknown
0:102  0:000  PCI (00|40:04.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:05.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:07.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:07.01) : 1022 1484 class=060400
0:102  0:000  PCI (00|50:00.00) : 1022 148A class=130000
0:102  0:000  PCI (00|40:08.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|40:08.01) : 1022 1484 class=060400
0:102  0:000  PCI (00|51:00.00) : 1022 1485 class=130000
0:102  0:000  PCI (00|60:00.00) : 1022 1480 class=060000
0:102  0:000  PCI (00|60:00.02) : 1022 1481 class=080600
0:102  0:000  PCI (00|60:01.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:02.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:03.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:04.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:05.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:07.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:07.01) : 1022 1484 class=060400
0:102  0:000  PCI (00|61:00.00) : 1022 148A class=130000
0:102  0:000  PCI (00|60:08.00) : 1022 1482 class=060000
0:102  0:000  PCI (00|60:08.01) : 1022 1484 class=060400
0:102  0:000  PCI (00|62:00.00) : 1022 1485 class=130000
0:102  0:000  Clover load options size = 0 bytes
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60--00-00-00-00-00-00'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60--00-00-00-00-00-00'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60--00-00-00-00-00-00'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\TRX40 PRO 10G (MS-7C60)\UEFI'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60'. Dir doesn't exist.
0:102  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\MS-7C60-3699'. Dir doesn't exist.
0:103  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\TRX40 PRO 10G (MS-7C60)'. Dir doesn't exist.
0:103  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\TRX40 PRO 10G (MS-7C60)-3699'. Dir doesn't exist.
0:103  0:000  Using config.plist at path: \EFI\CLOVER
0:104  0:000  \EFI\CLOVER\config.plist  loaded: Success
0:104  0:000  === [ GetListOfThemes ] =========================
0:104  0:000  === [ Found config plists ] =====================
0:104  0:000  - config.plist
0:104  0:000  - config copy.plist
0:104  0:000  === [ GetEarlyUserSettings ] ====================
0:104  0:000  timeout set to 25
0:104  0:000  Custom boot CUSTOM_BOOT_USER_DISABLED (0x0)
0:104  0:000  KextsToPatch: 1 requested
0:104  0:000   - [00]: com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur) :: MatchOS: 11.x :: BinPatch :: data len: 6
0:105  0:000  KernelToPatch: 34 requested
0:105  0:000   - [00]: BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8 :: MatchOS: 11.x :: data len: 14
0:105  0:000   - [01]: ALL OS_algrey - commpage_populate -remove rdmsr :: data len: 7
0:105  0:000   - [02]: ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology :: data len: 5
0:105  0:000   - [03]: CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 21
0:105  0:000   - [04]: HS_MOJ_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 23
0:105  0:000   - [05]: ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4 :: data len: 10
0:105  0:000   - [06]: ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package :: data len: 5
0:105  0:000   - [07]: CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 16
0:105  0:000   - [08]: HS_MOJalgrey - skip cpuid_cores_per_package test - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 12
0:105  0:000   - [09]: ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr :: data len: 11
0:105  0:000   - [10]: ALL_OS_algrey - cpuid_set_generic_info - set microcode=186 :: data len: 7
0:105  0:000   - [11]: ALL_OSalgrey - cpuid_set_generic_info - set flag=1 :: data len: 13
0:105  0:000   - [12]: ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7 :: data len: 4
0:105  0:000   - [13]: ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD :: data len: 13
0:105  0:000   - [14]: ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN :: data len: 11
0:105  0:000   - [15]: CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 21
0:105  0:000   - [16]: CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 65
0:105  0:000   - [17]: HS_algrey - cpuid_set_info - ryzen cores and logicals count - part 1 - 10.13 :: MatchOS: 10.13.x :: data len: 7
0:105  0:000   - [18]: MOJ_algrey - cpuid_set_info - ryzen cores and logicals count - part 1 - 10.14 :: MatchOS: 10.14.x :: data len: 7
0:105  0:000   - [19]: HS_MOJ_algrey - cpuid_set_info - ryzen cores and logicals count - part 2 - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 32
0:105  0:000   - [20]: HS_algrey - cpuid_set_info - ryzen cores and logicals count - part 3 - 10.13 :: MatchOS: 10.13.x :: data len: 16
0:105  0:000   - [21]: MOJ_algrey - cpuid_set_info - ryzen cores and logicals count - part 3 - 10.14 :: MatchOS: 10.14.x :: data len: 3
0:105  0:000   - [22]: HS_algrey - cpuid_set_info - ryzen cores and logicals count - part 4 - 10.13 :: MatchOS: 10.13.x :: data len: 14
0:105  0:000   - [23]: MOJ_algrey - cpuid_set_info - ryzen cores and logicals count - part 4 - 10.14 :: MatchOS: 10.14.x :: data len: 14
0:105  0:000   - [24]: ALL_OS_algrey - i386_init - remove rdmsr (x3) :: data len: 42
0:105  0:000   - [25]: MOJ_algrey - tsc_init - remove Penryn check to execute default case 10.14 :: MatchOS: 10.14.x :: data len: 12
0:105  0:000   - [26]: ALL_OS_algrey - tsc_init - remove Penryn check to execute default case :: data len: 11
0:105  0:000   - [27]: ALL_OS_algrey - tsc_init - grab DID and VID from MSR :: data len: 34
0:105  0:000   - [28]: ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI :: data len: 7
0:105  0:000   - [29]: CATA_algrey - lapic_init - remove version check and panic - 10.15 :: MatchOS: 10.15.x :: data len: 5
0:105  0:000   - [30]: BS_NoOne - lapic_init - remove version check and panic - 10.16 :: MatchOS: 11.x :: data len: 9
0:105  0:000   - [31]: HS_MOJ_algrey - lapic_init - remove version check and panic - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 8
0:105  0:000   - [32]: CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 9
0:105  0:000   - [33]: HS_MOJ_algrey - lapic_interrupt - skip checks and prevent panic - 10.13/10.14 :: MatchOS: 10.13.x,10.14.x :: data len: 9
0:105  0:000  Default theme: embedded
0:105  0:000  Hiding entries with string System Reserved
0:105  0:000  Hiding entries with string Update
0:105  0:000  === [ LoadDrivers ] =============================
0:106  0:001  Loading FSInject.efi  status=Success
0:107  0:000  Loading SMCHelper.efi  status=Success
0:108  0:001  Loading Fat.efi  status=Success
0:109  0:000   - driver needs connecting
0:109  0:000  Loading VBoxHfs.efi  status=Success
0:180  0:071   - driver needs connecting
0:180  0:000  Loading DataHubDxe.efi  status=Success
0:184  0:003  Loading ApfsDriverLoader.efi  status=Success
0:185  0:000   - driver needs connecting
0:185  0:000  Loading AudioDxe.efi  status=Success
0:186  0:000   - driver needs connecting
0:186  0:000  4 drivers needs connecting ...
0:186  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:186  0:000  Searching for invalid DiskIo BY_DRIVER connects:
0:192  0:005   - Handle b73b2f18 with DiskIo, is Partition, no Fs, BY_DRIVER Agent: b7e83998, Disconnect: Success
0:200  0:008   - Handle b7331798 with DiskIo, is Partition, no Fs, BY_DRIVER Agent: b7e83998, Disconnect: Success
0:200  0:000  1
8:055  7:854  === [ InitScreen ] ==============================
8:055  0:000  Console modes reported: 4, available modes:
8:055  0:000   - [01]: 80x25
8:055  0:000   - [02]: 80x50
8:055  0:000   - [03]: 100x31
8:055  0:000   - [04]: 128x40 (current mode)
8:055  0:000  SetScreenResolution: 1920x1080 - not found!
8:055  0:000  SetMaxResolution: found best mode 0: 3840x2160
8:247  0:192  Video mode change to mode #0: Success
8:247  0:000   - set
8:247  0:000  SetScreenResolution: 3840x2160 - already set
8:249  0:001  Using embedded font
8:250  0:000  === [ GetMacAddress ] ===========================
8:250  0:000  MAC address of LAN #0= 00:D8:61:BD:83:BD:
8:250  0:000  === [ ScanSPD ] =================================
8:251  0:001  === [ GetAcpiTablesList ] =======================
8:251  0:000  Get Acpi Tables List from RSDT:
8:251  0:000   - [00]: FACP  A M I  len=276
8:251  0:000   - [01]: SSDT  AmdTable len=35992
8:251  0:000   - [02]: SSDT  AMD AOD len=14535
8:251  0:000   - [03]: FIDT  A M I len=156
8:251  0:000   - [04]: MCFG  A M I len=60
8:251  0:000   - [05]: SSDT  CPUSSDT len=876
8:251  0:000   - [06]: HPET  A M I len=56
8:251  0:000   - [07]: SSDT  BIXBY len=36
8:251  0:000   - [08]: VFCT  A M I  len=61060
8:251  0:000   - [09]: IVRS  AmdTable len=496
8:251  0:000   - [10]: PCCT  AmdTable len=110
8:251  0:000   - [11]: SSDT  AmdTable len=64073
8:251  0:000   - [12]: CRAT  AmdTable len=15016
8:251  0:000   - [13]: CDIT  AmdTable len=41
8:251  0:000   - [14]: SSDT  SHAKTOOH len=11113
8:251  0:000   - [15]: WSMT  A M I  len=40
8:251  0:000   - [16]: APIC  A M I  len=1154
8:251  0:000   - [17]: SSDT  SHAKTOOH len=4271
8:251  0:000   - [18]: FPDT  A M I  len=68
8:251  0:000  Calibrated TSC Frequency = 3700567580 = 3700MHz
8:252  0:000  === [ GetUserSettings ] =========================
8:252  0:000  USB FixOwnership: yes
8:252  0:000  Dropping 4 tables:
8:252  0:000   - [00]: Drop table  signature="DMAR" (52414D44)
8:252  0:000  ----
8:252  0:000           - set table: 52414D44,                0 to drop: no
8:252  0:000   - [01]: Drop table  signature="SSDT" (54445353)
8:252  0:000   table-id="CpuPm" (      6D50757043)
8:252  0:000  ----
8:252  0:000           - set table: 54445353,       6d50757043 to drop: no
8:252  0:000   - [02]: Drop table  signature="SSDT" (54445353)
8:252  0:000   table-id="Cpu0Ist" (  74734930757043)
8:252  0:000  ----
8:252  0:000           - set table: 54445353,   74734930757043 to drop: no
8:252  0:000   - [03]: Drop table  signature="BGRT" (54524742)
8:252  0:000  ----
8:252  0:000           - set table: 54524742,                0 to drop: no
8:252  0:000   - final DSDT Fix mask=1FE70000
8:252  0:000  Devices to rename 1
8:252  0:000  PXSX:RP01:PCI0:#_SB:->will be renamed to ARPT
8:252  0:000  Using ProductName from config: iMacPro1,1
8:252  0:000  Using latest BiosVersion from config
8:252  0:000  BiosVersion: IMP11.88Z.F000.B00.2007121438
8:252  0:000  BiosReleaseDate: 07/12/2020
8:252  0:000  Using latest EfiVersion from config: 1539.0.0.0.1
8:252  0:000  Using FirmwareFeatures from config: 0xFD8FF53F
8:252  0:000  Using FirmwareFeaturesMask from config: 0xFF9FFF3F
8:252  0:000  Board-ID set from config as Mac-7BA5B2D9E42DDD94
8:252  0:000  BoardType: 0xA
8:252  0:000  ChassisType: 0x9
8:252  0:000  Cannot find smbios.plist at path '\EFI\CLOVER' : Not Found
8:253  0:000  === [ Found DSDT tables ] =======================
8:254  0:000  Added Kext=Other\Lilu.kext
8:254  0:000  Added Kext=Other\SmallTreeIntel82576.kext
8:264  0:010  Added Kext=Other\AppleALC.kext
8:265  0:000  Added Kext=Other\WhateverGreen.kext
8:267  0:001  Added Kext=Other\VirtualSMC.kext
8:267  0:000  Added Kext=Other\AMDRyzenCPUPowerManagement.kext
8:268  0:000  === [ ScanVolumes ] =============================
8:268  0:000  Found 37 volumes with blockIO
8:268  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)
8:268  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(1,GPT,04BC09C8-01CE-11EB-8D48-00D861CA94CC,0x800,0x19000)
8:268  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:268  0:000            label : System Reserved
8:268  0:000          hiding this volume
8:268  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(2,GPT,04BC09C9-01CE-11EB-8D48-00D861CA94CC,0x19800,0x77273A8D)
8:268  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:268  0:000            label : Unknown HD2
8:268  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)
8:268  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:268  0:000            label : EFI
8:268  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(4,GPT,04BC09CB-01CE-11EB-8D48-00D861CA94CC,0x772BF800,0xFC800)
8:268  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:268  0:000            label : Unknown HD4
8:268  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)
8:268  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(1,GPT,09EEB79F-C000-498B-9C83-1A7F593C32D7,0x6,0x12C00)
8:269  0:000            label : EFI
8:269  0:000          This is SelfVolume !!
8:269  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)
8:269  0:000  - [08]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)
8:271  0:002  - [09]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)
8:271  0:000  - [10]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)
8:272  0:000          Result of bootcode detection: bootable unknown (legacy)
8:272  0:000  - [11]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,6A39DCEB-5BA5-4D82-B5DD-AC2A8F241610,0x28,0x64000)
8:273  0:000          Result of bootcode detection: bootable unknown (legacy)
8:274  0:001            label : EFI
8:274  0:000  - [12]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)
8:274  0:000          Result of bootcode detection: bootable unknown (legacy)
8:274  0:000  - [13]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,1395C915-F702-4C67-9969-BAFF4B10C422,0x28,0x64000)
8:275  0:000          Result of bootcode detection: bootable unknown (legacy)
8:284  0:008            label : EFI
8:284  0:000  - [14]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,16D8AA6B-8E9C-4A6D-8E41-06D7BA16A7ED,0x64800,0x48C39B000)
8:284  0:000          Result of bootcode detection: bootable unknown (legacy)
8:284  0:000  - [15]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,1E0975EF-7D7A-485A-8E25-DF6199CE6CD5,0x28,0x64000)
8:285  0:000          Result of bootcode detection: bootable unknown (legacy)
8:292  0:007            label : EFI
8:292  0:000  - [16]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,148EBB84-7D7E-4069-9791-FE0F51F30C41,0x64028,0x48C39AFD8)
8:293  0:000          Result of bootcode detection: bootable unknown (legacy)
8:293  0:000  - [17]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)
8:293  0:000          Result of bootcode detection: bootable unknown (legacy)
8:293  0:000  - [18]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)
8:294  0:000          Result of bootcode detection: bootable unknown (legacy)
8:294  0:000  - [19]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x4,0xFFFF,0x0)
8:294  0:000  - [20]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,9031FA78-053E-11E9-8767-E0D55E2FD271,0x22,0x800)
8:295  0:000  - [21]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,624C68D2-E597-4F56-893E-602A47484128,0x822,0x77DE)
8:295  0:000  - [22]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,9031FA7B-053E-11E9-8767-E0D55E2FD271,0x8000,0x2BAA0748F)
8:296  0:000          Result of bootcode detection: bootable unknown (legacy)
8:296  0:000  - [23]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,9031FA6F-053E-11E9-8767-E0D55E2FD271,0x22,0x800)
8:300  0:004  - [24]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,81C93AD7-40CC-4566-9732-29F3C9E2ABEF,0x822,0x77DE)
8:301  0:000  - [25]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,9031FA72-053E-11E9-8767-E0D55E2FD271,0x8000,0x2BAA0748F)
8:301  0:000          Result of bootcode detection: bootable Windows (vista,win)
8:302  0:000  - [26]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)
8:302  0:000            apfsFileSystemUUID=1AE19862-7291-4E55-B1D2-0D3BE088A124, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x10
8:302  0:000            label : Preboot
8:302  0:000  - [27]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D1B0CE44B3919C4AB3FABD589833E960)
8:302  0:000            apfsFileSystemUUID=44CEB0D1-91B3-4A9C-B3FA-BD589833E960, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x40
8:308  0:005            label : macOS Catalina - Data
8:308  0:000  - [28]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,826B7F6944DC6D4DB6DD029130AFD976)
8:308  0:000            apfsFileSystemUUID=697F6B82-DC44-4D6D-B6DD-029130AFD976, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x4
8:308  0:000            label : Recovery
8:308  0:000  - [29]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,966A6459FCFB0040A262D3E130F542EB)
8:308  0:000            apfsFileSystemUUID=59646A96-FBFC-4000-A262-D3E130F542EB, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x8
8:308  0:000            label : VM
8:308  0:000  - [30]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D593B60572D2534BA5DAB43CC2A6428C)
8:308  0:000            apfsFileSystemUUID=05B693D5-D272-4B53-A5DA-B43CC2A6428C, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x1
8:310  0:001            label : macOS Big Sur
8:310  0:000  - [31]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,9B2B4FF63141064BBFC2AB96CD113AB6)
8:310  0:000            apfsFileSystemUUID=F64F2B9B-4131-4B06-BFC2-AB96CD113AB6, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0xc0
8:310  0:000            label : Update
8:310  0:000          hiding this volume
8:310  0:000  - [32]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2ADB6EFB5910624689D04E42E3BF1759)
8:310  0:000            apfsFileSystemUUID=FB6EDB2A-1059-4662-89D0-4E42E3BF1759, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x10
8:311  0:001            label : Preboot
8:311  0:000  - [33]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,CD8E6C45F93B0D468A1CFC516EB37362)
8:311  0:000            apfsFileSystemUUID=456C8ECD-3BF9-460D-8A1C-FC516EB37362, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x40
8:318  0:007            label : macOS 19h4 - Data
8:318  0:000  - [34]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
8:318  0:000            apfsFileSystemUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x1
8:326  0:007            label : macOS 19h4
8:326  0:000  - [35]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F304039E87FFB549BB589AD6C680AFCA)
8:326  0:000            apfsFileSystemUUID=9E0304F3-FF87-49B5-BB58-9AD6C680AFCA, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x4
8:326  0:000            label : Recovery
8:326  0:000  - [36]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,3B9536D141B72646BF90A52EB7E76A89)
8:326  0:000            apfsFileSystemUUID=D136953B-B741-4626-BF90-A52EB7E76A89, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x8
8:326  0:000            label : VM
8:326  0:000  found 1 handles with audio
8:326  0:000  No AudioIoDevice stored
8:326  0:000  no stored audio parameters
8:326  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 0
8:326  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 1
8:326  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 2
8:326  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 3
8:326  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 4
8:326  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 5
8:326  0:000  === [ InitXTheme ] ==============================
8:326  0:000  use Daylight theme
8:326  0:000   using embedded theme
8:344  0:017  sound play end with status=Device Error
8:344  0:000  Using embedded font
8:345  0:000  theme inited
8:345  0:000  Chosen embedded theme
8:345  0:000  after NVRAM boot-args=-v
8:345  0:000  === [ Dump SMC keys from NVRAM ] ================
8:345  0:000  found AppleSMC protocol
8:375  0:030  Registered 13 SMC keys
8:383  0:007  === [ ScanLoader ] ==============================
8:383  0:000  - [01]: 'System Reserved'
8:383  0:000  - [02]: 'Unknown HD2'
8:383  0:000  - [03]: 'EFI'
8:384  0:001      AddLoaderEntry for Volume Name=EFI, idx=0
8:384  0:000      IconName=vista,win comma=5 size=9
8:384  0:000      first=os_vista
8:384  0:000      Second=os_win
8:385  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)\EFI\microsoft\Boot\bootmgfw.efi'
8:386  0:001      AddLoaderEntry for Volume Name=EFI, idx=1
8:386  0:000      IconName=unknown comma=-1 size=7
8:386  0:000      Full=unknown
8:386  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)\EFI\BOOT\BOOTX64.efi'
8:386  0:000  - [04]: 'Unknown HD4'
8:386  0:000  - [06]: 'EFI'
8:389  0:002      AddLoaderEntry for Volume Name=EFI, idx=2
8:389  0:000      IconName=unknown comma=-1 size=7
8:389  0:000      Full=unknown
8:389  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(1,GPT,09EEB79F-C000-498B-9C83-1A7F593C32D7,0x6,0x12C00)\EFI\BOOT\BOOTX64.efi'
8:389  0:000  - [11]: 'EFI'
8:404  0:014  - [13]: 'EFI'
8:434  0:029  - [15]: 'EFI'
8:454  0:020  - [26]: 'Preboot'
8:455  0:000  contentDetails name:macOS Catalina
8:455  0:000      AddLoaderEntry for Volume Name=Preboot, idx=3
8:455  0:000      ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E
8:455  0:000      ApfsFileSystemUUID=1AE19862-7291-4E55-B1D2-0D3BE088A124
8:455  0:000      APFSTargetUUID=44CEB0D1-91B3-4A9C-B3FA-BD589833E960
8:455  0:000      Check if volume Is Hibernated:
8:455  0:000      Check sleep image 'by signature':
8:455  0:000      using default sleep image name = \private\var\vm\sleepimage
8:455  0:000      sleepimage not found -> Not Found
8:455  0:000      hibernated: no - sign
8:455  0:000      IconName=bigsur,mac comma=6 size=10
8:455  0:000      first=os_bigsur
8:455  0:000      Second=os_mac
8:455  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)\44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\boot.efi'
8:456  0:000  - [27]: 'macOS Catalina - Data'
8:457  0:001  - [28]: 'Recovery'
8:458  0:000  contentDetails name:macOS Catalina
8:458  0:000  - [29]: 'VM'
8:458  0:000  - [30]: 'macOS Big Sur'
8:462  0:004      AddLoaderEntry for Volume Name=macOS Big Sur, idx=4
8:462  0:000      ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E
8:462  0:000      ApfsFileSystemUUID=05B693D5-D272-4B53-A5DA-B43CC2A6428C
8:463  0:000      Check if volume Is Hibernated:
8:463  0:000      Check sleep image 'by signature':
8:463  0:000      using default sleep image name = \private\var\vm\sleepimage
8:463  0:000      sleepimage not found -> Not Found
8:463  0:000      hibernated: no - sign
8:463  0:000      IconName=bigsur,mac comma=6 size=10
8:463  0:000      first=os_bigsur
8:463  0:000      Second=os_mac
8:463  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D593B60572D2534BA5DAB43CC2A6428C)\System\Library\CoreServices\boot.efi'
8:463  0:000  - [31]: 'Update'
8:463  0:000  - [32]: 'Preboot'
8:464  0:000      AddLoaderEntry for Volume Name=Preboot, idx=5
8:464  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
8:464  0:000      ApfsFileSystemUUID=FB6EDB2A-1059-4662-89D0-4E42E3BF1759
8:464  0:000      APFSTargetUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
8:465  0:000      Check if volume Is Hibernated:
8:465  0:000      Check sleep image 'by signature':
8:465  0:000      using default sleep image name = \private\var\vm\sleepimage
8:465  0:000      sleepimage not found -> Not Found
8:465  0:000      hibernated: no - sign
8:465  0:000      IconName=cata,mac comma=4 size=8
8:465  0:000      first=os_cata
8:465  0:000      Second=os_mac
8:465  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2ADB6EFB5910624689D04E42E3BF1759)\7D8AFF50-2660-46A6-8B75-2367DE4CBB04\System\Library\CoreServices\boot.efi'
8:465  0:000  - [33]: 'macOS 19h4 - Data'
8:472  0:006  - [34]: 'macOS 19h4'
8:489  0:016      AddLoaderEntry for Volume Name=macOS 19h4, idx=6
8:489  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
8:489  0:000      ApfsFileSystemUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
8:489  0:000      Check if volume Is Hibernated:
8:489  0:000      Check sleep image 'by signature':
8:489  0:000      using default sleep image name = \private\var\vm\sleepimage
8:489  0:000      sleepimage not found -> Not Found
8:489  0:000      hibernated: no - sign
8:489  0:000      IconName=cata,mac comma=4 size=8
8:489  0:000      first=os_cata
8:489  0:000      Second=os_mac
8:490  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)\System\Library\CoreServices\boot.efi'
8:490  0:000  - [35]: 'Recovery'
8:491  0:000      AddLoaderEntry for Volume Name=Recovery, idx=7
8:491  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
8:491  0:000      ApfsFileSystemUUID=9E0304F3-FF87-49B5-BB58-9AD6C680AFCA
8:491  0:000      APFSTargetUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
8:491  0:000      IconName=cata,mac comma=4 size=8
8:491  0:000      first=os_cata
8:491  0:000      Second=os_mac
8:491  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F304039E87FFB549BB589AD6C680AFCA)\7D8AFF50-2660-46A6-8B75-2367DE4CBB04\boot.efi'
8:492  0:000  - [36]: 'VM'
8:492  0:000  Scanning legacy ...
8:492  0:000   hidden
8:492  0:000      IconName=vista,win comma=5 size=9
8:492  0:000      first=os_vista
8:492  0:000      Second=os_win
8:492  0:000      IconName=vista,win comma=5 size=9
8:492  0:000      first=os_vista
8:492  0:000      Second=os_win
8:492  0:000      IconName=vista,win comma=5 size=9
8:492  0:000      first=os_vista
8:492  0:000      Second=os_win
8:492  0:000      IconName=vista,win comma=5 size=9
8:492  0:000      first=os_vista
8:492  0:000      Second=os_win
8:492  0:000  === [ AddCustomTool ] ===========================
8:493  0:000  === [ GetEfiBootDeviceFromNvram ] ===============
8:493  0:000   - efi-boot-device-data: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
8:493  0:000    - Volume: 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)'
8:493  0:000    - LoaderPath: ''
8:493  0:000    - Guid = CAF32F96-C98C-40B1-8F10-283A8AD2F8C0
8:493  0:000  === [ FindStartupDiskVolume ] ===================
8:493  0:000    - Volume: partition = PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
8:493  0:000     - searching for that partition
8:493  0:000      - found entry 3. 'Boot macOS from macOS 19h4', Volume 'macOS 19h4'
8:493  0:000  Boot redirected to Entry 3. 'Boot macOS from macOS 19h4'
8:493  0:000  BannerPlace at Clear Screen [1856,764]
8:521  0:027  AnimeRun=0
8:551  0:030  GUI ready
15:193  6:642  Using config copy.plist at path: \EFI\CLOVER
15:198  0:004  === [ GetUserSettings ] =========================
15:198  0:000  USB FixOwnership: yes
15:198  0:000  Dropping 4 tables:
15:198  0:000   - [00]: Drop table  signature="DMAR" (52414D44)
15:198  0:000  ----
15:198  0:000           - set table: 52414D44,                0 to drop: no
15:198  0:000   - [01]: Drop table  signature="SSDT" (54445353)
15:198  0:000   table-id="CpuPm" (      6D50757043)
15:198  0:000  ----
15:198  0:000           - set table: 54445353,       6d50757043 to drop: no
15:198  0:000   - [02]: Drop table  signature="SSDT" (54445353)
15:198  0:000   table-id="Cpu0Ist" (  74734930757043)
15:198  0:000  ----
15:198  0:000           - set table: 54445353,   74734930757043 to drop: no
15:198  0:000   - [03]: Drop table  signature="BGRT" (54524742)
15:198  0:000  ----
15:198  0:000           - set table: 54524742,                0 to drop: no
15:198  0:000   - final DSDT Fix mask=1FE70000
15:198  0:000  Devices to rename 1
15:198  0:000  PXSX:RP01:PCI0:#_SB:->will be renamed to ARPT
15:198  0:000  Using ProductName from config: iMacPro1,1
15:198  0:000  Using latest BiosVersion from config
15:198  0:000  BiosVersion: IMP11.88Z.F000.B00.2007121438
15:198  0:000  BiosReleaseDate: 07/12/2020
15:198  0:000  Using latest EfiVersion from config: 1539.0.0.0.1
15:198  0:000  Using FirmwareFeatures from config: 0xFD8FF53F
15:198  0:000  Using FirmwareFeaturesMask from config: 0xFF9FFF3F
15:198  0:000  Board-ID set from config as Mac-7BA5B2D9E42DDD94
15:198  0:000  BoardType: 0xA
15:198  0:000  ChassisType: 0x9
15:198  0:000  refill kernel patches bcoz gBootChanged
15:198  0:000  FakeCPUID: 0
15:198  0:000  KextsToPatch: 1 requested
15:198  0:000   - [00]: com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur) :: MatchOS: 11.x :: BinPatch :: data len: 6
15:198  0:000  KernelToPatch: 22 requested
15:198  0:000   - [00]: BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8 :: MatchOS: 11.x :: data len: 14
15:198  0:000   - [01]: ALL OS_algrey - commpage_populate -remove rdmsr :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 7
15:198  0:000   - [02]: ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 5
15:198  0:000   - [03]: CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 21
15:198  0:000   - [04]: ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4 :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 10
15:198  0:000   - [05]: ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 5
15:198  0:000   - [06]: CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 16
15:198  0:000   - [07]: ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 11
15:198  0:000   - [08]: ALL_OS_algrey - cpuid_set_generic_info - set microcode=186 :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 7
15:198  0:000   - [09]: ALL_OSalgrey - cpuid_set_generic_info - set flag=1 :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 13
15:198  0:000   - [10]: ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7 :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 4
15:198  0:000   - [11]: ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 13
15:198  0:000   - [12]: ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 11
15:198  0:000   - [13]: CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 21
15:198  0:000   - [14]: CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 65
15:198  0:000   - [15]: ALL_OS_algrey - i386_init - remove rdmsr (x3) :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 42
15:198  0:000   - [16]: ALL_OS_algrey - tsc_init - remove Penryn check to execute default case :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 11
15:198  0:000   - [17]: ALL_OS_algrey - tsc_init - grab DID and VID from MSR :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 34
15:198  0:000   - [18]: ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI :: MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x :: data len: 7
15:198  0:000   - [19]: CATA_algrey - lapic_init - remove version check and panic - 10.15 :: MatchOS: 10.15.x :: data len: 5
15:198  0:000   - [20]: BS_NoOne - lapic_init - remove version check and panic - 10.16 :: MatchOS: 11.x :: data len: 9
15:198  0:000   - [21]: CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16 :: MatchOS: 10.15.x,11.x :: data len: 9
15:198  0:000  Theme from new config: embedded
18:404  3:206  ReinitRefitLib after theme change
18:404  0:000  === [ Found DSDT tables ] =======================
18:405  0:000  === [ ScanVolumes ] =============================
18:405  0:000  Found 37 volumes with blockIO
18:405  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)
18:405  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(1,GPT,04BC09C8-01CE-11EB-8D48-00D861CA94CC,0x800,0x19000)
18:405  0:000          Result of bootcode detection: bootable Windows (vista,win)
18:405  0:000            label : System Reserved
18:405  0:000          hiding this volume
18:405  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(2,GPT,04BC09C9-01CE-11EB-8D48-00D861CA94CC,0x19800,0x77273A8D)
18:405  0:000          Result of bootcode detection: bootable Windows (vista,win)
18:405  0:000            label : Unknown HD2
18:405  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)
18:405  0:000          Result of bootcode detection: bootable Windows (vista,win)
18:406  0:000            label : EFI
18:406  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(4,GPT,04BC09CB-01CE-11EB-8D48-00D861CA94CC,0x772BF800,0xFC800)
18:406  0:000          Result of bootcode detection: bootable Windows (vista,win)
18:406  0:000            label : Unknown HD4
18:406  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)
18:406  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(1,GPT,09EEB79F-C000-498B-9C83-1A7F593C32D7,0x6,0x12C00)
18:406  0:000            label : EFI
18:406  0:000          This is SelfVolume !!
18:406  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)
18:406  0:000  - [08]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)
18:407  0:000  - [09]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)
18:407  0:000  - [10]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)
18:408  0:000          Result of bootcode detection: bootable unknown (legacy)
18:408  0:000  - [11]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,6A39DCEB-5BA5-4D82-B5DD-AC2A8F241610,0x28,0x64000)
18:408  0:000          Result of bootcode detection: bootable unknown (legacy)
18:409  0:001            label : EFI
18:409  0:000  - [12]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)
18:410  0:000          Result of bootcode detection: bootable unknown (legacy)
18:410  0:000  - [13]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,1395C915-F702-4C67-9969-BAFF4B10C422,0x28,0x64000)
18:411  0:000          Result of bootcode detection: bootable unknown (legacy)
18:412  0:001            label : EFI
18:412  0:000  - [14]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,16D8AA6B-8E9C-4A6D-8E41-06D7BA16A7ED,0x64800,0x48C39B000)
18:412  0:000          Result of bootcode detection: bootable unknown (legacy)
18:412  0:000  - [15]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,1E0975EF-7D7A-485A-8E25-DF6199CE6CD5,0x28,0x64000)
18:413  0:000          Result of bootcode detection: bootable unknown (legacy)
18:415  0:001            label : EFI
18:415  0:000  - [16]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,148EBB84-7D7E-4069-9791-FE0F51F30C41,0x64028,0x48C39AFD8)
18:415  0:000          Result of bootcode detection: bootable unknown (legacy)
18:415  0:000  - [17]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)
18:416  0:001          Result of bootcode detection: bootable unknown (legacy)
18:416  0:000  - [18]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)
18:417  0:000          Result of bootcode detection: bootable unknown (legacy)
18:417  0:000  - [19]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x4,0xFFFF,0x0)
18:417  0:000  - [20]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,9031FA78-053E-11E9-8767-E0D55E2FD271,0x22,0x800)
18:418  0:000  - [21]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,624C68D2-E597-4F56-893E-602A47484128,0x822,0x77DE)
18:418  0:000  - [22]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,9031FA7B-053E-11E9-8767-E0D55E2FD271,0x8000,0x2BAA0748F)
18:419  0:000          Result of bootcode detection: bootable unknown (legacy)
18:419  0:000  - [23]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,9031FA6F-053E-11E9-8767-E0D55E2FD271,0x22,0x800)
18:419  0:000  - [24]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,81C93AD7-40CC-4566-9732-29F3C9E2ABEF,0x822,0x77DE)
18:420  0:000  - [25]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0xA,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,9031FA72-053E-11E9-8767-E0D55E2FD271,0x8000,0x2BAA0748F)
18:421  0:000          Result of bootcode detection: bootable Windows (vista,win)
18:421  0:000  - [26]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)
18:421  0:000            apfsFileSystemUUID=1AE19862-7291-4E55-B1D2-0D3BE088A124, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x10
18:421  0:000            label : Preboot
18:421  0:000  - [27]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D1B0CE44B3919C4AB3FABD589833E960)
18:421  0:000            apfsFileSystemUUID=44CEB0D1-91B3-4A9C-B3FA-BD589833E960, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x40
18:422  0:000            label : macOS Catalina - Data
18:422  0:000  - [28]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,826B7F6944DC6D4DB6DD029130AFD976)
18:422  0:000            apfsFileSystemUUID=697F6B82-DC44-4D6D-B6DD-029130AFD976, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x4
18:422  0:000            label : Recovery
18:422  0:000  - [29]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,966A6459FCFB0040A262D3E130F542EB)
18:422  0:000            apfsFileSystemUUID=59646A96-FBFC-4000-A262-D3E130F542EB, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x8
18:422  0:000            label : VM
18:422  0:000  - [30]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D593B60572D2534BA5DAB43CC2A6428C)
18:422  0:000            apfsFileSystemUUID=05B693D5-D272-4B53-A5DA-B43CC2A6428C, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0x1
18:422  0:000            label : macOS Big Sur
18:422  0:000  - [31]: Volume: PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,9B2B4FF63141064BBFC2AB96CD113AB6)
18:422  0:000            apfsFileSystemUUID=F64F2B9B-4131-4B06-BFC2-AB96CD113AB6, ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E, ApfsRole=0xc0
18:423  0:000            label : Update
18:423  0:000          hiding this volume
18:423  0:000  - [32]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2ADB6EFB5910624689D04E42E3BF1759)
18:423  0:000            apfsFileSystemUUID=FB6EDB2A-1059-4662-89D0-4E42E3BF1759, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x10
18:423  0:000            label : Preboot
18:423  0:000  - [33]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,CD8E6C45F93B0D468A1CFC516EB37362)
18:423  0:000            apfsFileSystemUUID=456C8ECD-3BF9-460D-8A1C-FC516EB37362, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x40
18:423  0:000            label : macOS 19h4 - Data
18:423  0:000  - [34]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
18:423  0:000            apfsFileSystemUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x1
18:423  0:000            label : macOS 19h4
18:423  0:000  - [35]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F304039E87FFB549BB589AD6C680AFCA)
18:423  0:000            apfsFileSystemUUID=9E0304F3-FF87-49B5-BB58-9AD6C680AFCA, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x4
18:424  0:000            label : Recovery
18:424  0:000  - [36]: Volume: PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,3B9536D141B72646BF90A52EB7E76A89)
18:424  0:000            apfsFileSystemUUID=D136953B-B741-4626-BF90-A52EB7E76A89, ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B, ApfsRole=0x8
18:424  0:000            label : VM
18:424  0:000  found 1 handles with audio
18:424  0:000  No AudioIoDevice stored
18:424  0:000  no stored audio parameters
18:424  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 0
18:424  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 1
18:424  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 2
18:424  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 3
18:424  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 4
18:424  0:000  Found Audio Device AMD (Unknown) (HDMI) at index 5
18:424  0:000  change theme
18:424  0:000  === [ InitXTheme ] ==============================
18:424  0:000  use Daylight theme
18:424  0:000   using embedded theme
18:438  0:014  sound play end with status=Device Error
18:439  0:000  Using embedded font
18:439  0:000  theme inited
18:439  0:000  Chosen embedded theme
18:439  0:000  after NVRAM boot-args=-v
18:439  0:000  === [ ScanLoader ] ==============================
18:439  0:000  - [01]: 'System Reserved'
18:439  0:000  - [02]: 'Unknown HD2'
18:439  0:000  - [03]: 'EFI'
18:440  0:000      AddLoaderEntry for Volume Name=EFI, idx=0
18:440  0:000      IconName=vista,win comma=5 size=9
18:440  0:000      first=os_vista
18:440  0:000      Second=os_win
18:440  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)\EFI\microsoft\Boot\bootmgfw.efi'
18:442  0:001      AddLoaderEntry for Volume Name=EFI, idx=1
18:442  0:000      IconName=unknown comma=-1 size=7
18:442  0:000      Full=unknown
18:442  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,DB-3E-50-71-51-38-25-00)\HD(3,GPT,04BC09CA-01CE-11EB-8D48-00D861CA94CC,0x7728D800,0x32000)\EFI\BOOT\BOOTX64.efi'
18:442  0:000  - [04]: 'Unknown HD4'
18:442  0:000  - [06]: 'EFI'
18:444  0:002      AddLoaderEntry for Volume Name=EFI, idx=2
18:444  0:000      IconName=unknown comma=-1 size=7
18:444  0:000      Full=unknown
18:444  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(1,GPT,09EEB79F-C000-498B-9C83-1A7F593C32D7,0x6,0x12C00)\EFI\BOOT\BOOTX64.efi'
18:444  0:000  - [11]: 'EFI'
18:459  0:014  - [13]: 'EFI'
18:474  0:015  - [15]: 'EFI'
18:489  0:014  - [26]: 'Preboot'
18:489  0:000  contentDetails name:macOS Catalina
18:490  0:000      AddLoaderEntry for Volume Name=Preboot, idx=3
18:490  0:000      ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E
18:490  0:000      ApfsFileSystemUUID=1AE19862-7291-4E55-B1D2-0D3BE088A124
18:490  0:000      APFSTargetUUID=44CEB0D1-91B3-4A9C-B3FA-BD589833E960
18:490  0:000      Check if volume Is Hibernated:
18:490  0:000      Check sleep image 'by signature':
18:490  0:000      using default sleep image name = \private\var\vm\sleepimage
18:490  0:000      sleepimage not found -> Not Found
18:490  0:000      hibernated: no - sign
18:490  0:000      IconName=bigsur,mac comma=6 size=10
18:490  0:000      first=os_bigsur
18:490  0:000      Second=os_mac
18:490  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)\44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\boot.efi'
18:490  0:000  - [27]: 'macOS Catalina - Data'
18:492  0:001  - [28]: 'Recovery'
18:492  0:000  contentDetails name:macOS Catalina
18:492  0:000  - [29]: 'VM'
18:492  0:000  - [30]: 'macOS Big Sur'
18:493  0:000      AddLoaderEntry for Volume Name=macOS Big Sur, idx=4
18:493  0:000      ApfsContainerUUID=8E7D68AC-6296-40D7-8DEA-E84D8872076E
18:493  0:000      ApfsFileSystemUUID=05B693D5-D272-4B53-A5DA-B43CC2A6428C
18:493  0:000      Check if volume Is Hibernated:
18:493  0:000      Check sleep image 'by signature':
18:493  0:000      using default sleep image name = \private\var\vm\sleepimage
18:493  0:000      sleepimage not found -> Not Found
18:493  0:000      hibernated: no - sign
18:493  0:000      IconName=bigsur,mac comma=6 size=10
18:493  0:000      first=os_bigsur
18:493  0:000      Second=os_mac
18:493  0:000      Loader entry created for 'PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D593B60572D2534BA5DAB43CC2A6428C)\System\Library\CoreServices\boot.efi'
18:494  0:000  - [31]: 'Update'
18:494  0:000  - [32]: 'Preboot'
18:494  0:000      AddLoaderEntry for Volume Name=Preboot, idx=5
18:494  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
18:494  0:000      ApfsFileSystemUUID=FB6EDB2A-1059-4662-89D0-4E42E3BF1759
18:494  0:000      APFSTargetUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
18:495  0:000      Check if volume Is Hibernated:
18:495  0:000      Check sleep image 'by signature':
18:495  0:000      using default sleep image name = \private\var\vm\sleepimage
18:495  0:000      sleepimage not found -> Not Found
18:495  0:000      hibernated: no - sign
18:495  0:000      IconName=cata,mac comma=4 size=8
18:495  0:000      first=os_cata
18:495  0:000      Second=os_mac
18:495  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2ADB6EFB5910624689D04E42E3BF1759)\7D8AFF50-2660-46A6-8B75-2367DE4CBB04\System\Library\CoreServices\boot.efi'
18:496  0:000  - [33]: 'macOS 19h4 - Data'
18:496  0:000  - [34]: 'macOS 19h4'
18:497  0:001      AddLoaderEntry for Volume Name=macOS 19h4, idx=6
18:497  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
18:497  0:000      ApfsFileSystemUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
18:498  0:000      Check if volume Is Hibernated:
18:498  0:000      Check sleep image 'by signature':
18:498  0:000      using default sleep image name = \private\var\vm\sleepimage
18:498  0:000      sleepimage not found -> Not Found
18:498  0:000      hibernated: no - sign
18:498  0:000      IconName=cata,mac comma=4 size=8
18:498  0:000      first=os_cata
18:498  0:000      Second=os_mac
18:498  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)\System\Library\CoreServices\boot.efi'
18:499  0:000  - [35]: 'Recovery'
18:499  0:000      AddLoaderEntry for Volume Name=Recovery, idx=7
18:499  0:000      ApfsContainerUUID=62947134-E43C-4CC5-9C8C-C651E7F8544B
18:499  0:000      ApfsFileSystemUUID=9E0304F3-FF87-49B5-BB58-9AD6C680AFCA
18:499  0:000      APFSTargetUUID=7D8AFF50-2660-46A6-8B75-2367DE4CBB04
18:500  0:000      IconName=cata,mac comma=4 size=8
18:500  0:000      first=os_cata
18:500  0:000      Second=os_mac
18:500  0:000      Loader entry created for 'PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F304039E87FFB549BB589AD6C680AFCA)\7D8AFF50-2660-46A6-8B75-2367DE4CBB04\boot.efi'
18:500  0:000  - [36]: 'VM'
18:500  0:000  Scanning legacy ...
18:500  0:000   hidden
18:500  0:000      IconName=vista,win comma=5 size=9
18:500  0:000      first=os_vista
18:500  0:000      Second=os_win
18:500  0:000      IconName=vista,win comma=5 size=9
18:500  0:000      first=os_vista
18:500  0:000      Second=os_win
18:501  0:000      IconName=vista,win comma=5 size=9
18:501  0:000      first=os_vista
18:501  0:000      Second=os_win
18:501  0:000      IconName=vista,win comma=5 size=9
18:501  0:000      first=os_vista
18:501  0:000      Second=os_win
18:501  0:000  === [ AddCustomTool ] ===========================
18:501  0:000  === [ GetEfiBootDeviceFromNvram ] ===============
18:501  0:000  === [ FindStartupDiskVolume ] ===================
18:501  0:000    - Volume: partition = PciRoot(0x2)\Pci(0x1,0x1)\Pci(0x0,0x0)\Pci(0x9,0x0)\Pci(0x0,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,CAF32F96-C98C-40B1-8F10-283A8AD2F8C0,0x64028,0x1D161920)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,50FF8A7D6026A6468B752367DE4CBB04)
18:501  0:000     - searching for that partition
18:501  0:000      - found entry 3. 'Boot macOS from macOS 19h4', Volume 'macOS 19h4'
18:501  0:000  Boot redirected to Entry 3. 'Boot macOS from macOS 19h4'
18:501  0:000  BannerPlace at Clear Screen [1856,764]
18:528  0:027  AnimeRun=0
21:974  3:445  BootVariable of the entry is empty
21:974  0:000  === [ StartLoader ] =============================
21:974  0:000  Starting PciRoot(0x0)\Pci(0x1,0x2)\Pci(0x0,0x0)\NVMe(0x1,33-36-51-90-1D-A7-79-64)\HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)\44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\boot.efi
21:974  0:000  Finally: ExternalClock=26MHz BusSpeed=102794kHz CPUFreq=3701MHz PIS: hw.busfrequency=104000000Hz
21:974  0:000  Beginning OC
21:974  0:000  config-oc.plist isn't use at all
21:974  0:000  Bridge mmioWhiteList[0] to OC : comment=MMIO       00000000E2100000-00000000E2180FFF 0000000000000081 8000000000000001
21:974  0:000  Bridge mmioWhiteList[1] to OC : comment=MMIO       00000000E3180000-00000000E3200FFF 0000000000000081 8000000000000001
21:974  0:000  Bridge mmioWhiteList[2] to OC : comment=MMIO devirt 0xEF100000 (0x181 pages, 0x8000000000000001) skip 0
21:974  0:000  Bridge mmioWhiteList[3] to OC : comment=FA180000
21:974  0:000  Bridge mmioWhiteList[4] to OC : comment=0xFA300000
21:974  0:000  Bridge mmioWhiteList[5] to OC : comment=0xFEA00000
21:974  0:000  Bridge mmioWhiteList[6] to OC : comment=0xFEC00000
21:974  0:000  Bridge mmioWhiteList[7] to OC : comment=0xFEC10000
21:974  0:000  Bridge mmioWhiteList[8] to OC : comment=0xFED00000
21:974  0:000  Bridge mmioWhiteList[9] to OC : comment=0xFED40000
21:974  0:000  Bridge mmioWhiteList[10] to OC : comment=0xFED80000
21:974  0:000  Bridge mmioWhiteList[11] to OC : comment=0xFEDC2000
21:974  0:000  Bridge mmioWhiteList[12] to OC : comment=0xFEDD4000
21:974  0:000  Bridge mmioWhiteList[13] to OC : comment=0xFEE00000
21:974  0:000  Bridge mmioWhiteList[14] to OC : comment=0xFF000000
21:974  0:000  Bridge mmioWhiteList[15] to OC : comment=0x4040000000
21:974  0:000  Bridge mmioWhiteList[16] to OC : comment=0x8BB0000000
21:974  0:000  Bridge mmioWhiteList[17] to OC : comment=0x8BE0000000
21:974  0:000  Bridge mmioWhiteList[18] to OC : comment=0xD750000000
21:974  0:000  UniOSVersion == 11.0.1
21:974  0:000  UniShortOSVersion == 11.0.
21:974  0:000  AddKextsInArray from Other
21:974  0:000  ->Extra kext: Other\Lilu.kext (v.1.4.8)
21:974  0:000  ->Extra kext: Other\SmallTreeIntel82576.kext (v.1.0.6)
21:974  0:000  ->Extra kext: Other\AppleALC.kext (v.1.5.3)
21:974  0:000  ->Extra kext: Other\WhateverGreen.kext (v.1.4.3)
21:974  0:000  ->Extra kext: Other\VirtualSMC.kext (v.1.1.7)
21:974  0:000  ->Extra kext: Other\AMDRyzenCPUPowerManagement.kext (v.0.6.5)
21:974  0:000  GetOtherKextsDir(FALSE) return NULL
21:974  0:000  AddKextsInArray from 11
21:974  0:000  AddKextsInArray from 11_normal
21:974  0:000  AddKextsInArray from 11.0.
21:974  0:000  AddKextsInArray from 11.0._normal
21:974  0:000  AddKextsInArray from 11.0.1
21:974  0:000  AddKextsInArray from 11.0.1_normal
21:974  0:000  Bridge kext to OC : Path=Lilu.kext
21:974  0:000  info plist path: Kexts\Other\Lilu.kext\Contents\Info.plist
21:975  0:000  assign executable as 'Contents\MacOS\Lilu'
21:975  0:000  Bridge kext to OC : Path=VirtualSMC.kext
21:975  0:000  info plist path: Kexts\Other\VirtualSMC.kext\Contents\Info.plist
21:976  0:001  assign executable as 'Contents\MacOS\VirtualSMC'
21:976  0:000  Bridge kext to OC : Path=WhateverGreen.kext
21:976  0:000  info plist path: Kexts\Other\WhateverGreen.kext\Contents\Info.plist
21:977  0:001  assign executable as 'Contents\MacOS\WhateverGreen'
21:977  0:000  Bridge kext to OC : Path=AppleALC.kext
21:977  0:000  info plist path: Kexts\Other\AppleALC.kext\Contents\Info.plist
21:989  0:011  assign executable as 'Contents\MacOS\AppleALC'
21:989  0:000  Bridge kext to OC : Path=SmallTreeIntel82576.kext
21:989  0:000  info plist path: Kexts\Other\SmallTreeIntel82576.kext\Contents\Info.plist
21:989  0:000  assign executable as 'Contents\MacOS\SmallTreeIntel82576'
21:989  0:000  Bridge kext to OC : Path=AMDRyzenCPUPowerManagement.kext
21:989  0:000  info plist path: Kexts\Other\AMDRyzenCPUPowerManagement.kext\Contents\Info.plist
21:990  0:000  assign executable as 'Contents\MacOS\AMDRyzenCPUPowerManagement'
21:990  0:000  OCST: Missing vault data, ignoring...
21:994  0:003  Load OpenRuntime.efi : Status Success
21:994  0:000  Start OpenRuntime.efi : Status Success
21:994  0:000  OC: OcMiscEarlyInit...
21:995  0:000  OC: Watchdog status is 1
21:995  0:000  OC: OpenCore DBG-061-2020-10-29 is loading in Optional mode (0/0)...
21:996  0:000  OC: Boot timestamp - 2020.11.02 12:06:18
21:996  0:000  OCCPU: MP services threads 64 (enabled 64) - Success
21:997  0:000  OCCPU: MP services Pkg 1 Cores 1 Threads 1 - Success
21:998  0:000  OCCPU: Found AMD Ryzen Threadripper 3970X 32-Core Processor
21:999  0:001  OCCPU: Signature 830F10 Stepping 0 Model 31 Family F Type 0 ExtModel 3 ExtFamily 8 uCode 0
22:101  0:101  TscFrequency 3699997445
22:103  0:002  OCCPU: FID 148 DID 8 Divisor 0 MaxBR 36
22:103  0:000  OCCPU: CPUFrequencyFromTSC  3699997445Hz  3699MHz
22:104  0:000  OCCPU: CPUFrequency  3699997445Hz  3699MHz
22:105  0:000  OCCPU: FSBFrequency   102777706Hz   102MHz
22:105  0:000  OCCPU: Pkg 1 Cores 32 Threads 64
22:106  0:000  OC: OcLoadNvramSupport...
22:107  0:000  OC: Current version is DBG-061-2020-10-29
22:107  0:000  OC: OcMiscMiddleInit...
22:108  0:000  OC: LoadHandle 0 with BootProtect in  mode - Unsupported
22:110  0:001  OC: OcLoadUefiSupport...
22:111  0:000  OcAppleEventInstallProtocol
22:111  0:000  InternalCreateQueueEvent
22:112  0:000  EventCreateSimplePointerInstallNotifyEvent
22:113  0:000  InternalSimplePointerInstallNotifyFunction
22:113  0:000  InternalRegisterSimplePointerInterface
22:114  0:000  InternalRegisterSimplePointerInterface
22:115  0:001  OcOSInfoInstallProtocol
22:116  0:000  OCRTC: OcAppleRtcRamInstallProtocol
22:116  0:000  OCRTC: Wake log is 0x00 0x00   0 0x00
22:117  0:000  OcAppleFbInfoInstallProtocol
22:118  0:000  OC: Loading Apple Secure Boot with Disabled (level 0)
22:120  0:002  OCABC: RTDFRG 1 DEVMMIO 1 NOSU 0 NOVRWR 0 NOSB 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 1
22:120  0:000  OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 0 APPLOS 0 RTPERMS 1
22:121  0:000  OCABC: Got rendezvous with OpenRuntime r11
22:122  0:000  OCABC: MAT support is 1
22:122  0:000  OC: RBVR 0 DDBR 0
22:125  0:002  OC: Got 0 drivers
22:126  0:000  OCC: Installing GOP (Unsupported) on ConsoleOutHandle...
22:126  0:000  OC: Requested resolution is 1920x1080@0 (max: 0) from 1920x1080
22:127  0:000  OCC: Requesting 1920x1080@0 (max: 0) resolution, curr 0, total 8
22:128  0:000  OCC: Mode 0 - 3840x2160:1
22:128  0:000  OCC: Mode 1 - 640x480:1
22:129  0:000  OCC: Mode 2 - 800x600:1
22:129  0:000  OCC: Mode 3 - 1024x768:1
22:130  0:000  OCC: Mode 4 - 1280x1024:1
22:131  0:000  OCC: Mode 5 - 1400x1050:1
22:132  0:001  OCC: Mode 6 - 1600x1200:1
22:133  0:000  OCC: Mode 7 - 1280x960:1
22:133  0:000  OCC: No compatible mode for 1920x1080@0 (max: 0) resolution
22:134  0:000  OC: Changed resolution to 1920x1080@0 (max: 0) from 1920x1080 - Not Found
22:135  0:000  OCC: Using builtin text renderer with 1 scale
22:149  0:014  OCC: Install console control (B4B9E090/0/0), current - Success
22:149  0:000  OCC: Setup ASCII Output - Success
22:150  0:000  OC: Requested console mode is 0x0 (max: 0) from
22:150  0:000  OC: Requested not to use audio
22:151  0:000  OC: OcLoadPlatformSupport...
22:152  0:000  OC: OcLoadDevPropsSupport...
22:152  0:000  OC: OcMiscLateInit...
22:153  0:000  OC: Invalid HibernateMode:
22:154  0:000  OC: Translated HibernateMode  to 0
22:154  0:000  OC: Hibernation detection status is Not Found
22:155  0:000  OC: Panic log does not exist
22:155  0:000  OC: OcLoadKernelSupport...
22:156  0:000  OC: All green, starting boot management...
22:157  0:000  DevicePath = PciRoot(0x0)/Pci(0x1,0x2)/Pci(0x0,0x0)/NVMe(0x1,33-36-51-90-1D-A7-79-64)/HD(2,GPT,B1539027-FA58-47C0-B5AF-2B1A7C05161A,0x12C06,0xEE64E4B)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6298E11A9172554EB1D20D3BE088A124)/\44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\boot.efi
22:157  0:000  OCB: Arch filtering B31F9018(723512)->B31F9018(723512) caps 4 - Success
22:171  0:014  GetOSVersion: 11.0.1 (20B5012d)
22:171  0:000  Filtering KextPatches:
22:171  0:000   - [00]: com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur) :: BinPatch :: [OS: 11.0.1 | MatchOS: 11.x | MatchBuild: All] ==> allowed
22:172  0:000  Filtering KernelPatches:
22:172  0:000   - [00]: BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8 :: [OS: 11.0.1 | MatchOS: 11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [01]: ALL OS_algrey - commpage_populate -remove rdmsr :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [02]: ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [03]: CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16 :: [OS: 11.0.1 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [04]: ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4 :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [05]: ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [06]: CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16 :: [OS: 11.0.1 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [07]: ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [08]: ALL_OS_algrey - cpuid_set_generic_info - set microcode=186 :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [09]: ALL_OSalgrey - cpuid_set_generic_info - set flag=1 :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [10]: ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7 :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:172  0:000   - [11]: ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000   - [12]: ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000   - [13]: CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16 :: [OS: 11.0.1 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000   - [14]: CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16 :: [OS: 11.0.1 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000   - [15]: ALL_OS_algrey - i386_init - remove rdmsr (x3) :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000   - [16]: ALL_OS_algrey - tsc_init - remove Penryn check to execute default case :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000   - [17]: ALL_OS_algrey - tsc_init - grab DID and VID from MSR :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000   - [18]: ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI :: [OS: 11.0.1 | MatchOS: 10.13.x, 10.14.x, 10.15.x, 11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000   - [19]: CATA_algrey - lapic_init - remove version check and panic - 10.15 :: [OS: 11.0.1 | MatchOS: 10.15.x | MatchBuild: no] ==> not allowed by OS
22:173  0:000   - [20]: BS_NoOne - lapic_init - remove version check and panic - 10.16 :: [OS: 11.0.1 | MatchOS: 11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000   - [21]: CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16 :: [OS: 11.0.1 | MatchOS: 10.15.x,11.x | MatchBuild: no] ==> allowed by OS
22:173  0:000  Will not patch boot.efi
22:173  0:000  Bridge com.apple.driver.AppleEthernetAquantiaAqtion patch to OC : com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur)
22:173  0:000  Bridge kernel patch to OC : BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8
22:173  0:000  Bridge kernel patch to OC : ALL OS_algrey - commpage_populate -remove rdmsr
22:173  0:000  Bridge kernel patch to OC : ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology
22:173  0:000  Bridge kernel patch to OC : CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package
22:173  0:000  Bridge kernel patch to OC : CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_generic_info - set microcode=186
22:173  0:000  Bridge kernel patch to OC : ALL_OSalgrey - cpuid_set_generic_info - set flag=1
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN
22:173  0:000  Bridge kernel patch to OC : CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16
22:173  0:000  Bridge kernel patch to OC : CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - i386_init - remove rdmsr (x3)
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - tsc_init - remove Penryn check to execute default case
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - tsc_init - grab DID and VID from MSR
22:173  0:000  Bridge kernel patch to OC : ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI
22:173  0:000  Bridge kernel patch to OC : BS_NoOne - lapic_init - remove version check and panic - 10.16
22:173  0:000  Bridge kernel patch to OC : CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16
22:173  0:000  === [ PatchSmbios ] =============================
22:173  0:000  insert table 9 for dev 0:0
22:173  0:000  insert table 9 for dev 0:1
22:173  0:000  insert table 9 for dev 0:0
22:174  0:000  Trusting SMBIOS...
22:174  0:000  Detected alternating SMBIOS channel banks
22:174  0:000  Channels: 4
22:174  0:000  Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23
22:174  0:000  trusted SMBIOS data:
22:174  0:000  SmbiosTable.Type17->Vendor = Unknown
22:174  0:000  SmbiosTable.Type17->SerialNumber = 00000000
22:174  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
22:174  0:000   partNum=3200 C16 Series
22:174  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
22:174  0:000  SMBIOS Type 17 Index = 0 => 0 0:
22:174  0:000  BANK 0 DIMM0 3200MHz 32767MB(Ext:32768MB)
22:174  0:000  trusted SMBIOS data:
22:174  0:000  SmbiosTable.Type17->Vendor = Unknown
22:174  0:000  SmbiosTable.Type17->SerialNumber = 00000000
22:174  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
22:174  0:000   partNum=3200 C16 Series
22:174  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
22:174  0:000  SMBIOS Type 17 Index = 1 => 1 2:
22:174  0:000  BANK 1 DIMM0 3200MHz 32767MB(Ext:32768MB)
22:174  0:000  trusted SMBIOS data:
22:174  0:000  SmbiosTable.Type17->Vendor = Unknown
22:174  0:000  SmbiosTable.Type17->SerialNumber = 00000000
22:174  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
22:174  0:000   partNum=3200 C16 Series
22:174  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
22:174  0:000  SMBIOS Type 17 Index = 2 => 2 4:
22:174  0:000  BANK 2 DIMM0 3200MHz 32767MB(Ext:32768MB)
22:174  0:000  trusted SMBIOS data:
22:174  0:000  SmbiosTable.Type17->Vendor = Unknown
22:174  0:000  SmbiosTable.Type17->SerialNumber = 00000000
22:174  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
22:174  0:000   partNum=3200 C16 Series
22:174  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
22:174  0:000  SMBIOS Type 17 Index = 3 => 3 6:
22:174  0:000  BANK 3 DIMM0 3200MHz 32767MB(Ext:32768MB)
22:174  0:000  trusted SMBIOS data:
22:174  0:000  SmbiosTable.Type17->Vendor = Unknown
22:174  0:000  SmbiosTable.Type17->SerialNumber = 00000000
22:174  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
22:174  0:000   partNum=3200 C16 Series
22:174  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
22:174  0:000  SMBIOS Type 17 Index = 4 => 4 1:
22:174  0:000  BANK 0 DIMM1 3200MHz 32767MB(Ext:32768MB)
22:174  0:000  trusted SMBIOS data:
22:174  0:000  SmbiosTable.Type17->Vendor = Unknown
22:174  0:000  SmbiosTable.Type17->SerialNumber = 00000000
22:174  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
22:174  0:000   partNum=3200 C16 Series
22:174  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
22:174  0:000  SMBIOS Type 17 Index = 5 => 5 3:
22:174  0:000  BANK 1 DIMM1 3200MHz 32767MB(Ext:32768MB)
22:174  0:000  trusted SMBIOS data:
22:174  0:000  SmbiosTable.Type17->Vendor = Unknown
22:174  0:000  SmbiosTable.Type17->SerialNumber = 00000000
22:174  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
22:174  0:000   partNum=3200 C16 Series
22:174  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
22:174  0:000  SMBIOS Type 17 Index = 6 => 6 5:
22:174  0:000  BANK 2 DIMM1 3200MHz 32767MB(Ext:32768MB)
22:174  0:000  trusted SMBIOS data:
22:174  0:000  SmbiosTable.Type17->Vendor = Unknown
22:174  0:000  SmbiosTable.Type17->SerialNumber = 00000000
22:174  0:000  SmbiosTable.Type17->PartNumber = 3200 C16 Series
22:174  0:000   partNum=3200 C16 Series
22:174  0:000  Type17->Manufacturer corrected by SMBIOS from NoName to Unknown
22:174  0:000  SMBIOS Type 17 Index = 7 => 7 7:
22:174  0:000  BANK 3 DIMM1 3200MHz 32767MB(Ext:32768MB)
22:174  0:000  mTotalSystemMemory = 262144
22:174  0:000  NumberOfMemoryDevices = 8
22:174  0:000  === [ PatchACPI ] ===============================
22:174  0:000  Xsdt reallocation done
22:174  0:000  old FADT length=114
22:174  0:000   SignatureFixup: 0x902F56EE -> 0x0
22:174  0:000  Found OperationRegion(GSMM, SystemMemory, FED80000, ...)
22:175  0:000  Found OperationRegion(IOMX, SystemMemory, FED80D00, ...)
22:175  0:000  Found OperationRegion(FACR, SystemMemory, FED81E00, ...)
22:175  0:000  Found OperationRegion(EMMX, SystemMemory, FEDD5800, ...)
22:175  0:000  Found OperationRegion(EMMB, SystemMemory, FEDD5800, ...)
22:175  0:000  Found OperationRegion(LUIE, SystemMemory, FEDC0020, ...)
22:175  0:000  Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
22:175  0:000  Found OperationRegion(CRBD, SystemMemory, FED40000, ...)
22:175  0:000  Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)
22:175  0:000  Found OperationRegion(ATNV, SystemMemory, BA3C6D18, ...)
22:175  0:000  Found OperationRegion(WMIM, SystemMemory, BA2FDA98, ...)
22:175  0:000  Apply DsdtFixMask=0x1FE70000
22:175  0:000  === [ FixBiosDsdt ] =============================
22:176  0:001  Name: PXSX, Bridge: RP01, Replace: ARPT
22:177  0:000    0 replacements
22:177  0:000   deleting device CRT_
22:178  0:000   deleting device DVI_
22:179  0:000   deleting device SPKR
22:180  0:000   deleting device ECP_
22:180  0:000   deleting device LPT_
22:182  0:001   deleting device FDC0
22:183  0:001   deleting device ECP1
22:184  0:000   deleting device LPT1
22:186  0:001    indirect name=TPMM
22:186  0:000    indirect name=FTPM
22:186  0:000    indirect name=PPIM
22:186  0:000    indirect name=WMIO
22:186  0:000  no device(AC) exists
22:186  0:000  Name _OSI present at 0x33E, renaming to OOSI
22:186  0:000  Name _OSI present at 0x345, renaming to OOSI
22:186  0:000  Name _OSI present at 0x360, renaming to OOSI
22:186  0:000  Name _OSI present at 0x37D, renaming to OOSI
22:186  0:000  Name _OSI present at 0x393, renaming to OOSI
22:186  0:000  Name _OSI present at 0x3A7, renaming to OOSI
22:186  0:000  Name _OSI present at 0x3BD, renaming to OOSI
22:186  0:000  Name _OSI present at 0x3DC, renaming to OOSI
22:186  0:000  Name _OSI present at 0x3FB, renaming to OOSI
22:186  0:000  Name _OSI present at 0x41A, renaming to OOSI
22:186  0:000  Name _OSI present at 0x435, renaming to OOSI
22:186  0:000  Name _OSI present at 0x454, renaming to OOSI
22:186  0:000  Name _OSI present at 0x46F, renaming to OOSI
22:186  0:000  Name _OSI present at 0x48A, renaming to OOSI
22:186  0:000  Name _OSI present at 0xB84F, renaming to OOSI
22:186  0:000  Name _OSI present at 0xB856, renaming to OOSI
22:186  0:000  Name _OSI present at 0xB871, renaming to OOSI
22:187  0:000  PreCleanup XSDT: count=19, length=188
22:187  0:000  PreCleanup XSDT, corrected XSDT: count=19, length=188
22:187  0:000  === [ ACPIDropTables ] ==========================
22:187  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
22:187  0:000    0 replacements
22:187  0:000  Found OperationRegion(A093, SystemMemory, F0000000, ...)
22:187  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
22:187  0:000    0 replacements
22:187  0:000  Found OperationRegion(AODT, SystemMemory, BA3C7018, ...)
22:187  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
22:187  0:000    0 replacements
22:187  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
22:187  0:000    0 replacements
22:187  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
22:187  0:000    0 replacements
22:187  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
22:187  0:000    0 replacements
22:187  0:000  Found OperationRegion(CPNV, SystemMemory, BA3CC018, ...)
22:187  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
22:187  0:000    0 replacements
22:187  0:000  Out of control with CPU numbers
22:187  0:000  ApicCPUNum=64
22:187  0:000  SSDT with CPU C-States generated successfully
22:187  0:000  Cleanup XSDT: count=20, length=196
22:187  0:000  corrected XSDT count=20, length=196
22:187  0:000  === [ RestSetup macOS ] =========================
22:187  0:000   RCBA disabled; cannot use it
22:188  0:000  ATI injection not set
22:189  0:001  CurrentMode: Width=3840 Height=2160
22:196  0:007  Use origin smbios table type 1 guid.
22:215  0:018  SetStartupDiskVolume:
22:215  0:000    * Volume: 'Preboot'
22:215  0:000    * LoaderPath: '\44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\boot.efi'
22:215  0:000    * DevPath: Preboot
22:215  0:000    * GUID = B1539027-FA58-47C0-B5AF-2B1A7C05161A
22:220  0:005    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>B1539027-FA58-47C0-B5AF-2B1A7C05161A</string></dict></dict></dict></array>
22:224  0:004  Custom boot screen not used because entry has unset use graphics
22:226  0:001  Closing log
22:226  0:000  OCABC: Found first 0 at off AC31
22:227  0:000  OCABC: Found second at off AC42
22:228  0:000  OCABC: Trying next match...
22:228  0:000  OCABC: Found first 0 at off ADFE
22:229  0:000  OCABC: Found second at off AE0F
22:230  0:000  OCABC: Trying next match...
22:231  0:001  OCABC: Found first 0 at off 2C5E2
22:232  0:000  OCABC: Found second at off 2C5F3
22:233  0:000  OCABC: Trying next match...
22:233  0:000  OCABC: Found first 0 at off 2C64E
22:234  0:000  OCABC: Found second at off 2C65F
22:235  0:000  OCABC: Trying next match...
22:239  0:004  OCABC: Found first 0 at off B1FED
22:240  0:000  OCABC: Failed to find first BOOT_MODE_SAFE | BOOT_MODE_ASLR sequence
22:241  0:000  OC: Supported boot capabilities 4
22:241  0:000  OCABC: MMIO devirt start
22:242  0:000  OCABC: MMIO devirt 0xE2100000 (0x81 pages, 0x8000000000000001) skip 1
22:243  0:000  OCABC: MMIO devirt 0xE3180000 (0x81 pages, 0x8000000000000001) skip 1
22:243  0:000  OCABC: MMIO devirt 0xEF100000 (0x181 pages, 0x8000000000000001) skip 1
22:244  0:000  OCABC: MMIO devirt 0xFA180000 (0x81 pages, 0x8000000000000001) skip 1
22:245  0:000  OCABC: MMIO devirt 0xFA300000 (0x100 pages, 0x8000000000000001) skip 1
22:245  0:000  OCABC: MMIO devirt 0xFEA00000 (0x100 pages, 0x8000000000000001) skip 1
22:246  0:000  OCABC: MMIO devirt 0xFEC00000 (0x1 pages, 0x8000000000000001) skip 1
22:247  0:000  OCABC: MMIO devirt 0xFEC10000 (0x1 pages, 0x8000000000000001) skip 1
22:247  0:000  OCABC: MMIO devirt 0xFED00000 (0x1 pages, 0x8000000000000001) skip 1
22:248  0:000  OCABC: MMIO devirt 0xFED40000 (0x5 pages, 0x8000000000000001) skip 1
22:249  0:000  OCABC: MMIO devirt 0xFED80000 (0x10 pages, 0x8000000000000001) skip 1
22:249  0:000  OCABC: MMIO devirt 0xFEDC2000 (0xE pages, 0x8000000000000001) skip 1
22:250  0:000  OCABC: MMIO devirt 0xFEDD4000 (0x2 pages, 0x8000000000000001) skip 1
22:251  0:000  OCABC: MMIO devirt 0xFEE00000 (0x100 pages, 0x8000000000000001) skip 0
22:251  0:000  OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x8000000000000001) skip 1
22:252  0:000  OCABC: MMIO devirt 0x4040000000 (0x10400 pages, 0x8000000000000001) skip 1
22:253  0:000  OCABC: MMIO devirt 0x8BB0000000 (0x10400 pages, 0x8000000000000001) skip 0
22:253  0:000  OCABC: MMIO devirt 0x8BE0000000 (0x10400 pages, 0x8000000000000001) skip 0
22:254  0:000  OCABC: MMIO devirt 0xD750000000 (0x10400 pages, 0x8000000000000001) skip 0
22:255  0:000  OCABC: MMIO devirt end, saved 799744 KB
22:255  0:000  OCCPU: Discovered CpuFamily 23 CpuModel 1 CpuStepping 0 CpuGeneration 0
22:256  0:000  OCABC: Only 128/256 slide values are usable!
22:257  0:000  OCABC: Valid slides - 128-255
22:257  0:000  OCOS: OS set: <null> macOS 11.0
22:258  0:000  OCOS: OS set: Apple Inc. macOS 11.0
22:259  0:000  OCOS: Should use black background
22:275  0:016  OC: Opening file System\Library\Kernels\kernel with 1 mode gave - Not Found
22:275  0:000  OC: Opening file \44CEB0D1-91B3-4A9C-B3FA-BD589833E960 with 1 mode gave - Success
22:276  0:000  OC: Opening file \44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\com.apple.Boot.plist with 1 mode gave - Not Found
22:277  0:000  OC: Opening file Library\Preferences\SystemConfiguration\com.apple.Boot.plist with 1 mode gave - Success
22:278  0:000  OC: Opening file \44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\PlatformSupport.plist with 1 mode gave - Success
22:279  0:001  OC: Opening file System\Library\Caches\com.apple.corestorage\EncryptedRoot.plist.wipekey with 1 mode gave - Success
22:284  0:005  OC: Opening file \44CEB0D1-91B3-4A9C-B3FA-BD589833E960\System\Library\CoreServices\boot.efi with 1 mode gave - Success
22:309  0:025  OC: Opening file boot\System\Library\KernelCollections\BootKernelExtensions.kc.development with 1 mode gave - Not Found
22:324  0:014  OC: Opening file boot\System\Library\KernelCollections\BootKernelExtensions.kc with 1 mode gave - Success
22:330  0:005  OC: Kext reservation size info 553000 exe 279000
22:331  0:000  OC: Trying 64-bit XNU hook on boot\System\Library\KernelCollections\BootKernelExtensions.kc
22:332  0:000  OCAK: Found 64-bit Mach-O compressed 0 offset 0 size 0
22:332  0:000  OCAK: Determined kernel size is 65126400 bytes
22:357  0:024  OC: Result of 64-bit XNU hook on boot\System\Library\KernelCollections\BootKernelExtensions.kc (00000000) is Success
22:397  0:040  OCAK: Read kernel version 20.1.0 (200100)
22:398  0:000  OC: Kernel patch skipped [0] com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur)
22:398  0:000  OC: Kernel patch [1] BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8
22:409  0:011  Replace B801000000B9C801000031D20F30 by 660F1F8400000000000F1F440000 at ofs:1DBA6E
22:410  0:000  Replace B801000000B9C801000031D20F30 by 660F1F8400000000000F1F440000 at ofs:1E7D1D
22:752  0:341  OCAK: BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8 replace count - 2
22:752  0:000  OC: Kernel patcher result 1 for kernel (BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8) - Success
22:753  0:000  OC: Kernel patch [2] ALL OS_algrey - commpage_populate -remove rdmsr
22:763  0:010  Replace B9A00100000F32 by 0F1F8000000000 at ofs:1EE430
22:763  0:000  OCAK: ALL OS_algrey - commpage_populate -remove rdmsr replace count - 1
22:764  0:000  OC: Kernel patcher result 2 for kernel (ALL OS_algrey - commpage_populate -remove rdmsr) - Success
22:765  0:000  OC: Kernel patch [3] ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology
22:766  0:001  Replace E80000FFFF/FF0000FFFF(E839F6FFFF) by 0F1F440000 at ofs:2D2
22:766  0:000  OCAK: ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology replace count - 1
22:766  0:000  OC: Kernel patcher result 3 for kernel (ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology) - Success
22:767  0:000  OC: Kernel patch [4] CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16
22:774  0:006  Replace 31C031DB31C931D20FA24189C60000000000000074/FFFFFFFFFFFFFFFFFFFFFFFFFF0000000000FFFFFF(31C031DB31C931D20FA24189C6833DD40CE6000074) by B81D00008031DB31C931D20FA24189C60F1F4000EB at ofs:1D2420
22:774  0:000  OCAK: CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16 replace count - 1
22:775  0:000  OC: Kernel patcher result 4 for kernel (CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16) - Success
22:775  0:000  OC: Kernel patch [5] ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4
22:785  0:010  Replace B8040000004489F14489 by B81D0000804489F14489 at ofs:1D2633
22:785  0:000  OCAK: ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4 replace count - 1
22:786  0:000  OC: Kernel patcher result 5 for kernel (ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4) - Success
22:787  0:000  OC: Kernel patch [6] ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package
22:793  0:006  Replace C1E01AFFC0/FFF0FFFFF0(C1EA1AFFC2) by 0F1F00EB06 at ofs:1D267E
22:793  0:000  OCAK: ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package replace count - 1
22:794  0:000  OC: Kernel patcher result 6 for kernel (ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package) - Success
22:795  0:000  OC: Kernel patch [7] CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16
22:803  0:008  Replace 833D00000000000F00000000008B00BC/FFFF000000FFFFFF00000000FFFF00FF(833D590DE600000F84930300008B75BC) by 00000000000001000000000000000000/0000000000000F000000000000000000(833D590DE600010F84930300008B75BC) at ofs:1D2478
23:055  0:251  OCAK: CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16 replace count - 1
23:055  0:000  OC: Kernel patcher result 7 for kernel (CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16) - Success
23:056  0:000  OC: Kernel patch [8] ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr
23:067  0:010  Replace B98B00000031C031D20F30 by 660F1F8400000000006690 at ofs:1D0AE5
23:067  0:000  OCAK: ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr replace count - 1
23:068  0:000  OC: Kernel patcher result 8 for kernel (ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr) - Success
23:068  0:000  OC: Kernel patch [9] ALL_OS_algrey - cpuid_set_generic_info - set microcode=186
23:078  0:010  Replace B98B0000000F32 by BABA0000006690 at ofs:1D0B2D
23:078  0:000  OCAK: ALL_OS_algrey - cpuid_set_generic_info - set microcode=186 replace count - 1
23:079  0:000  OC: Kernel patcher result 9 for kernel (ALL_OS_algrey - cpuid_set_generic_info - set microcode=186) - Success
23:080  0:000  OC: Kernel patch [10] ALL_OSalgrey - cpuid_set_generic_info - set flag=1
23:089  0:009  Replace B9170000000F32C1EA1280E207 by B201660F1F8400000000006690 at ofs:1D0BA5
23:089  0:000  OCAK: ALL_OSalgrey - cpuid_set_generic_info - set flag=1 replace count - 1
23:089  0:000  OC: Kernel patcher result 10 for kernel (ALL_OSalgrey - cpuid_set_generic_info - set flag=1) - Success
23:090  0:000  OC: Kernel patch [11] ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7
23:101  0:011  Replace 003A0F82 by 00000F82 at ofs:1D15BC
23:101  0:000  OCAK: ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7 replace count - 1
23:102  0:000  OC: Kernel patcher result 11 for kernel (ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7) - Success
23:102  0:000  OC: Kernel patch [12] ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD
23:148  0:045  Replace 47656E75696E65496E74656C00 by 41757468656E746963414D4400 at ofs:929169
23:148  0:000  OCAK: ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD replace count - 1
23:148  0:000  OC: Kernel patcher result 12 for kernel (ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD) - Success
23:149  0:000  OC: Kernel patch [13] ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN
23:156  0:007  Replace 31DB803D00000000067500/FFFFFFFF000000FFFFFF00(31DB803DD719E60006756A) by BBBC4FEA78E95D00000090 at ofs:1D177C
23:156  0:000  OCAK: ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN replace count - 1
23:157  0:000  OC: Kernel patcher result 13 for kernel (ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN) - Success
23:157  0:000  OC: Kernel patch [14] CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16
23:159  0:001  Replace 7571E800000000488B050000000048890500000000/FFFFFF00000000FFFFFF00000000FFFFFF00000000(7571E8B8090000488B05E918E600488905AA19E600) by 744E000000000090890D00000000E97E0000006690/FFFF0000000000FFFFFF00000000FFFFFFFFFFFFFF(744EE8B809000090890DE918E600E97E0000006690) at ofs:1271
23:159  0:000  OCAK: CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16 replace count - 1
23:159  0:000  OC: Kernel patcher result 14 for kernel (CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16) - Success
23:160  0:000  OC: Kernel patch [15] CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16
23:162  0:001  Replace B9350000000F3248C1E22089C14809D1B9010001000F45C80FB7C1C1E91083E10FEB1EB9350000000F3248C1E22089C14809D1B9010001000F45C80FB7C1C1E910 by B80800008031DB31C931D20FA24189CE450FB6F641FFC6B81E00008031DB31C931D20FA20FB6F7FFC64489F131D289C8F7F689C14489F0E97CFFFFFF0F1F440000 at ofs:12C1
23:162  0:000  OCAK: CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16 replace count - 1
23:162  0:000  OC: Kernel patcher result 15 for kernel (CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16) - Success
23:163  0:000  OC: Kernel patch [16] ALL_OS_algrey - i386_init - remove rdmsr (x3)
23:174  0:010  Replace B9990100000F3248C1E22089C64809D6B9980100000F3248C1E22089C04809C2BF5802310531C94531C0 by 660F1F840000000000660F1F840000000000660F1F840000000000660F1F840000000000660F1F440000 at ofs:1DB5AF
23:174  0:000  Replace B9990100000F3248C1E22089C64809D6B9980100000F3248C1E22089C04809C2BF5802310531C94531C0 by 660F1F840000000000660F1F840000000000660F1F840000000000660F1F840000000000660F1F440000 at ofs:1DB963
23:174  0:000  Replace B9990100000F3248C1E22089C64809D6B9980100000F3248C1E22089C04809C2BF5802310531C94531C0 by 660F1F840000000000660F1F840000000000660F1F840000000000660F1F840000000000660F1F440000 at ofs:1DBAD4
23:515  0:341  OCAK: ALL_OS_algrey - i386_init - remove rdmsr (x3) replace count - 3
23:516  0:000  OC: Kernel patcher result 16 for kernel (ALL_OS_algrey - i386_init - remove rdmsr (x3)) - Success
23:517  0:000  OC: Kernel patch [17] ALL_OS_algrey - tsc_init - remove Penryn check to execute default case
23:524  0:006  Replace 3DBC4FEA780F8400010000/FFFFFFFFFFFFFF00FFFFFF(3DBC4FEA780F84B2010000) by 6666660F1F840000000000 at ofs:1ED93F
23:524  0:000  OCAK: ALL_OS_algrey - tsc_init - remove Penryn check to execute default case replace count - 1
23:524  0:000  OC: Kernel patcher result 17 for kernel (ALL_OS_algrey - tsc_init - remove Penryn check to execute default case) - Success
23:525  0:000  OC: Kernel patch [18] ALL_OS_algrey - tsc_init - grab DID and VID from MSR
23:532  0:007  Replace B9940100000F3289C3B9CE0000000F320FB6CE890D000000000FB6C4890500000000/FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF000000FFFFFFFFFFFF000000FF(B9940100000F3289C3B9CE0000000F320FB6CE890DF321DD000FB6C48905EE21DD00) by B9640001C00F320FB6C889C6C1EE0883E63F4531FF31D24889C848F7F64801C06690 at ofs:1EDB38
23:532  0:000  OCAK: ALL_OS_algrey - tsc_init - grab DID and VID from MSR replace count - 1
23:533  0:000  OC: Kernel patcher result 18 for kernel (ALL_OS_algrey - tsc_init - grab DID and VID from MSR) - Success
23:534  0:000  OC: Kernel patch [19] ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI
23:535  0:001  Replace F7C30000010074 by 660F1F440000EB at ofs:291
23:535  0:000  OCAK: ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI replace count - 1
23:536  0:000  OC: Kernel patcher result 19 for kernel (ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI) - Success
23:537  0:000  OC: Kernel patch [20] BS_NoOne - lapic_init - remove version check and panic - 10.16
23:548  0:011  Replace 83F8130F8681000000 by 909090909090909090 at ofs:1F20BA
23:548  0:000  OCAK: BS_NoOne - lapic_init - remove version check and panic - 10.16 replace count - 1
23:549  0:000  OC: Kernel patcher result 20 for kernel (BS_NoOne - lapic_init - remove version check and panic - 10.16) - Success
23:550  0:000  OC: Kernel patch [21] CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16
23:552  0:002  Replace 833D0000000000740E/FFFF000000FFFFFFFF(833DA1EDF70000740E) by EB390F1F8000000000 at ofs:86620
23:552  0:000  OCAK: CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16 replace count - 1
23:553  0:000  OC: Kernel patcher result 21 for kernel (CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16) - Success
23:610  0:056  Replace 00252E2A7300 by 00002E2A7300 at ofs:9E37A3
23:610  0:000  OCAK: PanicKextDump replace count - 1
23:610  0:000  OCAK: Patch success kext dump
23:612  0:001  OCAK: CurrFreeCall E8 77 1A A5 FF FFA51A77
23:612  0:000  OCAK: CurrFreeCall E8 3B 1A A5 FF FFA51A3B
23:613  0:000  OCAK: CurrFreeCall E8 BC 17 A5 FF FFA517BC
23:614  0:000  OCAK: Found jettisoning fileset
23:654  0:040  OCAK: as.vit9696.Lilu got KXLD 0 0
23:655  0:000  OCAK: Requesting __LINKEDIT for as.vit9696.Lilu - AF476438 at 3E1D000
23:656  0:000  OCAK: Requesting SymbolTable for as.vit9696.Lilu - 516
23:656  0:000  OCAK: Requesting __LINKEDIT for __kernel__ - AB661628 at 0
23:657  0:000  OCAK: Requesting SymbolTable for __kernel__ - 24802
23:677  0:019  OCAK: Ignoring KPI com.apple.kpi.bsd for kext as.vit9696.Lilu in KC/state mode
23:677  0:000  OCAK: Ignoring KPI com.apple.kpi.dsep for kext as.vit9696.Lilu in KC/state mode
23:678  0:000  OCAK: Ignoring KPI com.apple.kpi.iokit for kext as.vit9696.Lilu in KC/state mode
23:679  0:000  OCAK: Ignoring KPI com.apple.kpi.libkern for kext as.vit9696.Lilu in KC/state mode
23:679  0:000  OCAK: Ignoring KPI com.apple.kpi.mach for kext as.vit9696.Lilu in KC/state mode
23:680  0:000  OCAK: Ignoring KPI com.apple.kpi.unsupported for kext as.vit9696.Lilu in KC/state mode
23:687  0:006  OCAK: Local relocs 621 on FFFFFF8003F7D000
23:688  0:000  OC: Prelinked injection Kexts\Other\Lilu.kext () - Success
23:688  0:000  OCAK: as.vit9696.VirtualSMC got KXLD 0 0
23:689  0:000  OCAK: Requesting __LINKEDIT for as.vit9696.VirtualSMC - AF4A2438 at 3E49000
23:690  0:000  OCAK: Requesting SymbolTable for as.vit9696.VirtualSMC - 452
23:690  0:000  OCAK: Requesting SymbolTable for as.vit9696.Lilu - 133
23:693  0:002  OCAK: Patching invalid size 2000 with 18CE000 for com.apple.iokit.IOACPIFamily
23:694  0:000  OCAK: com.apple.iokit.IOACPIFamily got KXLD 0 0
23:694  0:000  OCAK: Requesting __LINKEDIT for com.apple.iokit.IOACPIFamily - ADBA8430 at 254F000
23:695  0:000  OCAK: Requesting SymbolTable for com.apple.iokit.IOACPIFamily - 541
23:696  0:000  OCAK: Ignoring KPI com.apple.kpi.iokit for kext com.apple.iokit.IOACPIFamily in KC/state mode
23:696  0:000  OCAK: Ignoring KPI com.apple.kpi.libkern for kext com.apple.iokit.IOACPIFamily in KC/state mode
23:697  0:000  OCAK: Ignoring KPI com.apple.kpi.private for kext com.apple.iokit.IOACPIFamily in KC/state mode
23:698  0:000  OCAK: Ignoring KPI com.apple.kpi.unsupported for kext com.apple.iokit.IOACPIFamily in KC/state mode
23:699  0:001  OCAK: Ignoring KPI com.apple.kpi.bsd for kext as.vit9696.VirtualSMC in KC/state mode
23:700  0:001  OCAK: Ignoring KPI com.apple.kpi.dsep for kext as.vit9696.VirtualSMC in KC/state mode
23:705  0:005  OCAK: Ignoring KPI com.apple.kpi.iokit for kext as.vit9696.VirtualSMC in KC/state mode
23:706  0:000  OCAK: Ignoring KPI com.apple.kpi.libkern for kext as.vit9696.VirtualSMC in KC/state mode
23:707  0:001  OCAK: Ignoring KPI com.apple.kpi.mach for kext as.vit9696.VirtualSMC in KC/state mode
23:709  0:001  OCAK: Ignoring KPI com.apple.kpi.unsupported for kext as.vit9696.VirtualSMC in KC/state mode
23:717  0:008  OCAK: Local relocs 503 on FFFFFF8003FA9000
23:718  0:001  OC: Prelinked injection Kexts\Other\VirtualSMC.kext () - Success
23:719  0:000  OCAK: as.vit9696.WhateverGreen got KXLD 0 0
23:719  0:000  OCAK: Requesting __LINKEDIT for as.vit9696.WhateverGreen - AF4BC3E8 at 3E63000
23:720  0:000  OCAK: Requesting SymbolTable for as.vit9696.WhateverGreen - 409
23:722  0:002  OCAK: Patching invalid size 28000 with 1389000 for com.apple.iokit.IOPCIFamily
23:723  0:000  OCAK: com.apple.iokit.IOPCIFamily got KXLD 0 0
23:724  0:000  OCAK: Requesting __LINKEDIT for com.apple.iokit.IOPCIFamily - AE0ED480 at 2A94000
23:724  0:000  OCAK: Requesting SymbolTable for com.apple.iokit.IOPCIFamily - 1304
23:725  0:001  OCAK: Ignoring KPI com.apple.kpi.iokit for kext com.apple.iokit.IOPCIFamily in KC/state mode
23:726  0:000  OCAK: Ignoring KPI com.apple.kpi.libkern for kext com.apple.iokit.IOPCIFamily in KC/state mode
23:727  0:000  OCAK: Ignoring KPI com.apple.kpi.mach for kext com.apple.iokit.IOPCIFamily in KC/state mode
23:727  0:000  OCAK: Ignoring KPI com.apple.kpi.private for kext com.apple.iokit.IOPCIFamily in KC/state mode
23:728  0:000  OCAK: Ignoring KPI com.apple.kpi.unsupported for kext com.apple.iokit.IOPCIFamily in KC/state mode
23:732  0:003  OCAK: Ignoring KPI com.apple.kpi.bsd for kext as.vit9696.WhateverGreen in KC/state mode
23:732  0:000  OCAK: Ignoring KPI com.apple.kpi.dsep for kext as.vit9696.WhateverGreen in KC/state mode
23:733  0:000  OCAK: Ignoring KPI com.apple.kpi.iokit for kext as.vit9696.WhateverGreen in KC/state mode
23:734  0:000  OCAK: Ignoring KPI com.apple.kpi.libkern for kext as.vit9696.WhateverGreen in KC/state mode
23:734  0:000  OCAK: Ignoring KPI com.apple.kpi.mach for kext as.vit9696.WhateverGreen in KC/state mode
23:735  0:000  OCAK: Ignoring KPI com.apple.kpi.unsupported for kext as.vit9696.WhateverGreen in KC/state mode
23:743  0:008  OCAK: Local relocs 1556 on FFFFFF8003FC3000
23:745  0:001  OC: Prelinked injection Kexts\Other\WhateverGreen.kext () - Success
23:749  0:004  OCAK: as.vit9696.AppleALC got KXLD 0 0
23:750  0:000  OCAK: Requesting __LINKEDIT for as.vit9696.AppleALC - AF53B3E8 at 3EE2000
23:750  0:000  OCAK: Requesting SymbolTable for as.vit9696.AppleALC - 355
23:751  0:000  OCAK: Ignoring KPI com.apple.kpi.bsd for kext as.vit9696.AppleALC in KC/state mode
23:752  0:000  OCAK: Ignoring KPI com.apple.kpi.dsep for kext as.vit9696.AppleALC in KC/state mode
23:752  0:000  OCAK: Ignoring KPI com.apple.kpi.iokit for kext as.vit9696.AppleALC in KC/state mode
23:753  0:000  OCAK: Ignoring KPI com.apple.kpi.libkern for kext as.vit9696.AppleALC in KC/state mode
23:754  0:000  OCAK: Ignoring KPI com.apple.kpi.mach for kext as.vit9696.AppleALC in KC/state mode
23:754  0:000  OCAK: Ignoring KPI com.apple.kpi.unsupported for kext as.vit9696.AppleALC in KC/state mode
23:762  0:007  OCAK: Local relocs 4578 on FFFFFF8004042000
23:771  0:009  OC: Prelinked injection Kexts\Other\AppleALC.kext () - Success
23:772  0:000  OCAK: com.smalltree.driver.SmallTreeIntel82576 got KXLD 0 0
23:773  0:000  OCAK: Requesting __LINKEDIT for com.smalltree.driver.SmallTreeIntel82576 - AF6A1398 at 4048000
23:773  0:000  OCAK: Requesting SymbolTable for com.smalltree.driver.SmallTreeIntel82576 - 974
23:776  0:002  OCAK: Patching invalid size 17000 with 1612000 for com.apple.iokit.IONetworkingFamily
23:777  0:000  OCAK: com.apple.iokit.IONetworkingFamily got KXLD 0 0
23:777  0:000  OCAK: Requesting __LINKEDIT for com.apple.iokit.IONetworkingFamily - ADE64480 at 280B000
23:778  0:000  OCAK: Requesting SymbolTable for com.apple.iokit.IONetworkingFamily - 1644
23:779  0:000  OCAK: Ignoring KPI com.apple.kpi.bsd for kext com.apple.iokit.IONetworkingFamily in KC/state mode
23:779  0:000  OCAK: Ignoring KPI com.apple.kpi.iokit for kext com.apple.iokit.IONetworkingFamily in KC/state mode
23:781  0:001  OCAK: Ignoring KPI com.apple.kpi.libkern for kext com.apple.iokit.IONetworkingFamily in KC/state mode
23:781  0:000  OCAK: Ignoring KPI com.apple.kpi.mach for kext com.apple.iokit.IONetworkingFamily in KC/state mode
23:782  0:000  OCAK: Ignoring KPI com.apple.kpi.private for kext com.apple.iokit.IONetworkingFamily in KC/state mode
23:782  0:000  OCAK: Ignoring KPI com.apple.kpi.unsupported for kext com.apple.iokit.IONetworkingFamily in KC/state mode
23:788  0:005  OCAK: Ignoring KPI com.apple.kpi.bsd for kext com.smalltree.driver.SmallTreeIntel82576 in KC/state mode
23:788  0:000  OCAK: Ignoring KPI com.apple.kpi.iokit for kext com.smalltree.driver.SmallTreeIntel82576 in KC/state mode
23:789  0:000  OCAK: Ignoring KPI com.apple.kpi.libkern for kext com.smalltree.driver.SmallTreeIntel82576 in KC/state mode
23:790  0:000  OCAK: Ignoring KPI com.apple.kpi.mach for kext com.smalltree.driver.SmallTreeIntel82576 in KC/state mode
23:800  0:010  OCAK: Local relocs 779 on FFFFFF80041A8000
23:802  0:001  OC: Prelinked injection Kexts\Other\SmallTreeIntel82576.kext () - Success
23:802  0:000  OCAK: wtf.spinach.AMDRyzenCPUPowerManagement got KXLD 0 0
23:803  0:000  OCAK: Requesting __LINKEDIT for wtf.spinach.AMDRyzenCPUPowerManagement - AF6CF438 at 4076000
23:804  0:000  OCAK: Requesting SymbolTable for wtf.spinach.AMDRyzenCPUPowerManagement - 1195
23:806  0:002  OCAK: Patching invalid size E000 with DC3000 for com.apple.kec.Libm
23:807  0:000  OCAK: com.apple.kec.Libm got KXLD 0 0
23:807  0:000  OCAK: Requesting __LINKEDIT for com.apple.kec.Libm - AE6B31B8 at 305A000
23:809  0:001  OCAK: Requesting SymbolTable for com.apple.kec.Libm - 77
23:809  0:000  OCAK: Ignoring KPI com.apple.kpi.libkern for kext com.apple.kec.Libm in KC/state mode
23:810  0:000  OCAK: Ignoring KPI com.apple.kpi.bsd for kext wtf.spinach.AMDRyzenCPUPowerManagement in KC/state mode
23:810  0:000  OCAK: Ignoring KPI com.apple.kpi.dsep for kext wtf.spinach.AMDRyzenCPUPowerManagement in KC/state mode
23:811  0:000  OCAK: Ignoring KPI com.apple.kpi.iokit for kext wtf.spinach.AMDRyzenCPUPowerManagement in KC/state mode
23:812  0:000  OCAK: Ignoring KPI com.apple.kpi.libkern for kext wtf.spinach.AMDRyzenCPUPowerManagement in KC/state mode
23:812  0:000  OCAK: Ignoring KPI com.apple.kpi.mach for kext wtf.spinach.AMDRyzenCPUPowerManagement in KC/state mode
23:813  0:000  OCAK: Ignoring KPI com.apple.kpi.unsupported for kext wtf.spinach.AMDRyzenCPUPowerManagement in KC/state mode
23:820  0:007  OCAK: Local relocs 686 on FFFFFF80041D6000
23:822  0:001  OC: Prelinked injection Kexts\Other\AMDRyzenCPUPowerManagement.kext () - Success
23:822  0:000  OC: Prelink size 67723264 kext offset 65130496 reserved 2592768
23:823  0:000  OCAK: KC TEXT is 65536 bytes with 50560 Mach-O headers need 600
23:834  0:011  OC: Kernel patch [0] com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur)
23:836  0:002  OCAK: Patching invalid size 26000 with 159D000 for com.apple.driver.AppleEthernetAquantiaAqtion
23:837  0:000  OCAK: com.apple.driver.AppleEthernetAquantiaAqtion got KXLD 0 0
23:838  0:000  Replace 0F84C0020000 by 660F1F440000/FFFFFFFF0000(660F1F440000) at ofs:249A
23:838  0:000  OCAK: com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur) replace count - 1
23:838  0:000  OC: Kernel patcher result 0 for com.apple.driver.AppleEthernetAquantiaAqtion (com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur)) - Success
23:839  0:000  OC: Kernel patch skipped [1] BS_algrey - _i386_init_slave - Remove wrmsr 0x1c8
23:840  0:000  OC: Kernel patch skipped [2] ALL OS_algrey - commpage_populate -remove rdmsr
23:840  0:000  OC: Kernel patch skipped [3] ALL OS_algrey - cpu_topology_sort -disable _x86_validate_topology
23:842  0:001  OC: Kernel patch skipped [4] CATA_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 0 - 10.15/10.16
23:842  0:000  OC: Kernel patch skipped [5] ALL_OS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4
23:843  0:000  OC: Kernel patch skipped [6] ALL_OS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package
23:844  0:000  OC: Kernel patch skipped [7] CATA_BS_NoOne - skip cpuid_cores_per_package test - 10.15/10.16
23:844  0:000  OC: Kernel patch skipped [8] ALL_OS_algrey - cpuid_set_generic_info - remove wrmsr
23:845  0:000  OC: Kernel patch skipped [9] ALL_OS_algrey - cpuid_set_generic_info - set microcode=186
23:846  0:000  OC: Kernel patch skipped [10] ALL_OSalgrey - cpuid_set_generic_info - set flag=1
23:846  0:000  OC: Kernel patch skipped [11] ALL_OS_algrey - cpuid_set_generic_info - disable check to allow leaf7
23:847  0:000  OC: Kernel patch skipped [12] ALL_OS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD
23:847  0:000  OC: Kernel patch skipped [13] ALL_OS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN
23:848  0:000  OC: Kernel patch skipped [14] CATA_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16
23:849  0:000  OC: Kernel patch skipped [15] CATA_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16
23:849  0:000  OC: Kernel patch skipped [16] ALL_OS_algrey - i386_init - remove rdmsr (x3)
23:850  0:000  OC: Kernel patch skipped [17] ALL_OS_algrey - tsc_init - remove Penryn check to execute default case
23:851  0:000  OC: Kernel patch skipped [18] ALL_OS_algrey - tsc_init - grab DID and VID from MSR
23:851  0:000  OC: Kernel patch skipped [19] ALL_OS_algrey - tsc_init - skip msr_flex_ratio test and go grab FSBFrequency from EFI
23:852  0:000  OC: Kernel patch skipped [20] BS_NoOne - lapic_init - remove version check and panic - 10.16
23:853  0:000  OC: Kernel patch skipped [21] CATA_BS_algrey - lapic_interrupt - skip checks and prevent panic - 10.15/10.16
23:853  0:000  OCAK: Patching invalid size 9000 with 2C72000 for com.apple.driver.AppleAHCIPort
23:854  0:000  OCAK: com.apple.driver.AppleAHCIPort got KXLD 0 0
23:855  0:000  Replace 45787465726E616C by 496E7465726E616C at ofs:85EF
23:855  0:000  OCAK: IOAHCIPort replace count - 1
23:855  0:000  OCAK: Patch success com.apple.driver.AppleAHCIPort
23:934  0:079  OC: Prelinked status - Success
23:975  0:041  OC: Opening file usr\standalone\OS.dmg.root_hash with 1 mode gave - Success
23:982  0:006  OC: Opening file usr\standalone\OS.dmg.root_hash.x86legacyap.im4m with 1 mode gave - Success
24:041  0:058  ++++++++++++++++++++++++++++++++

I Have never posted an entire debug log..this is the first time (forum/clover debug I mean)

If you have also older OSX installed they are working fine if you use proper patches for each version

PAY ATTENTION

clover R5126 is under development and it has some problem in particular situations with a function (GetOS detection), it also has problem with Big Sur Recovery...

but it works...

In my config you can find all quirks set (maybe more) to have system booting and working. You can also find a minimal set of Kernel Patches I use to boot in Catalina and in Big Sur

I hope you enjoy this as I did..for me very useful to try stuff in Clover bootmenu Option 😉

for a more complete informations:

https://github.com/CloverHackyColor/CloverBootloader/issues/283

https://github.com/CloverHackyColor/CloverBootloader/issues/289

there you will find issues I have opened to solve GetOS detection problem!

Ploddles · November 2, 2020

4 hours ago, Rox67er said:

@fabiosun Some impressive benchmarks, looks like Big Sur is really reaching GM status soon.

It probably already has, except they have now changed the names from GM to RC (Release Candidate), otherwise why change the latest beta to 11.0.1, i.e the extra .1 on the end. They just haven't released it as they are waiting for the 'event' on the 17th.

Ploddles · November 2, 2020

Apple "One More Thing" Event on 10th November.

Big Sur and Apple Silicon Macs?

https://www.apple.com/apple-events/

Jaidy · November 2, 2020

1 hour ago, Ploddles said:

Apple "One More Thing" Event on 10th November.

Big Sur and Apple Silicon Macs?

https://www.apple.com/apple-events/

I’m looking forward to Big Sur due to the rumors of it carrying drivers for AMD’s 6x00 series.

meina222 · November 3, 2020

OC 0.6.3 released.

iosengineer · November 3, 2020

Hey all, and especially @meina222 & @jncasey! (we are all running the TRX40 Designare)

Long-time reader, first time poster. I hope to be able to bring a handful of interesting things in return for the amazing community that's gathered here. A few details that might be unique-ish to my setup at the end of this post. I don't need help or support with the odd parts of my setup; in fact my main question (NVRAM) is applicable with nothing installed!

My question for all of you — what's the playbook when NVRAM operations like Startup Disk hang the machine?

I followed the Dortania guide and was able to get a booting configuration for both Catalina, and Mojave
- Mojave is ideal focus right now as I'm completing a 180k-asset Aperture migration, but I can handle adaptations between the versions.
However, the installer always hung at 2 minutes remaining. I was able to get a working system by finishing the install on my W480.
- Without NVRAM working, I can't seem to get any of the methods for disabling SIP to work—a requirement for the .kext-based drivers of my ATTO & Highpoint SAS cards, as well as Chelsio 100GbE.
I have tried the NVRAM SSDT, but is there any canonical reference that describes this innovation in detail? Information seems tough to find.

I did try booting @meina222's config.plist and associated ACPI / .aml's, but wasn't able to get past the Apple logo relatively early in boot. The config may have verbose turned off (mine always leave it on), and tomorrow I'll investigate the logs more.

If there is any advice on NVRAM for the Designare, I would be deeply thankful for a tip on which configurations to try. Legacy / LegacySchema (following guides related to using them) did not seem to provide any benefit for me.

——— Designare Resource Allocation Error ———

@meina222 — I had found your discussions on the Gigabyte forum about the ridiculous D4 PCIe resource allocation error, and it is very good to hear that the H bios resolved the issue for you! Indeed outrageous that it's an issue at all, and remains in the latest BIOS...

Having just discovered your copy of the H BIOS, I haven't tried it yet; my TRX40 hardware was partially folded into a W480 build, while TRX40 wasn't bootable. I got very far with Proxmox, but a handful of issues were persistent. Still, I'd be interested in comparing notes here at some point!

——— Some fun / unimportant details about my setup + possible areas of experience where I might be helpful ———

Lots of experience with different Optane configs and their compatibility (I have 7x 118GB 800p, 2x 380GB 905p M.2, 1x 280GB 900p AIC, and 1x 960GB 905p U.2)
Lots of SAS storage insanity (>140TB / 32+ spindles - mostly SAS, so a lot of macOS SAS experience).
Lots of NVMe types, including enterprise (2x 6.4TB Intel P4600, 4x 2TB 970 Evo Plus, 2TB Sabrent Rocket 4.0, 960GB Corsair MP510)
Some less-common networking: Chelsio 100GbE cards, Thunderbolt 3 10GbE, QNAP 5GbE, RealTek 2.5GbE, etc
Range of AMD GPUs we can test with (Radeon VII, 5700XT, Vega 56, RX 580, W4100, GTX 780; and the sadly-incompatible WX3200).
Some really insane PCIe configurations (utilizing the PLX switches that are at the core of "NVMe controllers", to e.g. get x32 usable CPU lanes on a x16-lane Intel platform). Photo of this attached for fun; it is fully operational under macOS with everything populated!
Modern Intel HEDT / entry Workstation chipsets (C246 w/ E-2288g, W480 w/ W-1290P).
Of course, a TRX40 like you all! (3960x, ECC 4x 3200MHz 128GB, Radeon VII, Gigabyte TRX40 Designare)
...Worked on iPhone 1.0's software :). Honestly though, I am completely serious that I look up to this community with respect and amazement far more than my own career!

I wanted to include this before asking a question, just to share my interest in and respect for this community. I genuinely don't intend for it to feel like a "humblebrag" — I do have a lot of hardware, which I offer here in case others are (like me) interested in specific questions about compatibility.

Edited November 3, 2020 by iosengineer

Rocket88 · November 3, 2020

Question for iosengineer: Do current Apple engineers build their own Hackintoshes for their own home/personal use?

Question for fabiosun: Which seems to work better, Clover or Opencore for you?

Edited November 3, 2020 by Rocket88

fabiosun · November 3, 2020

50 minutes ago, Rocket88 said:

Question for fabiosun: Which seems to work better, Clover or Opencore for you?

if you have both configured well it works the same

Opencore devs group is more solid in my opinion.

But, with clover you can test at bootmenu level many stuff you can't testin OpenCore without booting and changing options

jncasey · November 3, 2020

Hi @iosengineer

Unlike on my z390 hackintosh, I haven't run into any NVRAM issues at all on the TRX40 Designare. My initial install was done using an almost-unmodified version of @Ploddles' EFI attached to the first post of this thread, and everything was totally smooth. I then made a bunch of modifications for the Designare thanks to the help of @meina222 and others, but never ran into any NVRAM issues. The only thing I didn't borrow from someone else was the TableLength of the SHAKTOOH table being deleted in ACPI – for some reason mine was different (maybe because I'm on bios F4i). I'd be happy to share my config.plist, but I won't have access to that machine until tomorrow or Thursday.

And while I don't have any experience troubleshooting NVRAM on that machine, on my z390 Designare, switching between emulated and native NVRAM involved the two kernel quirks with CfgLock in the name. You don't happen to have those quirks enabled, do you?

Ploddles · November 3, 2020

@iosengineer, CfgLock is an Intel only BIOS setting, whether hidden or not, so is not applicable to our systems. As @jncasey mentioned, the 2 quirks are AppleCpuPmCfgLock and AppleXcpmCfgLock and should be set to False/No on AMD systems.

fabiosun · November 3, 2020

I think..for us those quirks are not so related to your problem

And I repeat..Dortania guide is not so accurate.. (imho)

meina222 · November 3, 2020

@iosengineer - getting NVRAM to work is not unique to the Designare - the procedure to get your config is the same for all boards, but the values may differ based on your board make and BIOS. So between f4h and f4l say on the Designare, the configs would be (annoyingly) different.

Afaik, there are 2 main parts to getting NVRAM to work (credit goes to @iGPU for spearheading the solution and research into this, so look for his posts on the subject).

1. Set your MMIO 'whitelist' correctly. This is described in several posts on this board (and you can use the Dortania guide too)

2. Have ACPI SSDTs enabling NVRAM - Any of the working EFIs should have this, as it should be common to all TRX40 boards (this was solved by several other more knowledgeable than me members of this forum).

Start by that using existing configs and this forum (you can for example take my config and disable fancy ACPI and kexts and try it with your MMIO). @Ploddles's should also be a good start.

I am not surprised you did not get past the Apple logo on my EFI. I posted a few disclaimers alongside with it, that unless you use BIOS f4h, my EFI won't work on another Designare board as this BIOS has different MMIO virtual address mappings. And you're right, that this is the only BIOS I am aware of, that allows the AIC 4x4x4x4, and GPU to work with Thunderbolt in Slot 4 without D4. Thunderbolt should still work in Slot 2 for other BIOS-es, but my case is such that routing the cables there is a royal pain, hence I bitched to Gigabyte about it, till they "fixed" it in f4h (but not in later official bios-es for reasons known to them only).

Will be offline till later tonight, so will check then if there is anything else I can share to help with. Cheers.

fabiosun · November 3, 2020

@iosengineer

welcome here! 😉

about your problem:

1) why are you linking your Nvram problem and SIP?

2) could you post ,without personal data , EFI you are using to install or boot?

About MMIO, every board is different and sometimes also changing bios version could change MMIO address and relative conversion to use in boot loader

I did many tries with different MMIO combinations, and, it is possible to find the right scheme (enabled/disabled) for all boards I have seen here

Combinations working is pretty identical for all manufacturer.

You can also find in General International section a useful link where you can find also MMIO guide (revisited by @iGPU)

It is important to use an OpenCore debug version (or by now also a clover boot loader 5126) and activate debug printing on file.

You must use your MMIO to have success.

About SIP, this could be very tricky, you have to boot in recovery and use a proper value in config to disable it..it could be different and it is also related to OS X version.

Important is to start in config with proper value and then boot in recovery to clear/reset nvram or sip status

Then, if your hardware need of specific kexts to be installed (ie) in L/E could be an additional pain and you have also to play with gatekeeper (disable it) reboot, install driver and check if some kext are blocked in this steps, and unlock it from settings/security & privacy/General

Sign In

trx40 [Discussion] - TRX40 Bare Metal - Vanilla Patches

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members

Important Information
