Posted by fabiosun,

Ok..good news playing with MMIO and with opencore 061 i have solved reboot/shutdown problem... now it is working as it must work

MMIO rules shutdown and reboot previous problems

Recommended by fabiosun

  • Like

2 reactions

Go to this post
valmeida Senior Member

valmeida

Posted
Posted (edited)

I just discovered if I update my OC by validating with  ProperTree and trying to commit by config.plist by doing an OC snapshot it won't boot. I want to compare my config.plist before the snapshot and after. Can someone guide me? I would like to update OC to  .78



I tried to use OC_tool to see what is going on I got the error below

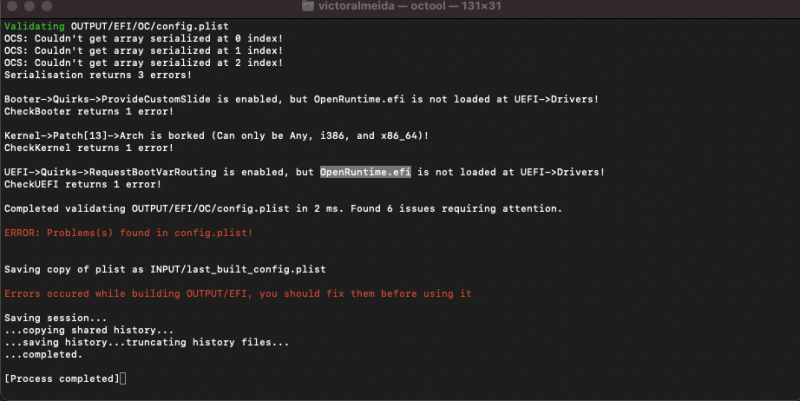

Screen Shot 2022-03-03 at 7.33.44 PM.png

Edited by fabiosun
rimossa EFI messa aggiornata nel post successivo
Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted
6 hours ago, valmeida said:

I just discovered if I update my OC by validating with  ProperTree and trying to commit by config.plist by doing an OC snapshot it won't boot. I want to compare my config.plist before the snapshot and after. Can someone guide me? I would like to update OC to  .78



I tried to use OC_tool to see what is going on I got the error below



Screen Shot 2022-03-03 at 7.33.44 PM.png



Hi @valmeida

your EFI had some problems

this attached should be corrected you had also an error on Aquantia definition

I do not know if it solves your problem



I suggest to learn this simple app to update OC:



https://github.com/ic005k/OCAuxiliaryTools

EFI-078 valmeida.zip

Link to comment
Share on other sites
valmeida Senior Member

valmeida

Posted
Posted (edited)
On 3/4/2022 at 1:28 AM, fabiosun said:



Hi @valmeida

your EFI had some problems

this attached should be corrected you had also an error on Aquantia definition

I do not know if it solves your problem



I suggest to learn this simple app to update OC:



https://github.com/ic005k/OCAuxiliaryTools

EFI-078 valmeida.zip 26.13 MB · 1 download

Thanks this is a great tool. I would love to look at your config.plist to do a comparison and see what's different maybe I can figure out why my AQatina card won't work on Monterey.



Edited by valmeida
Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted
On 3/5/2022 at 5:30 PM, valmeida said:

Thanks this is a great tool. I would love to look at your config.plist to do a comparison and see what's different maybe I can figure out why my AQatina card won't work on Monterey.



I do not use Aquantia from 12.01

there was working

I have unmounted it for a Fenvi Wifi/bt card which works without any kext

I do not know if my Aquantia Card is would be working now

Link to comment
Share on other sites
  • Moderators
iGPU Senior Member

iGPU

Posted
  • Moderators
Posted

I'm just getting back onto the forum after a hiatus (many reasons...).



Due to a "gut feeling" I stopped using Monterey betas a few months ago and settled on the official releases. The one I've been running is 12.2.1. I've been heavily using the TRX40 for many tasks and for the most part, there have been no issues.



However, on reading recent posts on this thread, there seem to be many issues with the Aquantia and I211 ports, especially with the latest Monterey beta releases. As a means of skirting the problem, I decided to try an AIC. Of the many I've tried (and those failed), this one (here) works well and it's not expensive (< 30 USD). It should allow speeds up to 2.5 Gb (my network is only 1 Gb). Until the latest Aquantia-Marvell 10Gb AQN113 AICs are available (the AQN113 is used on the latest M2 Macs and should work OOTB), I think this AIC may be a good interim substitute.



This AIC does require a special kext file: Mieze's kext (LucyRTL8125Ethernet). This can be downloaded via the Kext Updater app or on the InsanelyMac site (here; which also has a discussion about the RTL8125), but to save time I've added the version I downloaded last night as an attachment.



Do note that I've only tested on 12.2.1, so I don't know if there will be an issue on the more recent betas, but since it's dependent on a current kext file, i rather think it will still be functional. In the next couple of days, I take a spare drive and update it to the latest beta to further test.



Hackintool and Network Utility:




And with HackCheck:




In case anyone is interested, I'll attach the SSDT used to re-name the D0C8 device to ETH2. But this SSDT will probably need adjustment of the device based on your mobo, which should be a trivial task using IORE.





LucyRTL8125Ethernet.kext.zip

SSDT-TRX40-Realtek-RTL8125A.aml.zip

Link to comment
Share on other sites
23d1 Member

23d1

Posted
Posted
5 hours ago, fabiosun said:

Monterey 12.3 is OUT



DO NOT INSTALL! 😞



All problems are there as latest its beta!

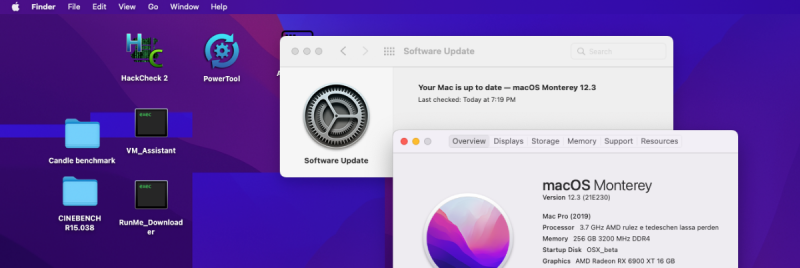

197111453_Screenshot2022-03-14at7_35_13PM.thumb.png.8dca7aa27385e9b239f8293d74c08866.png



see glitch, ethernet problems ad Metal performances

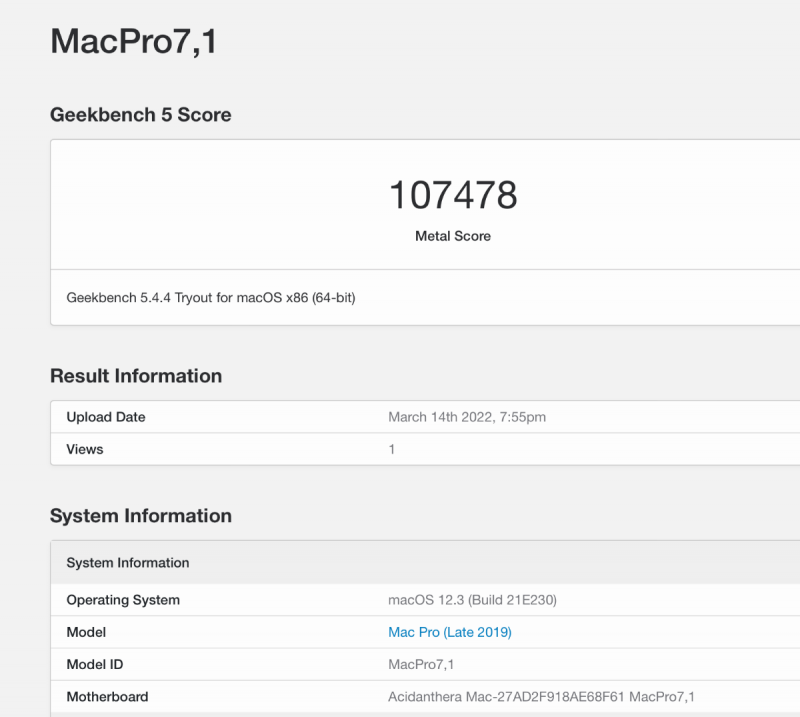

191730915_Screenshot2022-03-14at7_56_29PM.thumb.png.f053f7293d65652bf68280777ea1a3f7.png



before about 200000





Damn. Starting to wonder if the changes introduced are tied to some deeper system or kernel updates... Perhaps a new major obstacle to overcome for the community at large... Has anyone tested on Apple hardware to compare? Don't have a 2019 Mac Pro handy anymore, just MacBook Pro's.

Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted (edited)

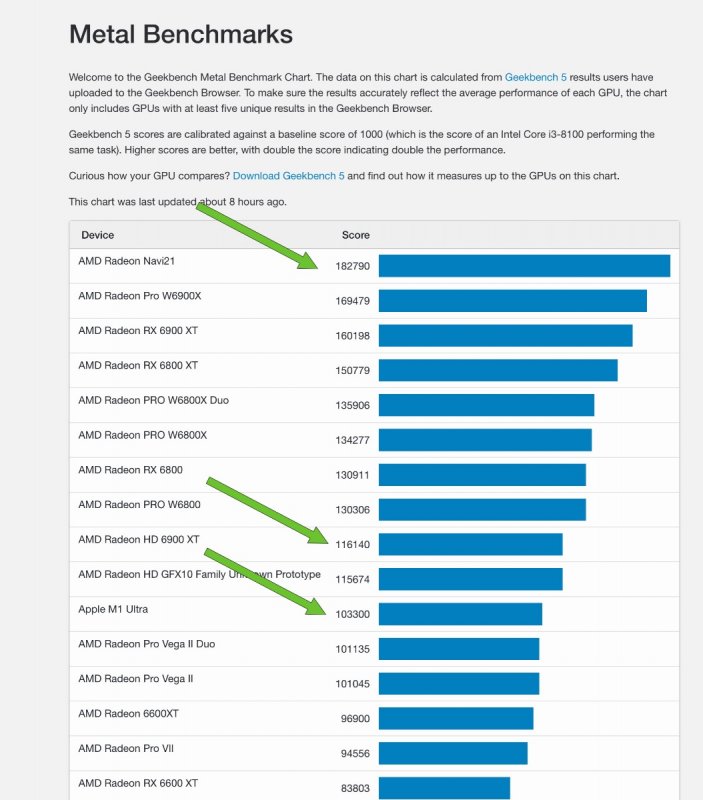

in this version of OSX it would appear that Apple has leveled metal performance towards its new top-of-the-range ARM platform

I can also feel good and the benchmarks in my opinion are not of much use, but I can't fully understand the obvious problems that even professional applications with Monterey 12.3 have

Is it possible that Apple has completely wrong an operating system or rather such an important update of a "main release"?

I can't understand how it is possible to use this system with the lag and the impressive lack of performance with software like Davinci Resolve for example



Am I missing something?

Edited by fabiosun
Link to comment
Share on other sites
23d1 Member

23d1

Posted
Posted
2 hours ago, fabiosun said:




in this version of OSX it would appear that Apple has leveled metal performance towards its new top-of-the-range ARM platform

I can also feel good and the benchmarks in my opinion are not of much use, but I can't fully understand the obvious problems that even professional applications with Monterey 12.3 have

Is it possible that Apple has completely wrong an operating system or rather such an important update of a "main release"?

I can't understand how it is possible to use this system with the lag and the impressive lack of performance with software like Davinci Resolve for example



Am I missing something?



I'm hoping this is rectified as the updates are rolled out as 12.3.1 and upwards, because if it's an issue on genuine Apple machines, that's a catastrophe for people like myself using GPU render software for 3D and so forth.

Link to comment
Share on other sites
Arrakis Senior Member

Arrakis

Posted
Posted

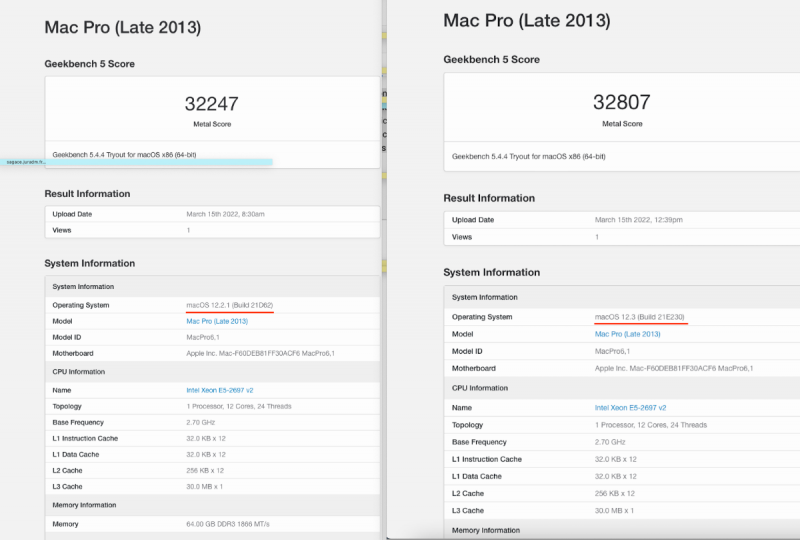

I just upgraded from Monterey 12.2.1 to Monterey 12.3.0 on my 2013 Mac Pro and the Metal performance of one of the two D700 cards is identical except for a few values.

I will test later on my Hack with my Radeon Pro WX 9100 cards to determine if this is a problem that only affects 6000 series cards.1973487991_Capturedecran2022-03-15a12_52_42.thumb.png.b6ee4342452b35aa9761699b322888de.png

Link to comment
Share on other sites
Jaidy Senior Member

Jaidy

Posted
Posted
19 hours ago, fabiosun said:

Monterey 12.3 is OUT



DO NOT INSTALL! 😞



All problems are there as latest its beta!



197111453_Screenshot2022-03-14at7_35_13PM.thumb.png.8dca7aa27385e9b239f8293d74c08866.png



see glitch, ethernet problems ad Metal performances



191730915_Screenshot2022-03-14at7_56_29PM.thumb.png.f053f7293d65652bf68280777ea1a3f7.png



before about 200000



I am getting display artifacts too

  • +1 1
Link to comment
Share on other sites
23d1 Member

23d1

Posted
Posted
On 3/17/2022 at 9:24 AM, fabiosun said:

Thank you @antunedduto point me in a right direction and some users of others forum (IM and TM 🙂 )

attached a plist which solves performance problem with 6xxx GPU series in Monterey 12.3



Change your GPU address and string info if you like a correct name for your GPU

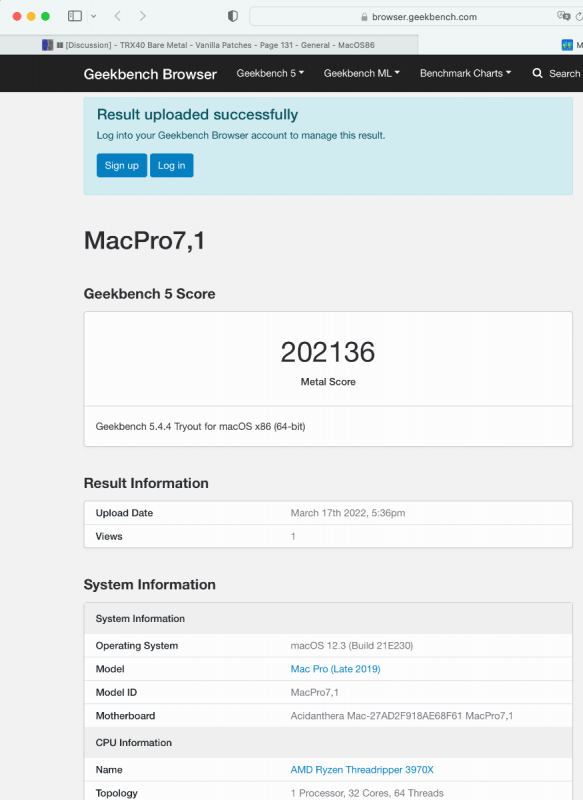

344623532_Screenshot2022-03-17at5_36_35PM.png.da20568bbb42e2c03c3a79f27cd01f5b.thumb.png.6ec89007cc77a1ea63c517f6b8905750.png

6900.plist.zip 1.14 kB · 5 downloads


This works for all 6000 series?

Link to comment
Share on other sites
  • Moderators
iGPU Senior Member

iGPU

Posted
  • Moderators
Posted
On 3/18/2022 at 7:05 PM, 23d1 said:


This works for all 6000 series?



No. It is specific for each model:



Radeon 6900 -> ATY,Carswell

Radeon 6800 -> ATY,Belknap

Radeon 6600 -> ATY,Henbury

Radeon 5700 -> ATY,Adder

Radeon 5500 -> ATY,Python



For example, the 6900 example by fabiosun is changed from ATY,Carswell to ATY,Henbury for the 6600 model.



Also, people are again playing with "PP_PhmSoftPowerPlayTable" (aka sPPT) to restore GPU metrics, also injecting via DeviceProperties. (I wrote about this early on in this thread for the Radeon VII to boost speed. The value is specific for each model.) One such thread is here.


The value I use for my 6900XT (Powercolor Red Devil) sPPT:

A6090F00 022203AF 09000077 40000080 00180000 001C0000 00000000 76000000 00000000 00000000 00000100 00000100 00000D00 0000640A 0000B004 0000E803 00009407 0000F204 0000C505 0000F204 0000C505 0000B004 0000C104 0000C104 00002A03 0000C104 00000000 00000000 00000000 0000F401 0000E001 00006100 00002602 00003D01 00006B01 00003D01 00006B01 0000A201 0000E701 0000E701 00002C01 0000E701 00000000 00000000 00000000 00008100 00001000 00001E00 00000101 01010101 01010101 01010101 00010000 00000000 00000000 00000000 0000B80B 0000B80B 00000000 00000000 00000000 0000B80B 00003304 00003304 00000F00 0000E40C 0000E40C 00006400 00006E00 00000100 00000100 00000100 00000100 00000100 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00000000 00000100 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0000F401 0000F401 00000000 00000000 00000000 0000F401 0000A202 0000A202 00000A00 0000FA00 0000E803 00001900 00003200 00000000 00000000 00000000 00000000 00000000 00001900 00000A00 00001900 00000A00 00001900 00000A00 00001900 00000A00 00001900 00000A00 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000600 00000600 06005700 5A005F00 5A00E803 B004D606 0807D007 D007CA08 CA080000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000600 0000FFFD 7FA36337 0000FF00 00000000 00000000 00000000 0000FF00 00000000 00000000 00000000 00004001 37000000 00006400 6E006400 73007300 73007300 00000000 00000000 00000100 00000A00 00000000 00000000 00000000 00000000 00000000 00000000 0000FE38 0000730F 00006400 64001C0C 800C0000 00000000 0000E40C E40C5C12 F8114000 00013200 3C00800C 800C800C 800C1400 14000000 02000000 803F0000 0000B537 B83EEF1B 67BF4F40 A73F8B04 00000000 0200EE7C 8F3FA69B 843E4434 9A3E43AD 09BE3D0F 363FF100 00000001 0400CDCC AC3FE3A5 9BBD6F81 E43ECAA6 CCBE0421 493FC001 00000000 02000000 803F0000 000072C4 7A3E4C89 84BEDCBA 433F1102 00000000 0200098A AF3F295C 0FBD85CE EB3E10CC C1BE4720 463F9B01 00000000 02006ADE 893FB81E 053E8E75 913E2849 57BEE42C 3C3F7301 00000000 0200098A AF3F295C 0FBD85CE EB3E10CC C1BE4720 463F9B01 00000000 02006ADE 893FB81E 053E8E75 913E2849 57BEE42C 3C3F7301 00000000 02007D3F 953FDD24 063E1D77 AA3EEE77 68BEC91F 3C3F5501 00000000 02006ABC 743FAE47 613E732E 653E52ED 13BED72F 383F4301 00000000 02006ABC 743FAE47 613E732E 653E52ED 13BED72F 383F4301 00000000 02000E2D 123F9A99 D93E2783 A33D8D28 EDBCE7E3 323FB600 00000000 02006ABC 743FAE47 613E732E 653E52ED 13BED72F 383F4301 0000F401 640A0000 00000000 00000000 00000000 00000000 00000000 00000000 00006B01 C5050000 00000000 00000000 00003D01 F2040000 00000000 00000000 0000E001 B0040000 00000000 00000000 00006100 C901A202 E803A201 B0040000 00000000 00000000 0000E701 C1040000 00000000 00000000 0000E701 C1040000 00000000 00000000 00002C01 2A030000 00000000 00000000 0000E701 C1040000 00000000 00000000 00002602 94070000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0000640A 0000B004 0000E803 00009407 0000F204 0000C505 0000F204 0000C505 0000B004 0000C104 0000C104 00002A03 0000C104 00000002 03037805 00004C01 FA01F00A 800C8C0A 800C480D 480D8813 18151815 1815F401 2003F401 01000102 5D000100 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00002A16 D7158415 3015DD14 8A143614 E3139013 3D13E912 9612B111 CC10E70F 020F0000 00000302 01000000 00000000 00000000 00000003 01063601 6B023700 46009001 90019001 90019001 90019001 90019001 90011E00 E803D007 B80B0000 5A00F401 00000100 01020000 00000000 00000000 01000000 00000000 00000000 00000000 00000000 00000000 00000D54 863DBC05 D2BD1F80 143E0000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00009A99 993E0000 C03F3333 13400000 20406666 46400AD7 233DDD24 863DA245 B63D39B4 C83DC74B B73E7593 983D2FDD 84BEA392 7A3EE561 21BD0456 8E3EC572 2BBEC000 C0000101 00000000 0000C000 C0001900 19000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000001 3B0B4501 00003480 373B9FAB CD3EED0D 3E3C7593 F83E0000 01000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00010000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 1E06

It is injected as "Data" type; shown below for the 6900:



843893519_ScreenShot2022-03-18at11_21_51PM.thumb.png.914d1830138c4c7bb04815827dab7c2a.png





***





Brief ROM-sPPT Extraction Tutorial



The methodology used in creating the sPPT data from a ROM file are described in steps A-D below. The steps are not complicated but do seem to require working in Windows for at least one step.  I've extracted sPPTs for a typical 6600 and 6800 XT GPUs presented at the bottom of this tutorial. These are native extractions and not enhanced versions, so should work with similar boards.





A. Download the ROM file.



From TechPowerUp, the file for the 6800XT was downloaded as shown in Spoiler below:

Spoiler

Select the 6800XT from the All pop up:



1437851001_ScreenShot2022-03-20at11_53_55AM.thumb.png.8b8597a07c9034cc03e76edb6d6b889a.png





Results of the 6800XT search:



1390616195_ScreenShot2022-03-20at11_54_18AM.thumb.png.92ad9d282346ebf7b3a1a55941deebcb.png





Then download for the Powercolor 6800XT:



1443959381_ScreenShot2022-03-20at11_54_41AM.thumb.png.f6734e297b64cdaec0f7da94c72d69f1.png





B. Locate the sPPT section from the ROM file.



I used ATOMBiosReader on Windows to process the downloaded ROM file. When you run ATOMBiosReader, you load the ROM file and immediately there will be a *.txt file created adjacent to where ever the ROM was loaded where "*" is the name of that ROM file. You can now exit ATOMBiosReader. You can continue working in Windows or transfer the *.txt file back to your Mac for the next steps.



In Spoiler below is an example for the 6800XT from the txt file created by ATOMBiosReader. The whole purpose of using ATOMBiosReader is to find the start and length of the sPPT section.



Spoiler

Shown is a portion of the ATOMBiosReader analysis.



We're only interested in the section that says "(PowerPlayInfo)" as shown in red box, and in particular,

the start and length of the sPPT section. You can copy and paste these 2 pieces of information into the

hex editor of your choice as described in the next section, C.








C. Extract the sPPT section from the ROM file.



You next load the ROM file again, but now into a hex editor. This step can be done back on the Mac (such as with 0xED or Synalyze It! Pro) or in Windows using HxD. Using Synalyze, the Spoiler below shows the next step for the 6800XT:



Spoiler

After opening the ROM file in Synalyze (or your hex editor of choice), use the menu item, "Edit > Go to position..." as shown below,

entering the "1b40" hex value:



1085620181_ScreenShot2022-03-20at11_38_25AM.thumb.png.307f143db8e2bda693a62f70db0464f7.png





Now that the starting value is entered, next enter the length value (again, you can copy and paste from the ATOMBiosReader analysis file).

I had trouble with the Synalyze editor and could not paste the start location directly but had to use the "Go to position" function for that value.

However, the length value could be pasted as below, followed by pressing the Enter key.



490195068_ScreenShot2022-03-20at11_38_43AM.thumb.png.fa99c8cf7eeb9ea69c32ca2b98500576.png





This will now select the sPPT section:



778525589_ScreenShot2022-03-20at11_38_57AM.thumb.png.543a4d2b20752491b0aa0e0037d0b323.png





With the sPPT data now automatically selected, you only have to Cmd copy and paste the data into a text file. This sPPT data

in text format can then be later copy and pasted into your DevProp section of your config file.



539884139_ScreenShot2022-03-20at11_40_01AM.thumb.png.0bbb48abd3293124516c39d5b75e3909.png







D. Sample results of the above extractions.



These were derived after pasting the sPPT values into the OC config file and re-copying them prior to pasting below.



Spoiler

 Sapphire Pulse 6600XT:


A6091200 022203AE 09000022 43000083 00180000 001C0000 00000000 76000000 00000000 00000000 00000100 00000100 00000D00 0000520B 00000005 0000E803 00000807 0000E204 00009505 0000E204 00009505 0000B004 0000C104 0000C104 00002A03 0000C104 00000000 00000000 00000000 0000F401 0000A201 00006100 0000F401 00003C02 0000B202 00003C02 0000B202 0000A201 0000E701 0000E701 00002C01 0000E701 00000000 00000000 00000000 00008100 00001000 00001E00 00000101 01010101 01010101 01010101 01010000 00000000 00000000 00000000 00004E0C 00004E0C 00000000 00000000 00000000 00004E0C 0000B004 0000B004 00001400 0000100E 0000100E 00006E00 00006E00 00000100 00000100 00000100 00000100 00000100 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0000F401 0000F401 00000000 00000000 00000000 0000F401 0000A202 0000A202 00000600 0000FA00 0000E803 00001900 00003200 00000000 00000000 00000000 00000000 00000000 00001900 00000A00 00001900 00000A00 00001900 00000A00 00001900 00000A00 00001900 00000A00 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000600 00000600 00005F00 5F005F00 5F007206 7206D606 D6066C07 6C07CA08 6C070000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000600 0000FFFD 7FA3E337 04008700 00000000 00000000 00000000 00008200 00000000 00000000 00000000 00008200 12000000 00006400 6E006400 73007300 73007300 00000000 00000000 00000100 00000A00 00000000 00000000 00000000 0000B80B 480DD80E 6810C012 0000FC38 0000FF3F 00003200 64000000 B80BB80B 32000000 0000EA0B EA0BF811 68108000 00013700 3700B80B B80BB80B B80B0500 05000000 02000000 803F0000 00003815 093EF8C2 E4BD2E1C 283FA101 00000000 0200BE9F 8A3F48E1 7A3EF758 FA3A560E ED3EEF55 AB3EA201 00000001 0400713D 9A3FC3F5 283E0052 1B3B0AD7 033FC347 943E6100 00000000 02000000 803F0000 0000B9A5 D53ABE9F DA3E5C8F 823EF401 00000000 0200F628 9C3F08AC 1C3EA340 1F3B4260 053FEE5A 823E3C02 00000000 0200D34D 823F83C0 4A3EFD82 DD3A52B8 DE3E8D5D 823EB202 00000000 0200F628 9C3F08AC 1C3EA340 1F3B4260 053FEE5A 823E3C02 00000000 0200D34D 823F83C0 4A3EFD82 DD3A52B8 DE3E8D5D 823EB202 00000000 0200F90F 993F9A99 993E890C 2B3B713D 0A3F1B64 823EA201 00000000 0200EC51 983F7368 113E17F1 1D3B2FDD 043F8D5D 823EE701 00000000 0200EC51 983F7368 113E17F1 1D3B2FDD 043F8D5D 823EE701 00000000 0200D9CE 373FAC1C 3A3F0000 00004469 8F3EC139 133F2C01 00000000 0200EC51 983F7368 113E17F1 1D3B2FDD 043F8D5D 823EE701 0000F401 520B0000 00000000 00000000 00000000 00000000 00000000 00000000 0000B202 95050000 00000000 00000000 00003C02 E2040000 00000000 00000000 0000A201 00050000 00000000 00000000 00006100 1E02A402 E803A201 B0040000 00000000 00000000 0000E701 C1040000 00000000 00000000 0000E701 C1040000 00000000 00000000 00002C01 2A030000 00000000 00000000 0000E701 C1040000 00000000 00000000 0000F401 08070000 00000000 00000000 00000000 0000BE30 813F16FB 4B3D556A 76BDBE30 813F16FB 4B3D556A 76BDBE30 813F16FB 4B3D556A 76BDF31F 623F23DB F93D2EFF A1BDD0D5 263F6DE7 FB3DBEF6 2C3E520B 00000005 0000E803 00000807 0000E204 00009505 0000E204 00009505 0000B004 0000C104 0000C104 00002A03 0000C104 00000003 03030807 00004C01 FA01F00A 800C8C0A 480D480D 480D8813 18151815 1815BC02 2003BC02 01000102 5D000100 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00005113 D7125D12 E2116811 ED107310 F90F7E0F 040F890E 0F0EBE0C 6E0B1D0A CC080000 00000302 01000000 00000000 00000000 00000003 01045100 6B023200 3C000000 90019001 90019001 90019001 90019001 90011400 9808220B 100E0000 5900F401 00000100 01020000 00000000 00000000 03000000 00000000 00000000 00000000 00000000 00000000 0000E7FB 29BD9318 C43E82E7 BEBE0000 00000000 00000000 00008195 C33D58E2 813D705F 87BD0000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0000E100 E1000101 00000000 0000E100 E1001900 19000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000001 540B5800 0000DE93 8940B072 683E295C E941E8D9 CC3E0000 0000540B 540B080C 080CB400 64006400 00000000 00000000 00000000 00000000 00002C08 00003709 00001D0A 00002C08 00003709 00001D0A 00000000 00000000 00000000 00000000 1A0101F5 AD801908 68010105 481CDC03 0B000000 C0D0E0F0 A50101AA 19000000 74010105 FFFFFFFF 320101AF 0000008E 01000000 17000000 17000000 92572B05 00000100 65006E00 74000100 6F006900 64000100 67006100 69000100 20006100 74000100 4D006500 6D000100 72007900 00006E00 00000000 246D4CAF 0001008E 04000000 17000000 17000000 E2012B05 00005400 5F004D00 45004D00 31002000 01000100 6E000100 43000100 6E000100 72006F00 6C002000 01006100 01006E00 00006E00 00000000 DE6C5AAF 0002008C 01000000 18000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 1E06



Powercolor (Red Dragon) 6800XT:


A6090F00 022203A2 090000B3 3F000080 00180000 001C0000 00000000 76000000 00000000 00000000 00000100 00000100 00000D00 0000110A 0000B004 0000E803 00009407 0000C904 00007805 0000C904 00007805 0000B004 0000C104 0000C104 00002A03 0000C104 00000000 00000000 00000000 0000F401 0000E001 00006100 00002602 00003D01 00006B01 00003D01 00006B01 0000A201 0000E701 0000E701 00002C01 0000E701 00000000 00000000 00000000 00008100 00001000 00001E00 00000101 01010101 01010101 01010101 00010000 00000000 00000000 00000000 0000F00A 0000F00A 00000000 00000000 00000000 0000F00A 00003304 00003304 00000F00 0000E40C 0000E40C 00006400 00006E00 00000100 00000100 00000100 00000100 00000100 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00000000 00000100 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0000F401 0000F401 00000000 00000000 00000000 0000F401 0000A202 0000A202 00000600 0000FA00 0000E803 00001900 00003200 00000000 00000000 00000000 00000000 00000000 00001900 00000A00 00001900 00000A00 00001900 00000A00 00001900 00000A00 00001900 00000A00 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000600 00000600 06005500 5A005F00 5A00E803 1405D606 DC05D007 D007CA08 D0070000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000600 0000FFFD 7FA36337 0000FF00 00000000 00000000 00000000 00001001 00000000 00000000 00000000 0000EC00 37000000 00006400 6E006400 73007300 73007300 00000000 00000000 00000100 00000A00 00000000 00000000 00000000 00000000 00000000 00000000 0000FE38 0000730F 00006400 6400610D 740E0000 00000000 0000C50D D80EF811 F8114000 00013200 3C00C50D C50DD80E D80E1400 14000000 02000000 803F0000 0000B537 B83EEF1B 67BF4F40 A73F8B04 00000000 0200EE7C 8F3FA69B 843E4434 9A3E43AD 09BE3D0F 363FF100 00000001 0400CDCC AC3FE3A5 9BBD6F81 E43ECAA6 CCBE0421 493FC001 00000000 02000000 803F0000 000072C4 7A3E4C89 84BEDCBA 433F1102 00000000 0200098A AF3F295C 0FBD85CE EB3E10CC C1BE4720 463F9B01 00000000 02006ADE 893FB81E 053E8E75 913E2849 57BEE42C 3C3F7301 00000000 0200098A AF3F295C 0FBD85CE EB3E10CC C1BE4720 463F9B01 00000000 02006ADE 893FB81E 053E8E75 913E2849 57BEE42C 3C3F7301 00000000 02007D3F 953FDD24 063E1D77 AA3EEE77 68BEC91F 3C3F5501 00000000 02006ABC 743FAE47 613E732E 653E52ED 13BED72F 383F4301 00000000 02006ABC 743FAE47 613E732E 653E52ED 13BED72F 383F4301 00000000 02000E2D 123F9A99 D93E2783 A33D8D28 EDBCE7E3 323FB600 00000000 02006ABC 743FAE47 613E732E 653E52ED 13BED72F 383F4301 0000F401 110A0000 00000000 00000000 00000000 00000000 00000000 00000000 00006B01 78050000 00000000 00000000 00003D01 C9040000 00000000 00000000 0000E001 B0040000 00000000 00000000 00006100 C901A202 E803A201 B0040000 00000000 00000000 0000E701 C1040000 00000000 00000000 0000E701 C1040000 00000000 00000000 00002C01 2A030000 00000000 00000000 0000E701 C1040000 00000000 00000000 00002602 94070000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0000110A 0000B004 0000E803 00009407 0000C904 00007805 0000C904 00007805 0000B004 0000C104 0000C104 00002A03 0000C104 00000002 03037805 00004C01 FA01F00A 800C8C0A 800C480D 480D8813 18151815 1815F401 2003F401 01000102 5D000100 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00005313 0713BB12 6F122212 D6118A11 3D11F110 A5105910 0C103B0F 690E970D C50C0000 00000302 01000000 00000000 00000000 00000003 01063601 6B023700 3C009001 90019001 90019001 90019001 90019001 90011E00 E803D007 B80B0000 5700F401 00000100 01020000 00000000 00000000 01000000 00000000 00000000 00000000 00000000 00000000 00000D54 863DBC05 D2BD1F80 143E0000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00009A99 993E0000 C03F0000 00409A99 21403333 33400AD7 233D8716 593D9A99 993DBA49 0C3EAE47 613E0000 00000000 00000000 0000E561 21BD0456 8E3EC572 2BBEB000 B0000101 00000000 0000B000 B0001900 19000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000001 C50D0000 0000CA54 413C3333 933EDAAC FA3CCDCC CC3E0000 01000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00010000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 1E06










  • Like 2
  • Thanks 2
Link to comment
Share on other sites
23d1 Member

23d1

Posted
Posted (edited)
18 hours ago, iGPU said:



No. It is specific for each model:



Radeon 6900 -> ATY,Carswell

Radeon 6800 -> ATY,Belknap

Radeon 6600 -> ATY,Henbury

Radeon 5700 -> ATY,Adder

Radeon 5500 -> ATY,Python



For example, the 6900 example by fabiosun is changed from ATY,Carswell to ATY,Henbury for the 6600 model.



Also, people are again playing with "PP_PhmSoftPowerPlayTable" to restore GPU metrics, also injecting via DeviceProperties. (I wrote about this early on in this thread for the Radeon VII to boost speed. The value is specific for each model.) One such thread is here.


The value I use for the 6900 is:



A6090F00 022203EE 0900009E 42000080 00180000 001C0000 00000000 76000000 00000000 00000000 00000100 00000100 00000D00 00009F0A 0000B004 0000E803 00009407 0000C904 00007805 0000C904 00007805 0000B004 0000C104 0000C104 00002A03 0000C104 00000000 00000000 00000000 0000F401 0000E001 00006100 00002602 00003D01 00006B01 00003D01 00006B01 0000A201 0000E701 0000E701 00002C01 0000E701 00000000 00000000 00000000 00008100 00001000 00001E00 00000101 01010101 01010101 01010101 00010000 00000000 00000000 00000000 0000A00F 0000A00F 00000000 00000000 00000000 0000A00F 00002005 00002005 00000F00 0000E40C 0000E40C 00006400 00006E00 00000100 00000100 00000100 00000100 00000100 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00006400 00000000 00000100 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0000F401 0000F401 00000000 00000000 00000000 0000F401 0000A202 0000A202 00000A00 0000FA00 0000E803 00001900 00003200 00000000 00000000 00000000 00000000 00000000 00001900 00000A00 00001900 00000A00 00001900 00000A00 00001900 00000A00 00001900 00000A00 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000900 00000000 06005700 5A005F00 5A00DC05 A406D007 D007D007 D007D007 CA080000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000600 0000FFFD 7FA36337 00002F01 00000000 00000000 00000000 00001001 00000000 00000000 00000000 00004001 37000000 00006400 6E006400 73007300 73007300 00000000 00000000 00000100 00000A00 00000000 00000000 00000000 0000B80B 480DD80E 6810C012 0000FE38 0000730F 00006400 6400E40C E40C0000 00000000 0000100E 480DC012 F8114000 00013200 3C00800C 800C800C 800C1400 14000000 02000000 803F0000 0000B537 B83EEF1B 67BF4F40 A73F8B04 00000000 0200EE7C 8F3FA69B 843E4434 9A3E43AD 09BE3D0F 363FF100 00000001 0400CDCC AC3FE3A5 9BBD6F81 E43ECAA6 CCBE0421 493FC001 00000000 02000000 803F0000 000072C4 7A3E4C89 84BEDCBA 433F1102 00000000 0200098A AF3F295C 0FBD85CE EB3E10CC C1BE4720 463F9B01 00000000 02006ADE 893FB81E 053E8E75 913E2849 57BEE42C 3C3F7301 00000000 0200098A AF3F295C 0FBD85CE EB3E10CC C1BE4720 463F9B01 00000000 02006ADE 893FB81E 053E8E75 913E2849 57BEE42C 3C3F7301 00000000 02007D3F 953FDD24 063E1D77 AA3EEE77 68BEC91F 3C3F5501 00000000 02006ABC 743FAE47 613E732E 653E52ED 13BED72F 383F4301 00000000 02006ABC 743FAE47 613E732E 653E52ED 13BED72F 383F4301 00000000 02000E2D 123F9A99 D93E2783 A33D8D28 EDBCE7E3 323FB600 00000000 02006ABC 743FAE47 613E732E 653E52ED 13BED72F 383F4301 0000F401 9F0A0000 00000000 00000000 00000000 00000000 00000000 00000000 00006B01 C5050000 00000000 00000000 00003D01 F2040000 00000000 00000000 0000E001 B0040000 00000000 00000000 00006100 C901A202 E803A201 B0040000 00000000 00000000 0000E701 C1040000 00000000 00000000 0000E701 C1040000 00000000 00000000 00002C01 2A030000 00000000 00000000 0000E701 C1040000 00000000 00000000 00002602 94070000 00000000 00000000 00000000 00002A6F 4F3F49BA E63D9C33 223C2A6F 4F3F49BA E63D9C33 223C2A6F 4F3F49BA E63D9C33 223C90BD B23F7B31 343E5F98 2CBF90BD B23F7B31 343E5F98 2CBF9F0A 0000B004 0000E803 00009407 0000F204 0000C505 0000F204 0000C505 0000B004 0000C104 0000C104 00002A03 0000C104 00000002 03037805 00004C01 FA01F00A 800C8C0A 800C480D 480D8813 18151815 1815F401 2003F401 01000102 5D000100 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0000A816 5216FC15 A7155115 FB14A514 4F14F913 A4134E13 F8120C12 20113410 480F0000 00000302 01000000 00000000 00000000 00000003 01063601 6B023700 3C009001 90019001 90019001 90019001 00000000 90012300 08079808 B80B0000 5900F401 00000100 01020000 00000000 00000000 03000000 00000000 00000000 00000000 00000000 00000000 00000D54 863DBC05 D2BD1F80 143E0000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00009A99 993E0000 C03F3333 13400000 20406666 46400AD7 233DDD24 863DA245 B63D39B4 C83DC74B B73E0000 00000000 00000000 0000E561 21BD0456 8E3EC572 2BBEE800 E8000101 00000000 0000E800 E8001900 19000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000001 B80B9001 00003480 373B9FAB CD3EED0D 3E3C7593 F83E0000 01000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00010000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 1E06

It is injected as "Data" type; shown below for the 6900:



843893519_ScreenShot2022-03-18at11_21_51PM.thumb.png.914d1830138c4c7bb04815827dab7c2a.png



Here is a tool I came across for extracting the data, besides poking around at TechPowerUp.



Thanks for this! My recent compact build with 6600XT seems to be working without the additional plist entry, but the workstation with 6800XT had issues when I tried the betas.

Another issue I'm running into is that 12.3 doesn't support Bluetooth via Intel AX200 anymore, it seems. Which was working fine in 12.2.1... I have various WiFi modules lying around, so might hold off on updating the workstation and just add in a Broadcom module into the compact build... But it's not as fast as WiFi6 or 6e....

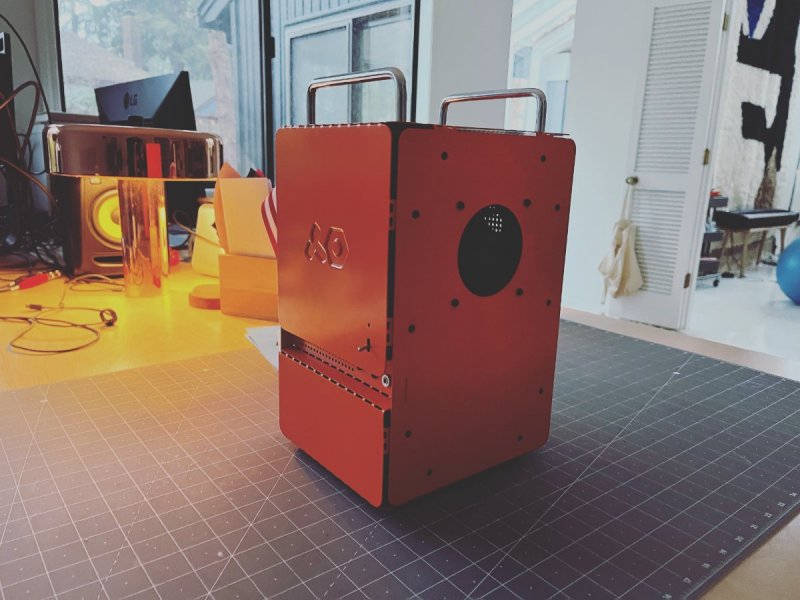

Attached a shot of the compact build.

Teenage Engineering Computer-1 Chassis
Gigabyte B550 Aorus Pro AX
AMD Ryzen 9 5950x

64 GB Corsair Vengeance 3200mhz

2TB Sabrent 4.0 Plus

1TB Sabrent 4.0



Faster than the 24-core Xeon Mac Pro... Amazing.


Edited by 23d1
  • Like 2
Link to comment
