fabiosun

@dtek if you want try with this you may have to modify MMIO and memory section it works with 11.4 and greater(also other Big Sur version but you can have problem with BigNavi2 support in oldest versions) EFI.zip

for Adobe (latest) suite users : Adobe After Effects 2021 (18.2) tracking feature 🙂 Adobe Photoshop 2021 (22.4) object selection tools, liquify and other problem solved)

It works also in 22.4 🙂 Thank you

Big navi2 Is supported from Big Sur 11.4 or greater are you installing this version? could you post your debug opencore log? are you using one of the Efi posted in OP?

it is difficult to say... if you have an OSX installed (one you use with proxmox should be fine) you could use it with my EFI you have to check MMIO and other stuff and maybe 3 GPU inserted is a bit complicated..unsure of this

@Allubz audio is a well known trx40 problem if you read we talk about it and there is no a definitive solution

@tomnicis working for a solution for now I have seen and tested his work with photoshop 22.3.1 and latest after effects and all seems to work fine (object selection tool and liquify or camera tracking in AE) without deleting or touching original included library Grazie Nic 🙂

probabilmente erano alcune prove che ho fatto ieri (anche se il vecchio 11.4 andava bene ugualmente) stamattina tutto ok anche qui

thank you @Rox67erand @Jaidy for confirming this 🙂 it was my system I think..I did many try with Adobe to help @tomnicwork as betatester on newer adobe suite and maybe I have messed my system today it is working well all both with iMac Pro Smbios and with MacPro7.1 by the way users with Ryzen chip using latest adobe suite take a look here:

a me con safari non va con Chrome perfetto come sempre sono affezionato a questo mouse logitech...rx250 non vale nulla ma lo uso da secoli 🙂

@antunedduti funziona in safari la rotella del tasto centrale? 🙂

different problems with this beta for me it needs with MacPro7.1 of agdpmod=pikera boot arg (thanks to @Gengik84to point me in this direction problem with Safari and middl mouse wheel here chrome is fine too much disk activity (it seems to me ) i havent see a worst beta from years.... if you test it give feedback if you can 🙂

grazie a @Gengik84 per la dritta 🙂

qui stavolta ci sono dei problemini 🙂 vediamo se sono io o se e' il driver della GPU

Grazie @tomnicho provato la libreria con AE 2021 e confermo i risultati raggiunti da tomnic interessante e speriamo in ulteriori sviluppi ed aiuti da chi mastica di queste cose

25:877 00:022 OCABC: MMIO devirt 0xCB100000 (0x81 pages, 0x8000000000000001) skip 0 25:918 00:040 OCABC: MMIO devirt 0xD7180000 (0x81 pages, 0x8000000000000001) skip 0 25:940 00:022 OCABC: MMIO devirt 0xE3180000 (0x81 pages, 0x8000000000000001) skip 1 25:980 00:039 OCABC: MMIO devirt 0xE3300000 (0x100 pages, 0x8000000000000001) skip 0 26:004 00:023 OCABC: MMIO devirt 0xEF100000 (0x181 pages, 0x8000000000000001) skip 1 26:027 00:023 OCABC: MMIO devirt 0xFEA00000 (0x100 pages, 0x8000000000000001) skip 1 26:052 00:024 OCABC: MMIO devirt 0xFEC00000 (0x1 pages, 0x8000000000000001) skip 1 26:075 00:023 OCABC: MMIO devirt 0xFEC10000 (0x1 pages, 0x8000000000000001) skip 1 26:098 00:023 OCABC: MMIO devirt 0xFED00000 (0x1 pages, 0x8000000000000001) skip 1 26:120 00:022 OCABC: MMIO devirt 0xFED40000 (0x5 pages, 0x8000000000000001) skip 1 26:143 00:022 OCABC: MMIO devirt 0xFED80000 (0x10 pages, 0x8000000000000001) skip 1 26:165 00:022 OCABC: MMIO devirt 0xFEDC2000 (0xE pages, 0x8000000000000001) skip 1 26:188 00:022 OCABC: MMIO devirt 0xFEDD4000 (0x2 pages, 0x8000000000000001) skip 1 26:210 00:022 OCABC: MMIO devirt 0xFEE00000 (0x100 pages, 0x8000000000000001) skip 0 26:234 00:024 OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x8000000000000001) skip 1 26:258 00:023 OCABC: MMIO devirt 0x2040000000 (0x10400 pages, 0x8000000000000001) skip 0 26:281 00:022 OCABC: MMIO devirt 0x3830000000 (0x10400 pages, 0x8000000000000001) skip 0 26:303 00:022 OCABC: MMIO devirt 0x5020000000 (0x10400 pages, 0x8000000000000001) skip 0 26:325 00:022 OCABC: MMIO devirt 0x6810000000 (0x10400 pages, 0x8000000000000001) skip 0 Above are MMIO listed in your opencore debug.txt post few message above you have to check in your config decimal value for ones set to "skip 0" and modify it next boot you will see there skip 1 You have to do for all excluding latest 4 below: 26:258 00:023 OCABC: MMIO devirt 0x2040000000 (0x10400 pages, 0x8000000000000001) skip 0 26:281 00:022 OCABC: MMIO devirt 0x3830000000 (0x10400 pages, 0x8000000000000001) skip 0 26:303 00:022 OCABC: MMIO devirt 0x5020000000 (0x10400 pages, 0x8000000000000001) skip 0 26:325 00:022 OCABC: MMIO devirt 0x6810000000 (0x10400 pages, 0x8000000000000001) skip 0 it is possible to skip 1 also these 4 (not all togheter) but you have to find the right combination of it for your system All my assertions above are valid if you have the same bios condition and the same slot and NVME configurations were not changed MMIO are bios and others stuff dependant I would like to advice to adjust these: 25:877 00:022 OCABC: MMIO devirt 0xCB100000 (0x81 pages, 0x8000000000000001) skip 0 25:918 00:040 OCABC: MMIO devirt 0xD7180000 (0x81 pages, 0x8000000000000001) skip 0 25:980 00:039 OCABC: MMIO devirt 0xE3300000 (0x100 pages, 0x8000000000000001) skip 0 26:210 00:022 OCABC: MMIO devirt 0xFEE00000 (0x100 pages, 0x8000000000000001) skip 0 They could be useful for you to solve sleep/reboot/shutdown problems (if you use or have it 🙂 ) the goal should be to reassign Devirtualize MMIO to OSX, but for trx40 is not possible to release all for it...

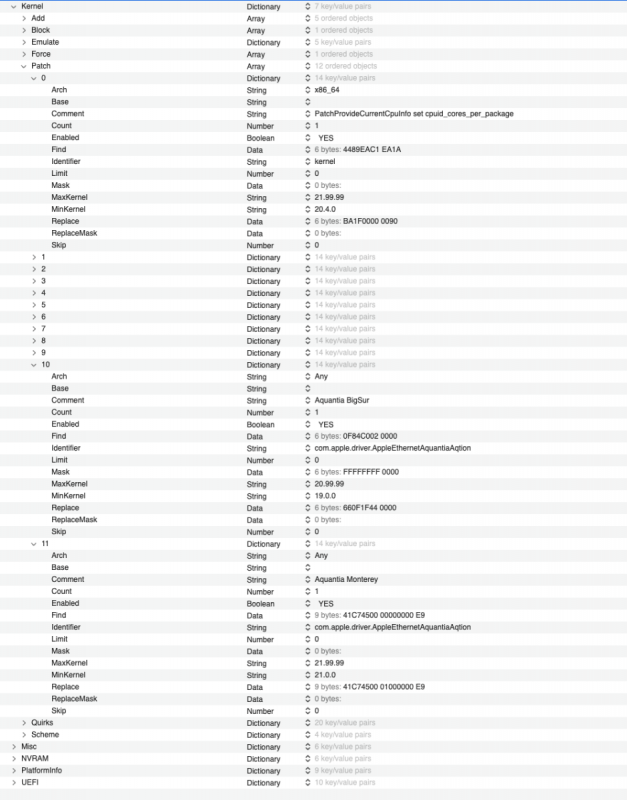

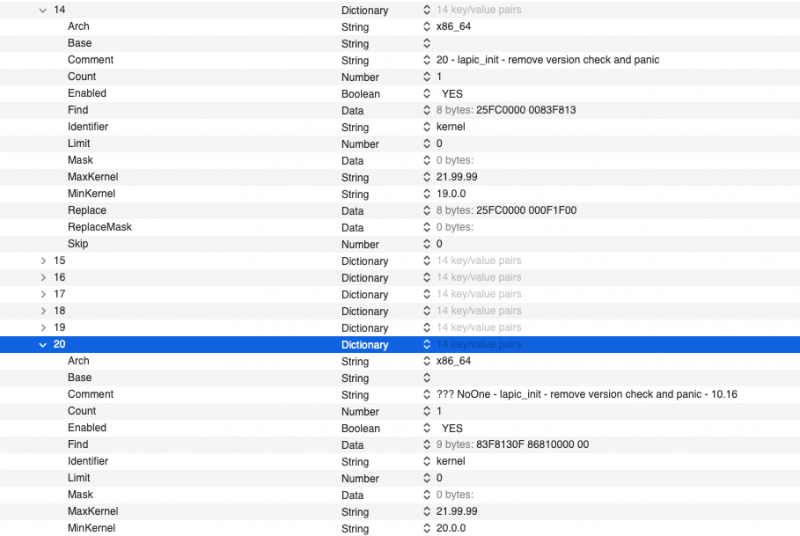

@Cosmin Batica the main important advice is to check also kernel patches you are using one of them it is not useful at all for trx40 fix pat this for all amd users is a pain and it reduces gpu performances in many situations but other chipset needs of it trx40 no

You did a good job for mmio you have to see with debug bootloader all yours mmio list then you have to convert and activate (means to skip to 1} usually only the latest four could be leave to 0 in my case I can skip also one of them to 1 but not relevant improvement test of sleep/wake works well for you audiogod has a 570 chipset and in this case alcid layout could be useful for us no our internal audio works also without using Apple alc.kext it is an usb audio the above kext is useful for hdmi/dp audio only for us

ciao I have downloaded it from AMD OSX if you are happy...but MMIO are few and I think you can give to your system others... then alcid=1?? why? 🙂

instead , regarding last problems you have I read on AMD OSX forum. Audio for trx40 has a problem from the start we try to rule this beast it use internal USB audio driver (not applealc or alcid boot args are useful for us) to solve it the only way is to boot without audio jack inserted otherwise no Realtek usb2.0 audio is detected (you can find in our forum where I talk about it) a little trick is to connect output jack to external case jack (not on motherboard backplate) for this you have to connect on motherboard internal hd audio to your case to complete this information, from latest Big Sur OSX release some time on first boot audio could be noisy or imperfect a reboot solves this additional and new problem as additional info , with a cheaper usb external audio no problem at all maybe related 2.0 audio usb and its usb bridge is not supported properly now

@Cosmin Baticahappy for your success if you can post your config.plist without your smbios datas it could be helpful for others with your same motherboard! thank you

Yes i have no more ideas for now tomorrow I will try to simplify better this Efi
