trx50 Gigabyte TRX50 installation success! :)

[backinblackx86]

I’ll give it a try, 4 in the morning here in rainy ny.

[Lorys89]

SSDT-DISABLE-D0F0.aml.zip add this and send ioreg

[backinblackx86]

1 minute ago, Lorys89 said:

SSDT-DISABLE-D0F0.aml.zip add this and send ioreg

Ok, stand by

[backinblackx86]

Fabiosun's "V4" booted...now adding Lorys89 "SSDT-DISABLE-D0F0.aml."

I added SSDT-DISABLE-D0F0.aml to the ACPI section, rebooting now...

[fabiosun]

4 minutes ago, backinblackx86 said:

Fabiosun's "V4" booted

and aquantia?



[backinblackx86]

Here is the new IOREG for v4 with the added .aml. No Aquantia yet, hmmm.

backinblackx86_IOREG_v4.zip

[fabiosun]

with V4 have you seen a graphical menu and correct CPU name?



if so i woud use this EFi for futher progress on your rig



[Lorys89]

1 minuto fa, backinblackx86 ha scritto:

Here is the new IOREG for v4 with the added .aml. No Aquantia yet, hmmm.

backinblackx86_IOREG_v4.zip 7.11 MB · 0 download

before add ssdt:



after  add ssdt :



[Lorys89]

now add this and send ioreg log



SSDT-XHC 2.aml.zip

[backinblackx86]

Stand By, rebooting now...

1 minute ago, Lorys89 said:

now add this and send ioreg log



SSDT-XHC 2.aml.zip 1.09 kB · 0 downloads



Here is the IOREG after adding SSDT-XHC.aml

backinblackx86_IOREG_v5_SSDT-XHC.zip

[Lorys89]

6 minuti fa, backinblackx86 ha scritto:

Stand By, rebooting now...



Here is the IOREG after adding SSDT-XHC.aml

backinblackx86_IOREG_v5_SSDT-XHC.zip 7.1 MB · 0 download

ok work :



now add this and remove bootarg pikera and reboot and send ioreg



SSDT-BRG0.aml.zip

[backinblackx86]

I tested all of the USB ports with various flash drives I have on hand including ones which identify as 2.0 Type A, 3.1 Gen1 Type C, 3.2 Type A, all do appear to be working although I have yet to conduct read/write tests.

attempting BRg0 now...stand by

[backinblackx86]

Here is the IOREG for SSDT-BRG0...note I have many USB devices plugged in now

backinblackx86_IOREG_v5_SSDT-BRG0.zip

[Lorys89]

Adesso, backinblackx86 ha scritto:

Here is the IOREG for SSDT-BRG0...note I have many USB devices plugged in now

backinblackx86_IOREG_v5_SSDT-BRG0.zip 7.39 MB · 0 download



ok work 🙂



now add this for spoof aqc113 and send ioreg



SSDT-AQC113.aml.zip

[backinblackx86]

Here is the IOReg for AQC113

backinblackx86_IOREG_v5_SSDT-AQC113.zip

[Lorys89]

change set patch aqc to 2° set

[backinblackx86]

35 minutes ago, fabiosun said:

with V4 have you seen a graphical menu and correct CPU name?



if so i woud use this EFi for futher progress on your rig



I do believe the CPU name was originally corrected by RestrictEvents.kext. I do need to add the Bootpicker GUI resources, it did fallback to the text based picker, however.

2 minutes ago, Lorys89 said:

change set patch aqc to 2° set

Okay, doing so now...

[fabiosun]

2 minutes ago, backinblackx86 said:

I do believe the CPU name was originally corrected by RestrictEvents.kext. I do need to add the Bootpicker GUI resources, it did fallback to the text based picker, however.

Yes for CPU name

my bad for resources (i have no checked that part of your original EFI)



[backinblackx86]

Okay Set 2 patches were added along with the AQC113 SSDT...rebooting now...stand by

[Lorys89]

if not work, change this



SSDT-AQC113.aml.zip

[backinblackx86]

Aq has not yet appeared in the system profiler, now attempting the new revision of AQC113 aml

2 minutes ago, Lorys89 said:

if not work, change this



SSDT-AQC113.aml.zip



[backinblackx86]

Drum roll....Aquantia AQX113 now shows in the system profiler, it does attempt to make connection with my switch, however it fails to maintain a negotiation.

[fabiosun]

1 minute ago, backinblackx86 said:

however it fails to maintain a negotiation.

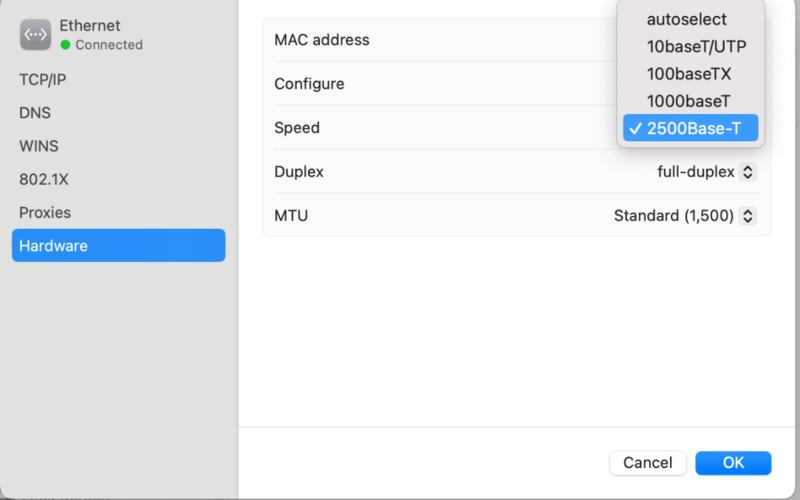

try to set manually hardware speed



[Lorys89]

Now it remains to fix usb4 Thunderbolt 4

[backinblackx86]

18 minutes ago, fabiosun said:

try to set manually hardware speed



that appears to have done the trick...I will test the stability with iperf3 if it is available on the cli.

Appears to be stable, at least at 1000baseT, my 10GbE equipment is in another area.

iperf3 -c 96.57.56.82 -f M

Connecting to host xxx.xxx.xxx.xxx, port 5201

[  4] local 192.168.50.154 port 49224 connected to xxx.xxx.xxx.xxx port 5201

[ ID] Interval           Transfer     Bandwidth

[  4]   0.00-1.00   sec   116 MBytes   116 MBytes/sec

[  4]   1.00-2.00   sec   112 MBytes   112 MBytes/sec

[  4]   2.00-3.00   sec   112 MBytes   112 MBytes/sec

[  4]   3.00-4.00   sec   112 MBytes   112 MBytes/sec

[  4]   4.00-5.00   sec   112 MBytes   112 MBytes/sec

[  4]   5.00-6.00   sec   112 MBytes   112 MBytes/sec

[  4]   6.00-7.00   sec   112 MBytes   112 MBytes/sec

[  4]   7.00-8.00   sec   112 MBytes   112 MBytes/sec

[  4]   8.00-9.00   sec   112 MBytes   112 MBytes/sec

[  4]   9.00-10.00  sec   112 MBytes   112 MBytes/sec

- - - - - - - - - - - - - - - - - - - - - - - - -

[ ID] Interval           Transfer     Bandwidth

[  4]   0.00-10.00  sec  1.10 GBytes   113 MBytes/sec                  sender

[  4]   0.00-10.00  sec  1.10 GBytes   112 MBytes/sec                  receive

Edited January 25 by backinblackx86
