Build Ryzen 9 7/9950X - ASUS ROG X670E Hero


fabiosun

Recommended Posts

Hi @fabiosun,

i've read your thread, and for the temperatures of your system,

in my case, i've the same system as you ( 7950X + 6900XT with Crosshair X670E)

i've disabling PBO and CPB, and made a manual OC (1.1V @ 5Ghz or 1.050 @ 4,8 Ghz

for Ram : Mode II at 5600Mhz (trident Z 5600OC) and flck at 2000Mhz



so the system is not hotter than before, and perform as well

cinebench : 37000

metal : 240000



i hope that will be helpfull for you

  • +1 1
Link to comment
Share on other sites

  • 1 month later...

Hi @fabiosun,

My Threadripper machine has died and I have decided to go with the 7950X for my next build.

Can you share your latest EFI for your machine to save me starting from scratch on getting it working? I have ordered the same MB that you have as well.

I will update to the latest BIOS (1904).

Thanks.

Link to comment
Share on other sites

  • Support Team
1 ora fa, Ploddles ha scritto:

Hi @fabiosun,

My Threadripper machine has died and I have decided to go with the 7950X for my next build.

Can you share your latest EFI for your machine to save me starting from scratch on getting it working? I have ordered the same MB that you have as well.

I will update to the latest BIOS (1904).

Thanks.

 You could switch to TRX50😁

You can find the efi of the x670e hero in the first post



And trx50 🙈🙈😁



  • +1 1
Link to comment
Share on other sites

Thanks @Lorys89

I saw that one thanks but as it hasn't been updated in nearly 3 months, and uses 0.9.6, I assumed there would be a newer version, especially as the BIOS has been updated since then as well. I skim read the thread and saw mention that changes need to be made for the latest BIOS. When the machine is built, replacement parts should arrive tomorrow, I'll read through the thread properly.

Link to comment
Share on other sites

  • Supervisor
19 hours ago, Ploddles said:

saw that one thanks but as it hasn't been updated in nearly 3 months, and uses 0.9.6

It is good if you have a broadcom WIFI and if you use OCLP to have it working in macOS Sonoma



I have uploaded a "new" release with OpenCore 098.

It is useful to install till 14.4 b2 and with the original wifi (Intel)

If you use Intel wifi (internal one) you have to add proper kext for it

Check my config in DP (Device properties)

I have set my disks for orange external icon problem)

I have also (main important to delete) a spoof for my unsupported 6950RX

In ACPI folder i use 3 SSDT

DSDT is a patched DSDT useful and mandatory to boot in OSX if you use ASUS bios greater than 1602 (thank @Lorys89)

Basic SSDT is the usual staff useful for AMD platform

XHC is for usb mapping (it depends if you use internal wifi or not, you could have the need to adjust it a bit)



Some little advise for bios settings:

1) load default option

2)press F9 function key (search option) type context and Enable both value

3) it depends from your cooler, in advanced CPU settings set a thermal limit (you have to do a bit of tests and if you like i will explain deeper this part

4)disable fast boot (not mandatory but i do ) and Asus boot logo (not mandatory but i do not like to have it)

5) i set manually DIMM memory frequency to 5200 (I have my dimm slott fullfilled with 192 gb (4x48) and this is the best possible withut tweaking staff



That's all







10 hours ago, backinblackx86 said:

TRX50!

You still haven't fully convinced me 🙂 🙂

  • Like 1
Link to comment
Share on other sites

10 hours ago, fabiosun said:

It is good if you have a broadcom WIFI and if you use OCLP to have it working in macOS Sonoma



I have uploaded a "new" release with OpenCore 098.

It is useful to install till 14.4 b2 and with the original wifi (Intel)

If you use Intel wifi (internal one) you have to add proper kext for it

Check my config in DP (Device properties)

I have set my disks for orange external icon problem)

I have also (main important to delete) a spoof for my unsupported 6950RX

In ACPI folder i use 3 SSDT

DSDT is patched DSDT useful and mandatory to boot in OSX if you use ASUS bios grater than 1706 (thank @Lorys89)

Basic SSDT is the usual staff useful for AMD platform

XHC is for usb mapping (it depends if you use internal wifi or not, you could have the need to adjust it a bit)



Some little advise for bios settings:

1) load default option

2)press F9 function key (search option) type context and Enable both value

3) it depends from your cooler, in advanced CPU settings set a thermal limit (you have to do a bit of tests and if you like i will explain deeper this part

4)disable fast boot (not mandatory but i do ) and Asus boot logo (not mandatory but i do not like to have it)

5) i set manually DIMM memory frequency to 5200 (I have my dimm slott fullfilled with 192 gb (4x48) and this is the best possible withut tweaking staff



That's all







You still haven't fully convinced me 🙂 🙂

Thank you @fabiosun

  • +1 1
Link to comment
Share on other sites

6 hours ago, fabiosun said:

@Ploddlesis your system alive and kicking? 🙂



Yes, thank you very much. It works like a dream.



I ran the debug version of OC to get the report and added the MMIO values listed. It then became unstable and randomly wouldn't boot. If I disabled them all it wouldn't boot. If I enable the only one you have enabled in your config it all works again. The one you have (MMIO devirt 0xFD000000) does not appear in my debug report at all.  Very strange but working now with your MMIO value enabled.

Link to comment
Share on other sites

17 hours ago, fabiosun said:

If you can post your debug file @Ploddles

Please find them attached.



The first 2 are with no values set in MmioWhitelist and the system just continually reboots before the logon screen appears. These are 2 consecutive boots.

The last one is with your MmioWhitelist value MMIO devirt 0xFD000000 (0x1E00 pages, 0x800000000000100D) enabled. This boots and is stable.



I don't know what to make of it.

Archive.zip

Link to comment
Share on other sites

  • Supervisor

@Ploddles

now i am using a different bios for our Hero (one of the latest without incoming CPU support)

I see difference in our MMIO i think because you use different settings in Bios

0xFD000000 me

0xF7000000 you



and this converted in number produce different values:

4244635648 me

4143972352 you

and based on our old studies about mmio...it is impossible you have skipped 1 if you use my same number 🙂



it should be to investigate this fact better..but, if it works well for you...maybe is better do not ask more 🙂



AM5 is different from TRX40

here is possible to reassign 4 MMIO area to UEFI bios..but it is not so stable

only one reassigned is the best solution



  • Cross Finger 1
Link to comment
Share on other sites

  • 1 month later...

@fabiosun

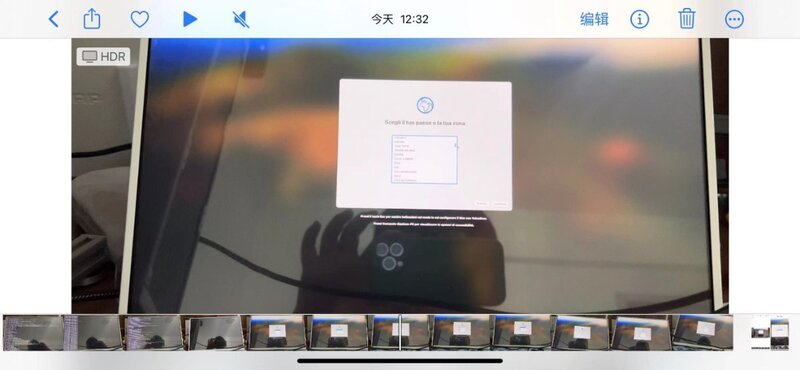

您好,感谢您的配置文件OC98,但它总是自动重启,安装系统后进入语言选择阶段,我使用的是OSX 14.3,我需要
什么来解决问题 7950x
蓝宝石 VEGA54 8G
华硕 PROART X670E
G.SKILL 32GB x 2






Edited by dixtdf
Link to comment
Share on other sites

  • Supervisor

@dixtdfuse a google translator to post in English please

welcome here

Your motherboard is different post your EFI and configure well your Bios settings

If you use latest bios you may need of DSDT patch to work

Link to comment
Share on other sites

  • Supervisor

in your previous post i see in chinese 🙂


however if you see that screen (language choice) MMIO is not your problem

if you like post your EFI and i will try to see

Check also yourmotherboard  BIOS settings

Link to comment
Share on other sites

1 hour ago, fabiosun said:

in your previous post i see in chinese 🙂


however if you see that screen (language choice) MMIO is not your problem

if you like post your EFI and i will try to see

Check also yourmotherboard  BIOS settings

@fabiosunYou are very right MMIO is not my problem, my problem is that I just used the 1710 bios,I used FlashBack to go back to 1602 to get to the desktop perfectly, I will share the EFI I used in the near future
apparently relevant:


Thanks again for sharing your EFI!

You recognize Chinese. You're great. Ha, ha.✌✌✌

  • +1 1
Link to comment
Share on other sites

ASUS ProArt X670E BIOS 1602 !!!

7950x
蓝宝石 VEGA54 8G

华硕 PROART X670E
G.SKILL 32GB x 2

After a few days of use there are currently no reboots, the EFI comes from @fabiosun, thank you very much, I simply deleted the RX6950XT.aml!
This EFI may not be perfect for my motherboard, I'm too busy at work to fix it!
使用几天后,目前没有出现重启现象,EFI 来自 @fabiosun,非常感谢,我只是删除了 RX6950XT.aml!
这个 EFI 对我的主板来说可能不够完美,但我工作太忙,没时间修复它!

EFI.zip

Edited by dixtdf
Link to comment
