Posted by fabiosun,

Ok..good news playing with MMIO and with opencore 061 i have solved reboot/shutdown problem... now it is working as it must work

MMIO rules shutdown and reboot previous problems

Recommended by fabiosun

  • Like

2 reactions

Go to this post
Jaidy Senior Member

Jaidy

Posted
Posted

@Ploddles thanks for telling me. I’d wait for it to get working before I try on my machine. It’s my work machine anyway, so I would want it to be stable…



@fabiosun right. I use a USB adapter anyway, but it’d be good to get the onboard one to work too for Apple’s techs that use WiFi

Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted

I am using it as my main disk now (I have also a more solid Ventura 13.5 b2 backup, just in case)

it is stable and the only problem I have is the lack of wifi (and all things connected to this (airdrop, continuity cam)

but happy for this beta (not many differences compared to previous Os)



@Ploddleshave you updated your kext to latest kexts commit (beta)?

or have you used the usual bootarg useful for beta (-lilubetaall)?



Link to comment
Share on other sites
Ploddles Senior Member

Ploddles

Posted
Posted

@fabiosun @Jaidy It is now installed and working.😀 The updated patch by CaseySJ (re 10 bit tags) fixed the problem and the patch works for both Ventura and Sonoma.



It seems to be working OK, apart from WiFI and Bluetooth. Hopefully updated WiFi and Bluetooth kexts will be available in the next few weeks. It is installed on a separate NVMe drive so I can dual boot macOS. I haven't installed many Apps yet so can't report on their compatibility.

  • +1 2
Link to comment
Share on other sites
Jaidy Senior Member

Jaidy

Posted
Posted
On 6/9/2023 at 5:54 AM, Ploddles said:

@fabiosun @Jaidy It is now installed and working.😀 The updated patch by CaseySJ (re 10 bit tags) fixed the problem and the patch works for both Ventura and Sonoma.



It seems to be working OK, apart from WiFI and Bluetooth. Hopefully updated WiFi and Bluetooth kexts will be available in the next few weeks. It is installed on a separate NVMe drive so I can dual boot macOS. I haven't installed many Apps yet so can't report on their compatibility.

Are there patches specifically for Sonoma?

Link to comment
Share on other sites
Ploddles Senior Member

Ploddles

Posted
Posted
6 hours ago, Jaidy said:

Are there patches specifically for Sonoma?



I had to change 1 patch. It is an updated one which works with both Ventura and Sonoma. (see attached)

Also, don't forget to update the MaxKernal section of the patches to 23.99.99 where appropriate.



Additionally I needed to added -lilubeta to the boot args.



Hope that helps.

Sonoma.plist.zip

  • Thanks 1
  • +1 1
Link to comment
Share on other sites
Arrakis Senior Member

Arrakis

Posted
Posted (edited)
11 hours ago, gosi said:

Really glad this thread is still active, great work everyone!


@Arrakis could you share your EFI once more? That would be greatly appreciated! Thanks!

@gosi

Here is my Config.plist (OC 0.9.3), it works perfectly for Ventura 13.3 and higher.

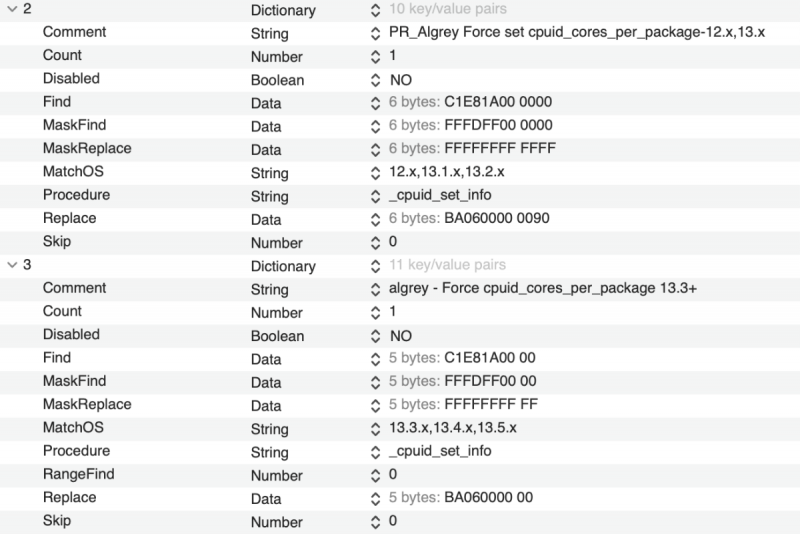

This means that if you have a system lower than 13.3, you must add the patch: algrey - Force cpuid_cores_per_package 12.0 or even algrey - Force cpuid_cores_per_package 10.15, 11.0.

For Sonoma you will also need to add the new patch from: CaseySJ - probeBusGated Disable 10 bit tags - 12.0/13.0/14.0

Config.plist.zip

Edited by Arrakis
  • Like 2
Link to comment
Share on other sites
Jaidy Senior Member

Jaidy

Posted
Posted
On 6/11/2023 at 6:54 AM, Ploddles said:



I had to change 1 patch. It is an updated one which works with both Ventura and Sonoma. (see attached)

Also, don't forget to update the MaxKernal section of the patches to 23.99.99 where appropriate.



Additionally I needed to added -lilubeta to the boot args.



Hope that helps.

Sonoma.plist.zip 3.49 kB · 3 downloads

which patches require setting MaxKernel to 23.99.99 other than the probeBustGated Disable 10 bit tags by CaseSJ?

Link to comment
Share on other sites
Ploddles Senior Member

Ploddles

Posted
Posted
9 minutes ago, Jaidy said:

which patches require setting MaxKernel to 23.99.99 other than the probeBustGated Disable 10 bit tags by CaseSJ?

Rather than list them all, see the ones in my config, attached, ie they all change except the one to boot Ventura pre-13.3 if you still boot that at all. If you are at Ventura 13.3 or above then you can delete the pre 13.4 patch.

config.plist.zip

  • Like 1
  • +1 1
Link to comment
Share on other sites
  • 3 weeks later...
XLNC Junior Member

XLNC

Posted
Posted
On 6/18/2023 at 1:51 PM, Arrakis said:

@gosi

Here is my Config.plist (OC 0.9.3), it works perfectly for Ventura 13.3 and higher.

This means that if you have a system lower than 13.3, you must add the patch: algrey - Force cpuid_cores_per_package 12.0 or even algrey - Force cpuid_cores_per_package 10.15, 11.0.

For Sonoma you will also need to add the new patch from: CaseySJ - probeBusGated Disable 10 bit tags - 12.0/13.0/14.0

Config.plist.zip 6.69 kB · 6 downloads

I Have two questions :

1. What bios version are you on ? Is it version FD ?
2. On what slot do you have your GPU and TB3 card plugged in ?

Thanks !

Link to comment
Share on other sites
Arrakis Senior Member

Arrakis

Posted
Posted
2 hours ago, XLNC said:

I Have two questions :

1. What bios version are you on ? Is it version FD ?
2. On what slot do you have your GPU and TB3 card plugged in ?

Thanks !

@XLNC

Latest version available for the bios.

2 GPUs in slots 1 and 3.

Thunderbolt card on slot 4.

  • Like 1
Link to comment
Share on other sites
deebo07 Junior Member

deebo07

Posted
Posted
On 3/27/2023 at 3:44 PM, valmeida said:

@fabiosun I have attached my EFI incase you want to add to the list of EFI on PAGE one  incase anyone else needs it. Everything is working like a champ including Wifi , Bluetooth, Air drop , Aquantia and I211.  I also noticed a huge increase in performance.



Thanks again for all your help.

EFI.zip 3.15 MB · 16 downloads

hello! Question what version of Ventura are u using? and bios on trx40





Link to comment
Share on other sites
  • 2 weeks later...
XLNC Junior Member

XLNC

Posted
Posted (edited)
On 7/10/2023 at 12:25 AM, Arrakis said:

@XLNC

Latest version available for the bios.

2 GPUs in slots 1 and 3.

Thunderbolt card on slot 4.

Also, sleep is working fine on your system ?
Can you share your complete EFI here? With all SSDTs and kexts in it. Thanks

Edited by XLNC
Link to comment
Share on other sites
Arrakis Senior Member

Arrakis

Posted
Posted (edited)
Le 23/07/2023 à 08:10, XLNC a déclaré :

Also, sleep is working fine on your system ?
Can you share your complete EFI here? With all SSDTs and kexts in it. Thanks

@XLNC, I confirm that sleep does not work on my platform. The shutdown occurs but the system wakes up alone after 3 seconds. It has never worked since the beginning of the adventure started with Catalina.

Edited by Arrakis
Link to comment
Share on other sites
