[Cosmin Batica]

16 minutes ago, fabiosun said:

it seems you have no copied well all your EFi inside the new disk

@Cosmin Batica



It's exactly the same EFI...

[fabiosun]

4 minutes ago, Cosmin Batica said:



It's exactly the same EFI...

if you try to boot on new cloned disk starting from your Big Sur disk EFI (it should be also the same EFI)



[Cosmin Batica]

14 minutes ago, fabiosun said:

if you try to boot on new cloned disk starting from your Big Sur disk EFI (it should be also the same EFI)



Same error...

[fabiosun]

10 minutes ago, Cosmin Batica said:

Same error...

and big sur start well in both EFI?



[Cosmin Batica]

10 minutes ago, fabiosun said:

and big sur start well in both EFI?



Yes

[fabiosun]

2 minutes ago, Cosmin Batica said:

Yes

No idea then, it seems it does not like cloned Mac disk

I would try to clone your big sur in mackintosh in the same way you did for Ventura in your real Mac and see if it is a cloning option problem

I do not think so..but it is one to the latest try brfotr to give up..I did a fast search on internet and  I have found only Big Sur users with your motherboard



very weird we discover this big problem on a trx40 system





[Cosmin Batica]

1 minute ago, fabiosun said:

No idea then, it seems it does not like cloned Mac disk

I would try to clone your big sur in mackintosh in the same way you did for Ventura in your real Mac and see if it is a cloning option problem

I do not think so..but it is one to the latest try brfotr to give up..I did a fast search on internet and  I have found only Big Sur users with your motherboard



very weird we discover this big problem on a trx40 system







Ok, maybe I'll change my motherboard with one who works, can you reccomend one, please ? (must hace PCI express GEN 4 slots...)

Edited November 4, 2022 by Cosmin Batica

[fabiosun]

35 minutes ago, Cosmin Batica said:



Ok, maybe I'll change my motherboard with one who works, can you reccomend one, please ? (must hace PCI express GEN 4 slots...)

MSI trx40 pro 10G works

but I would like to have yours to understand because it is very weird

[Cosmin Batica]

1 minute ago, fabiosun said:

MSI trx40 pro 10G works

but I would like to have yours to understand because it is very weird



I just see that in my country there are almost no one mobo for TR4 to sale.... very interesting...

[fabiosun]

Just now, Cosmin Batica said:

I just see that in my country there are almost no one mobo for TR4 to sale.... very interesting...

our system are also today top system..but they are considered old

in amazon .it you can find something

Motherboard I know work are

MSI Trx40 creator

MSI TRX40 Pro 10G

Gigabyte Trx40 Designare 1/1.1

Gigabyte Aoros trx40 Extreme

but you can also try to see in this thread other models

also you can try to downgrade a bit your bios....but this are only desperate tries to do



[Cosmin Batica]

Just now, fabiosun said:

our system are also today top system..but they are considered old

in amazon .it you can find something

Motherboard I know work are

MSI Trx40 creator

MSI TRX40 Pro 10G

Gigabyte Trx40 Designare 1/1.1

Gigabyte Aoros trx40 Extreme

but you can also try to see in this thread other models



Ok, thanks for all your dedication and patience, @fabiosun 🙂

[fabiosun]

let me know if you find a solution...

it could happen to all of us!

[Rox67er]

On 11/3/2022 at 6:56 PM, fabiosun said:

@Arrakis@i2xx users







Alive and kicking 🙂



thanks to @mbarbieratoand @Lorys89



Amazing!!! @mbarbierato / @Lorys89 Any chance you can work some magic on the Aquantia 10G AQC107 as well?



Vendor 0x1D6A

Device 0x07B1

SubVen 0x1849

SubDev 0xD107





[Lorys89]

Il 7/11/2022 at 00:59, Rox67er ha scritto:



Amazing!!! @mbarbierato / @Lorys89 Any chance you can work some magic on the Aquantia 10G AQC107 as well?



Vendor 0x1D6A

Device 0x07B1

SubVen 0x1849

SubDev 0xD107





Send ioreg log with aquantia 107 card mounted.

So I see the acpi path and I prepare you an ssdt.

[Lorys89]

@Rox67er   Try this ssdt and send ioreg log

SSDT-AQC107.aml.zip

and enabling config.plist > Kernel > Quirks > ForceAquantiaEthernet

Edited November 8, 2022 by Lorys89

[Rox67er]

On 11/8/2022 at 2:56 PM, Lorys89 said:

@Rox67er   Try this ssdt and send ioreg log

SSDT-AQC107.aml.zip 1.13 kB · 3 downloads

and enabling config.plist > Kernel > Quirks > ForceAquantiaEthernet

Relevant part:



    | |   |       +-o BYD3@3  <class IOPCIDevice, id 0x1000003c5, registered, matched, active, busy 0 (62 ms), retain 31>
    | |   |       | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000521, registered, matched, active, busy 0 (59 ms), retain 28>
    | |   |       |   +-o BYS3@0  <class IOPCIDevice, id 0x1000003c6, registered, matched, active, busy 0 (59 ms), retain 31>
    | |   |       |     +-o AppleEthernetAquantiaAqtion107  <class AppleEthernetAquantiaAqtion107, id 0x100000554, registered, matched, active, busy 0 (0 ms), retain 28>
    | |   |       |       +-o en3  <class AppleEthernetAquantiaAqtionInterface, id 0x1000005f2, registered, matched, active, busy 0 (0 ms), retain 31>
    | |   |       |         +-o IONetworkStack  <class IONetworkStack, id 0x1000004be, registered, matched, active, busy 0 (0 ms), retain 32>
    | |   |       |           +-o IONetworkStackUserClient  <class IONetworkStackUserClient, id 0x100000731, !registered, !matched, active, busy 0, retain 25>
    | |   |       +-o BYD4@4  <class IOPCIDevice, id 0x1000003c7, registered, matched, active, busy 0 (224 ms), retain 31>
    | |   |       | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000525, registered, matched, active, busy 0 (222 ms), retain 28>
    | |   |       |   +-o BYS4@0  <class IOPCIDevice, id 0x1000003c8, registered, matched, active, busy 0 (222 ms), retain 32>
    | |   |       |     +-o AirPort_BrcmNIC  <class AirPort_BrcmNIC, id 0x10000054b, registered, matched, active, busy 0 (104 ms), retain 58>
    | |   |       |       +-o CCPipe  <class CCLogPipe, id 0x100000551, registered, matched, active, busy 0 (0 ms), retain 32>
    | |   |       |       | +-o CCIOReporterLogStream  <class CCIOReporterLogStream, id 0x100000552, registered, matched, active, busy 0 (0 ms), retain 27>
    | |   |       |       | +-o CCLogPipeUserClient  <class CCLogPipeUserClient, id 0x100000a8f, !registered, !matched, active, busy 0, retain 25>
    | |   |       |       +-o CCPipe  <class CCLogPipe, id 0x100000570, registered, matched, active, busy 0 (0 ms), retain 35>
    | |   |       |       | +-o CCLogStream  <class CCLogStream, id 0x100000571, registered, matched, active, busy 0 (0 ms), retain 27>
    | |   |       |       | +-o CCLogStream  <class CCLogStream, id 0x100000572, registered, matched, active, busy 0 (0 ms), retain 27>
    | |   |       |       | +-o CCLogPipeUserClient  <class CCLogPipeUserClient, id 0x100000a8e, !registered, !matched, active, busy 0, retain 25>
    | |   |       |       +-o CCPipe  <class CCDataPipe, id 0x100000573, registered, matched, active, busy 0 (0 ms), retain 32>
    | |   |       |       | +-o CCDataStream  <class CCDataStream, id 0x100000574, registered, matched, active, busy 0 (0 ms), retain 28>
    | |   |       |       | +-o CCDataPipeUserClient  <class CCDataPipeUserClient, id 0x100000a8b, !registered, !matched, active, busy 0, retain 25>
    | |   |       |       +-o CCPipe  <class CCLogPipe, id 0x1000005fc, registered, matched, active, busy 0 (0 ms), retain 32>
    | |   |       |       | +-o CCLogStream  <class CCLogStream, id 0x1000005fd, registered, matched, active, busy 0 (0 ms), retain 27>
    | |   |       |       | +-o CCLogPipeUserClient  <class CCLogPipeUserClient, id 0x100000a8d, !registered, !matched, active, busy 0, retain 25>
    | |   |       |       +-o CCPipe  <class CCDataPipe, id 0x1000005fe, registered, matched, active, busy 0 (0 ms), retain 32>
    | |   |       |       | +-o CCDataStream  <class CCDataStream, id 0x1000005ff, registered, matched, active, busy 0 (0 ms), retain 27>
    | |   |       |       | +-o CCDataPipeUserClient  <class CCDataPipeUserClient, id 0x100000a8a, !registered, !matched, active, busy 0, retain 25>
    | |   |       |       +-o en1  <class AirPort_BrcmNIC_Interface, id 0x100000600, registered, matched, active, busy 0 (1 ms), retain 32>
    | |   |       |       | +-o IONetworkStack  <class IONetworkStack, id 0x1000004be, registered, matched, active, busy 0 (0 ms), retain 32>
    | |   |       |       |   +-o IONetworkStackUserClient  <class IONetworkStackUserClient, id 0x100000731, !registered, !matched, active, busy 0, retain 25>
    | |   |       |       +-o CCPipe  <class CCDataPipe, id 0x100000736, registered, matched, active, busy 0 (0 ms), retain 32>
    | |   |       |       | +-o CCIOReporterDataStream  <class CCIOReporterDataStream, id 0x100000737, registered, matched, active, busy 0 (0 ms), retain 27>
    | |   |       |       | +-o CCDataPipeUserClient  <class CCDataPipeUserClient, id 0x100000a89, !registered, !matched, active, busy 0, retain 25>
    | |   |       |       +-o CCPipe  <class CCLogPipe, id 0x10000077d, registered, matched, active, busy 0 (0 ms), retain 32>
    | |   |       |       | +-o CCLogStream  <class CCLogStream, id 0x10000077e, registered, matched, active, busy 0 (0 ms), retain 27>
    | |   |       |       | +-o CCLogPipeUserClient  <class CCLogPipeUserClient, id 0x100000a8c, !registered, !matched, active, busy 0, retain 25>
    | |   |       |       +-o AirPort_BrcmNIC_P2PInterface  <class AirPort_BrcmNIC_P2PInterface, id 0x10000077f, registered, matched, active, busy 0 (0 ms), retain 31>
    | |   |       |       | +-o IO80211AsyncEventUserClient  <class IO80211AsyncEventUserClient, id 0x100000788, !registered, !matched, active, busy 0, retain 25>
    | |   |       |       +-o AirPort_Brcm43xxLLSkywalkInterface  <class AirPort_Brcm43xxLLSkywalkInterface, id 0x100000780, registered, matched, active, busy 0 (102 ms), retain 29>
    | |   |       |         +-o IOSkywalkNetworkBSDClient  <class IOSkywalkNetworkBSDClient, id 0x100000783, registered, matched, active, busy 0 (0 ms), retain 28>
    | |   |       +-o BYD5@5  <class IOPCIDevice, id 0x1000003c9, registered, matched, active, busy 0 (23 ms), retain 31>
    | |   |       | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000529, registered, matched, active, busy 0 (22 ms), retain 28>
    | |   |       |   +-o BYS5@0  <class IOPCIDevice, id 0x1000003ca, registered, matched, active, busy 0 (22 ms), retain 31>
    | |   |       |     +-o LucyRTL8125  <class LucyRTL8125, id 0x100000538, !registered, !matched, active, busy 0 (0 ms), retain 27>
    | |   |       |       +-o en0  <class IOEthernetInterface, id 0x1000005c3, registered, matched, active, busy 0 (0 ms), retain 33>
    | |   |       |         +-o IONetworkStack  <class IONetworkStack, id 0x1000004be, registered, matched, active, busy 0 (0 ms), retain 32>
    | |   |       |           +-o IONetworkStackUserClient  <class IONetworkStackUserClient, id 0x100000731, !registered, !matched, active, busy 0, retain 25>



However the behaviour is as before, the controller shows up in Network devices and all seems to be fine but:

1) If I connect ethernet cable after boot the system will hang

2) If I boot with the ethernet cable plugged in I get a self-assigned IP (Also my router does not assign an IP and a NETSCAN also does not show the MAC address of the 10G card)



It used to work fine up until Monterey 12.2 or 12.3 and then something broke.

Edited November 9, 2022 by Rox67er
Addition

[Lorys89]

@Rox67er And does it work?

[Rox67er]

1 minute ago, Lorys89 said:

@Rox67er And does it work?

Sorry just added to the post:



However the behaviour is as before, the controller shows up in Network devices and all seems to be fine but:

1) If I connect ethernet cable after boot the system will hang

2) If I boot with the ethernet cable plugged in I get a self-assigned IP (Also my router does not assign an IP and a NETSCAN also does not show the MAC address of the 10G card)



It used to work fine up until Monterey 12.2 or 12.3 and then something broke.

[Lorys89]

Using ssdt you should not crash the system, in my opinion it needs vtd to work well

[Rox67er]

Just now, Lorys89 said:

Using ssdt you should not crash the system, in my opinion it needs vtd to work well

That is what I read on other forum as well however with AMD we are out of luck. What I don't understand is why can we not just put the old Aquantia kext from 12.2 back??

[Rox67er]

28 minutes ago, Rox67er said:

+-o IONetworkStackUserClient <class IONetworkStackUserClient, id 0x100000731, !registered, !matched, active, busy 0, retain 25>



Isn't this still a problem? I think it reads "Not registered" and "Not matched"

Also the same behaviour as without the SSDT

Edited November 9, 2022 by Rox67er

[valmeida]

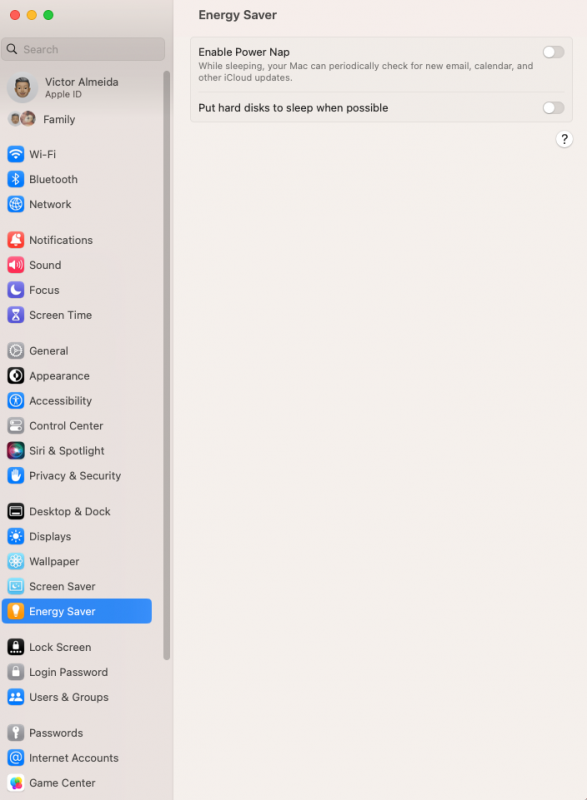

I just did the Ventura 13.1 Beta2 and machine is running like a champ expect it keeps trying to go to sleep even when turn off sleep on the settings.  Is there a way to add something in my configuration to stop the machine from trying to go to sleep.

[fabiosun]

4 minutes ago, valmeida said:

I just did the Ventura 13.1 Beta2 and machine is running like a champ expect it keeps trying to go to sleep even when turn off sleep on the settings.  Is there a way to add something in my configuration to stop the machine from trying to go to sleep.

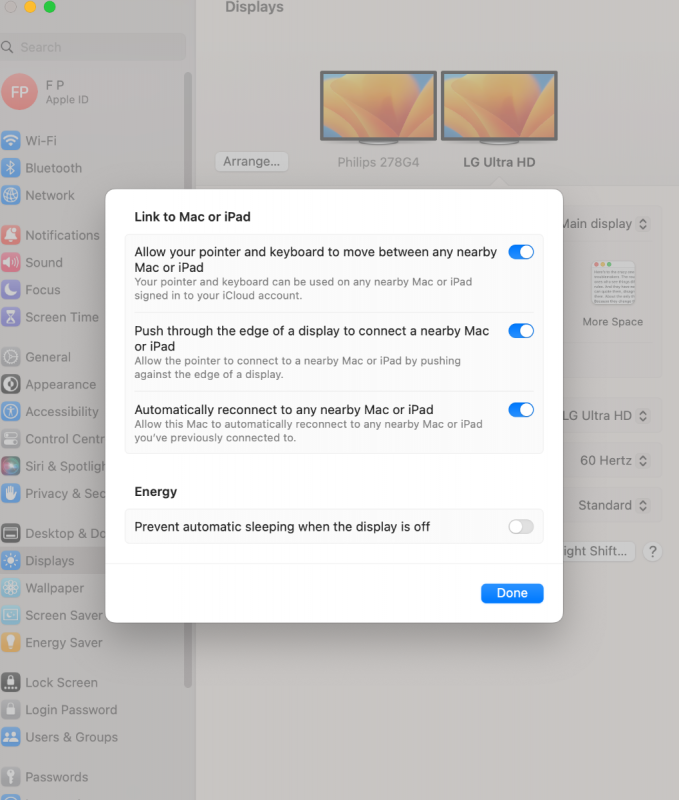

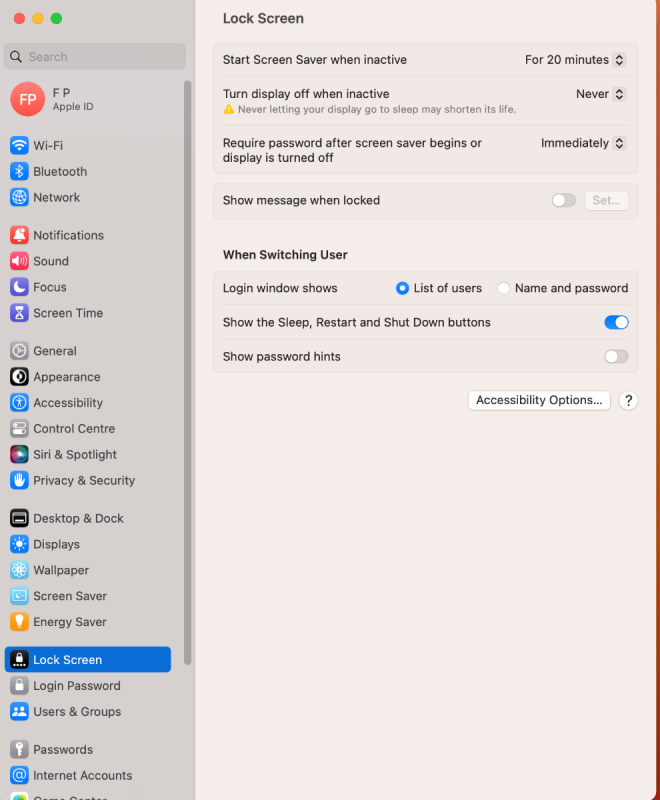

check here







[valmeida]

Thanks



[fabiosun]

16 minutes ago, valmeida said:

Thanks



Vic

have you tried again your i211 ethernet?





now it could work well with this kext (in development)





Edited November 10, 2022 by fabiosun
https://www.macos86.it/topic/6029-appleigb-and-intelmausi-integration/
