Posted by fabiosun,

Ok..good news playing with MMIO and with opencore 061 i have solved reboot/shutdown problem... now it is working as it must work

MMIO rules shutdown and reboot previous problems

Recommended by fabiosun

  • Like

2 reactions

Go to this post
Arrakis Senior Member

Arrakis

Posted
Posted

@fabiosun

20 minutes ago, fabiosun said:

ah sorry

change also 21.99.99 maxKernel with 22.99.99



Exactly, I asked myself the question. Thanks a lot.

On the other hand, I think I have problems with the Dummy Power Management. I was always obliged to activate it since the beginning of my hack. At first I will try without disabling it.

Link to comment
Share on other sites
23d1 Member

23d1

Posted
Posted
1 hour ago, fabiosun said:

1963743186_Schermata2022-06-07alle19_11_48.thumb.png.6fc7e4f21519b72c1c0cb61fde001fee.png

to boot

Disable Dummy on Emulate tab

put old leaf7 patch

Disable AvoidDefrag quirk



(thanks always to algrey)

Any chance you can share your plist? Curious what to disable/remove and enable/add. 🙂

Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted (edited)
24 minutes ago, 23d1 said:

Any chance you can share your plist? Curious what to disable/remove and enable/add. 🙂

Now I am out

tomorrow I will do

however if you have a working efi with monterey 12.4

add leaf patch (if you search in our forum you will find a complete patches plist

update opencore to latest 082

disable kernel/emulate dummy power management quirk

disable avoid runtime defrag quirk

-lilubetaall

put maxkernel to 22.99.99 instead of 21.99.99

and this is all



Edited by fabiosun
added -lilubetaall as boot arg
  • Thanks 1
Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted

some screenshots of the new macOS Ventura interface:

515807344_Screenshot2022-06-08at8_36_43AM.thumb.png.975a878e482f6fac0a00ebbc9cf3ac23.png



2063306918_Screenshot2022-06-08at8_37_04AM.thumb.png.31fd59c07a9b6341b02954dfdf1da776.png



767858635_Screenshot2022-06-08at8_37_53AM.thumb.png.d94daec4433e20eae31c6244d39df7e1.png

1404822313_Screenshot2022-06-08at8_38_12AM.thumb.png.b3b4f93c3c2e91dabf6584d46e2d9fbc.png





66103972_Screenshot2022-06-08at8_38_49AM.thumb.png.67538f5b670d258f919994e5e13ff1c9.png



Initial impressions on this rig:



Windows11 OS like

Wake from sleep does not work

RestrictEvents kext needs an update (CPU Unknown)

  • Like 1
  • Thanks 1
Link to comment
Share on other sites
  • Moderators
iGPU Senior Member

iGPU

Posted
  • Moderators
Posted

I got the Z690 working in Ventura tonight (here) doing a fresh install. It went very smoothly and installed really fast (no 10-30 min count downs on any re-boots during the install).



I'll give the TRX40 a go tomorrow night (I've already adjusted a TRX40 config file for Ventura with updated patches, etc).

  • Thanks 1
Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted

@iGPUa bit off topic

have you ever done a clean installation of Windows 10/11 pro in your TRX40?

From usb or DVD if you have it..

In my rig it is not possible, it is a complete failure!

I can install in different way (via OSX with an app (windows install) or with first step done in other pc)

Otherwise no joy



Link to comment
Share on other sites
Arrakis Senior Member

Arrakis

Posted
Posted

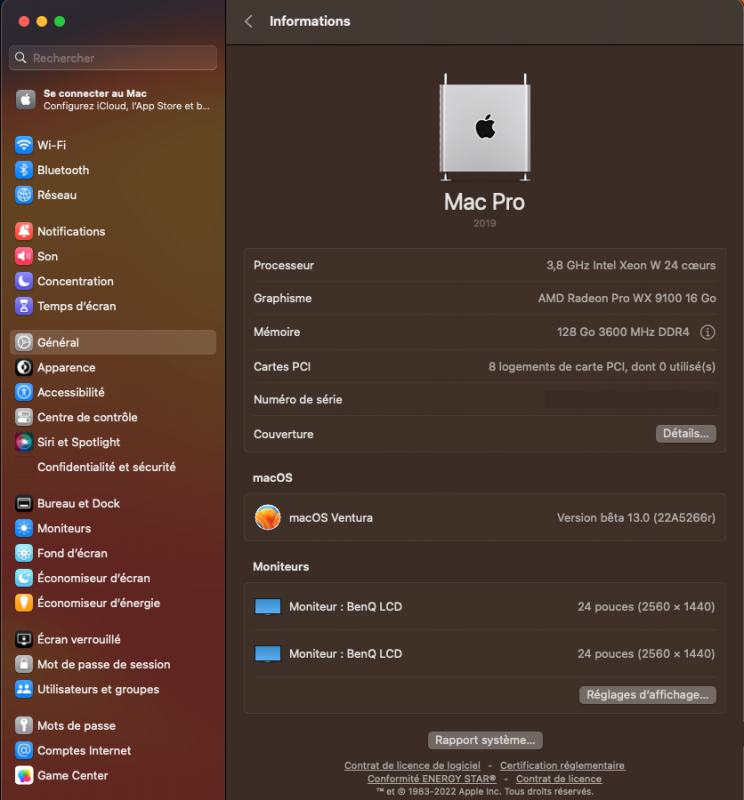

Thanks to @fabiosunand @iGPU for the information that allowed me to successfully install Ventura.

Spoiler

1304840888_Capturedecran2022-06-08a10_57_05.thumb.png.6ab53e2e174dd2b692da4a61777c4764.png



To update on my config:

Disable AvoidDefrag quirk

put old leaf7 patch

maxKernel with 22.99.99 on all patches

-lilubetaall boots arg

I left DummyPowerManagement on True



For me the most important is Ethernet and Thunderbolt.

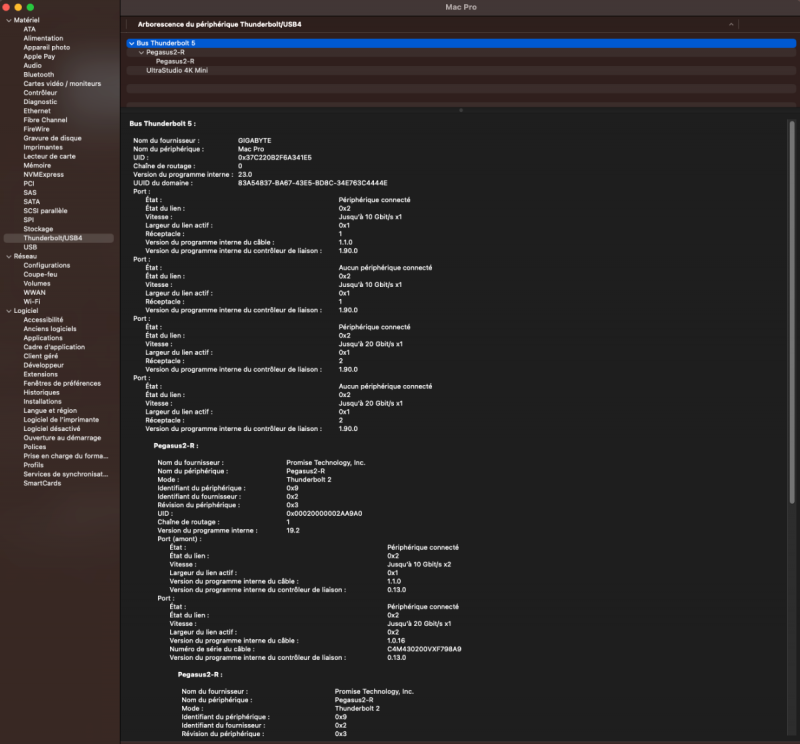

USB adapters work perfectly and so do Thunderbolt peripherals.

Spoiler

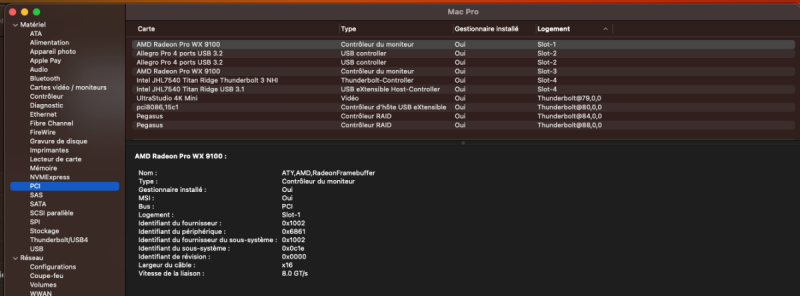

ethernet.thumb.png.70650fd5a11883fedad0e33bc9cd51fe.pngthunderbold.thumb.png.48e44026ecd2a3c9a9e487b4ca535fab.png








Compared to Monterey, CPU info is bad (RestrictEvents needs to be updated as @fabiosun said)

The I210 ethernet ports still inoperative (forever 😭).

The IntelBluetoothFirmware kext needs to be updated too. When I connect to Wifi it is directly a wild reboot.

Not tested on sleep, for me it has never worked.

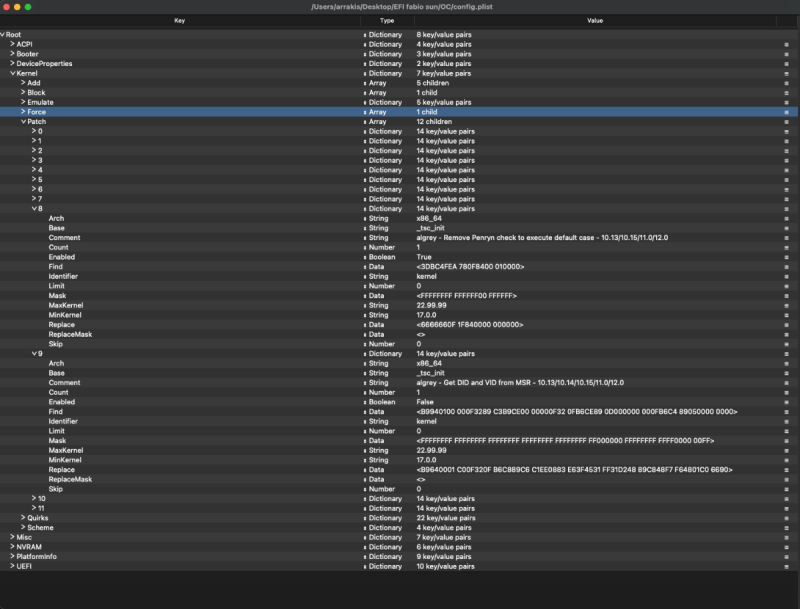

At @fabiosun, I noticed that in my kernel patches, I don't use the 2 patches below

Spoiler

366546737_Capturedecran2022-06-08a11_31_06.thumb.png.b26daf6e4fa23ac65a51e028af7e8796.png



I enclose my bootable EFI OpenCore.0.8.2 for Monterey 12.4 and Ventura.

(Warning, it is not neutral, you have to modify or remove property, MmioWhitelist, number of cores, some kexts , boot-args, CustomMemory, values in PlatformInfo.

EFI OPEN 0.8.2 MONTERY 12.4 _ VENTURA TRX 40 GIGABYTE.zip

  • Like 1
Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted
1 minute ago, Arrakis said:

I noticed that in my kernel patches, I don't use the 2 patches below

yep..in the start of this Ventura's trip i have tested some old patches and i have forgotten to remove them!



Link to comment
Share on other sites
  • Moderators
iGPU Senior Member

iGPU

Posted
  • Moderators
Posted
2 hours ago, fabiosun said:

@iGPUa bit off topic

have you ever done a clean installation of Windows 10/11 pro in your TRX40?

From usb or DVD if you have it..

In my rig it is not possible, it is a complete failure!

I can install in different way (via OSX with an app (windows install) or with first step done in other pc)

Otherwise no joy





Same: I too was never able to clean install Windows on the TRX40.

  • +1 1
Link to comment
Share on other sites
23d1 Member

23d1

Posted
Posted
3 hours ago, iGPU said:



Same: I too was never able to clean install Windows on the TRX40.

I managed with drivers some how, but can barely remember what I did as it was so long ago (ASRock Trx40 Creator).

Link to comment
Share on other sites
  • Moderators
iGPU Senior Member

iGPU

Posted
  • Moderators
Posted

I'm not able to yet test TB on the TRX40 as I cannot manage to log into Ventura. (Update on the Z690 was ok, but not yet for the TRX40).



I decided on the TRX40, instead of a fresh install, to update the Monterey drive for Ventura (I'm presently writing this from the BS drive). The update process seemed to go well, but I believe cannot complete the final boot into Ventura. From the OC menu, I do have the option to boot into Recovery, but that too fails as shown in Spoiler below, where I think many Ventura updates fail.

Spoiler






I usually do not have Above 4G enabled, so I tried that, but had no success with or without it enabled.



fabiosun, in looking at your posted EFI, you did have one extra Patch that I'd not been using, but that extra patch made no difference in booting into BS or Ventura (Spoiler below). I must get to work, so I'll try other approaches tonight. (One option is a fresh install.)



Spoiler

1493303311_ScreenShot2022-06-09at9_04_26AM.thumb.png.2cb3a5828fa91bdc3d49a226d27b0f0b.png





Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted

Yes to boot in Ventura I have taken back some old patches 🙂

This is not useful

only leaf7 is mandatory

Also disable AvoidRuntimeDefrag

quirk

Put 22.99.99 as max kernel instead 21.99.99 and -lilubetaall as bootarg

it should be all 🙂



Link to comment
Share on other sites
Ploddles Senior Member

Ploddles

Posted
Posted
9 hours ago, fabiosun said:

@iGPUa bit off topic

have you ever done a clean installation of Windows 10/11 pro in your TRX40?

From usb or DVD if you have it..

In my rig it is not possible, it is a complete failure!

I can install in different way (via OSX with an app (windows install) or with first step done in other pc)

Otherwise no joy





Sorry for my absence for the last 8 months or so, but I am back now.



My system was so out of date - still running Big Sur and Monterey Beta that I decided to wipe all my discs and start afresh.



I have just installed Windows 11 from a USB flash drive created with the MS Media Creation Utility. No problems at all, everything went smoothly and I am now installing all my apps again. After that I will install the latest Monterey on another NVMe drive (Sabrent Rocket 4.0). The only time I ever had any problems installing Windows from scratch was when I tried installing onto a Samsung 970 Evo NVMe drive. As soon as I changed to installing on the Sabrent everything went well.

Link to comment
Share on other sites
Arrakis Senior Member

Arrakis

Posted
Posted



Il y a 3 heures, fabiosun disait :

@iGPUet @ tous les utilisateurs de thunderbolt



en ventura sans SSDT

2084438897_Capture d'écran2022-06-09at2_59_35PM.thumb.png.8d2c74b07d8218996d098b2f75944a31.png



jusqu'à 40 Gbit/s de vitesse au lieu de jusqu'à 20 Gbit/s comme dans le système d'exploitation précédent



En montage sans SSDT:

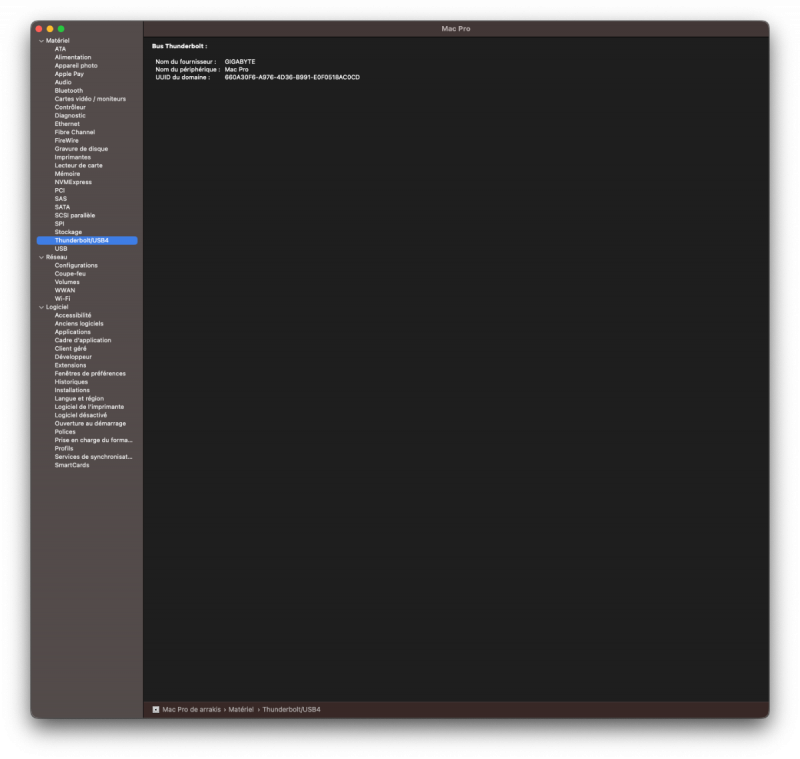

@fabiosun On my configuration, the Thunderbolt is not recognized when the SSDT is disabled.

Just the card appears in the PCI information with the USB controller.

See Capture in the spoiler.

I had flashed the Titan board with Mac firmware. Is it the same for you?



Spoiler

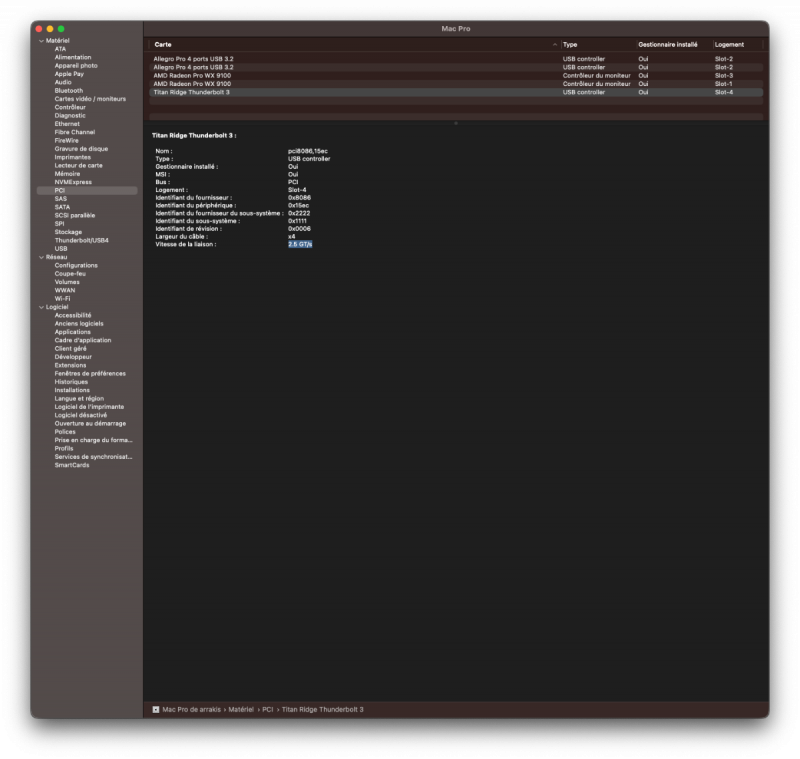

1894032064_Capturedecran2022-06-09a18_51_23.thumb.png.588d70ee6762f7cb2f5320e052107ce3.png

209804992_Capturedecran2022-06-09a18_51_59.thumb.png.469fad7fa1e958c2267a9f336e3a977b.png





Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted

@ArrakisI have flashed an old firmware by Elias (I think) on our thunderbolt thread if I remeber well there is version I used



@Ploddleswindows problem seems to be a MSI trx40 problem

but their support does not answer



I have never installed windows here from scratch (I have had an old x299 installation on my Samsung 960 pro and I always updated from it



trying to install here also on a "simple" SSD is a pain

I don't know how it is possible...OSX is more simple to install here 🙂

PS welcome back



317563428_Screenshot2022-06-09at7_20_18PM.thumb.png.c57a4d98351d15d7ab6185b1c63b9f7e.png



329582255_Screenshot2022-06-09at7_20_32PM.thumb.png.fe7501f3af704a38ece96ba596771137.png



1011749959_Screenshot2022-06-09at7_21_34PM.thumb.png.53adc4d98f98e8d7bfb5859719c21a6e.png

this is on Thunderbolt case

it is always seen as apple SSD and not generic one

  • Like 1
Link to comment
Share on other sites
  • Moderators
iGPU Senior Member

iGPU

Posted
  • Moderators
Posted
12 hours ago, fabiosun said:

Yes to boot in Ventura I have taken back some old patches 🙂

This is not useful

only leaf7 is mandatory

Also disable AvoidRuntimeDefrag

quirk

Put 22.99.99 as max kernel instead 21.99.99 and -lilubetaall as bootarg

it should be all 🙂



I've done all these things (aside from patches, same set up for Z690). I looked over your config file and we have the same Patches and Quirks.

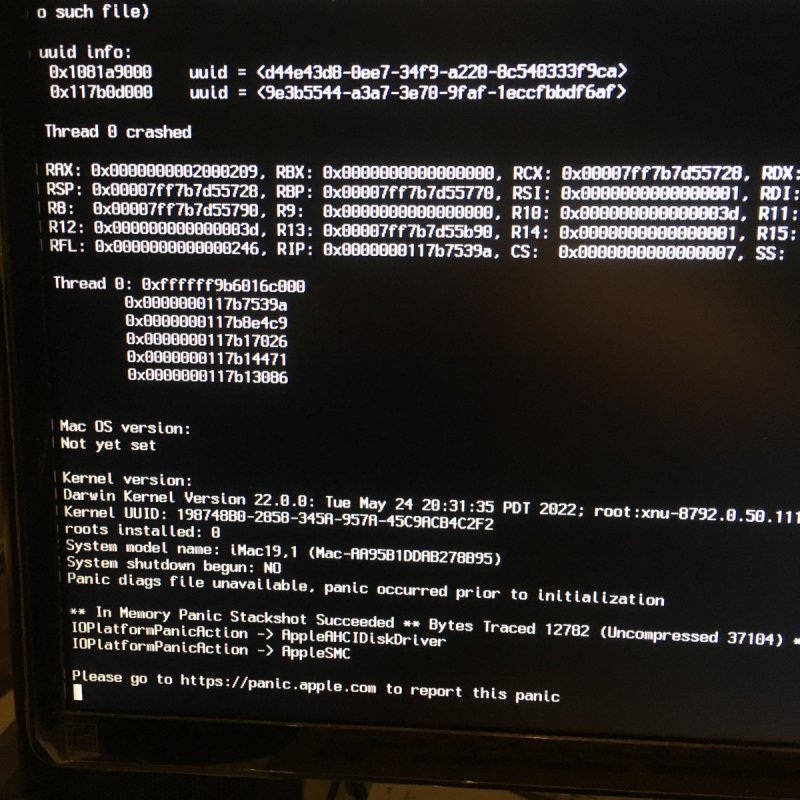

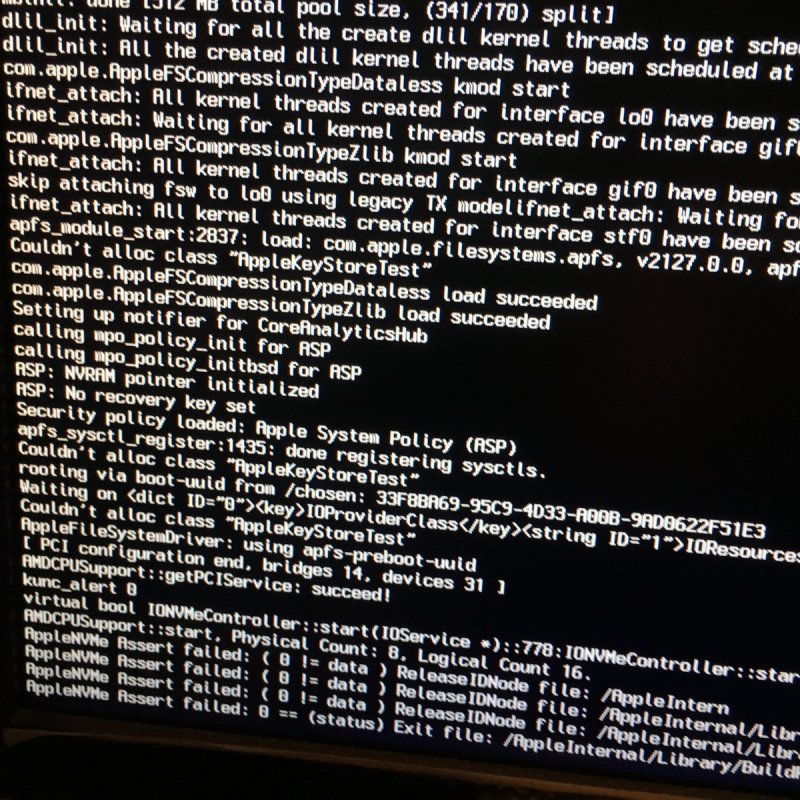

It continues to fail at about the same point (which is just before log-in; shown in Spoiler below). I'll try to re-install and if that fails, then I'll do a fresh install.

Spoiler




Re-formatting and a fresh install did not help: things still got stuck at the final boot heading to login. More investigation...



*****



Success!



186645135_ScreenShot2022-06-09at9_34_15PM.thumb.png.e83acd8d7e84ddc7d6791d2cfb8f2894.png



The key was adding AppleMCEReporterDisabler kext (which I noted in your config file, fabiosun; thanks!) and disconnecting the Aquantia port.



The AppleMCEReporterDisabler kext file allowed me to boot Ventura, but it would crash before I could complete the sign-in. I thought perhaps an internet issue, so disconnected the Aquantia port and left the AIC ethernet, which I've described early in this thread (it uses the LucyRTL8125Ethernet kext file), connected.



Attached is the config.plist file I used, less SNs. This config file boots late Big Sur, Monterey and Ventura beta 1. No custom ACPI or kext files are included. Of note is that I don't use WEG and instead inject DevProp for the GPU along with a customized ACPI file. Most of the kext files are for BT/Wifi turning on/off based on whether BS, Monterey or Ventura is being booted, providing good function including AirDrop.





config-BS-Monterey-Ventura-public.plist.zip

Link to comment
Share on other sites
jsl2000 Senior Member

jsl2000

Posted
Posted (edited)
On 6/8/2022 at 3:17 AM, fabiosun said:

@23d1

my EFI for Ventura beta 1

EFI.zip 3.07 MB · 8 downloads

MMIO whitelist and core number must be conformed to your system



Thanks for your kind sharing of EFI.

Based upon it I have modified my kernel patch and related items but booted by OC 0.8.2 still KP at the same point as booted by Clover 5146 in my Ryzen 1700X hackintosh.

Because FX-6300 lack of AVX2 instruction set it always KP at the different point.



Edited by jsl2000
Link to comment
Share on other sites
