Unable to boot Clover 5142 after update of BIOS in Ryzen 1700X Hackintoshs

[jsl2000]

Before BIOS update I can boot Clover 5141 and OpenCore 0.7.5/0.7.6 successfully without any issue.

However after BIOS update I can boot OC only, if booted by Clover 5142 it always got reboot after ++++++++++++++.

I have tried to downgrade of BIOS or Clover all in vain.

Can anyone check my Clover's config.plist or EFI.zip and give me some help ?

config.plist.zipFetching info...

EFI.zipFetching info...

Edited December 11, 2021 by jsl2000

[fabiosun]

  On 12/11/2021 at 8:44 AM, jsl2000 said:

Before BIOS update I can boot Clover 5141 and OpenCore 0.7.5/0.7.6 successfully without any issue.

However after BIOS update I can boot OC only, if booted by Clover 5142 it always got reboot after ++++++++++++++.

I have tried to downgrade of BIOS or Clover all in vain.

Can anyone check my Clover's config.plist or EFI.zip and give me some help ?

config.plist.zip 4.23 kB · 0 downloads

EFI.zip 41.53 MB · 0 downloads

Expand

could you post a debug log?

activate it in boot section of your config and post it

you can find it in your clover/Misc folder

thank you



[jsl2000]

  On 12/11/2021 at 10:02 AM, fabiosun said:

could you post a debug log?

activate it in boot section of your config and post it

you can find it in your clover/Misc folder

thank you



Expand

Thanks for your prompt reply and advice.

preboot.log.zipFetching info...

2021-12-11_10-23_BOOTX64.EFI.log.zipFetching info...

Edited December 11, 2021 by jsl2000

[fabiosun]

Ok I think problem is OSX 12.1

have you tried to boot with 12.01?

in my case with clover I need to reset Nvram a couple of time to have success booting in 12.1

12.01 is fine

if you can try to reset nvram



from your log patches are loaded as it should be



I think Clover dev have to implement better latest OpenCore features

[jsl2000]

  On 12/11/2021 at 10:29 AM, fabiosun said:

Ok I think problem is OSX 12.1

have you tried to boot with 12.01?

in my case with clover I need to reset Nvram a couple of time to have success booting in 12.1

12.01 is fine

if you can try to reset nvram



from your log patches are loaded as it should be



I think Clover dev have to implement better latest OpenCore features

Expand

I can not boot any MacOS from 10.13.6 to 12.1 with Clover 5142 now even after repeated reset Nvram ! Any other possibility for this issue ?

[fabiosun]

to revert to 5141 is an option for you?

or now same problem also?



[jsl2000]

  On 12/11/2021 at 10:35 AM, fabiosun said:

to revert to 5141 is an option for you?

or now same problem also?



Expand

Revert to Clover 5141 got the same problem.

Revert to old BIOS no vain too.

Can you share your working Clover EFI for me ?

Edited December 11, 2021 by jsl2000

[fabiosun]



try always to reset Nvram, overall if you use sometime also openCore

Clover 5142 is problematic also here

but sometimes works (after resetting Nvram)

try to download my EFI from my TRX40 OP and use only driver EFi and bootX64.efi , cloverX64.EFi and main kexts I use



[jsl2000]

  On 12/11/2021 at 10:55 AM, fabiosun said:



try always to reset Nvram, overall if you use sometime also openCore

Clover 5142 is problematic also here

but sometimes works (after resetting Nvram)

try to download my EFI from my TRX40 OP and use only driver EFi and bootX64.efi , cloverX64.EFi and main kexts I use



Expand

Thanks and may I know where is your TRX40 OP located because I can not find it here by search ?

Edited December 11, 2021 by jsl2000

[fabiosun]





however with 5142 dock animations have a double speed

Wifi/bt card disconnect often

GPU performances are horrible

I am not using Clover because it is unuseful also to open an ISSUE in their GitHub

for them all is working always and problem is only due users errors 🙂

I use Clover only to test something..but latest version is a pain

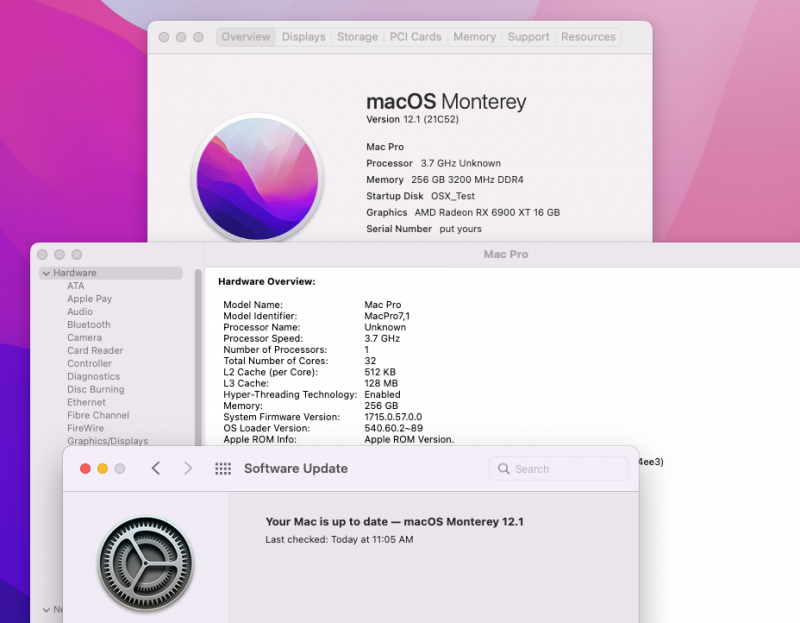

see here:

Clover 5142:



Opencore 077:

[jsl2000]

  On 12/11/2021 at 11:10 AM, fabiosun said:





however with 5142 dock animations have a double speed

Wifi/bt card disconnect often

GPU performances are horrible

I am not using Clover because it is unuseful also to open an ISSUE in their GitHub

for them all is working always and problem is only due users errors 🙂

I use Clover only to test something..but latest version is a pain

Expand

Thanks and I'll test your EFI in my Ryzen 1700X hackintoshs.



[fabiosun]

not all my EFI

it is for a 32 cores set 🙂

take only part of it like drivers and boot folder /clover64.efi



[jsl2000]

  On 12/11/2021 at 11:20 AM, fabiosun said:

not all my EFI

it is for a 32 cores set 🙂

take only part of it like drivers and boot folder /clover64.efi



Expand

Yes, I know.

Unfortunately I got the same problem as my original EFI.

Unable to boot any MacOS from 10.13.6 to 12.1 by Clover 5142 or 5141 now !

Edited December 11, 2021 by jsl2000

[fabiosun]

sorry @jsl2000

last thing could be to try to reset your motherboard Cmos

but I have no good idea

I can say Clover 5142 has many problems

with clover 5141 it is mandatory to disable Resize bar in bios settings



[jsl2000]

  On 12/11/2021 at 11:47 AM, fabiosun said:

sorry @jsl2000

last thing could be to try to reset your motherboard Cmos

but I have no good idea

I can say Clover 5142 has many problems

with clover 5141 it is mandatory to disable Resize bar in bios settings



Expand

Thanks, but I can not find the option for Resize bar in my MB's BIOS settings.

Is it present in more modern MB for Intel 9th/10th generation & AMD TRX40 MB ?

In my Z490 hackintoshs it's located in Advanced> PCI Subsystem

Mine is ASUS Crosshair VI Hero which was produced in 2018.

I can disable ResizeAppleGpuBars in Booter & ResizeGpuBars in UEFI with Clover 5141.

Edited December 12, 2021 by jsl2000

[fabiosun]

@jsl2000

If I have understood well your problem

You have had a working system (1700x CPU) working both with Clover 5141 and Opencore 0.7.x

Then, you have updated your motherboard bios

Set back all options in it in the same way you had before

Now no boot loaders work for you



If so, for you is not a boot loader problem (5142 has many problems but it is unrelated ,I think, for your actual problem)



I will double check bios option and I will reset Cmos and then I would try again with my latest working EFI with a previously checked and working OS (not latest beta)



[jsl2000]

  On 12/12/2021 at 7:30 AM, fabiosun said:

@jsl2000

If I have understood well your problem

You have had a working system (1700x CPU) working both with Clover 5141 and Opencore 0.7.x

Then, you have updated your motherboard bios

Set back all options in it in the same way you had before

Now no boot loaders work for you



If so, for you is not a boot loader problem (5142 has many problems but it is unrelated ,I think, for your actual problem)



I will double check bios option and I will reset Cmos and then I would try again with my latest working EFI with a previously checked and working OS (not latest beta)



Expand

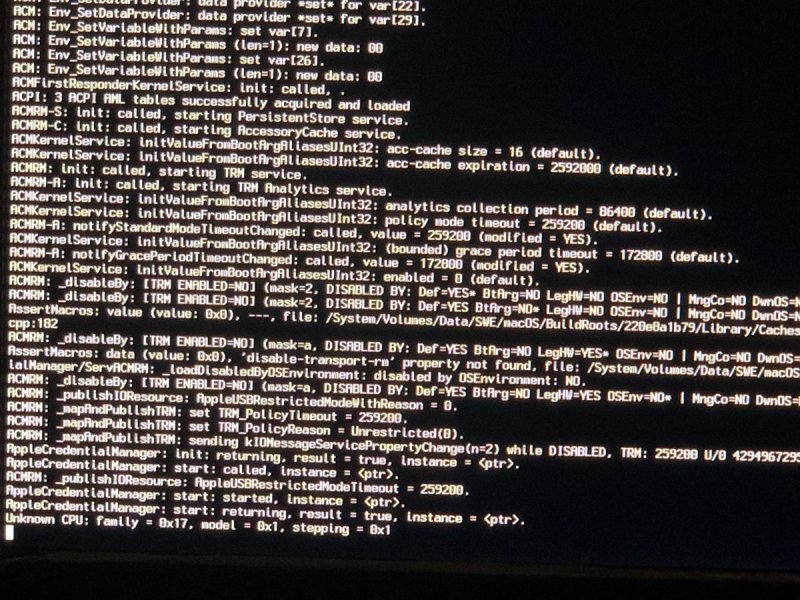

No, after update BIOS only OpenCore 0.7.6 or 0.7.5 still working perfectly, but failed of Clover 5141 or 5142. For clover 5141 It can past ++++++, then frozen after something. So I guess I need modify something in Clover's config.plist.

Edited December 12, 2021 by jsl2000

[carlo_67]

@jsl2000 try mine

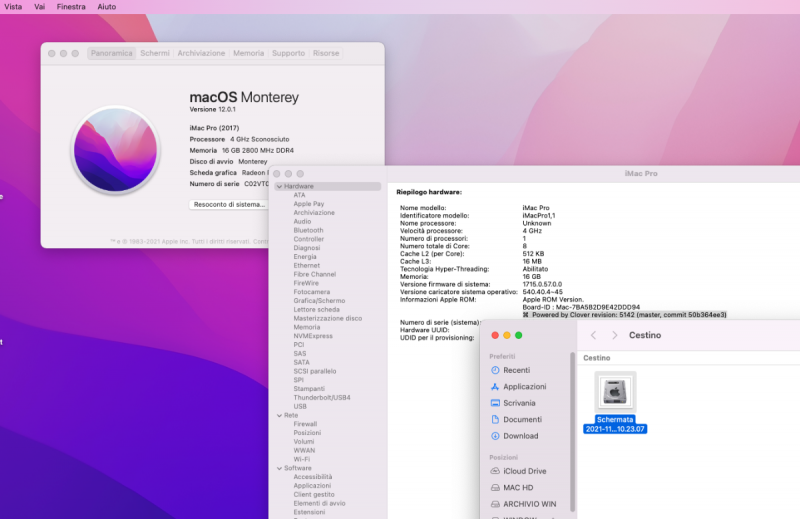

perfect with Clover 5142, BigSur and Monterey

config.plist.zipFetching info...

[jsl2000]

  On 12/12/2021 at 9:39 AM, carlo_67 said:

@jsl2000 try mine

perfect with Clover 5142, BigSur and Monterey

config.plist.zip 3.72 kB · 2 downloads

Expand

Thank you very much.

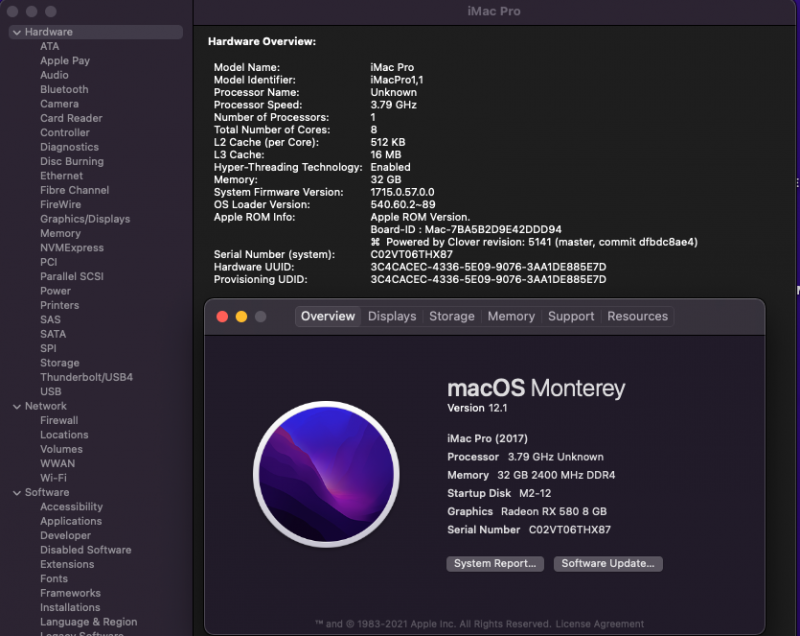

Based upon your config.plist with minor modification for my special hardware requirement it can boot Big Sur and Monterey successfully with Clover 5141 again !

config.plist.zipFetching info...

[carlo_67]

you can also update it with CloverApp to 5142😜

[jsl2000]

  On 12/12/2021 at 12:14 PM, carlo_67 said:

you can also update it with CloverApp to 5142😜

Expand

May I know your another AMD hackintoshs (Asrock Fatal1ty 990fx, Amd FX 8350 4.6 ghz, AMD r9 270x 2gb x2 in CrossfireX) can boot Big Sur & Monterey too ? With OpenCore or Clover ? Can you share its config.plist for reference ?

Edited December 13, 2021 by jsl2000

[carlo_67]

  On 12/13/2021 at 6:43 AM, jsl2000 said:

May I know your another AMD hackintoshs (Asrock Fatal1ty 990fx, Amd FX 8350 4.6 ghz, AMD r9 270x 2gb x2 in CrossfireX) can boot Big Sur & Monterey too ? With OpenCore or Clover ? Can you share its config.plist for reference ?

Expand

I haven't had any hardware for some time😃

[jsl2000]

  On 12/13/2021 at 6:03 PM, carlo_67 said:

I haven't had any hardware for some time😃

Expand

Thanks for your prompt reply.

I just looking for working FX-8xxx hackintoshs which can provide me reference for comparison between FX-6300 and FX-8xxx.











Edited December 14, 2021 by jsl2000
