[fabiosun]

sorry @Renatoi have no more Proxmox installed on my rig

it was possible to have host as CPU but i cant help by now

I remeber Host as CPU and some kernel patches..no more



[fabiosun]

maybe from here you can find some useful infos



[tsongz]

After almost a whole year stuck on Proxmox BS 11.0, I've finally made the switch over to Bare Metal, since I got tired of not having access to Bluetooth/USB ports.



Going in, I probably spent more time researching, planning, backing up (in case of total failure since I've been using it for work), than the actual installation process actually took. (Probably 20 tabs from various pages in this thread)



Currently in the process of restoring the data from my old BS install, otherwise I'd share screen shots (will follow up with edits).



- Used Pavo's OSX Generator to create the base config

- Installed on fresh SSD

- Upgraded Asrock Motherboard BIOS to 1.7.0

- Used Driftwood's BIOS settings, though I had to enable Above 4G encoding - caused install to hang a few times because I forgot about this

- Patched MMIO using Driftwood's config

- Added additional kexts: IntelBluetoothFirmware, IntelBlueoothInjector, itlwm, NVMeFix (was getting errors during boot, so had to add this).

- No DevProps, No ACPI

- Moved PCIe devices

-- PCIe 0: Vega Frontier

-- PCIe 1: Broadcom Network Card (originally wasn't working)



Shockingly, everything works so far. Bluetooth, WiFi, USB devices. Bluetooth and WiFi are being picked up by the Broadcom card (I think). So I may end up disabling/removing IntelBluetooth related stuff.



Thanks everyone for all your hard work, contributions, and dedication - it's incredible to see how much progress things have come since a year ago, and how 'it just sorta works' it's become now.

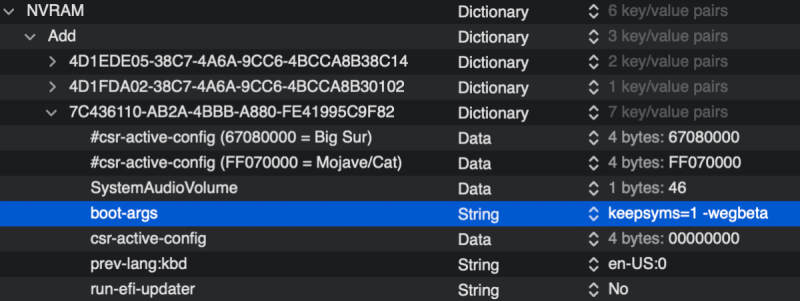

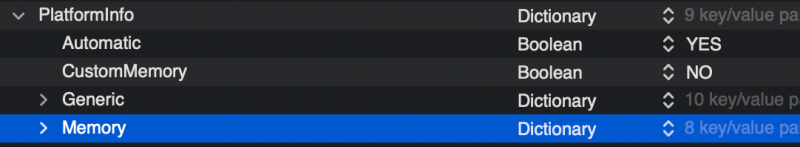

EDIT to include screen shots:



-- Further updated Plist with MMIO / Patches / DSDTs from Rox67er as well as BIOS

-- Added back in DevProps for GPU

-- Added RyzenCPUPower, SMCAMDProcessor, and AH_USB-Map found in Rox67er's Kexts.

--> This update fixed Audio ports which weren't working properly prior, couldn't detect microphone in front case panel







1st is the latest, 2nd was the original Bare Metal, 3rd is Proxintosh



Oddly enough, Single Thread performance is down, whereas MT is up on the CPU side.





On the Compute side, Metal is way down. (1st 3 results are the latest Bare Metal)





Though honestly, the fact that I can use all the USB ports and BT is worth the trade off.

Edited April 13, 2021 by tsongz
Update with Screenshots

[tsongz]

EDIT: Figured it out. It was being caused by having my Intel NVME drive that wasn't APFS formatted (Proxmox files) trying to be loaded - which I finally guessed from "@filesystems.msdosfs" being the last started kext to load. I removed the NVME drive from the motherboard and it works normally now.



One issue I'm running into that I'm not able to figure out and isolate that wasn't present in Proxintosh, is this one Kernel Panic when trying to launch Blizzard Games (Heroes, SC2). I've tried dozens of different things, but haven't been able to figure it out.



The behavior is whenever the game is launched, it loads for a bit, then completely bricks (requiring hard restart/shut down).





Config attached and Kernel Panic Log below:

Spoiler



Panic(CPU 24, time 812901390954): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0
RAX: 0xffffff876302baf8, RBX: 0xffffff8762394e58, RCX: 0x00000000000003aa, RDX: 0x000002e000000000
RSP: 0xffffffa27efe3dd0, RBP: 0xffffffa27efe3e10, RSI: 0xffffff87661d4000, RDI: 0xffffff8762394e58
R8:  0xffffff800adc4240, R9:  0x00000000000052d3, R10: 0x0000000000000000, R11: 0x0000000000000000
R12: 0xffffff87661d4000, R13: 0x0000000000000000, R14: 0x000002e16ce9a975, R15: 0xffffff876302baf8
RFL: 0x0000000000000017, RIP: 0xffffff800aca0f07, CS:  0x0000000000000008, SS:  0x0000000000000010
Backtrace (CPU 24), Frame : Return Address
0xffffffa2158dcf80 : 0xffffff800adc467b mach_kernel : _interrupt + 0x12b
0xffffffa2158dcfd0 : 0xffffff800ac32bdd mach_kernel : _hndl_allintrs + 0x11d
0xffffffa27efe3e10 : 0xffffff800aca1024 mach_kernel : _lck_attr_free + 0x204
0xffffffa27efe3e40 : 0xffffff800ace2720 mach_kernel : _waitq_lock + 0x20
0xffffffa27efe3e60 : 0xffffff800acbd52b mach_kernel : _semaphore_wait + 0x5b
0xffffffa27efe3ec0 : 0xffffff800acbd79d mach_kernel : _semaphore_wait_trap + 0x3d
0xffffffa27efe3ef0 : 0xffffff800ada91fd mach_kernel : _mach_call_munger64 + 0x29d
0xffffffa27efe3fa0 : 0xffffff800ac33216 mach_kernel : _hndl_mach_scall64 + 0x16

Process name corresponding to current thread: Heroes
Boot args: -v keepsyms=1 debug=0x100

Mac OS version:
20E5229a

Kernel version:
Darwin Kernel Version 20.4.0: Thu Mar 25 07:05:22 PDT 2021; root:xnu-7195.101.1~26/RELEASE_X86_64
Kernel UUID: 762DC741-B83E-3A82-847D-5AC153AC3E4A
KernelCache slide: 0x000000000aa00000
KernelCache base:  0xffffff800ac00000
Kernel slide:      0x000000000aa10000
Kernel text base:  0xffffff800ac10000
__HIB  text base: 0xffffff800ab00000
System model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: NO (0xe00002bc)
Hibernation exit count: 0

System uptime in nanoseconds: 812901578727
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x000000bd44b5ba5d
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x00000024aca7dd00 0x0000000000000000
last started kext at 25516855985: @filesystems.msdosfs	1.10 (addr 0xffffff7fa4c19000, size 57344)
last stopped kext at 319680967784: >IOPlatformPluginLegacy	1.0.0 (addr 0xffffff7fa4304000, size 36864)
loaded kexts:
com.zxystd.!I!BFirmware	1.1.2
com.insanelymac.LucyRTL8125Ethernet	1.0.0d6
com.zxystd.itlwm	1.2.0
wtf.spinach.SMCAMDProcessor	1
as.vit9696.VirtualSMC	1.2.2
wtf.spinach.AMDRyzenCPUPowerManagement	0.6.5
org.acidanthera.NVMeFix	1.0.6
as.acidanthera.BrcmFirmwareStore	2.5.8
as.lvs1974.AirportBrcmFixup	2.1.3
as.vit9696.!AALC	1.5.9
as.vit9696.WhateverGreen	1.4.9
as.vit9696.Lilu	1.5.2
@filesystems.msdosfs	1.10
>AudioAUUC	1.70
>!AUpstreamUserClient	3.6.8
>!AMCCSControl	1.14
@kext.AMDFramebuffer	4.0.4
>X86PlatformShim	1.0.0
>AGPM	122
>!APlatformEnabler	2.7.0d0
@filesystems.autofs	3.0
@fileutil	20.036.15
@kext.AMDRadeonX5000	4.0.4
@kext.AMDRadeonServiceManager	4.0.4
@AGDCPluginDisplayMetrics	6.2.9
>pmtelemetry	1
|IOUserEthernet	1.0.1
>usb.!UUserHCI	1
|IO!BSerialManager	8.0.4d18
@Dont_Steal_Mac_OS_X	7.0.0
>!AHV	1
>!ADiskImages2	1
>!AGFXHDA	100.1.433
>!A!IMCEReporter	115
>!A!ISlowAdaptiveClocking	4.0.0
@kext.AMD10000!C	4.0.4
|IO!BUSBDFU	8.0.4d18
|SCSITaskUserClient	436.100.4
@private.KextAudit	1.0
@filesystems.apfs	1677.100.114
>!AAHCIPort	346.100.2
>AirPort.BrcmNIC	1400.1.1
>!AFileSystemDriver	3.0.1
@filesystems.tmpfs	1
@filesystems.hfs.kext	556.100.11
@BootCache	40
@!AFSCompression.!AFSCompressionTypeZlib	1.0.0
@!AFSCompression.!AFSCompressionTypeDataless	1.0.0d1
>!AHPET	1.8
>!AACPIButtons	6.1
>!ARTC	2.0
>!ASMBIOS	2.1
>!AAPIC	1.7
>!A!ICPUPowerManagementClient	222.0.0
@!ASystemPolicy	2.0.0
@nke.applicationfirewall	311
|IOKitRegistryCompatibility	1
|EndpointSecurity	1
>!A!ICPUPowerManagement	222.0.0
>!UAudio	405.39
|IOAVB!F	940.4
@plugin.IOgPTPPlugin	980.4
|IOEthernetAVB!C	1.1.0
>!ASMBus!C	1.0.18d1
|IOSMBus!F	1.1
@kext.triggers	1.0
@kext.AMDRadeonX5000HWLibs	1.0
|IOAccelerator!F2	442.9
@kext.AMDRadeonX5000HWServices	4.0.4
|IOSerial!F	11
@!AGPUWrangler	6.2.9
|IONDRVSupport	585.1
|IOAudio!F	300.6.1
@vecLib.kext	1.2.0
|IOSlowAdaptiveClocking!F	1.0.0
@kext.AMDSupport	4.0.4
@!AGraphicsDeviceControl	6.2.9
|IOGraphics!F	585.1
>X86PlatformPlugin	1.0.0
>IOPlatformPlugin!F	6.0.0d8
>usb.!UHub	1.2
>usb.IOUSBHostHIDDevice	1.2
|Broadcom!BHost!CUSBTransport	8.0.4d18
|IO!BHost!CUSBTransport	8.0.4d18
|IO!BHost!CTransport	8.0.4d18
>usb.cdc	5.0.0
>usb.networking	5.0.0
>usb.!UHostCompositeDevice	1.2
|IOAHCIBlock!S	332
>!AXsanScheme	3
|IOAHCI!F	294.100.1
>!AEthernetAquantiaAqtion	1.0.64
|IO80211!F	1200.12.2b1
>corecapture	1.0.4
|IONVMe!F	2.1.0
>usb.!UXHCIPCI	1.2
>usb.!UXHCI	1.2
>!ABSDKextStarter	3
|IOSurface	290.7
|IOSkywalk!F	1
>mDNSOffloadUserClient	1.0.1b8
@filesystems.hfs.encodings.kext	1
>usb.!UHostPacketFilter	1.0
|IOUSB!F	900.4.2
>!AEFINVRAM	2.1
>!AEFIRuntime	2.1
|IOHID!F	2.0.0
$!AImage4	3.0.0
|IOTimeSync!F	980.4
|IONetworking!F	3.4
>DiskImages	493.0.0
|IO!B!F	8.0.4d18
|IOReport!F	47
|IO!BPacketLogger	8.0.4d18
$quarantine	4
$sandbox	300.0
@kext.!AMatch	1.0.0d1
|CoreAnalytics!F	1
>!ASSE	1.0
>!AKeyStore	2
>!UTDM	511.100.9
|IOUSBMass!SDriver	184.101.1
|IOSCSIBlockCommandsDevice	436.100.4
|IO!S!F	2.1
|IOSCSIArchitectureModel!F	436.100.4
>!AMobileFileIntegrity	1.0.5
@kext.CoreTrust	1
>!AFDEKeyStore	28.30
>!AEffaceable!S	1.0
>!ACredentialManager	1.0
>KernelRelayHost	1
|IOUSBHost!F	1.2
>!UHostMergeProperties	1.2
>usb.!UCommon	1.0
>!ABusPower!C	1.0
>!ASEPManager	1.0.1
>IOSlaveProcessor	1
>!AACPIPlatform	6.1
>!ASMC	3.1.9
|IOPCI!F	2.9
|IOACPI!F	1.4
>watchdog	1
@kec.pthread	1
@kec.corecrypto	11.1
@kec.Libm	1
panic(cpu 32 caller 0xffffff800ad9e081): "IPI timeout, unresponsive CPU bitmap: 0x1000000, NMIPI acks: 0x0, now: 0x1, deadline: 812901388638, pre-NMIPI time: 0xbd44b2d236, current: 0xbd44b6075a, global: 0"@/System/Volumes/Data/SWE/macOS/BuildRoots/a9f5d55ca2/Library/Caches/com.apple.xbs/Sources/xnu/xnu-7195.101.1/osfmk/x86_64/pmap.c:2892
Backtrace (CPU 32), Frame : Return Address
0xffffffa27f01b840 : 0xffffff800ac8e02d mach_kernel : _handle_debugger_trap + 0x3fd
0xffffffa27f01b890 : 0xffffff800add48e3 mach_kernel : _kdp_i386_trap + 0x143
0xffffffa27f01b8d0 : 0xffffff800adc4eda mach_kernel : _kernel_trap + 0x55a
0xffffffa27f01b920 : 0xffffff800ac32a2f mach_kernel : _return_from_trap + 0xff
0xffffffa27f01b940 : 0xffffff800ac8d84d mach_kernel : _DebuggerTrapWithState + 0xad
0xffffffa27f01ba60 : 0xffffff800ac8db43 mach_kernel : _panic_trap_to_debugger + 0x273
0xffffffa27f01bad0 : 0xffffff800b49d68a mach_kernel : _panic + 0x54
0xffffffa27f01bb40 : 0xffffff800ad9e081 mach_kernel : _pmap_flush_tlbs + 0x7d1
0xffffffa27f01bc00 : 0xffffff800ada40cc mach_kernel : _pmap_remove_range + 0x37c
0xffffffa27f01bce0 : 0xffffff800ada4eb6 mach_kernel : _pmap_remove_options + 0x1f6
0xffffffa27f01bd40 : 0xffffff800ad33145 mach_kernel : _vm_map_remove + 0x725
0xffffffa27f01be90 : 0xffffff800ad32a93 mach_kernel : _vm_map_remove + 0x73
0xffffffa27f01bec0 : 0xffffff800ac7edde mach_kernel : __kernelrpc_mach_vm_deallocate_trap + 0x7e
0xffffffa27f01bef0 : 0xffffff800ada91fd mach_kernel : _mach_call_munger64 + 0x29d
0xffffffa27f01bfa0 : 0xffffff800ac33216 mach_kernel : _hndl_mach_scall64 + 0x16

Process name corresponding to current thread: Heroes









I've found nothing on Blizz forums, and have also tried with my other installs (Catalina) and the issue is the same, so I'm not thinking it's the OS.



Anyone else run into something like this?

config.plist.zip

Edited April 13, 2021 by tsongz
Update with solution

[iGPU]

10 hours ago, tsongz said:

EDIT: Figured it out. It was being caused by having my Intel NVME drive that wasn't APFS formatted (Proxmox files) trying to be loaded - which I finally guessed from "@filesystems.msdosfs" being the last started kext to load. I removed the NVME drive from the motherboard and it works normally now.



One issue I'm running into that I'm not able to figure out and isolate that wasn't present in Proxintosh, is this one Kernel Panic when trying to launch Blizzard Games (Heroes, SC2). I've tried dozens of different things, but haven't been able to figure it out.



The behavior is whenever the game is launched, it loads for a bit, then completely bricks (requiring hard restart/shut down).





Config attached and Kernel Panic Log below:

  Reveal hidden contents



Panic(CPU 24, time 812901390954): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0
RAX: 0xffffff876302baf8, RBX: 0xffffff8762394e58, RCX: 0x00000000000003aa, RDX: 0x000002e000000000
RSP: 0xffffffa27efe3dd0, RBP: 0xffffffa27efe3e10, RSI: 0xffffff87661d4000, RDI: 0xffffff8762394e58
R8:  0xffffff800adc4240, R9:  0x00000000000052d3, R10: 0x0000000000000000, R11: 0x0000000000000000
R12: 0xffffff87661d4000, R13: 0x0000000000000000, R14: 0x000002e16ce9a975, R15: 0xffffff876302baf8
RFL: 0x0000000000000017, RIP: 0xffffff800aca0f07, CS:  0x0000000000000008, SS:  0x0000000000000010
Backtrace (CPU 24), Frame : Return Address
0xffffffa2158dcf80 : 0xffffff800adc467b mach_kernel : _interrupt + 0x12b
0xffffffa2158dcfd0 : 0xffffff800ac32bdd mach_kernel : _hndl_allintrs + 0x11d
0xffffffa27efe3e10 : 0xffffff800aca1024 mach_kernel : _lck_attr_free + 0x204
0xffffffa27efe3e40 : 0xffffff800ace2720 mach_kernel : _waitq_lock + 0x20
0xffffffa27efe3e60 : 0xffffff800acbd52b mach_kernel : _semaphore_wait + 0x5b
0xffffffa27efe3ec0 : 0xffffff800acbd79d mach_kernel : _semaphore_wait_trap + 0x3d
0xffffffa27efe3ef0 : 0xffffff800ada91fd mach_kernel : _mach_call_munger64 + 0x29d
0xffffffa27efe3fa0 : 0xffffff800ac33216 mach_kernel : _hndl_mach_scall64 + 0x16

Process name corresponding to current thread: Heroes
Boot args: -v keepsyms=1 debug=0x100

Mac OS version:
20E5229a

Kernel version:
Darwin Kernel Version 20.4.0: Thu Mar 25 07:05:22 PDT 2021; root:xnu-7195.101.1~26/RELEASE_X86_64
Kernel UUID: 762DC741-B83E-3A82-847D-5AC153AC3E4A
KernelCache slide: 0x000000000aa00000
KernelCache base:  0xffffff800ac00000
Kernel slide:      0x000000000aa10000
Kernel text base:  0xffffff800ac10000
__HIB  text base: 0xffffff800ab00000
System model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: NO (0xe00002bc)
Hibernation exit count: 0

System uptime in nanoseconds: 812901578727
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x000000bd44b5ba5d
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x00000024aca7dd00 0x0000000000000000
last started kext at 25516855985: @filesystems.msdosfs	1.10 (addr 0xffffff7fa4c19000, size 57344)
last stopped kext at 319680967784: >IOPlatformPluginLegacy	1.0.0 (addr 0xffffff7fa4304000, size 36864)
loaded kexts:
com.zxystd.!I!BFirmware	1.1.2
com.insanelymac.LucyRTL8125Ethernet	1.0.0d6
com.zxystd.itlwm	1.2.0
wtf.spinach.SMCAMDProcessor	1
as.vit9696.VirtualSMC	1.2.2
wtf.spinach.AMDRyzenCPUPowerManagement	0.6.5
org.acidanthera.NVMeFix	1.0.6
as.acidanthera.BrcmFirmwareStore	2.5.8
as.lvs1974.AirportBrcmFixup	2.1.3
as.vit9696.!AALC	1.5.9
as.vit9696.WhateverGreen	1.4.9
as.vit9696.Lilu	1.5.2
@filesystems.msdosfs	1.10
>AudioAUUC	1.70
>!AUpstreamUserClient	3.6.8
>!AMCCSControl	1.14
@kext.AMDFramebuffer	4.0.4
>X86PlatformShim	1.0.0
>AGPM	122
>!APlatformEnabler	2.7.0d0
@filesystems.autofs	3.0
@fileutil	20.036.15
@kext.AMDRadeonX5000	4.0.4
@kext.AMDRadeonServiceManager	4.0.4
@AGDCPluginDisplayMetrics	6.2.9
>pmtelemetry	1
|IOUserEthernet	1.0.1
>usb.!UUserHCI	1
|IO!BSerialManager	8.0.4d18
@Dont_Steal_Mac_OS_X	7.0.0
>!AHV	1
>!ADiskImages2	1
>!AGFXHDA	100.1.433
>!A!IMCEReporter	115
>!A!ISlowAdaptiveClocking	4.0.0
@kext.AMD10000!C	4.0.4
|IO!BUSBDFU	8.0.4d18
|SCSITaskUserClient	436.100.4
@private.KextAudit	1.0
@filesystems.apfs	1677.100.114
>!AAHCIPort	346.100.2
>AirPort.BrcmNIC	1400.1.1
>!AFileSystemDriver	3.0.1
@filesystems.tmpfs	1
@filesystems.hfs.kext	556.100.11
@BootCache	40
@!AFSCompression.!AFSCompressionTypeZlib	1.0.0
@!AFSCompression.!AFSCompressionTypeDataless	1.0.0d1
>!AHPET	1.8
>!AACPIButtons	6.1
>!ARTC	2.0
>!ASMBIOS	2.1
>!AAPIC	1.7
>!A!ICPUPowerManagementClient	222.0.0
@!ASystemPolicy	2.0.0
@nke.applicationfirewall	311
|IOKitRegistryCompatibility	1
|EndpointSecurity	1
>!A!ICPUPowerManagement	222.0.0
>!UAudio	405.39
|IOAVB!F	940.4
@plugin.IOgPTPPlugin	980.4
|IOEthernetAVB!C	1.1.0
>!ASMBus!C	1.0.18d1
|IOSMBus!F	1.1
@kext.triggers	1.0
@kext.AMDRadeonX5000HWLibs	1.0
|IOAccelerator!F2	442.9
@kext.AMDRadeonX5000HWServices	4.0.4
|IOSerial!F	11
@!AGPUWrangler	6.2.9
|IONDRVSupport	585.1
|IOAudio!F	300.6.1
@vecLib.kext	1.2.0
|IOSlowAdaptiveClocking!F	1.0.0
@kext.AMDSupport	4.0.4
@!AGraphicsDeviceControl	6.2.9
|IOGraphics!F	585.1
>X86PlatformPlugin	1.0.0
>IOPlatformPlugin!F	6.0.0d8
>usb.!UHub	1.2
>usb.IOUSBHostHIDDevice	1.2
|Broadcom!BHost!CUSBTransport	8.0.4d18
|IO!BHost!CUSBTransport	8.0.4d18
|IO!BHost!CTransport	8.0.4d18
>usb.cdc	5.0.0
>usb.networking	5.0.0
>usb.!UHostCompositeDevice	1.2
|IOAHCIBlock!S	332
>!AXsanScheme	3
|IOAHCI!F	294.100.1
>!AEthernetAquantiaAqtion	1.0.64
|IO80211!F	1200.12.2b1
>corecapture	1.0.4
|IONVMe!F	2.1.0
>usb.!UXHCIPCI	1.2
>usb.!UXHCI	1.2
>!ABSDKextStarter	3
|IOSurface	290.7
|IOSkywalk!F	1
>mDNSOffloadUserClient	1.0.1b8
@filesystems.hfs.encodings.kext	1
>usb.!UHostPacketFilter	1.0
|IOUSB!F	900.4.2
>!AEFINVRAM	2.1
>!AEFIRuntime	2.1
|IOHID!F	2.0.0
$!AImage4	3.0.0
|IOTimeSync!F	980.4
|IONetworking!F	3.4
>DiskImages	493.0.0
|IO!B!F	8.0.4d18
|IOReport!F	47
|IO!BPacketLogger	8.0.4d18
$quarantine	4
$sandbox	300.0
@kext.!AMatch	1.0.0d1
|CoreAnalytics!F	1
>!ASSE	1.0
>!AKeyStore	2
>!UTDM	511.100.9
|IOUSBMass!SDriver	184.101.1
|IOSCSIBlockCommandsDevice	436.100.4
|IO!S!F	2.1
|IOSCSIArchitectureModel!F	436.100.4
>!AMobileFileIntegrity	1.0.5
@kext.CoreTrust	1
>!AFDEKeyStore	28.30
>!AEffaceable!S	1.0
>!ACredentialManager	1.0
>KernelRelayHost	1
|IOUSBHost!F	1.2
>!UHostMergeProperties	1.2
>usb.!UCommon	1.0
>!ABusPower!C	1.0
>!ASEPManager	1.0.1
>IOSlaveProcessor	1
>!AACPIPlatform	6.1
>!ASMC	3.1.9
|IOPCI!F	2.9
|IOACPI!F	1.4
>watchdog	1
@kec.pthread	1
@kec.corecrypto	11.1
@kec.Libm	1
panic(cpu 32 caller 0xffffff800ad9e081): "IPI timeout, unresponsive CPU bitmap: 0x1000000, NMIPI acks: 0x0, now: 0x1, deadline: 812901388638, pre-NMIPI time: 0xbd44b2d236, current: 0xbd44b6075a, global: 0"@/System/Volumes/Data/SWE/macOS/BuildRoots/a9f5d55ca2/Library/Caches/com.apple.xbs/Sources/xnu/xnu-7195.101.1/osfmk/x86_64/pmap.c:2892
Backtrace (CPU 32), Frame : Return Address
0xffffffa27f01b840 : 0xffffff800ac8e02d mach_kernel : _handle_debugger_trap + 0x3fd
0xffffffa27f01b890 : 0xffffff800add48e3 mach_kernel : _kdp_i386_trap + 0x143
0xffffffa27f01b8d0 : 0xffffff800adc4eda mach_kernel : _kernel_trap + 0x55a
0xffffffa27f01b920 : 0xffffff800ac32a2f mach_kernel : _return_from_trap + 0xff
0xffffffa27f01b940 : 0xffffff800ac8d84d mach_kernel : _DebuggerTrapWithState + 0xad
0xffffffa27f01ba60 : 0xffffff800ac8db43 mach_kernel : _panic_trap_to_debugger + 0x273
0xffffffa27f01bad0 : 0xffffff800b49d68a mach_kernel : _panic + 0x54
0xffffffa27f01bb40 : 0xffffff800ad9e081 mach_kernel : _pmap_flush_tlbs + 0x7d1
0xffffffa27f01bc00 : 0xffffff800ada40cc mach_kernel : _pmap_remove_range + 0x37c
0xffffffa27f01bce0 : 0xffffff800ada4eb6 mach_kernel : _pmap_remove_options + 0x1f6
0xffffffa27f01bd40 : 0xffffff800ad33145 mach_kernel : _vm_map_remove + 0x725
0xffffffa27f01be90 : 0xffffff800ad32a93 mach_kernel : _vm_map_remove + 0x73
0xffffffa27f01bec0 : 0xffffff800ac7edde mach_kernel : __kernelrpc_mach_vm_deallocate_trap + 0x7e
0xffffffa27f01bef0 : 0xffffff800ada91fd mach_kernel : _mach_call_munger64 + 0x29d
0xffffffa27f01bfa0 : 0xffffff800ac33216 mach_kernel : _hndl_mach_scall64 + 0x16

Process name corresponding to current thread: Heroes









I've found nothing on Blizz forums, and have also tried with my other installs (Catalina) and the issue is the same, so I'm not thinking it's the OS.



Anyone else run into something like this?



I haven't seen exactly this issue, but did have freezing with some GPUs and WEG. You might try the following (keep a backup of your current config.plist file):



1. Comment out both DeviceProperties/Add (use "#" in front of each entry).

2. Delete the entire "Memory" item under PlatformInfo (it's not needed).

3. Add "-wegbeta" to boot-args section (I only use: keepsyms=1 -wegbeta)

4. Comment out your Kexts/Add section to save it and use the one I edited from your config file. I don't declare any USB port kexts; it really isn't needed for the TRX40 mobo, and I disabled the AMDRyzen kexts which may be interfering, and removed some extra BT kexts.



Spoiler











Hope this helps.



kexts-add.plist.zip

Edited April 13, 2021 by iGPU

[fabiosun]



[valmeida]

Im having a weird issue were my  machine when  is idle after 5 minutes it freezes and reboots.  I have no screen saver , turn off display to never and prevent computer from sleeping checked . Does anyone have any ideas what it could be ?

[fabiosun]

Check if in your config you have dummypowermanagement on or off and try to switch it on if disabled or viceversa

@valmeida

[iGPU]

@valmeida,



You've listed an "AMD Series VII"; I'm assuming this means a Radeon VII, same as I'm using. The 5700 and VIIs have had issues with WEG, even on the Intel side of things. Such problems led me to add a boot argument: "-wegbeta". Try adding this to your "boot-args" section to see if this stops the freezes.



Another test is simply to disable WEG and see if this stops the freezes.

[Renato]

On 4/5/2021 at 11:16 PM, Ploddles said:





I'd take the 3080 out of the system until you get macOS installed and running. You can add it back later and disable it either with an SSDT to disable the slot it is in or in the config with the new whatevergreen.kext which enables disabling a GPU.

How do I disable a slot? (in the easiest way possible) IN am not sure how to configure the whatevergreen kext for doing that, but that seems the easiest way.

[Ploddles]

On 4/18/2021 at 7:52 AM, Renato said:

How do I disable a slot? (in the easiest way possible) IN am not sure how to configure the whatevergreen kext for doing that, but that seems the easiest way.



Have a look HERE (if I'm allowed to point to another forum). You could try one of those as is. You may need to modify it slightly as they are for another MB but hopefully it may work without any change.

[Renato]

58 minutes ago, Ploddles said:



Have a look HERE (if I'm allowed to point to another forum). You could try one of those as is. You may need to modify it slightly as they are for another MB but hopefully it may work without any change.

Thank you for the tip, what is left to be seen is whether the SSDT simply disables the slot 1 or whether it is AMD 6800 specific.  Moreover, is there a reference on how one creates / modifies SSDTs?

[Jaidy]

@Ploddles Have you had a chance to try the F4q BIOS?

[Renato]

I did, the system stopped booting with 9a error code, had to disassemble everything and reinstall F1, I could not even go straight to 4L. all this just to find out the 4p bios has been removed from the gigabyte website now!!!

[Ploddles]

8 hours ago, Jaidy said:

@Ploddles Have you had a chance to try the F4q BIOS?



Still using F4p. F4q will probably need the MIMOWhitelist to be updated. I still don't have a replacement for my RX580 and the RX6900XT is unbootable for me at the moment. I could install an older version of BS, or Catalina, but can't be bothered for the time being. If support doesn't come in the next beta (11.4 beta 1) then I'll bite the bullet and install BS 11.2 and stay with that for a while. I'm just using Windowz at the moment with the 6900.





@fabiosun My latest OC 0.6.8 EFI, which is set up for F4p MIMOWhitelist, can be downloaded from HERE.

[Ploddles]

Big Sur 11.3 has finally gone to Release Candidate state. Let's hope this is the final one for .3 and we go to 11.4 beta 1 in the next few days. If there is no support for the 6000 series cards at that stage then I doubt we will ever see it in Big Sur.

[Jaidy]

3 hours ago, Ploddles said:

Big Sur 11.3 has finally gone to Release Candidate state. Let's hope this is the final one for .3 and we go to 11.4 beta 1 in the next few days. If there is no support for the 6000 series cards at that stage then I doubt we will ever see it in Big Sur.

I would trade mine for a 5700xt and some cash

[fabiosun]



@Jaidywait from first two beta 11.4.x

then you could trade your GPU 🙂



[fabiosun]

[Ploddles]

9 hours ago, Jaidy said:

I would trade mine for a 5700xt and some cash

I’ve put my 6900 to good use whilst I wait. Since Xmas it has earned me about £450 mining so it is over 1/2 way paid for itself.


I’d rather have it working in macOS but it is fine in Windows and isn’t just sat there doing nothing but being a paperweight.

[Jaidy]

3 hours ago, fabiosun said:



@Jaidywait from first two beta 11.4.x

then you could trade your GPU 🙂



That is exactly the plan, though I was thinking waiting till 11.4.3

1 hour ago, Ploddles said:

I’ve put my 6900 to good use whilst I wait. Since Xmas it has earned me about £450 mining so it is over 1/2 way paid for itself.


I’d rather have it working in macOS but it is fine in Windows and isn’t just sat there doing nothing but being a paperweight.

that is a good use for your card!

[Jaidy]

by the way, has anyone here tried the TR Pro? The ability to run up to 2TB of RAM is quite sweet there.

[fabiosun]

@all

no mining discussion here Please!

thank you for understanding

[valmeida]

On 4/15/2021 at 11:22 AM, iGPU said:

@valmeida,



You've listed an "AMD Series VII"; I'm assuming this means a Radeon VII, same as I'm using. The 5700 and VIIs have had issues with WEG, even on the Intel side of things. Such problems led me to add a boot argument: "-wegbeta". Try adding this to your "boot-args" section to see if this stops the freezes.



Another test is simply to disable WEG and see if this stops the freezes.

I sold the Redon 7 I pull out the Vega 64. It seems to only happen when the monitors fo into sleep mode . I will test it today to confirm ,

[valmeida]

11.4 Beta 1  is out .
