[Discussion] - TRX40 Bare Metal - Vanilla Patches

fabiosun

By fabiosun
in General

 Share

Recommended Posts

Recommended

Posted by fabiosun,

Ok..good news playing with MMIO and with opencore 061 i have solved reboot/shutdown problem... now it is working as it must work

MMIO rules shutdown and reboot previous problems

Recommended by fabiosun

  • Like

2 reactions

Go to this post
gosi Member

gosi

Posted
Posted
17 minutes ago, 23d1 said:

Build from source using the GitHub repo.

That works, thanks for the tipp!

1 minute ago, Arrakis said:

@gosi

Yes, it works great.

If you don't have wifi at the first connection.

Disable the Wifi port in network preferences and apply. Then reactivate the port and choose your network again.

ah so only wired is a problem atm, I see.

What would be the steps to move to Monteray? Upgrade OpenCore to 0.7.5 and then it shall work?

Link to comment
Share on other sites
Arrakis Senior Member

Arrakis

Posted
Posted

@gosi

With OpenCore 0.7.4 will suffice. OpenCore 0.7.5 is still in development

There are three kexts which requires the version for Monterey

AirportItlwm-Mont.kext, BlueToolFixup.kext, IntelBluetoothFirmware.kext and remove the IntelBluetoothInjector.kext otherwise it will conflict with the BlueToolFixup.kext

  • Like 1
Link to comment
Share on other sites
gosi Member

gosi

Posted
Posted
6 minutes ago, Arrakis said:

@gosi

With OpenCore 0.7.4 will suffice. OpenCore 0.7.5 is still in development

There are three kexts which requires the version for Monterey

AirportItlwm-Mont.kext, BlueToolFixup.kext, IntelBluetoothFirmware.kext and remove the IntelBluetoothInjector.kext otherwise it will conflict with the BlueToolFixup.kext

Thanks again 🙂

And should I just run the upgrade package, I remember you guys writing about disable secure boot j120 or something so it would work...

Link to comment
Share on other sites
23d1 Member

23d1

Posted
Posted (edited)
20 hours ago, fabiosun said:

@23d1we talk about it extensively also in this thread

a common solution is to use latest OC with securebootmodel set to Default

for many of us works in this way

Yep, read up on the posts. Strangely, I cannot get into macOS if I set the SecureBootModel to anything but disabled now. Very odd.

So no way to upgrade to RC2.

Edited by 23d1
Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted

@23d1

i use latest opencore 075

sip enabled/disabled

securebootmodel Default

reset then NVRAM

if it is not working yet and you are in developer seed catalog

exit and reenter from this catalog (enroll)

monterey is not in public catalog for now

if it is not working again

try to use RestricEvents.kext



Link to comment
Share on other sites
gosi Member

gosi

Posted
Posted
Just now, Arrakis said:

@gosi below

EFI OpenCore 0.7.4 Monterey Gigabyte Trx40 Rev1.1 .zip 25.21 MB · 0 downloads

Thanks 🙂

I tried to update to OpenCore 0.7.4 yesterday still with Big Sur and the system didnt boot anymore. I downloaded the new package of OpenCore, put in the kext files from the working one and the Config.plist. That is how its supposed to work?

Link to comment
Share on other sites
valmeida Senior Member

valmeida

Posted
Posted

@Arrakis I made the recommended  changes thank you. I have a couple of questions

1. what sample config do you use to compare is the generic one that gets downloaded or one specific  for AMD TRX40?

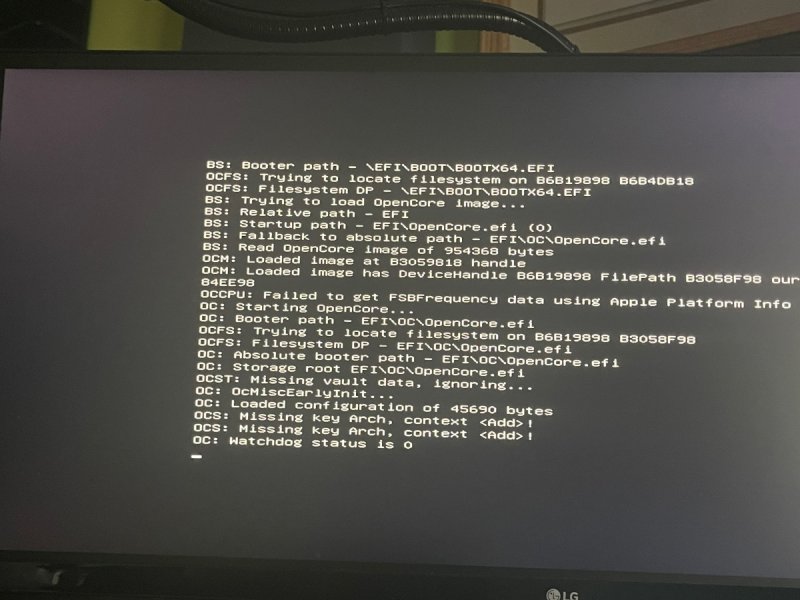

2. i still get some errors when open core loads before I get the screen which drive to boot from   BIG SURE MONTERAY etc

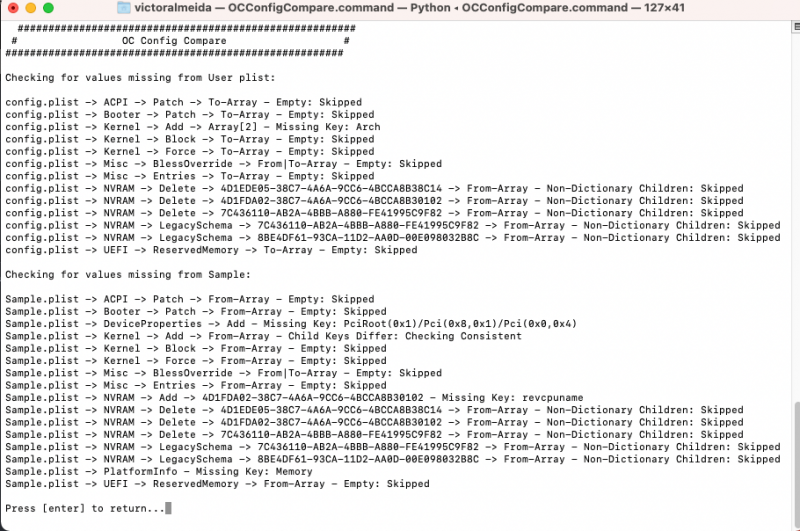

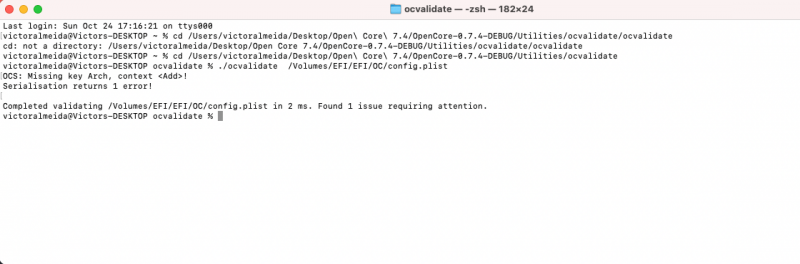

3. When running OC validation I still get an error missing context in serialization.



1289330719_ScreenShot2021-10-24at5_22_55PM.thumb.png.7b47fa5c34eb482ffded48a3558cc455.pngconfig.plist.zip``

Screen Shot 2021-10-24 at 5.23.58 PM.png


Link to comment
Share on other sites
valmeida Senior Member

valmeida

Posted
Posted
8 hours ago, Arrakis said:

@valmeida

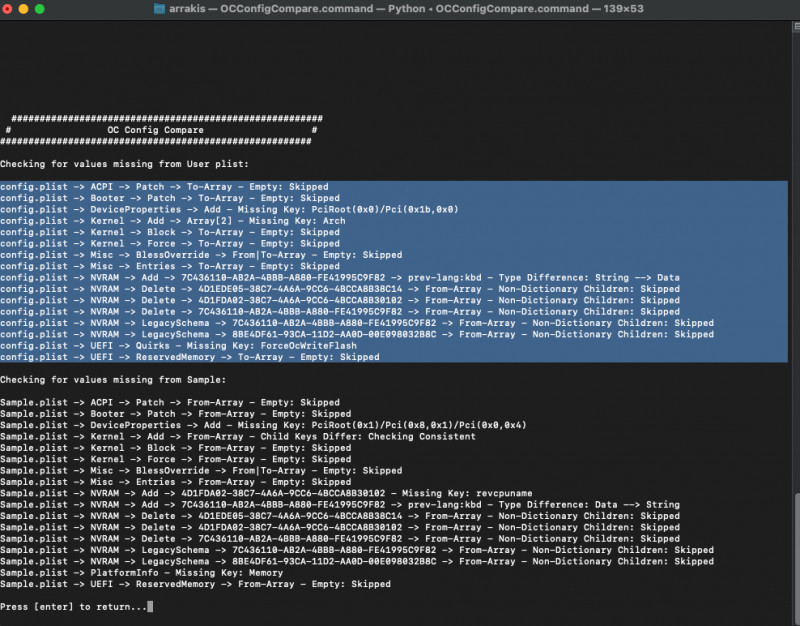

I don't know what happened, I tried again with a newer version of OCConfigCompare and I find the same result as you.

I am using the sample.plist delivered with the OpenCore 0.7.4 version.

There is no example specific to the TRx40.



1023993868_Capturedecran2021-10-25a12_15_38.thumb.png.2fef919da21b2865ca583e40ae3313d1.png

Im going to try to upgrade to 7.5 to see what happens.



Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted
On 10/24/2021 at 7:57 PM, valmeida said:

1320900143_ScreenShot2021-10-24at1_54_13PM.thumb.png.781b7618a707d1eae02e63048ce7bdc4.pngIMG_1281.thumb.JPG.7bd649369f4e755d72e81e16a4772c13.JPG

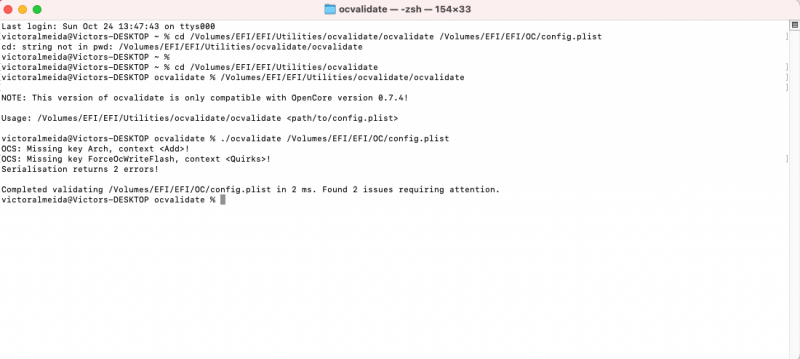

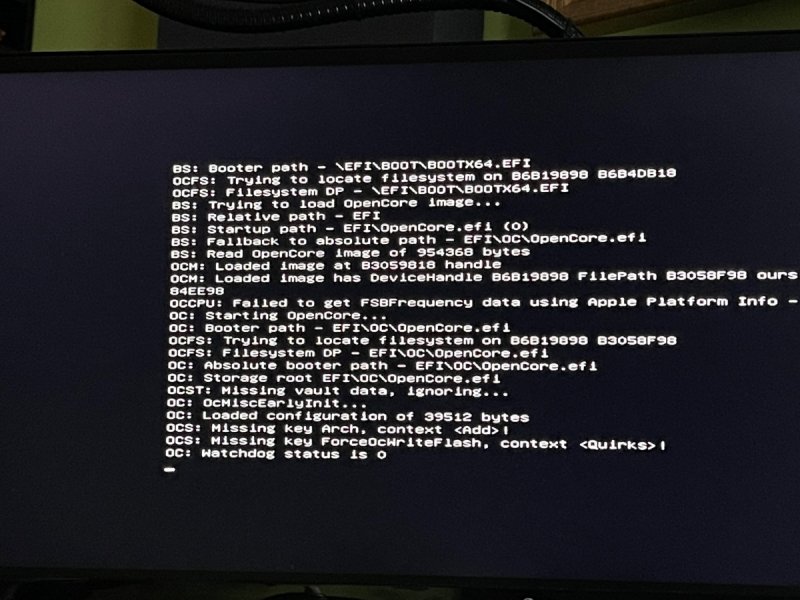

Im trying to update to open core 7.4 during the boot I get this error when running OCValidate I get this response . Any one know  how I can fix this?





EFI.zip 19.64 MB · 3 downloads



I have taken this EFI and updated to 075

add only your kext and try

your SMBIOS and memory settings and all your config settings are there









EFI 3.zip

Link to comment
Share on other sites
valmeida Senior Member

valmeida

Posted
Posted
8 hours ago, fabiosun said:



I have taken this EFI and updated to 075

add only your kext and try

your SMBIOS and memory settings and all your config settings are there









EFI 3.zip 2.57 MB · 2 downloads



It works perfectly thanks you. One thing  I can not get my Aquatina to initialize on Monterey 😞 it works on Big Sur but not  on Monteray .

Link to comment
Share on other sites
  • fabiosun changed the title to [Discussion] - TRX40 Bare Metal - Vanilla Patches
