Mojave on X99 E5-2696v4. Need help!

[kingkong89]

Hi All,







I'm currently on High Sierra 10.13.6, Using Asus X99 Deluxe II with E5-2696V4.



Have been trying to update to Mojave but it gone onto a reboot cycle at the restart....







anyone please...?

[fabiosun]

Hi KingKong nice to see you here



:)



post your actual efi







Ha scritto dopo 5 minuti 50 secondi:



remember also



you have to change some kernel patches if you are using some ;)







Ha scritto dopo 7 minuti 34 secondi:



@sherloks posted a summary in other forum :







here is xcpm patch for 10.14



B9A00100 000F32



B9A00100 0031C0



cpuid_set_info_rdmsr © vit9696







B9E20000 000F30



B9E20000 009090



xcpm_idle_wrmsr © Pike R. Alpha







B9980100 000F32



B9980100 0031C0



xcpm_assert_rdmsr © Sherlocks







BE0B0000 005DE908 000000



BE0B0000 005DC390 909090



xcpm_SMT_scope_msrs © Pike R. Alpha







04723CD0



04XX3CD0 XX



cpuid_set_info © Pike R. Alpha







89D804C4 3C22



89D804XX 3C22 XX



xcpm_bootstrap © Pike R. Alpha







B9990100 000F30



B9990100 009090



xcpm_assert_wrmsr © Sherlocks







BE030000 0031D2E8 91FCFFFF



BE030000 0031D290 90909090



xcpm_core_scope_msrs © Pike R. Alpha







554889E5 41574156 41554154 53504189 D64889FB 4189F54C 8D3D6257



C39089E5 41574156 41554154 53504189 D64889FB 4189F54C 8D3D6257



xcpm_program_msrs © Pike R. Alpha







BE070000 0031D2E8 AEFCFFFF



BE070000 0031D290 90909090



xcpm_pkg_scope_msrs © Pike R. Alpha







BE0B0000 0031D2E8 7EFCFFFF



BE0B0000 0031D290 90909090



xcpm_SMT_scope_msrs © Pike R. Alpha







C1E30848 63D389D0 48C1EA20 B9990100 000F3048 FF05938D 76004883 C4085B5D C30F1F40 00



B800FF00 004863D3 89D048C1 EA20B999 0100000F 3048FF05 938D7600 4883C408 5B5DC390 90



xcpm_assert_perf_max © PMheart







8A0284C0 7442



8A0284C0 EB42



Disable panic kext logging on 10.14 Release kernel © vit9696

[kingkong89]

Do you happen to know the XX value for E5-2696V4?







The XX value in cpuid_set_info © Pike R. Alpha & xcpm_bootstrap © Pike R. Alpha....







Sorry for the trouble...







Added in 10 minutes 44 seconds:



here is the EFI after I incorporated the kernel patch. but without my cpu XX value...

EFI.zip

[fabiosun]

Far away from my pc by now



I will check later



For now take a look here



https://pikeralpha.wordpress.com/2016/07/26/xcpm-for-unsupported-processor/">https://pikeralpha.wordpress.com/2016/0 ... processor/">https://pikeralpha.wordpress.com/2016/07/26/xcpm-for-unsupported-processor/



Also you can find xx in your old patches

[kingkong89]

Oh I forget to mention. My Board's Bios is patched, so MSR 0xE2 register is unlock for OSX Kernel Write.

[fabiosun]

Ciao Kingkong89







your efi is using too many kernel patches and in kext you are using many old kext



I will try to give you a simple config.plist for it but you should also use latest kext and maybe also new drivers64 uefi I think







Ha scritto dopo 8 minuti 30 secondi:



I see also many unusefull ssdt for Nvme and old method to map correctly USB ports



If I don't mind you have an Asus x99 deluxe 2



You can use this guide to map it in new and fast way



https://www.macos86.it/viewtopic.php?f=68&t=702">viewtopic.php?f=68&t=702">https://www.macos86.it/viewtopic.php?f=68&t=702







Ps



if you can put in your signature your hardware :)



Thank you

Archive.zip

[kingkong89]

Thanks Fabio, I will give it a try.

[fabiosun]

emoticon-personaggi_89



remember also for now no Nvidia drivers are available

[kingkong89]

Using the config.plist I can't boot...it stuck at the verbose page. DO I need the SSDT.aml and SSDT-XOSI.aml in the patched folder?

[fabiosun]

Have you used also kext in others and driver64uefi I insert in it?



could you post only clover folder (working one in your system with High Sierra)?



also you should post where system hangs in verbose (take a photo of it)



Thanks







Ha scritto dopo 11 minuti 14 secondi:



I see also now you have in signature a Vega 64 (Nitro+), I think is not there your hang ;)

[kingkong89]

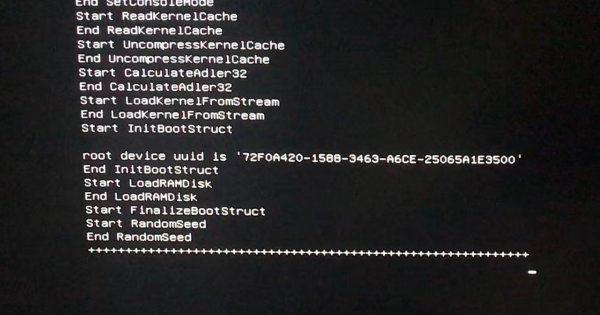

Yes, Kext all used. Attached EFI, working in HS 10.13.6, but when doing update to 10.14







It will keep rebooting from the attached verbose page.......

EFI.zip

[fabiosun]

[kingkong89]

It Worked!!!!!! Thank you very very Much!!! You are my man!!







Needing performance and vector frequency fix. Will explore and report. Thank you very very very much!!!!

[fabiosun]

no kingkong I am happily married :)







please you have to discover correct patches for you..follow this forum because here there is great people and your EFI need a great help and cleaning :)

[kingkong89]

Ha Ha! No worries! I'm a married man as well. Having a wonderful wife and three beautiful kids! Will continue to explore to refine the system.

[fabiosun]

If you want you can delete all ssdt for nvme and study to create a ssdt for usb



it is pretty simple



now I have activated automatic kernel XCPM in clover but you can achieve it also in other ways. with right kernel patches







I have no more your kind of cpu so I am limited in helping (no chance to test) :9



Have a nice Hack :)







Ha scritto dopo 3 minuti 21 secondi:



for vectorfrequency



try to use ImacPro 1.1 smbios



It is working well and it has FV injected by default



Very usefull also for Nvidia Policy problem we have with MacPro 6.1 smbios

[kingkong89]

kernelXCPM must be checked in my config.plist to run Mojave..







My Bios is patched with MSR 0xE2 register unlock, the xcpm is working without patches in kernel patch, only need the performance patch. I'm happy with the system. Only thing is it does not perform as well in mojave as in HS. about 10% slow, check using geekbench.

[fabiosun]

"kingkong89" post_id="15707" time="1538607337" user_id="612">

kernelXCPM must be checked in my config.plist to run Mojave..







My Bios is patched with MSR 0xE2 register unlock, the xcpm is working without patches in kernel patch, only need the performance patch. I'm happy with the system. Only thing is it does not perform as well in mojave as in HS. about 10% slow, check using geekbench.



Yes till you will find exact patches for you



XCPM kernel patches is an automatic way to patch kernel for unsupported Cpu as your XEON



If you remember till High Sierra I have had an identical system to yours



For our system was mandatory to have



1) fakecpuid



2) Brumbaer IOCPIFamily kext patch



3) only reboot fix (piker alpha) (also with/without patched bios



then if you have EIST enabled in bios to have performance you have to use oarksit performance fix







Said this



KernleXCPM allow to boot without fakecpuid and reboot fix (brumbaer instead should be mandatory)



if you have time, searching on clover code in clover repo, you will find exact patch with KernelXCPM flag uses for your cpu and you can decide to use it without that flag in usual way







About 10% is too much maybe you have to refine better your settings cleaning unuseful things but only you can know :)







or ... :)



update @ x299 system



your old Xeon is today a great value and in same case you can also use your ECC unsupported DIMM as I do (they are working well with designare EX and with X299 Sage (not latest bios)

[kingkong89]

thank Fabio!







I' actually a mechanical engineer... I don't know much bait IT and I really a noop with programming. I'm actually struggling to understand get the Hackintosh work in a perfect way... but I really appreciate your help and others who are willing to share how to make a hack work.







BTW do you happen to know the _cpuid_set_info for E52696V4? I think that will help a lot....

[fabiosun]

Ciao KK89







take a look here





comment = "_cpuid_set_info_rdmsr";



// PMheart: attempt to add 10.14 compatibility



if (os_version >= AsciiOSVersionToUint64("10.12") && os_version



- // 10.12 - 10.13



+ // 10.12 - 10.14



STATIC UINT8 find[] = { 0xB9, 0xA0, 0x01, 0x00, 0x00, 0x0F, 0x32 };



STATIC UINT8 repl[] = { 0xB9, 0xA0, 0x01, 0x00, 0x00, 0x31, 0xC0 };



applyKernPatch(kern, find, sizeof(find), repl, comment);



@@ -1065,9 +1066,10 @@



DBG("KernelIvyBridgeXCPM()



return TRUE;



}



-



+



DBG("Searching _xcpm_pkg_scope_msr ...\n");



if (os_version >= AsciiOSVersionToUint64("10.12")) {



+ // 10.12+



patchLocation = 0; // clean out the value just in case



for (i = 0; i



if (kern[i+0] == 0xBE && kern[i+1] == 0x07 && kern[i+2] == 0x00 && kern[i+3] == 0x00 &&



@@ -1096,14 +1098,14 @@



STATIC UINT8 find[] = { 0x83, 0xC3, 0xC4, 0x83, 0xFB, 0x22 };



STATIC UINT8 repl[] = { 0x83, 0xC3, 0xC6, 0x83, 0xFB, 0x22 };



applyKernPatch(kern, find, sizeof(find), repl, comment);



- } else if (os_version >= AsciiOSVersionToUint64("10.12.6") && os_version



- // 10.12.6 - 10.12.x



+ } else if (os_version



+ // 10.12.6



STATIC UINT8 find[] = { 0x8D, 0x43, 0xC4, 0x83, 0xF8, 0x22 };



STATIC UINT8 repl[] = { 0x8D, 0x43, 0xC6, 0x83, 0xF8, 0x22 };



applyKernPatch(kern, find, sizeof(find), repl, comment);



+ // PMheart: attempt to add 10.14 compatibility



} else if (os_version



- // PMheart: attempt to add 10.14 compatibility



- // 10.13.x/10.14.x



+ // 10.13/10.14



STATIC UINT8 find[] = { 0x89, 0xD8, 0x04, 0xC4, 0x3C, 0x22 };



STATIC UINT8 repl[] = { 0x89, 0xD8, 0x04, 0xC6, 0x3C, 0x22 };



applyKernPatch(kern, find, sizeof(find), repl, comment);



and focalize this line :



comment = "_cpuid_set_info_rdmsr";



// PMheart: attempt to add 10.14 compatibility



if (os_version >= AsciiOSVersionToUint64("10.12") && os_version



- // 10.12 - 10.13



+ // 10.12 - 10.14



STATIC UINT8 find[] = { 0xB9, 0xA0, 0x01, 0x00, 0x00, 0x0F, 0x32 };



STATIC UINT8 repl[] = { 0xB9, 0xA0, 0x01, 0x00, 0x00, 0x31, 0xC0 };



applyKernPatch(kern, find, sizeof(find), repl, comment);







this code is from /rEFIt_UEFI/Platform/kernel_patcher.c inside clover



so if you check KERNELXCPM flag it uses all patches it thinks useful for detected cpu







Cupid_set_info_rdmsr will be :







find



B9A00100000F32



Repl



B9A001000031C0







I hope this can help to understand ;)







Ha scritto dopo 19 minuti 24 secondi:



attached c files where you can locate all patches used for Broadwell and other cpu

[kingkong89]

oK will try working on it.

[kingkong89]

Fabio, I think I'm going to upgrade to X299..... X99 is just too much of patches to work with....

[fabiosun]

When I have had your same system I have optimized it using only 3 mandatory patches or KernelXCPM flag (I preferred 3 patches state)







1)fakecpuid



2)Brumbaer IOCPIfamily kext patch



3) Pikeralpha reboot fix kernel patches







And this should be valid also for you







Obviously with my I9 7980Xe now I have eliminated all of this and system starts pretty vanilla



So it is up to you the choice :)



Remember all it is possible also to use your actual DDR4 ECC in new X299 (official specific is not true for Asus X299 Sage (not latest bios) and for Gigabyte Designare EX (bios F2 and F3)



I have talked with gigabyte technical service and they say with latest bios is not possible to use anymore Rdimm etc DDR4



In these days DDR4 is a pain to buy..and there are no advantages in performance if you use ddr4 @2133 or @4000...



Due High TDP you will need of a liquid cooling system to have a nice OC if you want

[kingkong89]

Ok thanks!! I'll study into the hardware.

[kingkong89]

Hi Fabio,







Thanks for the information!!







I have finally able to boot with just three patches, without the KernelXCPM. It was some kext in my old 10.13.6 kext folder. I had help from KGP on the PCI implementation, also his kext on a X99 board, and the hack is working very well now. I want to thank you for giving my the lead on the XCPM, I did learn something about patches and fundamental of computer stuffs. Being a person totally an alien to IT and computer programming, your input really helps a lot!
