Help with AM5 rig

[BrayanOfficiel]

Hello everyone,

im having issues booting macOS monterey on an AM5 rig

specs :


         CPU : AMD Ryzen 5 7600X 4.7 GHz 6-Core Processor
 Motherboard : MSI MAG B650M MORTAR WIFI Micro ATX AM5 Motherboard
      Memory : G.Skill Ripjaws S5 32 GB (2 x 16 GB) DDR5-6000 CL30 Memory
  Video Card : MSI Radeon VII 16G Radeon VII 16 GB Video Card

im getting this error :

14:682 00:049 OC: Prelinked status - Success
14:819 00:137 AAPL: #[EB.LD.LKFS|-?] Ok(0)
14:823 00:003 AAPL: #[EB.LD.LKC|-?] Ok(0)
14:829 00:006 AAPL: #[EB|BST:REV1]
14:832 00:003 AAPL: #[EB|CSR:OUT] 0x00000040
14:835 00:003 AAPL: #[EB.BST.FBS|+]
14:839 00:003 AAPL: #[EB.BST.FBS|ADSZ] 0
14:842 00:003 AAPL: #[EB.BST.FBS|KSSZ] 0
14:845 00:003 AAPL: #[EB|SB:SBGMFNS] j160ap.im4m
14:849 00:003 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash
14:852 00:003 AAPL: #[EB|RH:MF] <"usr\standalone\OS.dmg.root_hash.j160ap.im4m">
14:855 00:003 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\standalone\OS.dmg.root_hash"> <"0">
14:859 00:003 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\standalone\OS.dmg.root_hash">
14:862 00:003 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF
14:866 00:003 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH
14:869 00:003 OCSMC: SmcReadValue Key 4D535463 Size 1
14:872 00:003 OCSMC: SmcReadValue Key 4D534163 Size 2
14:875 00:003 AAPL: #[EB|LOG:DT] 2023-06-16T21:12:50
14:879 00:003 AAPL: #[EB|LOG:EXITBS:START] 2023-06-16T21:12:50

im using custom SSDTs

thanks by advance

Edited June 16, 2023 by BrayanOfficiel
cleaning specs

[Lorys89]

hello and welcome 🙂

post the efi

[BrayanOfficiel]

1 minute ago, Lorys89 said:

hello and welcome 🙂

post the efi

Sure thing !

Here it is EFI.zip

thanks for your answer

[Lorys89]

bios setting :

csm disabled

secureboot disabled

above 4g enabled

resizebar disable

[BrayanOfficiel]

2 minutes ago, Lorys89 said:

bios setting :

csm disabled

secureboot disabled

above 4g enabled

resizebar disable

I dont have an option for Above 4G decoding, resizableBAR nor csm
however uefi mode is chosen so i guess it disables csm
Securebot is already disabled

[BrayanOfficiel]

msi bios lack of options

[Lorys89]

EFI.zip

patch and kext update to boot sonoma

[Lorys89]

for intel wifi work to sonoma :



https://github.com/OpenIntelWireless/itlwm/releases/download/v2.2.0/itlwm_v2.2.0_stable.kext.zip

https://github.com/OpenIntelWireless/HeliPort/releases/download/v1.4.1/HeliPort.dmg

[BrayanOfficiel]

2 hours ago, Lorys89 said:

EFI.zip 8.85 MB · 1 download

patch and kext update to boot sonoma



2 hours ago, Lorys89 said:

for intel wifi work to sonoma :



https://github.com/OpenIntelWireless/itlwm/releases/download/v2.2.0/itlwm_v2.2.0_stable.kext.zip

https://github.com/OpenIntelWireless/HeliPort/releases/download/v1.4.1/HeliPort.dmg

Perfect, thanks a lot !

[Lorys89]

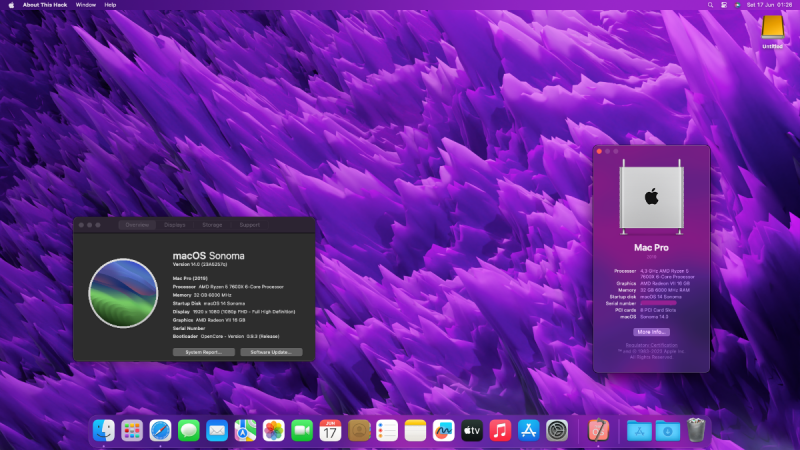

@BrayanOfficiel Post photos of the success, and an ioreg log.

[Lorys89]

for log ioreg use this app https://github.com/khronokernel/IORegistryClone/raw/master/ioreg-302.zip and send log compressed zip

[BrayanOfficiel]

Sure !

Here is the log file :

Brayan's Mac Pro.zip





Again, thank you very much !

[Lorys89]

use this for show cpu temp and fix external disk icon



EFI.zip

[Ozzi007b]

On 6/17/2023 at 1:54 AM, Lorys89 said:

EFI.zip 8.85 MB · 14 downloads

patch and kext update to boot sonoma

Thank you very much, i had a real trouble getting my rig going but i didn't need to modify this EFI much to get it going... TUF gaming B650_plus mobo, Ryzen 5 7600X CPU and Radeon RX6600 GPU. For me it always failed early in macOS boot progress no matter what guide i followed when making EFI, though i downgraded my bios too to last version which doesn't have any support for upcoming 8000 series, could be that too
