Testing our GPU in OSX/Linux/Windows in pro app (Blackmagic DaVinci Resolve Studio /AE/PR Pro,PS)

fabiosun

By fabiosun
in General

 Share

Recommended Posts

  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted

Blackmagic DaVinci Resolve 17.2 build 11



AMD Radeon Rx 6900 XT 16 GB



OSX 11.4 Beta (20F5065a)



Spoiler



Metal:

66 noise nodes

31



6TRN nodes

40



OpenCL:

66 noise nodes

not tested

9



6TRN nodes

not tested

11





  • Ok 1
Link to comment
Share on other sites
  • Moderators
iGPU Senior Member

iGPU

Posted
  • Moderators
Posted (edited)

Candle Benchmark in DR v17.2 with one AMD 6900XT, using Metal setting. Same results with or without WEG.



I also repeated, with same results, ±4G. When 4G was disabled, I tested with ResizableBar enabled; again same results. (BTW, it is not possible, at least with my mobo, to boot with both 4G and ResizableBar enabled.)



18 @ 66 nodes; 23 @ 6 nodes.





UDPATE:



The above results are incorrect. It now shows the following (4G disabled; Resizablebar enabled):



30 @ 66 nodes; 40 @ 6 nodes.



The difference is a patch I'd left engaged for the first set of results. I'd left it enabled (and just remembered this morning), as I didn't see an issue using it with the Radeon VIIs. If you enable this patch, your results are reduced by ~ 50% !!



The patch does not have any influence on the Octane X results discussed in the next post.



1869567666_ScreenShot2021-05-15at12_50_29PM.thumb.png.033929c352952abd5035762f37728e02.png

Edited by iGPU
  • Like 1
Link to comment
Share on other sites
  • Moderators
iGPU Senior Member

iGPU

Posted
  • Moderators
Posted (edited)

I've done some other testing using Octane (downloadable from App Store, here). You may have to sign up (register with OTOY) for a free download.



On the Octane (OTOY) forum, there is some discussion of testing with 6900XTs here. You may need to register on their forum to gain access.



When I run Octane X, I get 7 sec for the 6900XT (although my GPU is constantly listed as an unknown, "AMD Radeon HD GF10 Family Unknown Prototype"). The fastest run was 6 sec; slowest was 8 sec; avg = 7 sec (4G is disabled; ResizableBar is enabled).



2143704236_ScreenShot2021-05-15at10_05_33AM.thumb.png.ee8f6038ef392c19c2b693555d3555c1.png



Details from above image:

Spoiler









Their tabulated results would imply that this is actually pretty good. The Radeon VII gives about 19 sec (although, if the 6900XT on my setup is getting 7 sec or 4 sec faster than on their plot below, perhaps the Radeon VII would also be about 4 sec faster, or 15 sec on my setup) if the differences are linear.



The RTX-3080 got 8 sec, 3 sec faster than the 6900XT, so maybe 4-5 sec on my setup, assuming linearity. The 3090 is reported on some posts to get 7 sec under Linux with many scenes comparably rendered between the 3090 and the 6900; but on some renders, the 3090 is much faster than the 6900, so the results are scene dependent.








Edited by iGPU
Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted

@iGPUalgrey mttr fix patch or recent shaneee and others newer one  are not usufull for trx40 users

is there are reason for you to enable it sometimes?

Your results confirm my previous one

in metal 6900xt is better than in OpenCL in windows



Link to comment
Share on other sites
  • Moderators
tomnic Senior Member

tomnic

Posted
  • Moderators
Posted
1 hour ago, fabiosun said:

Blackmagic DaVinci Resolve 17.2 build 11



AMD Radeon Rx 6900 XT 16 GB



OSX 11.4 RC (20F71)



  Hide contents

Metal:

66 noise nodes

32



6TRN nodes

42





Nice improvement!!!

  • Thanks 1
Link to comment
Share on other sites
  • Moderators
tomnic Senior Member

tomnic

Posted
  • Moderators
Posted
51 minutes ago, fabiosun said:

1574799948_Screenshot2021-05-18at3_06_10PM.png.7b3dd379e6ac998385fb7e832ecbb918.png1357354895_Screenshot2021-05-18at3_11_00PM.png.4133dfd484d92529f7ce1af2ce004587.png



OpenCl is not supported well from Apple but these are my 6900xt results





Strange result here since my old Radeon VII scored almost 51000 points in luxmark 😞 But in Resolve it really rocks, that's what counts!!!!

Link to comment
Share on other sites
  • 4 weeks later...
  • 2 weeks later...
  • 1 month later...
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted
VIDEO CARD 1:
	Model:				Radeon RX 6900 XT
	Vendor ID:				02 10 00 00 (ATI/AMD)
	Device ID:				bf 73 00 00
	Revision ID:			c0 00 00 00
	Subsystem Vendor ID:		02 10 00 00
	Subsystem ID:			3a 0e 00 00
	class-code:				00 00 03 00
	IOName:				display
	pcidebug:				35:0:0
	compatible:			pci1002,e3apci1002,73bfpciclass,030000
	acpi-path:				unknown
	hda-gfx:				onboard-1
	pci-aspm-default:				0x0
	IOPCIMSIMode			true
	Additional Properties:
		AAPL,aux-power-connected:  	01 00 00 00
		ATY,RefCLK:             	a0 86 01 00
		ATY,Rom#:               	113-D4120100-100
		ATY,PageFlipEnable: 	01 00 00 00
		ATY,FamilyName:      	52 61 64 65 6f 6e 20 52 58 00
		ATY,MaxStreams:      	6
		ATY,vram_base:        	00 00 00 00 80 00 00 00
		ATY,remap-size:       	1075838976
		ATY,DeviceName:     	36 39 30 30 20 58 54 00
		ATY,memsize:           	17163091968
	Metal properties:
		Recommended Max Working Set Size:	0xFF000000
		Max Threads Per Thread group: width 1024, height 1024, depth 1024
		Depth 24 Stencil 8 Pixel Format:		true
		Max Thread group Memory Length:	65536
		Programmable Sample Positions:		true
		Read-Write Texture:				2
		Removable:						false
		Headless:						false
		Is Low Power:					false
	Performance Statistics:
		surfaceBufferReadOutBytes:                                     	0
		HWChannel VCN0Dec | Commands Completed:        	0
		freeSurfaceBackingWaitTime:                                    	0
		HWChannel Compute0 | Commands Submitted:       	0
		HWChannel VCN1Dec | Commands Completed:        	0
		gartMapInBytesPerSample:                                       	0
		HWChannel SDMA3 | Commands Completed:           	0
		gartMapOutBytesPerSample:                                     	0
		dataBytesPerSample:                                                	0
		orphanedReusableSysMemoryCount:                        	0
		HWChannel SDMA1_PAGE | Commands Submitted:   	0
		oolTexturePageInBytes:                                            	0
		HWChannel SDMA0 | Commands Completed:           	0
		finish2DWaitTime:                                                    	0
		context2DCount:                                                      	4
		swapComplete2DWaitTime:                                      	0
		inUseSysMemoryBytes:                                             	49340416
		surfaceWriteLockIdleWaitTime:                                 	0
		HWChannel VCN1Enc | Commands Submitted:         	0
		HWChannel GFX | Commands Submitted:                 	0
		HWChannel VCN0Enc | Commands Completed:        	0
		Fan Speed(RPM):                                                       	0
		texturePageOutBytes:                                               	0
		gartCacheBytes:                                                       	33554432
		orphanedNonReusableVidMemoryBytes:                   	0
		swapBytesPerSample:                                               	0
		oolTextureCreationCount:                                        	0
		surfaceSetShapeIdleWaitTime:                                  	0
		volatileSurfaceCount:                                               	0
		hardwareSubmitWaitTime:                                        	0
		gartSizeBytes:                                                          	92341796864
		HWChannel SDMA1 | Commands Submitted:            	0
		orphanedNonReusableSysMemoryCount:                  	0
		Temperature(C):                                                       	0
		Core Clock(MHz):                                                     	0
		HWChannel SDMA2 | Commands Completed:           	0
		clientGLWaitTime:                                                    	0
		HWChannel KIQ | Commands Submitted:                  	0
		orphanedReusableSysMemoryBytes:                         	0
		HWChannel Compute1 | Commands Completed:      	0
		orphanedReusableSysMemoryHitRate:                      	0
		HWChannel GFX | Commands Completed:                	0
		surfaceCopyOutWaitTime:                                        	0
		stdTexturePageInBytes:                                            	0
		ioSurfacePageOutBytes:                                            	0
		HWChannel VCN1Dec | Commands Submitted:         	0
		agpTextureCreationBytes:                                        	0
		bufferFlipCount:                                                       	0
		iosurfaceTextureCreationBytes:                                	0
		HWChannel VCN1EncLLQ | Commands Completed:  	0
		freeToAllocGPUAddressWaitTime:                             	0
		finishCLWaitTime:                                                    	0
		stdTextureCreationBytes:                                         	0
		HWChannel SDMA2_PAGE | Commands Completed:  	0
		agprefTextureCreationBytes:                                    	0
		HWChannel VCN0EncLLQ | Commands Submitted:   	0
		orphanedReusableVidMemoryCount:                        	1257
		finishAll2DWaitTime:                                                	0
		textureReadOutBytes:                                               	0
		orphanedReusableVidMemoryHitRate:                      	95
		vramEvictionWaitTime:                                             	0
		HWChannel VCN1EncLLQ | Commands Submitted:   	0
		swapCompleteGLWaitTime:                                      	0
		orphanedNonReusableSysMemoryBytes:                   	0
		finishGLWaitTime:                                                    	0
		stdTextureCreationCount:                                        	0
		contextCLCount:                                                      	0
		ioSurfacePageInBytes:                                               	0
		Total Power(W):                                                        	0
		surfaceTextureCreationCount:                                  	0
		HWChannel SDMA3_PAGE | Commands Completed:  	0
		agprefTextureCreationCount:                                   	0
		dataBufferCount:                                                      	0
		iosurfaceTextureCreationCount:                               	0
		surfaceCount:                                                          	44
		clientSharedAllocatedBytes:                                      	1101824
		HWChannel SDMA3_PAGE | Commands Submitted:   	0
		surfaceCopyInWaitTime:                                           	0
		contextVideoCount:                                                 	0
		HWChannel KIQ | Commands Completed:                 	0
		HWChannel SDMA0 | Commands Submitted:            	0
		HWChannel VCN1Enc | Commands Completed:        	0
		HWChannel Compute0 | Commands Completed:      	0
		contextGLCount:                                                      	3
		HWChannel SDMA1 | Commands Completed:           	0
		surfaceBufferPageInBytes:                                        	0
		hardwareWaitTime:                                                  	0
		HWChannel VCN0Dec | Commands Submitted:         	0
		oolTextureCreationBytes:                                         	0
		HWChannel SDMA0_PAGE | Commands Submitted:   	0
		HWChannel SDMA2_PAGE | Commands Submitted:   	0
		surfaceBufferPageOutBytes:                                      	0
		inUseVidMemoryBytes:                                             	747151360
		vramFreeBytes:                                                         	13583810560
		HWChannel SDMA2 | Commands Submitted:            	0
		HWChannel SDMA0_PAGE | Commands Completed:  	0
		gartFreeBytes:                                                          	92292456448
		finishVideoWaitTime:                                                	0
		HWChannel SDMA3 | Commands Submitted:            	0
		HWChannel Compute1 | Commands Submitted:       	0
		Fan Speed(%):                                                           	0
		HWChannel Compute2 | Commands Submitted:       	0
		GPU Activity(%):                                                        	0
		orphanedNonReusableVidMemoryCount:                  	0
		HWChannel VCN0Enc | Commands Submitted:         	0
		surfaceReadLockIdleWaitTime:                                 	0
		recoveryCount:                                                         	0
		agpTextureCreationCount:                                       	0
		textureCount:                                                           	2176
		freeDataBufferWaitTime:                                           	0
		ioSurfaceReadOutBytes:                                            	0
		textureVolunteerUnloadBytes:                                  	0
		bufferSwapCount:                                                    	0
		gartUsedBytes:                                                         	49340416
		freeSurfaceSwapBufferWaitTime:                               	0
		Memory Clock(MHz):                                                	0
		HWChannel Compute2 | Commands Completed:      	0
		HWChannel VCN0EncLLQ | Commands Completed:  	0
		Device Utilization %:                                                 	0
		HWChannel SDMA1_PAGE | Commands Completed:  	0
		swapCompleteVideoWaitTime:                                  	0
		surfaceBufferTextureCreationCount:                         	0
		orphanedReusableVidMemoryBytes:                         	2832130048
	VRAM,totalMB: 16368




Link to comment
Share on other sites
  • Supervisor
fabiosun Senior Member

fabiosun

Posted
  • Author
  • Supervisor
Posted
21 minutes ago, Arrakis said:

@fabiosun Could you explain your last two posts? , Do you work on temperatures?

Ciao @Arrakis I am trying kexts and apps

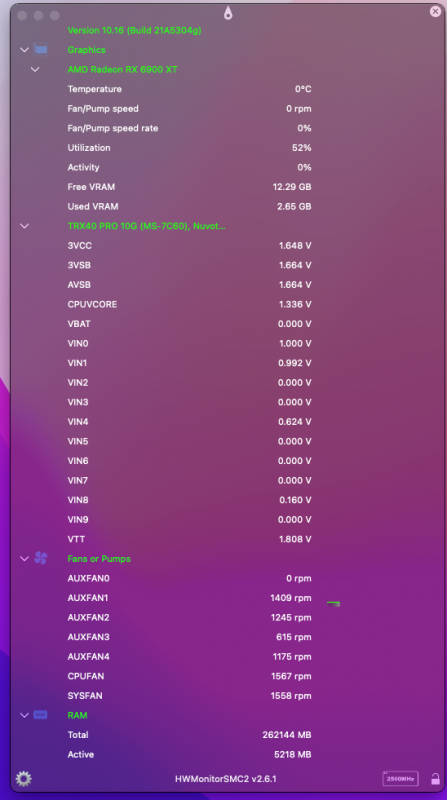

I can see utilisation of gpu (%) with HWMonitorSMC2

I can see Die Temp with HWMonitorSMC (only till Big Sur )

For now no RPM on FAN

We have to find right mix to have all working (trying fakeSMC.kext and radeon plugin



fabio@Mac-Pro ~ % kextstat | grep -v com.apple
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>
   19    1 0                  0x18000    0x18000    org.netkas.FakeSMC (3.5.3) 503675DF-E091-38F2-AE0C-5A1F93D84E15 <15 9 7 6 3>
   20    0 0                  0x10000    0x10000    org.slice.RadeonMonitor (1.3.5) E2EAA0B3-8A35-387B-A86C-6E75659CFD8F <19 16 9 6 3>
   53    3 0                  0x2e000    0x2e000    as.vit9696.Lilu (1.5.5) 7B68D081-1C6B-3597-9455-F1803E31B48A <9 7 6 3 2 1>
   54    0 0                  0x181000   0x181000   as.vit9696.AppleALC (1.6.3) 571451FE-241B-3205-B100-C1E0E86F983A <53 16 9 7 6 3 2 1>
   55    0 0                  0xc000     0xc000     as.vit9696.RestrictEvents (1.0.3) CB8A2AD8-3AE2-3DF5-8398-BEB24C012480 <53 9 7 6 3 2 1>
   56    0 0                  0x20000    0x20000    wtf.spinach.AMDRyzenCPUPowerManagement (0.7) 10AE6854-47D8-3FE6-B1D3-66937EF615EF <53 16 12 9 7 6 3 2 1>
fabio@Mac-Pro ~ %



  • +1 1
Link to comment
Share on other sites
  • 1 month later...
  • Moderators
tomnic Senior Member

tomnic

Posted
  • Moderators
Posted

Finally my 6900xt has arrived and I've installed it in my main AMD rig... some benches 😉



Luxmark






Cinebench R15 OpenGL

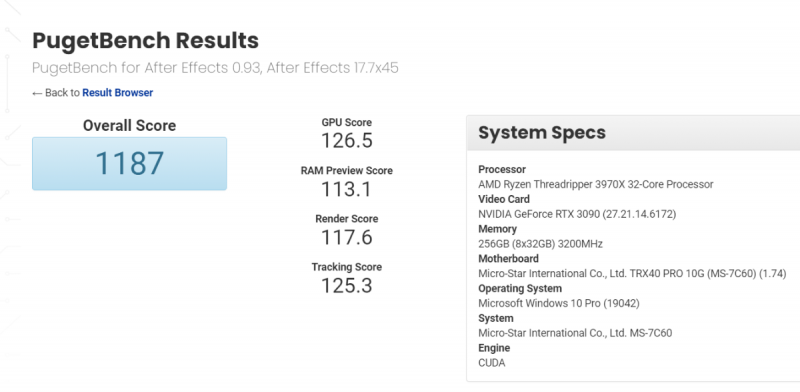

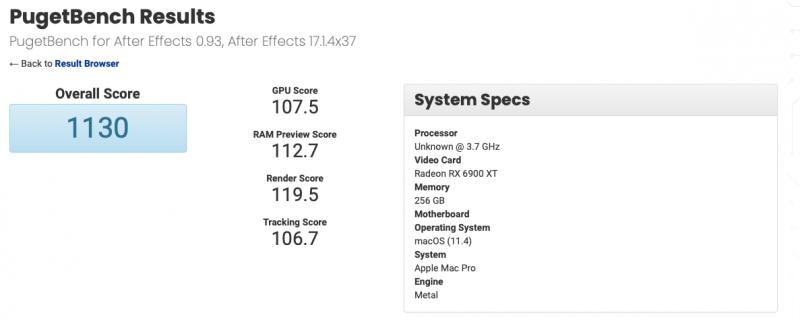

PugetBench for AE






66 Blur nodes Candle Test DaVinci Resolve 17 - 30 fps

1801052582_Schermata2021-10-18alle22_26_19.thumb.png.3449d91e7c715baec367be9cfc51eec6.png



6 TNR nodes Candle Test DaVinci Resolve 17 - 37 fps

1444809605_Schermata2021-10-18alle22_27_13.thumb.png.eeac1e9fbc2262d061643055610cb7b5.png



Blackmagic RAW 12:1

551125671_Schermata2021-10-18alle22_45_27.thumb.png.2533a2e0c30c569098ff4d4fe2acdad9.png

  • Like 1
Link to comment
Share on other sites
  • fabiosun changed the title to Testing our GPU in OSX/Linux/Windows in pro app (Blackmagic DaVinci Resolve Studio /AE/PR Pro,PS)

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share
Go to topic listing

  • Recently Browsing   0 members

    • There are no registered users currently online
×
×
  • Create New...

Important Information

We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue.
