GIGABYTE TRX40 DESIGNARE (RÉV. 1.1) / AMD Ryzen Threadripper 3960 X

[Arrakis]

@Lorys89 @fabiosun



1-I plugged in the cable, turn off, start.
- Result: same



I have never disabled Lan ports in the bios even when they weren't supported since Big Sur 11.4.



2 - I tried the experiment (with the ethernet cable still connected):
- Disable Lan ports in bios, startup, shutdown.
    Result: same (logic)
- Activation of Lan ports in the bios, startup.
    Result: same

[fabiosun]

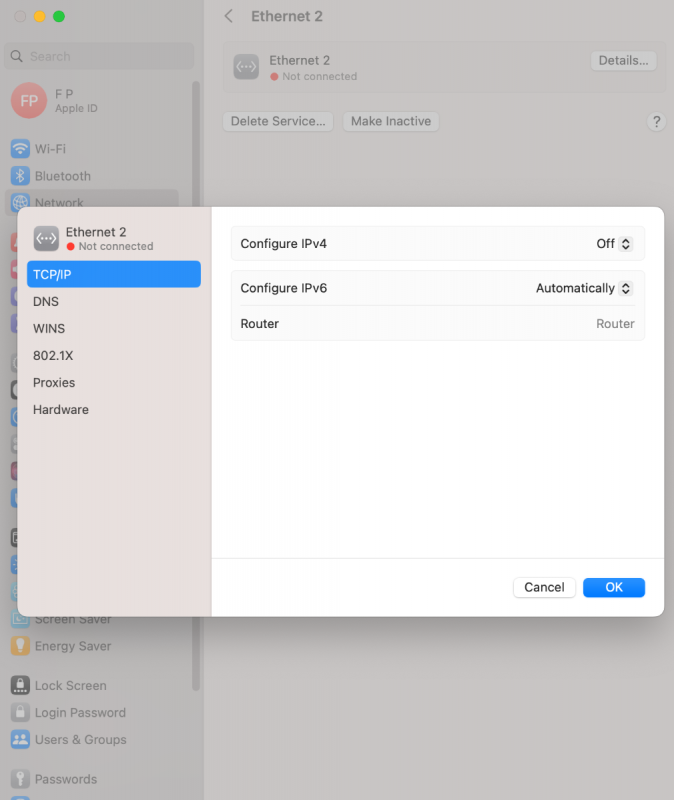

@Arrakistry to disable on unused ethernet DHCP

it will turn immediately in OFF status





then shutdown the pc and on it again to see If something new happens



[Arrakis]

@fabiosun Test done, same.

[Lorys89]

@Arrakis would say the problem now is only on i210, can we bother you for the next tests and logs?





For users : If you have the i211 works, if you have 2 i211 you have to connect lan cable only to one, and it works.

Edited November 4, 2022 by Lorys89

[Lorys89]

@ArrakisHave you tried the new kect?

[Arrakis]

@Lorys89

For both, it's the same.

Attached is the generated log.

Arrakis I210 AppleIGB Release Ver 5.11.4.zipArrakis I210 AppleIGB Debug Ver 5.11.4.txt.zip

[Lorys89]

16 ore fa, Arrakis ha scritto:

@Lorys89

For both, it's the same.

Attached is the generated log.

Arrakis I210 AppleIGB Release Ver 5.11.4.zip 1 kB · 0 download Arrakis I210 AppleIGB Debug Ver 5.11.4.txt.zip 5 kB · 5 download

@Arrakis add bootarg :  e1000=0

and reboot

Edited November 5, 2022 by Lorys89

[Arrakis]

@Lorys89  it's the same with booting e1000=0

 Arrakis I210 AppleIGB Debug Ver 5.11.4 0=1000.txt.zip

[mbarbierato]

16 ore fa, Arrakis ha scritto:

@Lorys89  it's the same with booting e1000=0

  Arrakis I210 AppleIGB Debug Ver 5.11.4 0=1000.txt.zip 5 kB · 0 download

Can you send me a ioreg log ?

[Arrakis]

@mbarbierato and there you go

TRX40 GIGABYTE DESIGNARE REV1.1 ARRAKIS.zip

[Lorys89]

40 minuti fa, Arrakis ha scritto:

@mbarbierato and there you go

TRX40 GIGABYTE DESIGNARE REV1.1 ARRAKIS.zip 8 MB · 0 download

Is it made with kext igb active in plist?

[Arrakis]

@Lorys89 No

Do you need with the kext igb ?

[Lorys89]

Send ioreg with kext igb active

[Arrakis]

@Lorys89 with kext IGB active

TRX40 DESIGNARE REV 1.1 WITH IGB.zip

[Lorys89]

5 ore fa, Arrakis ha scritto:

@Lorys89 with kext IGB active

TRX40 DESIGNARE REV 1.1 WITH IGB.zip 8 MB · 3 download

try to spoof i211, send pciroot lan

In the 2 pciroot of the lan, in config in the DP section, you have to add

device-id

39150000

DATA

And reboots with kext igb active.



[Arrakis]

1 hour ago, Lorys89 said:

try to spoof i211, send pciroot lan

In the 2 pciroot of the lan, in config in the DP section, you have to add

device-id

39150000

DATA

And reboots with kext igb active.



Tell me if this is what you want me to inject into the DP section?.

I am a novice... Feel free to correct, thanks in advance.

Note: this is the correct PCI address





I211 Arrrakis.plist.zip

Edited November 6, 2022 by Arrakis

[Lorys89]

1 ora fa, Arrakis ha scritto:

Tell me if this is what you want me to inject into the DP section?.

I am a novice... Feel free to correct, thanks in advance.

Note: this is the correct PCI address



I211 Arrrakis.plist.zip 1 kB · 0 download

before try this ssdt witk kext igb active



SSDT-I210.aml.zip

Edited November 6, 2022 by Lorys89

[Lorys89]

@Arrakis Have you tried ssdt?

[Arrakis]

@Lorys89 it's the same with to spoof I211 and ssdt.

with aml .zipto spoof without boot arg 0=1000.zipto spoof I211.zip

[Lorys89]

14 minuti fa, Arrakis ha scritto:

@Lorys89 it's the same with to spoof I211 and ssdt.

with aml .zip 4 kB · 0 download to spoof without boot arg 0=1000.zip 6 kB · 0 download to spoof I211.zip 5 kB · 0 download

Bootarg is e1000=0

[Arrakis]

@ Lorys I  made a mistake in naming the log report, sorry.

[Lorys89]

No problem, I'm trying to figure out why i210 doesn't work, and we don't have other users with i210😔

Edited November 6, 2022 by Lorys89

[Lorys89]

not use kext igb, not use ssdt i210 or patch dp.

add this kext and set min kernel 22.0.0



AppleIntelI210Ethernet.kext.zip



add bootarg :  e1000=0



reboot and send ioreg log

[Lorys89]

Try the kext that will soon send you the dev

Edited November 7, 2022 by Lorys89

[Lorys89]

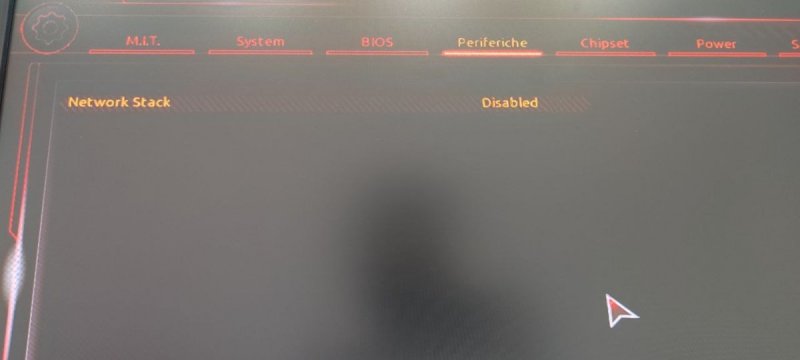

in the bios set this setting as in the picture (disabled)

Edited November 7, 2022 by Lorys89
