solved Asus TRX40 E Gaming - Baremetal [Help]

[jasin755]

Hello. I want to try baremetal with my Asus TRX40 E-gaming with 3960x. I have tried EFI from @fabiosun and @Ploddles and it doesn't work. Is there some way how to debug it?

Thanks.

[fabiosun]

@jasin755if we fail again..post here your working "Proxmox" EFI 🙂



[jasin755]

@fabiosun Yes. Vega has connected monitor. I have tried HDMI and DP. Same result. Pikera on/off same result. Here is my Proxmox EFI:

EFI.zip

[fabiosun]

1 hour ago, jasin755 said:

@fabiosun Yes. Vega has connected monitor. I have tried HDMI and DP. Same result. Pikera on/off same result. Here is my Proxmox

try this



EFI-5.zip

[jasin755]

7 minutes ago, fabiosun said:

try this



EFI-5.zip 3.06 MB · 1 download

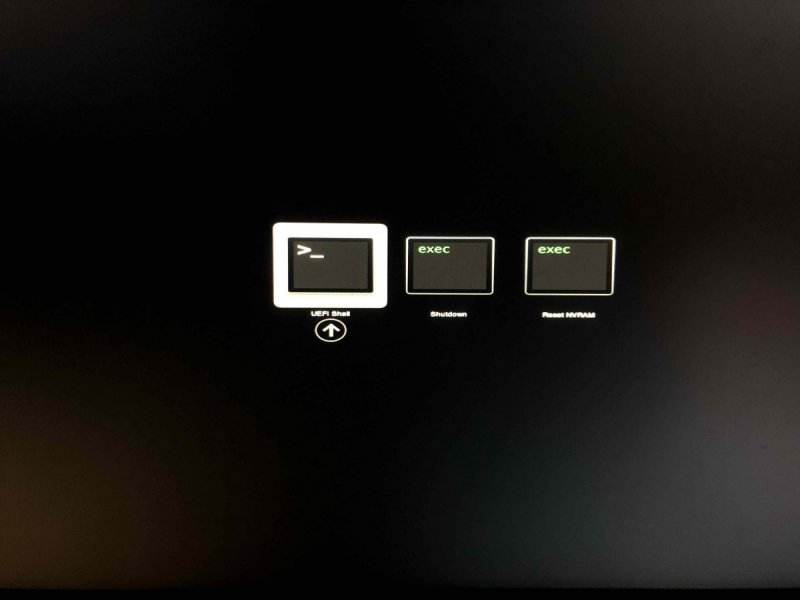

This EFI doesn't see any disk.

[fabiosun]

it is yours...



only added devirtualize mMIo

Patches for baremetal...

[fabiosun]

EFI 2.zip

let see with this one 🙂



[jasin755]

2 minutes ago, fabiosun said:

it is yours...



only added devirtualize mMIo

Patches for baremetal...



It has same issue that I try to boot macOs directly instead using Proxmox. Other EFI's doesn't have problem with HDD detection.

[fabiosun]

in your EFi you have this

useful for?



wait OSX is on. a raid set?

if so I do not know if it is seen fine in bare metal...maybe in Proxmox linux driver help?

sorry I am a bit confused ..I see previous hang and system seems to start and stop when you should login inside it if I am not wrong







[jasin755]

24 minutes ago, fabiosun said:

EFI 2.zip 3.48 MB · 1 download

let see with this one 🙂

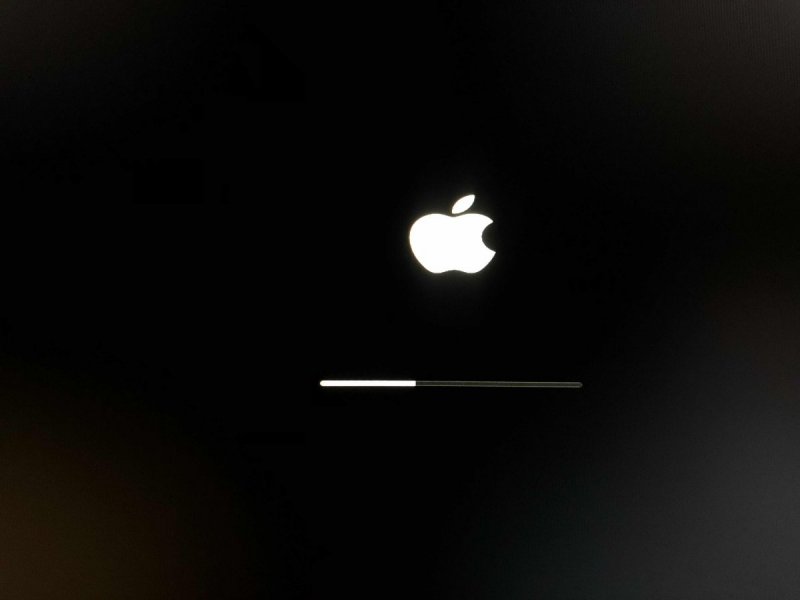

This EFI freeze on Apple logo:

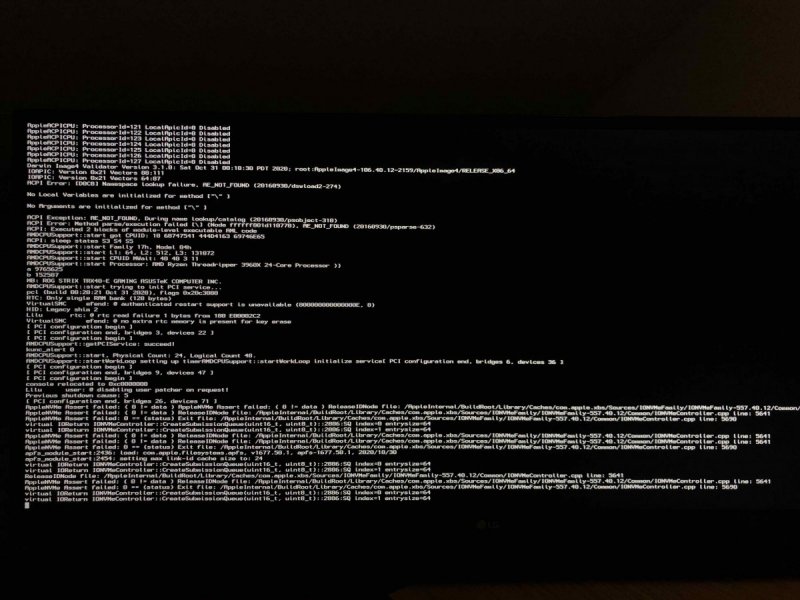

I have tried to add -v arg and this is output:



Quote

sorry I am a bit confused ..I see previous hang and system seems to start and stop when you should login inside it if I am not wrong



Yes. I hear that fans on GPU change speed (same think happened in Proxmox when login screen appears). But instead login screen I got black screen on baremetal.

Edited November 27, 2020 by jasin755

[jasin755]

27 minutes ago, fabiosun said:

in your EFi you have this

useful for?



I don't know. I have downloaded some OpenCore (maybe from Github or from this forum) and it has started work with Proxmox.

Edited November 27, 2020 by jasin755

[fabiosun]

Archive.zip

try this



[jasin755]

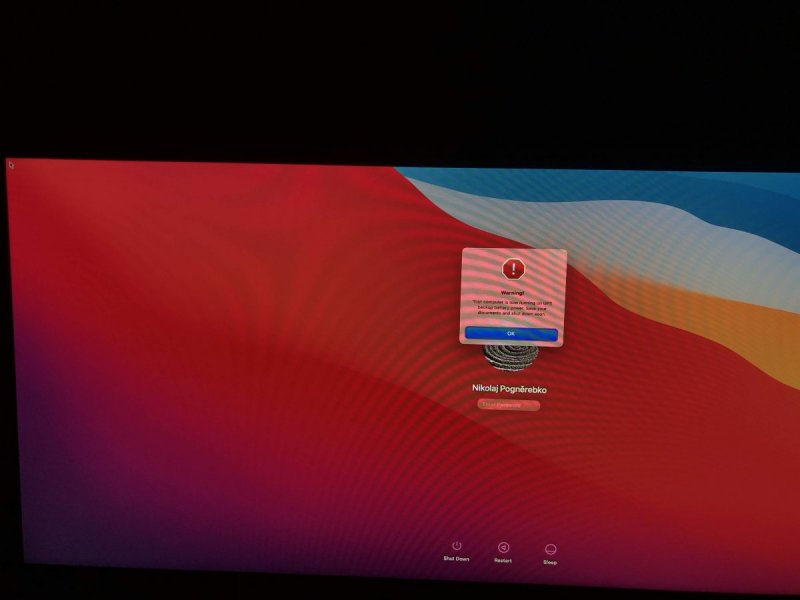

@fabiosun I tried Asus EFI again mentioned above. But I turn off verbose mod and it started working. But mouse and keyboard doesn't work (I don't know if it is completely freezed or only USBs doesn't work).



Edit: It is completely freezed. Time doesn't change.

Edited November 27, 2020 by jasin755

[fabiosun]

@jasin755ok it is a first step now , maybe we have to use your previous usb configuration or kext..

mouse and keyboard are on Usb or BT/WIFI?



[jasin755]

1 minute ago, fabiosun said:

@jasin755ok it is a first step now , maybe we have to use your previous usb configuration or kext..

mouse and keyboard are on Usb or BT/WIFI?





It is completely freezed. Time on macOs doesn't change. Keyboard and mouse using USB.

[fabiosun]

config.plist.zip

same refi change only this



[fabiosun]

@jasin755

open a thread with your exact motherboard in title as other users did..I will transfer all message there so we have here a more generic thread

thank you 🙂



[jasin755]

13 minutes ago, fabiosun said:

config.plist.zip 6.76 kB · 1 download

same refi change only this







3 minutes ago, fabiosun said:

@jasin755

open a thread with your exact motherboard in title as other users did..I will transfer all message there so we have here a more generic thread

thank you 🙂





Here is:



[fabiosun]

config.plist 2.zip



try this and see if there is an opencore debug log in your mounted EFI disk

[jasin755]

9 minutes ago, fabiosun said:

config.plist 2.zip 6.88 kB · 0 downloads



try this and see if there is an opencore debug log in your mounted EFI disk

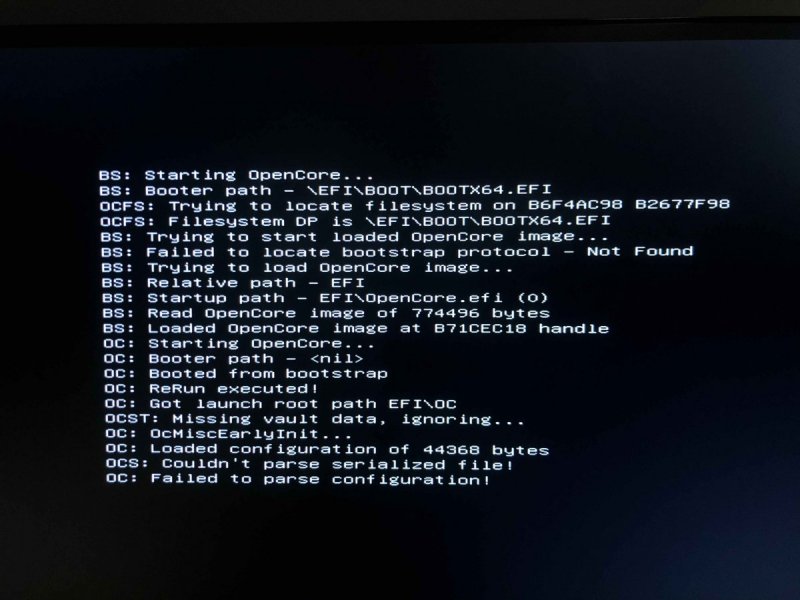

Seems like bad config



Here is log:

opencore-2020-11-27-154603.txt.zip



Edited November 27, 2020 by jasin755

[fabiosun]

replace completely

please

EFI 2.zip

[jasin755]

Sorry my fault. I was slow and I shutdown it before boot. Here is log:

opencore-2020-11-27-155730.txt.zip

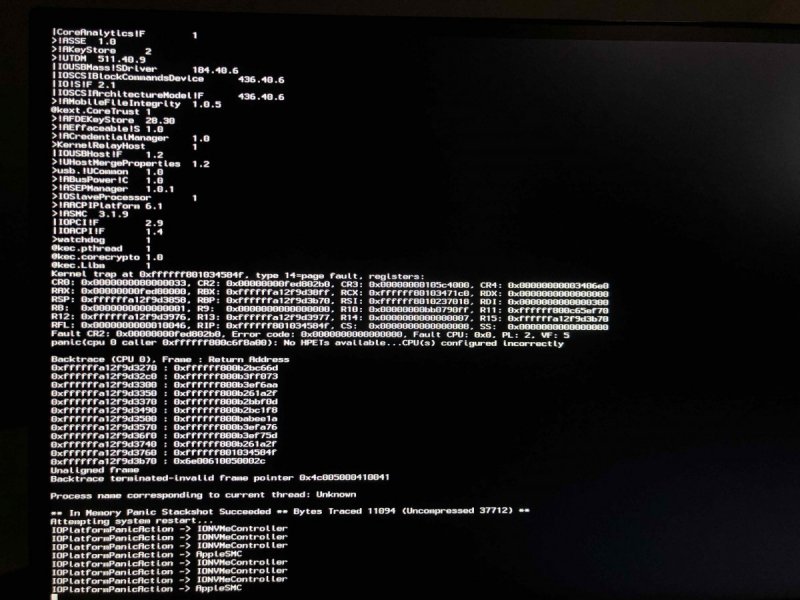

PC rebooted after few seconds by itself.

[fabiosun]

ok, I have some homework for you

52:972 00:064 OCABC: MMIO devirt 0xE2180000 (0x81 pages, 0x8000000000000001) skip 0
53:036 00:063 OCABC: MMIO devirt 0xE3180000 (0x81 pages, 0x8000000000000001) skip 0
53:108 00:072 OCABC: MMIO devirt 0xE3300000 (0x100 pages, 0x8000000000000001) skip 0
53:172 00:063 OCABC: MMIO devirt 0xE8300000 (0x181 pages, 0x8000000000000001) skip 0
53:235 00:063 OCABC: MMIO devirt 0xFA500000 (0x81 pages, 0x8000000000000001) skip 0
53:299 00:064 OCABC: MMIO devirt 0xFEA00000 (0x100 pages, 0x8000000000000001) skip 0
53:363 00:063 OCABC: MMIO devirt 0xFEC00000 (0x1 pages, 0x8000000000000001) skip 0
53:581 00:218 OCABC: MMIO devirt 0xFEC10000 (0x1 pages, 0x8000000000000001) skip 0
53:646 00:064 OCABC: MMIO devirt 0xFED00000 (0x1 pages, 0x8000000000000001) skip 0
53:710 00:064 OCABC: MMIO devirt 0xFED40000 (0x5 pages, 0x8000000000000001) skip 0
53:774 00:064 OCABC: MMIO devirt 0xFED80000 (0x10 pages, 0x8000000000000001) skip 0
53:838 00:063 OCABC: MMIO devirt 0xFEDC2000 (0xE pages, 0x8000000000000001) skip 0
53:902 00:063 OCABC: MMIO devirt 0xFEDD4000 (0x2 pages, 0x8000000000000001) skip 0
53:966 00:064 OCABC: MMIO devirt 0xFEE00000 (0x100 pages, 0x8000000000000001) skip 0
54:029 00:063 OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x8000000000000001) skip 0
54:093 00:063 OCABC: MMIO devirt 0x10000000000 (0x10400 pages, 0x8000000000000001) skip 0
54:165 00:071 OCABC: MMIO devirt 0x12CA0000000 (0x10400 pages, 0x8000000000000001) skip 0
54:228 00:063 OCABC: MMIO devirt 0x12CD0000000 (0x10400 pages, 0x8000000000000001) skip 0
54:293 00:064 OCABC: MMIO devirt 0x15970000000 (0x10400 pages, 0x8000000000000001) skip 0

convert these MMIO from ex to decimal then we insert it in your config

before try previous EFI

In General MMIO is an optimisation , system must start also with all this to 0

thanks



[jasin755]

6 minutes ago, fabiosun said:

ok, I have some homework for you

52:972 00:064 OCABC: MMIO devirt 0xE2180000 (0x81 pages, 0x8000000000000001) skip 0
53:036 00:063 OCABC: MMIO devirt 0xE3180000 (0x81 pages, 0x8000000000000001) skip 0
53:108 00:072 OCABC: MMIO devirt 0xE3300000 (0x100 pages, 0x8000000000000001) skip 0
53:172 00:063 OCABC: MMIO devirt 0xE8300000 (0x181 pages, 0x8000000000000001) skip 0
53:235 00:063 OCABC: MMIO devirt 0xFA500000 (0x81 pages, 0x8000000000000001) skip 0
53:299 00:064 OCABC: MMIO devirt 0xFEA00000 (0x100 pages, 0x8000000000000001) skip 0
53:363 00:063 OCABC: MMIO devirt 0xFEC00000 (0x1 pages, 0x8000000000000001) skip 0
53:581 00:218 OCABC: MMIO devirt 0xFEC10000 (0x1 pages, 0x8000000000000001) skip 0
53:646 00:064 OCABC: MMIO devirt 0xFED00000 (0x1 pages, 0x8000000000000001) skip 0
53:710 00:064 OCABC: MMIO devirt 0xFED40000 (0x5 pages, 0x8000000000000001) skip 0
53:774 00:064 OCABC: MMIO devirt 0xFED80000 (0x10 pages, 0x8000000000000001) skip 0
53:838 00:063 OCABC: MMIO devirt 0xFEDC2000 (0xE pages, 0x8000000000000001) skip 0
53:902 00:063 OCABC: MMIO devirt 0xFEDD4000 (0x2 pages, 0x8000000000000001) skip 0
53:966 00:064 OCABC: MMIO devirt 0xFEE00000 (0x100 pages, 0x8000000000000001) skip 0
54:029 00:063 OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x8000000000000001) skip 0
54:093 00:063 OCABC: MMIO devirt 0x10000000000 (0x10400 pages, 0x8000000000000001) skip 0
54:165 00:071 OCABC: MMIO devirt 0x12CA0000000 (0x10400 pages, 0x8000000000000001) skip 0
54:228 00:063 OCABC: MMIO devirt 0x12CD0000000 (0x10400 pages, 0x8000000000000001) skip 0
54:293 00:064 OCABC: MMIO devirt 0x15970000000 (0x10400 pages, 0x8000000000000001) skip 0

convert these MMIO from ex to decimal then we insert it in your config

before try previous EFI

In General MMIO is an optimisation , system must start also with all this to 0

thanks





Heh 🙂

What hex  do you want to transfer? 0xE2180000, 0x81 or 0x8000000000000001 from first line?

Edited November 27, 2020 by jasin755

[fabiosun]

all this one:

0xE2180000

0xxxxxxxxx

and so on
