fabiosun · April 4, 2021

check better 😛

On first post of this thread you can find gigabyte designare EFI from @Arrakis, you can start from there (only disable is MMIO because they could be different from yours)

you can find specific thread for designare ex board in international area

GIGABYTE TRX40 DESIGNARE (REV. 1.1) / AMD Ryzen Threadripper 3960 X - General - MacOS86

it is about 1.1 version..but disabling MMIo you could boot easily the same

🙂

Renato · April 4, 2021

1 hour ago, fabiosun said:

ciao @Renato

check better 😛

On first post of this thread you can find gigabyte designare EFI from @Arrakis, you can start from there (only disable is MMIO because they could be different from yours)

you can find specific thread for designare ex board in international area

GIGABYTE TRX40 DESIGNARE (REV. 1.1) / AMD Ryzen Threadripper 3960 X - General - MacOS86

it is about 1.1 version..but disabling MMIo you could boot easily the same

🙂

I will have a look, thanks. I found out why the attachments were said to be "Not available" it was because I was not logged in. In fact, I did not eve remember I was ever a member. I found out I was when, trying to subscribe I was than told my email address had been already used 🙂 Thinking back, I believe I subscribed a year ago the first time somebody from this site was able to install macos using proxmox. I started investigating proxmox at the time and realized there was a competitor (Unraid) which had a storage management that suited better my situation... the rest is history 🙂

Anywa, thanks, I will have a look.

Renato · April 4, 2021

1 hour ago, fabiosun said:

ciao @Renato

check better 😛

On first post of this thread you can find gigabyte designare EFI from @Arrakis, you can start from there (only disable is MMIO because they could be different from yours)

you can find specific thread for designare ex board in international area

GIGABYTE TRX40 DESIGNARE (REV. 1.1) / AMD Ryzen Threadripper 3960 X - General - MacOS86

it is about 1.1 version..but disabling MMIo you could boot easily the same

🙂

Disabling MMIO, do you mean in the bios or in the config.plist?

Arrakis · April 4, 2021

@Renato

Hello, this is my last EFI to date,
for MMIO, it's in the config.plist (Booter / MMIO list)

I upgraded from Gigabyte Designare Rev 1.0 to Gigabyte Designare Rev 1.1 without changing the MMIO.

So EFi as is should charge without changing the MMIO.
You just have to fill in the PlatformInfo part still in config.plist.

EFI Gigabyte Designare Rev 1.1.zip

Renato · April 4, 2021

23 minutes ago, Arrakis said:

@Renato

Hello, this is my last EFI to date,
for MMIO, it's in the config.plist (Booter / MMIO list)

I upgraded from Gigabyte Designare Rev 1.0 to Gigabyte Designare Rev 1.1 without changing the MMIO.

So EFi as is should charge without changing the MMIO.
You just have to fill in the PlatformInfo part still in config.plist.

EFI Gigabyte Designare Rev 1.1.zip 31.58 MB · 0 downloads

Hi, Thank you. If you do not mind me asking, what drove you to upgrade to 1.1? I have been looking for differences between the two and all I got is this quote from Gigabyte itself:

"They are the same board, just rev 1.1 switch the PWM from analog to digital for better support of the 64 Core CPU"

as I am running a 3970, It did not seem to affect me. did you find other differences?

mSedek · April 5, 2021

Hello, I got my GIGABYTE TRX40 AORUS PRO WIFI and threadripper 3960X with radeon 5700XT working perfeclty but I can't reboot or shutdown unless I hard press the power button for several seconds..

been reading and can't find anything related, I followed dortanias guide step by step for trx40 and generated SSDT this way

step 1-Dump DSDT
step 2-FakeEC
step 3-USB Reset

took only:
SSDT-EC.aml
SSDT-USB-Reset.aml

to the ACPI folder .. I don't know how else to solve the issue.

another issue is I have 4x 16GB memory modules and the SMBIOS generated was macpro7 and keeps telling me at login that the max memory supported blah blah , should I change the SMBIIOS fon an iMac 2017?

thanks in advance

Arrakis · April 5, 2021

@Renato

I traded because my first card broke. As I am very good with my PC hardware vendor, I took advantage of the exchange to take Rev1.1. I have not noted any notable differences in its operation.😀

Arrakis · April 5, 2021

@mSedek

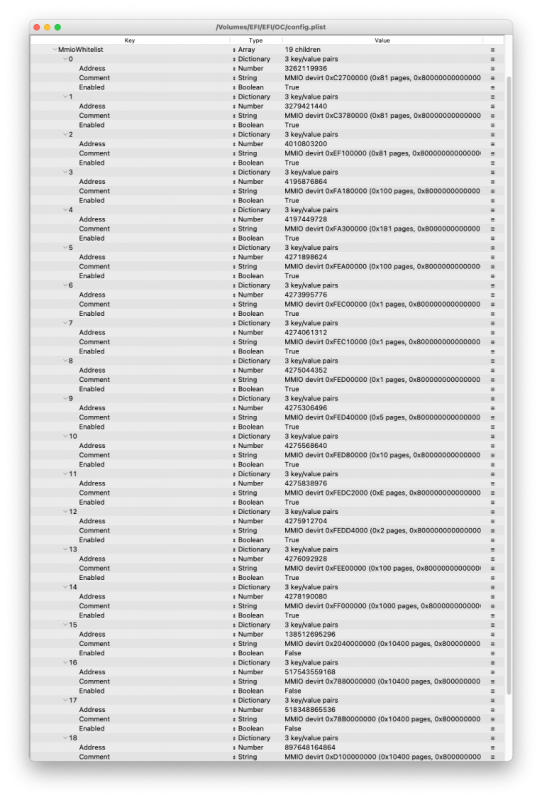

For the extinction problem, you have to edit the MMIO.

The addresses are in the debug file generated by OpenCore on the EFI partition.

Please note that each motherboard has different values. (do not copy my values.)

See Screen capture :

For the ram, two solutions.

1) The easiest is to change the SMBIOS, choose iMac Pro 1.1.

2) Consult the Dortonia post Installation guide : https://dortania.github.io/OpenCore-Post-Install/universal/memory.html#mapping-our-memory

fabiosun · April 5, 2021

3 hours ago, mSedek said:

Hello, I got my GIGABYTE TRX40 AORUS PRO WIFI and threadripper 3960X with radeon 5700XT working perfeclty but I can't reboot or shutdown unless I hard press the power button for several seconds..

been reading and can't find anything related, I followed dortanias guide step by step for trx40 and generated SSDT this way

step 1-Dump DSDT
step 2-FakeEC
step 3-USB Reset

took only:
SSDT-EC.aml
SSDT-USB-Reset.aml

to the ACPI folder .. I don't know how else to solve the issue.

another issue is I have 4x 16GB memory modules and the SMBIOS generated was macpro7 and keeps telling me at login that the max memory supported blah blah , should I change the SMBIIOS fon an iMac 2017?

thanks in advance

Hi and welcome here

Dortania's guide about TRX40 is far away to be accurate

I would like to advice to follow here where all it started (about trx40 and OSX use)

About your problem for memory i suggest to use ImacPro 1.1 SMBios (MacPro 7.1 has no benefit for us)

For shutdown and reboot problem it is a well known problem we solved HERE many months ago

you can try to read here:

TRX40 World - useful links - General - MacOS86

@iGPUdid a well detailed explanation of that i have discovered about MMIO use and their benefit to our trx40 rig!

mSedek · April 5, 2021

9 hours ago, fabiosun said:

Hi and welcome here

Dortania's guide about TRX40 is far away to be accurate

I would like to advice to follow here where all it started (about trx40 and OSX use)

About your problem for memory i suggest to use ImacPro 1.1 SMBios (MacPro 7.1 has no benefit for us)

For shutdown and reboot problem it is a well known problem we solved HERE many months ago

you can try to read here:

TRX40 World - useful links - General - MacOS86

@iGPUdid a well detailed explanation of that i have discovered about MMIO use and their benefit to our trx40 rig!

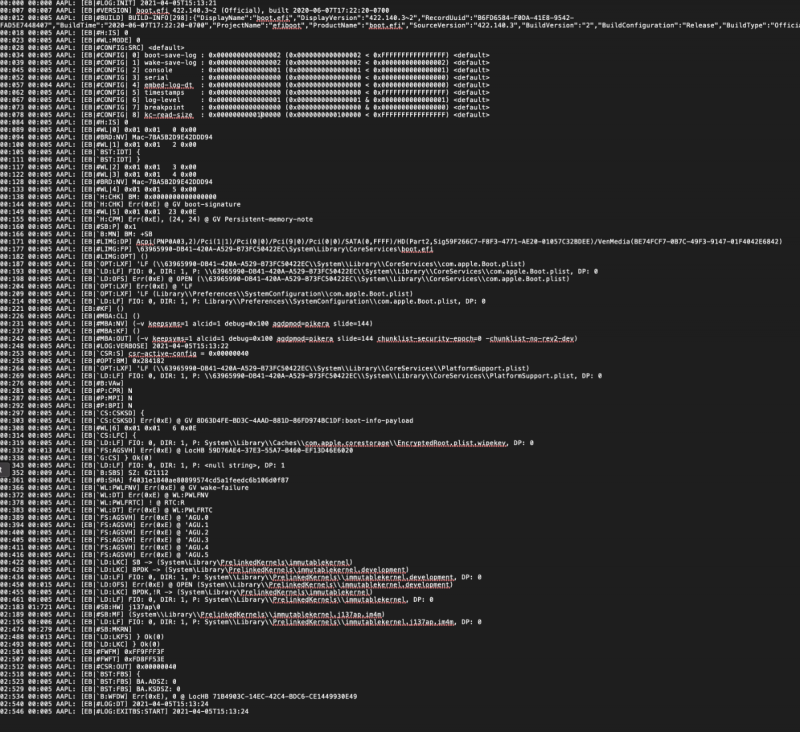

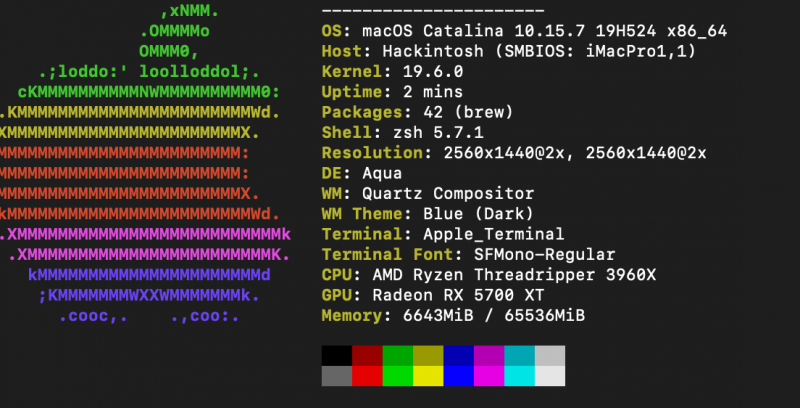

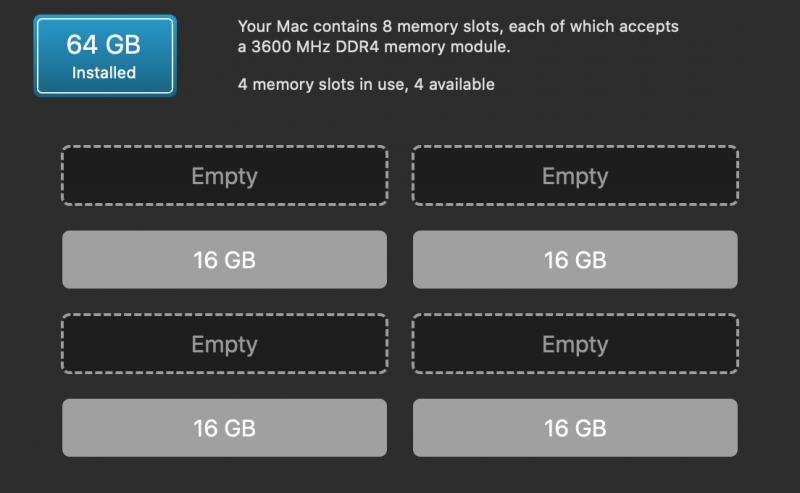

I am happy to inform that the memory problem got solved by changing the SMBIOS, but unfortunately I am not able to generate the proper oc_debub.txt with the mmio values i need to fix the MAJOR issue that is not being able to restart or shutdown properly.. also attaching the current file i got and the config.plist part of the debug

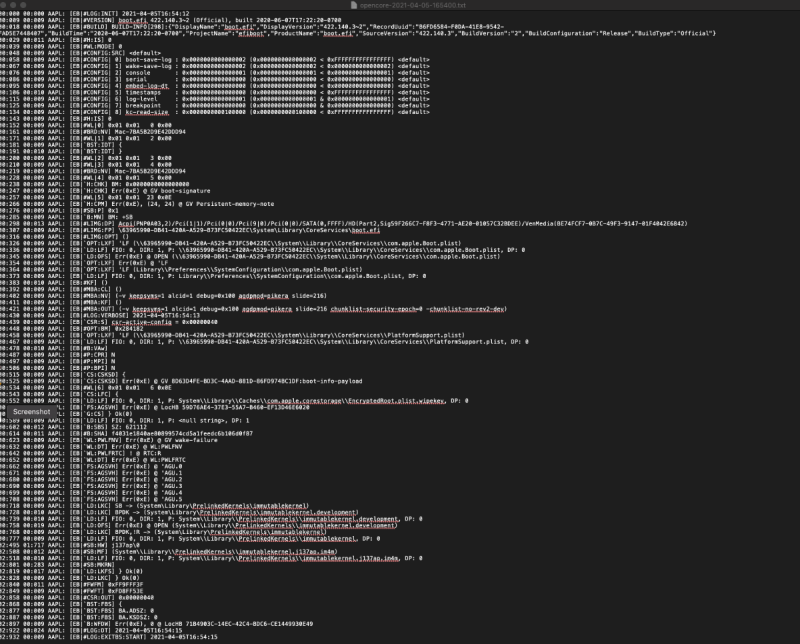

Edit: i think that the txt file got corrupted, deleted it and uploaded a image of it.

Edited April 5, 2021 by mSedek

fabiosun · April 5, 2021

@mSedek

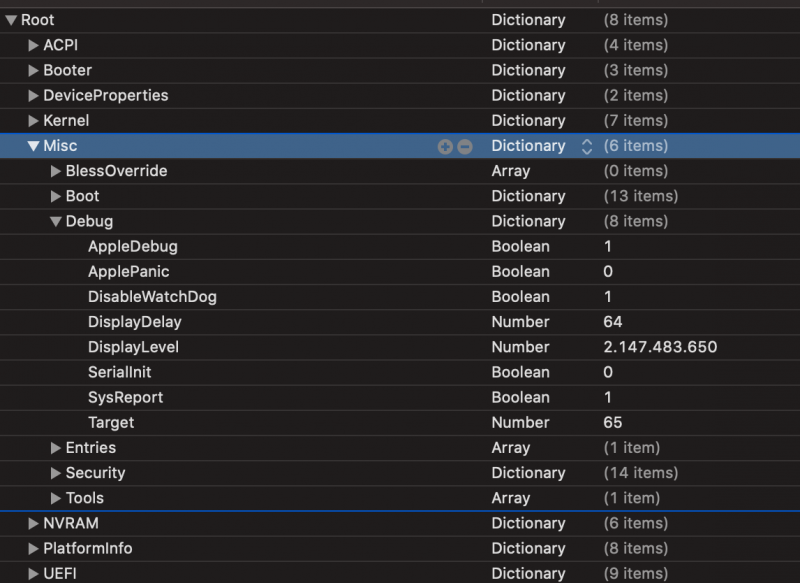

in your picture i see a target value of 65

try to put there 67 and see if you see a complete debug

fabiosun · April 5, 2021

@mSedek

also in your bootarg i see different boot args you do not need..

slide

Alcid

mSedek · April 5, 2021

11 minutes ago, fabiosun said:

@mSedek

in your picture i see a target value of 65

try to put there 67 and see if you see a complete debug

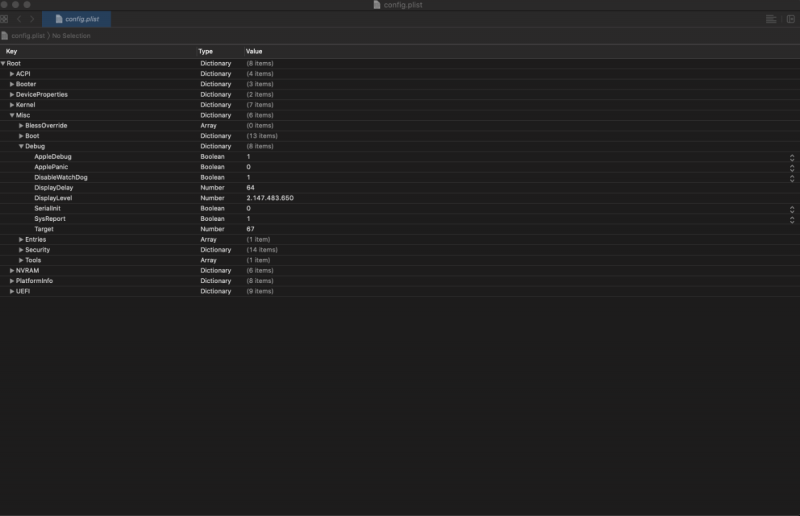

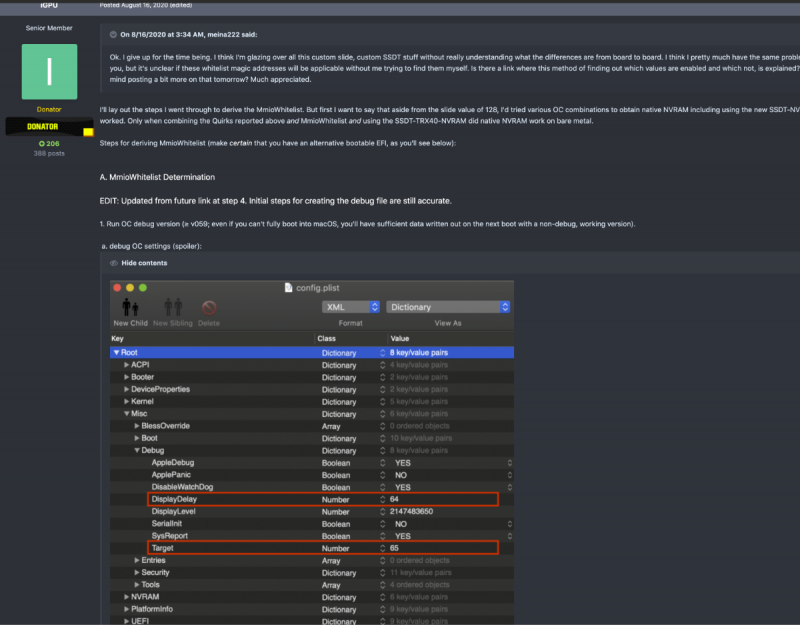

I did 65 from iGpu post as shown in the picture... and changed to 67 as you said and still cant get the log 😞

2 minutes ago, fabiosun said:

@mSedek

also in your bootarg i see different boot args you do not need..

slide

Alcid

ok, gonna remove them, those are from default OC

fabiosun · April 5, 2021

Sorry @mSedekare you using an OC debug version?

otherwise no complete log i think

Renato · April 5, 2021

12 hours ago, Arrakis said:

@Renato

I traded because my first card broke. As I am very good with my PC hardware vendor, I took advantage of the exchange to take Rev1.1. I have not noted any notable differences in its operation.😀

Hi,

I used your Efi, just added the platform info. All seems to be fine, I format (erase) the drive and I carry out the implementation but, when there are two minutes left in the installation the screen either freezes or the system reboots. I have a vega 64 videocard, I know it needs whatevergreen to work but than, that kext is in the kext subfolder. I tried twice and I have two quite different logs, not sure if they say anything useful :

Spoiler

00:000 00:000 OC: OpenCore DBG-067-2021-03-01 is loading in Optional mode (0/0)...
00:019 00:019 OC: Boot timestamp - 2021.04.05 16:53:07
00:040 00:020 OCCPU: MP services threads 64 (enabled 64) - Success
00:062 00:022 OCCPU: MP services Pkg 1 Cores 1 Threads 1 - Success
00:084 00:021 OCCPU: Found AMD Ryzen Threadripper 3970X 32-Core Processor
00:105 00:021 OCCPU: Signature 830F10 Stepping 0 Model 31 Family F Type 0 ExtModel 3 ExtFamily 8 uCode 0
00:227 00:121 OCCPU: FID 148 DID 8 Divisor 0 MaxBR 36
00:251 00:024 OCCPU: CPUFrequencyFromTSC 3693071487Hz 3693MHz
00:273 00:021 OCCPU: CPUFrequency 3693071487Hz 3693MHz
00:294 00:021 OCCPU: FSBFrequency 102585319Hz 102MHz
00:316 00:021 OCCPU: Pkg 1 Cores 32 Threads 64
00:337 00:021 OC: OcLoadNvramSupport...
00:359 00:021 OC: Invalid nvram data
00:380 00:021 OC: Not deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale, matches add
00:406 00:025 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found
00:432 00:025 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist, matches add
00:457 00:025 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args, matches add
00:488 00:030 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success
00:511 00:022 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - ignored, exists
00:569 00:058 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist - Not Found
00:588 00:019 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:SystemAudioVolume - ignored, exists
00:612 00:023 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - ignored, exists
00:634 00:022 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists
00:656 00:021 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - ignored, exists
00:677 00:021 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:run-efi-updater - ignored, exists
00:699 00:021 OC: Current version is DBG-067-2021-03-01
00:724 00:024 OC: OcMiscMiddleInit...
00:755 00:031 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:boot-path = PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(1,MBR,0xA47A94BC,0x800,0x64000)/EFI\OC\OpenCore.efi - Success
00:776 00:021 OC: LoadHandle 757ED898 with Full LauncherOption pointing to Default
00:798 00:022 OCB: Missing FW NVRAM, going on...
00:820 00:021 OCB: Have existing order of size 32 - Buffer Too Small
00:842 00:021 OCB: Have existing option at Boot0003, valid
00:863 00:021 OCB: Boot order has first option as the default option
00:885 00:021 OC: OcLoadUefiSupport...
00:906 00:021 OCRTC: Wake log is 0x00 0x00 0 0x00
00:927 00:020 OC: Loading Apple Secure Boot with Default (level 1)
00:962 00:034 OCII: AIFTimerBoostInit Current timer is 10000
01:041 00:079 OCII: gST->ConIn 7721CCF8 vs found 7721CCF8
01:063 00:021 OCABC: ALRBL 0 RTDFRG 1 DEVMMIO 1 NOSU 0 NOVRWR 0 NOSB 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 0
01:084 00:020 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 0 RBMAP 1 VMAP 0 APPLOS 0 RTPERMS 1
01:105 00:021 OCABC: Firmware has 16721932 free pages (472588 in lower 4 GB)
01:126 00:021 OCABC: Awaiting rendezvous with OpenRuntime r12
01:147 00:020 OC: RequestBootVarRouting 1
01:171 00:024 OC: Got 3 drivers
01:193 00:022 OC: Driver HfsPlus.efi at 0 is being loaded...
01:217 00:023 OCB: Arch filtering 0(37892)->738F4018(37892) caps 4 - Success
01:240 00:023 OC: Driver HfsPlus.efi at 0 is successfully loaded!
01:268 00:027 OC: Driver HfsPlus.efi at 0 needs connection.
01:290 00:021 OC: Driver OpenCanopy.efi at 1 is being loaded...
01:314 00:024 OCB: Arch filtering 0(126980)->73859018(126980) caps 4 - Success
01:342 00:028 OCUI: Registered custom GUI protocol
01:368 00:025 OC: Driver OpenCanopy.efi at 1 is successfully loaded!
01:393 00:025 OC: Driver OpenRuntime.efi at 2 is being loaded...
01:421 00:028 OCB: Arch filtering 0(36868)->738F4018(36868) caps 4 - Success
01:450 00:028 OCABC: Got rendezvous with OpenRuntime r12
01:476 00:026 OCABC: MAT support is 1
01:535 00:058 OC: Driver OpenRuntime.efi at 2 is successfully loaded!
01:557 00:022 OC: Connecting drivers...

and

00:000 00:000 OC: OpenCore DBG-067-2021-03-01 is loading in Optional mode (0/0)...
00:021 00:021 OC: Boot timestamp - 2021.04.05 16:45:14
00:043 00:022 OCCPU: MP services threads 64 (enabled 64) - Success
00:065 00:022 OCCPU: MP services Pkg 1 Cores 1 Threads 1 - Success
00:087 00:021 OCCPU: Found AMD Ryzen Threadripper 3970X 32-Core Processor
00:109 00:022 OCCPU: Signature 830F10 Stepping 0 Model 31 Family F Type 0 ExtModel 3 ExtFamily 8 uCode 0
00:232 00:122 OCCPU: FID 148 DID 8 Divisor 0 MaxBR 36
00:254 00:021 OCCPU: CPUFrequencyFromTSC 3693056558Hz 3693MHz
00:276 00:021 OCCPU: CPUFrequency 3693056558Hz 3693MHz
00:298 00:022 OCCPU: FSBFrequency 102584904Hz 102MHz
00:320 00:021 OCCPU: Pkg 1 Cores 32 Threads 64
00:350 00:030 OC: OcLoadNvramSupport...
00:380 00:030 OC: Invalid nvram data
00:410 00:029 OC: Not deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale, matches add
00:441 00:030 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found
00:502 00:060 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist, matches add
00:523 00:020 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args, matches add
00:550 00:027 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success
00:572 00:021 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - ignored, exists
00:594 00:022 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist - Not Found
00:616 00:022 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:SystemAudioVolume - ignored, exists
00:638 00:021 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - ignored, exists
00:660 00:022 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists
00:683 00:022 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - Not Found
00:705 00:021 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:run-efi-updater - ignored, exists
00:727 00:021 OC: Current version is DBG-067-2021-03-01
00:755 00:028 OC: OcMiscMiddleInit...
00:788 00:032 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:boot-path = PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(1,MBR,0xA47A94BC,0x800,0x64000)/EFI\OC\OpenCore.efi - Success
00:813 00:025 OC: LoadHandle 757E5D18 with Full LauncherOption pointing to Default
00:843 00:029 OCB: Missing FW NVRAM, going on...
00:874 00:030 OCB: Have existing order of size 30 - Buffer Too Small
00:904 00:029 OCB: No existing option at Boot0021, invalid
00:933 00:029 OCB: Creating boot option OpenCore of 144 bytes
01:006 00:072 OCB: Wrote new boot order with boot option - Success
01:090 00:084 OC: OcLoadUefiSupport...
01:121 00:030 OCRTC: Wake log is 0x00 0x00 0 0x00
01:151 00:030 OC: Loading Apple Secure Boot with Default (level 1)
01:191 00:039 OCII: AIFTimerBoostInit Current timer is 10000
01:254 00:063 OCII: gST->ConIn 7721CCF8 vs found 7721CCF8
01:285 00:030 OCABC: ALRBL 0 RTDFRG 1 DEVMMIO 1 NOSU 0 NOVRWR 0 NOSB 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 0
01:316 00:030 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 0 RBMAP 1 VMAP 0 APPLOS 0 RTPERMS 1
01:347 00:031 OCABC: Firmware has 16719952 free pages (470608 in lower 4 GB)
01:378 00:030 OCABC: Awaiting rendezvous with OpenRuntime r12
01:409 00:030 OC: RequestBootVarRouting 1
01:442 00:033 OC: Got 3 drivers
01:473 00:030 OC: Driver HfsPlus.efi at 0 is being loaded...
01:506 00:032 OCB: Arch filtering 0(37892)->73682018(37892) caps 4 - Success
01:535 00:029 OC: Driver HfsPlus.efi at 0 is successfully loaded!
01:566 00:030 OC: Driver HfsPlus.efi at 0 needs connection.
01:596 00:030 OC: Driver OpenCanopy.efi at 1 is being loaded...
01:628 00:032 OCB: Arch filtering 0(126980)->73534018(126980) caps 4 - Success
01:659 00:030 OCUI: Registered custom GUI protocol
01:720 00:061 OC: Driver OpenCanopy.efi at 1 is successfully loaded!
01:748 00:028 OC: Driver OpenRuntime.efi at 2 is being loaded...
01:772 00:023 OCB: Arch filtering 0(36868)->73682018(36868) caps 4 - Success
01:796 00:024 OCABC: Got rendezvous with OpenRuntime r12
01:818 00:021 OCABC: MAT support is 1
01:839 00:021 OC: Driver OpenRuntime.efi at 2 is successfully loaded!
01:861 00:021 OC: Connecting drivers...
07:655 05:794 OC: Connecting drivers done...
07:681 00:025 OCJS: PartitionInfo is Success
07:704 00:023 OCJS: Got APFS super block for F5233BE0-91F2-C540-AC7C-A4046691D91B
07:735 00:030 OCJS: Block (P:1|F:0) read req 675D30 -> 33AE980 of 1000 (mask 0, mul 😎 - Success
07:773 00:037 OCJS: APFS driver 1412141001000000/20201030 found for F5233BE0-91F2-C540-AC7C-A4046691D91B, required >= 748077008000000/20180621, allow
07:804 00:030 OCJS: Connecting normally APFS driver on handle 745BD898
08:083 00:279 OCC: Installing GOP (Unsupported) on ConsoleOutHandle...
08:113 00:029 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
08:143 00:030 OCC: Requesting 0x0@0 (max: 1) resolution, curr 2, total 6
08:173 00:029 OCC: Current FB at 0x80000000 (0x300000), format 1, res 1024x768 scan 1024
08:203 00:029 OCC: Mode 0 - 640x480:1
08:234 00:030 OCC: Mode 1 - 800x600:1
08:295 00:061 OCC: Mode 2 - 1024x768:1
08:315 00:019 OCC: Mode 3 - 1280x1024:1
08:338 00:022 OCC: Mode 4 - 1600x1200:1
08:360 00:022 OCC: Mode 5 - 1920x1080:1
08:387 00:026 OCC: Setting mode 5 with 1920x1080 resolution
08:600 00:213 OCC: Changed resolution mode to 5
08:641 00:040 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Success
08:672 00:030 OCC: Using builtin text renderer with 1 scale
08:716 00:044 OCC: Install console control (73662408/0/0), current - Success
08:749 00:033 OCC: Setup ASCII Output - Success
08:781 00:031 OC: Requested console mode is 0x0 (max: 0) from
08:812 00:030 OC: Requested not to use audio
08:842 00:030 OC: OcMiscLoadSystemReport...
08:868 00:025 OC: OcLoadAcpiSupport...
08:898 00:030 OCA: Found 19 ACPI tables
08:930 00:031 OCA: Detected table FACP (50434146) (OEM 00002049204D2041) at 795A3000 of 276 bytes at index 0
08:959 00:029 OCA: Detected DSDT at 79594000 of 60719 bytes at index 0
08:989 00:029 OCA: Detected table SSDT (54445353) (OEM 0000707041575347) at 795B1000 of 49205 bytes at index 1
09:054 00:064 OCA: Detected table SSDT (54445353) (OEM 656C626154646D41) at 795A8000 of 35992 bytes at index 2
09:074 00:020 OCA: Detected table SSDT (54445353) (OEM 00444F4120444D41) at 795A4000 of 14616 bytes at index 3
09:096 00:021 OCA: Detected table FIDT (54444946) (OEM 00000049204D2041) at 79593000 of 156 bytes at index 4
09:118 00:021 OCA: Detected table MCFG (4746434D) (OEM 00000049204D2041) at 79592000 of 60 bytes at index 5
09:140 00:021 OCA: Detected table SSDT (54445353) (OEM 0054445353555043) at 79591000 of 876 bytes at index 6
09:161 00:021 OCA: Detected table HPET (54455048) (OEM 00000049204D2041) at 79590000 of 56 bytes at index 7
09:191 00:029 OCA: Detected table SSDT (54445353) (OEM 0000000000000000) at 7958F000 of 36 bytes at index 8
09:213 00:021 OCA: Detected table IVRS (53525649) (OEM 656C626154646D41) at 7958E000 of 496 bytes at index 9
09:234 00:021 OCA: Detected table PCCT (54434350) (OEM 656C626154646D41) at 7958D000 of 110 bytes at index 10
09:257 00:022 OCA: Detected table SSDT (54445353) (OEM 656C626154646D41) at 7957D000 of 64073 bytes at index 11
09:279 00:022 OCA: Detected table CRAT (54415243) (OEM 656C626154646D41) at 79579000 of 15056 bytes at index 12
09:301 00:021 OCA: Detected table CDIT (54494443) (OEM 656C626154646D41) at 79578000 of 41 bytes at index 13
09:323 00:022 OCA: Detected table SSDT (54445353) (OEM 484F4F544B414853) at 79575000 of 11611 bytes at index 14
09:345 00:021 OCA: Detected table WSMT (544D5357) (OEM 00002049204D2041) at 79574000 of 40 bytes at index 15
09:366 00:020 OCA: Detected table APIC (43495041) (OEM 00002049204D2041) at 79573000 of 1154 bytes at index 16
09:387 00:020 OCA: Detected table SSDT (54445353) (OEM 484F4F544B414853) at 79571000 of 5118 bytes at index 17
09:408 00:021 OCA: Detected table FPDT (54445046) (OEM 00002049204D2041) at 79570000 of 68 bytes at index 18
09:428 00:020 OCA: Allocated new table SSDT at 79754000
09:449 00:021 OCA: Inserted table SSDT (54445353) (OEM 0000000050475444) of 100 bytes into ACPI at index 19
09:506 00:056 OCA: Allocated new table SSDT at 79753000
09:529 00:023 OCA: Inserted table SSDT (54445353) (OEM 4E41544954544254) of 2195 bytes into ACPI at index 20
09:558 00:028 OCA: Allocated new table SSDT at 79752000
09:579 00:021 OCA: Inserted table SSDT (54445353) (OEM 0000434574647353) of 278 bytes into ACPI at index 21
09:599 00:019 OCA: FACS signature is 0 (0)
09:623 00:023 OCA: Exposing XSDT table table FACP (50434146) (OEM 00002049204D2041) at 795A3000 of 276 bytes at index 0
09:644 00:021 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000707041575347) at 795B1000 of 49205 bytes at index 1
09:666 00:022 OCA: Exposing XSDT table table SSDT (54445353) (OEM 656C626154646D41) at 795A8000 of 35992 bytes at index 2
09:688 00:022 OCA: Exposing XSDT table table SSDT (54445353) (OEM 00444F4120444D41) at 795A4000 of 14616 bytes at index 3
09:710 00:021 OCA: Exposing XSDT table table FIDT (54444946) (OEM 00000049204D2041) at 79593000 of 156 bytes at index 4
09:732 00:021 OCA: Exposing XSDT table table MCFG (4746434D) (OEM 00000049204D2041) at 79592000 of 60 bytes at index 5
09:754 00:022 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0054445353555043) at 79591000 of 876 bytes at index 6
09:777 00:022 OCA: Exposing XSDT table table HPET (54455048) (OEM 00000049204D2041) at 79590000 of 56 bytes at index 7
09:799 00:021 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000000000000000) at 7958F000 of 36 bytes at index 8
09:819 00:020 OCA: Exposing XSDT table table IVRS (53525649) (OEM 656C626154646D41) at 7958E000 of 496 bytes at index 9
09:838 00:018 OCA: Exposing XSDT table table PCCT (54434350) (OEM 656C626154646D41) at 7958D000 of 110 bytes at index 10
09:861 00:022 OCA: Exposing XSDT table table SSDT (54445353) (OEM 656C626154646D41) at 7957D000 of 64073 bytes at index 11
09:888 00:026 OCA: Exposing XSDT table table CRAT (54415243) (OEM 656C626154646D41) at 79579000 of 15056 bytes at index 12
09:909 00:021 OCA: Exposing XSDT table table CDIT (54494443) (OEM 656C626154646D41) at 79578000 of 41 bytes at index 13
09:966 00:056 OCA: Exposing XSDT table table SSDT (54445353) (OEM 484F4F544B414853) at 79575000 of 11611 bytes at index 14
09:987 00:021 OCA: Exposing XSDT table table WSMT (544D5357) (OEM 00002049204D2041) at 79574000 of 40 bytes at index 15
10:009 00:021 OCA: Exposing XSDT table table APIC (43495041) (OEM 00002049204D2041) at 79573000 of 1154 bytes at index 16
10:030 00:021 OCA: Exposing XSDT table table SSDT (54445353) (OEM 484F4F544B414853) at 79571000 of 5118 bytes at index 17
10:052 00:022 OCA: Exposing XSDT table table FPDT (54445046) (OEM 00002049204D2041) at 79570000 of 68 bytes at index 18
10:073 00:020 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000000050475444) at 79754000 of 100 bytes at index 19
10:096 00:023 OCA: Exposing XSDT table table SSDT (54445353) (OEM 4E41544954544254) at 79753000 of 2195 bytes at index 20
10:118 00:021 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000434574647353) at 79752000 of 278 bytes at index 21
10:140 00:021 OCA: Exposing RSDT table table FACP (50434146) (OEM 00002049204D2041) at 795A3000 of 276 bytes at index 0
10:162 00:021 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000707041575347) at 795B1000 of 49205 bytes at index 1
10:183 00:021 OCA: Exposing RSDT table table SSDT (54445353) (OEM 656C626154646D41) at 795A8000 of 35992 bytes at index 2
10:205 00:022 OCA: Exposing RSDT table table SSDT (54445353) (OEM 00444F4120444D41) at 795A4000 of 14616 bytes at index 3
10:227 00:021 OCA: Exposing RSDT table table FIDT (54444946) (OEM 00000049204D2041) at 79593000 of 156 bytes at index 4
10:255 00:027 OCA: Exposing RSDT table table MCFG (4746434D) (OEM 00000049204D2041) at 79592000 of 60 bytes at index 5
10:284 00:029 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0054445353555043) at 79591000 of 876 bytes at index 6
10:309 00:024 OCA: Exposing RSDT table table HPET (54455048) (OEM 00000049204D2041) at 79590000 of 56 bytes at index 7
10:330 00:020 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000000000000000) at 7958F000 of 36 bytes at index 8
10:352 00:021 OCA: Exposing RSDT table table IVRS (53525649) (OEM 656C626154646D41) at 7958E000 of 496 bytes at index 9
10:416 00:064 OCA: Exposing RSDT table table PCCT (54434350) (OEM 656C626154646D41) at 7958D000 of 110 bytes at index 10
10:437 00:020 OCA: Exposing RSDT table table SSDT (54445353) (OEM 656C626154646D41) at 7957D000 of 64073 bytes at index 11
10:458 00:021 OCA: Exposing RSDT table table CRAT (54415243) (OEM 656C626154646D41) at 79579000 of 15056 bytes at index 12
10:478 00:020 OCA: Exposing RSDT table table CDIT (54494443) (OEM 656C626154646D41) at 79578000 of 41 bytes at index 13
10:502 00:024 OCA: Exposing RSDT table table SSDT (54445353) (OEM 484F4F544B414853) at 79575000 of 11611 bytes at index 14
10:524 00:021 OCA: Exposing RSDT table table WSMT (544D5357) (OEM 00002049204D2041) at 79574000 of 40 bytes at index 15
10:546 00:021 OCA: Exposing RSDT table table APIC (43495041) (OEM 00002049204D2041) at 79573000 of 1154 bytes at index 16
10:568 00:022 OCA: Exposing RSDT table table SSDT (54445353) (OEM 484F4F544B414853) at 79571000 of 5118 bytes at index 17
10:591 00:022 OCA: Exposing RSDT table table FPDT (54445046) (OEM 00002049204D2041) at 79570000 of 68 bytes at index 18
10:621 00:030 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000000050475444) at 79754000 of 100 bytes at index 19
10:653 00:031 OCA: Exposing RSDT table table SSDT (54445353) (OEM 4E41544954544254) at 79753000 of 2195 bytes at index 20
10:688 00:035 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000434574647353) at 79752000 of 278 bytes at index 21
10:719 00:031 OC: OcLoadPlatformSupport...
10:750 00:030 OCSMB: Found DMI Anchor 7B055000 v3.3 Table Address 000E8D60 Length 0D3B
10:776 00:025 OCSMB: Found DMI Anchor 7B054000 v3.3 Table Address 000E8D60 Length 0D3B
10:806 00:030 OCSMB: Current SMBIOS TRX40 DESIGNARE (TRX40 DESIGNARE made by Gigabyte Technology Co., Ltd.)
10:836 00:030 OC: PlatformInfo auto 1 OEM SN 0 OEM UUID 0 OEM MLB 0 OEM ROM 0 - Success
10:865 00:029 OC: New SMBIOS: Acidanthera model iMacPro1,1
10:896 00:030 OCSMB: Post-override BIOS vendor Acidanthera 0
10:957 00:061 OCSMB: CPU display frequency is 3700MHz
10:978 00:021 OCSMB: Number of CPU cache entries is 3
11:002 00:023 OCSMB: Applying 2807 (1) prev 7B055000 (3387/31), 7B054000 (3387/24)
11:024 00:021 OCSMB: Patched 794D9000 v3.2 Table Address 794DA000 Length 0AF7 1E 99
11:045 00:021 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:name (9) - Success
11:067 00:021 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:Model (22) - Success
11:089 00:021 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:SystemSerialNumber (26) - Success
11:119 00:029 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:system-id (16) - Success
11:140 00:021 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (21) - Success
11:162 00:021 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-rev (1) - Success
11:184 00:022 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success
11:206 00:021 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success
11:228 00:021 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success
11:251 00:022 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:DevicePathsSupported (4) - Success
11:271 00:020 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RPlt (8) - Success
11:294 00:022 OC: Setting HW_BID Mac-7BA5B2D9E42DDD94 - Success
11:316 00:022 OC: Setting HW_MLB C028365014NJG361H - Success
11:338 00:021 OC: Setting MLB C028365014NJG361H - Success
11:358 00:020 OC: Setting HW_SSN C02XCSZSHX87 - Success
11:417 00:058 OC: Setting SSN C02XCSZSHX87 - Success
11:438 00:021 OC: Setting system-id EF724FC8-ED2E-AC40-8477-6B81C520AA99 - Success
11:461 00:022 OC: Setting FirmwareFeatures FD8FF53E - Success
11:490 00:028 OC: Setting ExtendedFirmwareFeatures 00000000FD8FF53E - Success
11:513 00:023 OC: Setting FirmwareFeaturesMask FF9FFF3F - Success
11:536 00:023 OC: Setting ExtendedFirmwareFeaturesMask 00000000FF9FFF3F - Success
11:558 00:021 OC: OcLoadDevPropsSupport...

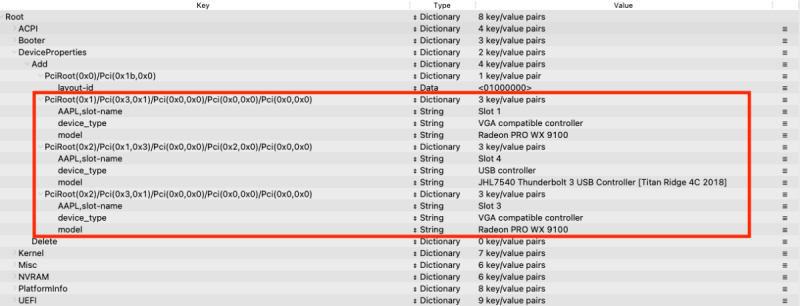

11:580 00:021 OC: Setting devprop PciRoot(0x0)/Pci(0x1b,0x0):layout-id - Success
11:602 00:022 OC: Setting devprop PciRoot(0x1)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0):AAPL,slot-name - Success
11:624 00:021 OC: Setting devprop PciRoot(0x1)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0):device_type - Success
11:646 00:022 OC: Setting devprop PciRoot(0x1)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0):model - Success
11:666 00:019 OC: Setting devprop PciRoot(0x2)/Pci(0x1,0x3)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0):AAPL,slot-name - Success
11:690 00:023 OC: Setting devprop PciRoot(0x2)/Pci(0x1,0x3)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0):device_type - Success
11:711 00:021 OC: Setting devprop PciRoot(0x2)/Pci(0x1,0x3)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0):model - Success
11:732 00:020 OC: Setting devprop PciRoot(0x2)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0):AAPL,slot-name - Success
11:753 00:021 OC: Setting devprop PciRoot(0x2)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0):device_type - Success
11:774 00:020 OC: Setting devprop PciRoot(0x2)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0):model - Success
11:796 00:021 OC: OcMiscLateInit...
11:860 00:063 OC: Translated HibernateMode None to 0
11:881 00:021 OC: Hibernation detection status is Not Found
11:903 00:021 OC: Panic log does not exist
11:924 00:021 OC: OcLoadKernelSupport...
11:944 00:019 OC: All green, starting boot management...
11:968 00:024 OC: Handing off to external boot controller
11:990 00:021 OC: Ready for takeoff in 0 us
12:020 00:030 OCUI: Failed to load image (1/1) Resources\Image\ModernBackground.icns prefix:Modern icon:0 - Not Found
12:054 00:034 OCUI: Failed to load image (1/2) Resources\Image\ModernApple.icns prefix:Modern icon:1 - Not Found
12:094 00:040 OCUI: Failed to load image (2/2) Resources\Image\ModernExtWindows.icns prefix:Modern icon:1 - Not Found
12:120 00:025 OCUI: Failed to load image (1/2) Resources\Image\ModernOther.icns prefix:Modern icon:1 - Not Found
12:145 00:025 OCUI: Failed to load image (2/2) Resources\Image\ModernExtTool.icns prefix:Modern icon:1 - Not Found
12:173 00:027 OCUI: Failed to load image (1/2) Resources\Image\ModernResetNVRAM.icns prefix:Modern icon:1 - Not Found
12:197 00:024 OCUI: Failed to load image (2/2) Resources\Image\ModernExtShell.icns prefix:Modern icon:1 - Not Found
12:227 00:029 OCUI: Info->fontSize 10 Info->bitField 192 Info->charSet 0 Info->stretchH 100 Info->aa 1
12:255 00:028 OCUI: Info->paddingUp 0 Info->paddingRight 0 Info->paddingDown 0 Info->paddingLeft 0
12:285 00:030 OCUI: Info->spacingHoriz 1 Info->spacingVert 1 Info->outline 0 Info->fontName
12:315 00:029 OCB: Adding fs 757E5D18 (E:1|L:1|P:Success) - PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(1,MBR,0xA47A94BC,0x800,0x64000)
12:345 00:030 OCB: Adding fs 75666718 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1,0x1)/Pci(0x0,0x0)/NVMe(0x1,3B-C0-86-46-8B-44-1B-00)/HD(2,GPT,B3976B19-D425-43CD-B22A-5B9C71C19C25,0x8000,0xE8E00000)
12:406 00:061 OCB: Adding fs 7466E918 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x2,0xFFFF,0x0)/HD(1,MBR,0x8F956AD9,0x800,0x32000)
12:429 00:022 OCB: Adding fs 74665B98 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x2,0xFFFF,0x0)/HD(2,MBR,0x8F956AD9,0x32800,0x87A4800)
12:451 00:021 OCB: Adding fs 7465BF18 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x2,0xFFFF,0x0)/HD(3,MBR,0x8F956AD9,0x87D7000,0xE1000)
12:472 00:021 OCB: Adding fs 7465AD18 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x2,0xFFFF,0x0)/HD(4,MBR,0x8F956AD9,0x88B8000,0x1490D000)
12:494 00:021 OCB: Adding fs 745D4A98 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(1,GPT,756DD1F6-1376-48E0-B4DE-8044B18C7769,0x28,0x64000)
12:516 00:022 OCB: Adding fs 740FD998 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,29E2AB29-47F3-4B92-BC2A-CA1AA8B5AF4E,0x8000,0x1D1C03000)
12:538 00:021 OCB: Adding fs 740FFF18 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(1,GPT,E4BAD270-20EB-495A-84D7-A0F09E467A35,0x800,0x108800)
12:560 00:022 OCB: Adding fs 740FE798 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(2,GPT,E1AEF707-C5E5-44DA-817E-006278661EC0,0x109000,0x32000)
12:580 00:020 OCB: Adding fs 740B6798 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(4,GPT,D588E1BA-30F2-4B06-BE5B-DD110EAE950F,0x143000,0x3CE53FC6)
12:604 00:023 OCB: Adding fs 740B6118 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(5,GPT,C6098FAE-0175-43E5-8267-EDA840510DB6,0x3CF97000,0xF9000)
12:626 00:021 OCB: Adding fs 757E5A98 (E:1|L:0|P:Success) - PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(2,MBR,0xA47A94BC,0x64800,0x1C3F800)
12:647 00:021 OCB: Adding fs 740B5798 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(6,GPT,5906D912-AFD6-4110-91E6-8301965237EE,0x3D090800,0x37635800)
12:681 00:034 OCB: Adding fs 72CBB898 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0C645BFEA1736E4189DDF681A9F1D84F)
12:708 00:026 OCB: Adding fs 72CB5718 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,1F603A45C736F241AAAC094501A3F444)
12:738 00:030 OCB: Adding fs 72CB5598 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,5B2BAC3E887C554FA0C47D749A7551A5)
12:768 00:030 OCB: Adding fs 72BAC698 (E:0|L:0|P:Success) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E1F9DF75BA9CC64385BD5B8F1A1337D7)
12:798 00:029 OCB: Found 18 potentially bootable filesystems
12:827 00:029 OCB: BootOrder/BootNext are not present or unsupported
12:858 00:030 OCB: Processing blessed list
12:919 00:061 OCB: Adding bless entry on disk - PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(1,MBR,0xA47A94BC,0x800,0x64000)
12:940 00:021 OCBP: Blessed file is missing
12:961 00:021 OCBP: Blessed folder is missing
12:983 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
13:005 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
13:025 00:020 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found
13:049 00:023 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(1,MBR,0xA47A94BC,0x800,0x64000)/\EFI\BOOT\BOOTX64.EFI
13:071 00:021 OCB: Discarding discovered OpenCore bootloader
13:100 00:028 OCBP: APFS recovery volume handle missing - \EFI\BOOT\
13:122 00:022 OCB: APFS recovery is not present - Not Found
13:144 00:021 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1,0x1)/Pci(0x0,0x0)/NVMe(0x1,3B-C0-86-46-8B-44-1B-00)/HD(2,GPT,B3976B19-D425-43CD-B22A-5B9C71C19C25,0x8000,0xE8E00000)
13:166 00:021 OCBP: Blessed file is missing
13:188 00:022 OCBP: Blessed folder is missing
13:209 00:020 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
13:230 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
13:252 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
13:272 00:020 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x2,0xFFFF,0x0)/HD(1,MBR,0x8F956AD9,0x800,0x32000)
13:293 00:020 OCBP: Blessed file is missing
13:350 00:057 OCBP: Blessed folder is missing
13:371 00:020 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
13:390 00:018 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
13:414 00:024 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
13:436 00:021 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x2,0xFFFF,0x0)/HD(2,MBR,0x8F956AD9,0x32800,0x87A4800)
13:466 00:029 OCBP: Blessed file is missing
13:487 00:021 OCBP: Blessed folder is missing
13:509 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
13:531 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
13:554 00:022 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
13:576 00:021 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x2,0xFFFF,0x0)/HD(3,MBR,0x8F956AD9,0x87D7000,0xE1000)
13:597 00:021 OCBP: Blessed file is missing
13:620 00:022 OCBP: Blessed folder is missing
13:642 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
13:663 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
13:684 00:020 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
13:706 00:021 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x2,0xFFFF,0x0)/HD(4,MBR,0x8F956AD9,0x88B8000,0x1490D000)
13:726 00:020 OCBP: Blessed file is missing
13:747 00:021 OCBP: Blessed folder is missing
13:805 00:057 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
13:832 00:027 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
13:854 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
13:875 00:021 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(1,GPT,756DD1F6-1376-48E0-B4DE-8044B18C7769,0x28,0x64000)
13:898 00:022 OCBP: Blessed file is missing
13:920 00:021 OCBP: Blessed folder is missing
13:942 00:022 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
13:965 00:022 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
13:987 00:022 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
14:012 00:024 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,29E2AB29-47F3-4B92-BC2A-CA1AA8B5AF4E,0x8000,0x1D1C03000)
14:034 00:021 OCBP: Blessed file is missing
14:055 00:021 OCBP: Blessed folder is missing
14:077 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
14:099 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
14:120 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
14:142 00:021 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(1,GPT,E4BAD270-20EB-495A-84D7-A0F09E467A35,0x800,0x108800)
14:169 00:027 OCBP: Blessed file is missing
14:199 00:029 OCBP: Blessed folder is missing
14:229 00:030 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
14:293 00:063 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
14:311 00:018 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
14:335 00:024 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(2,GPT,E1AEF707-C5E5-44DA-817E-006278661EC0,0x109000,0x32000)
14:358 00:022 OCBP: Blessed file is missing
14:379 00:020 OCBP: Blessed folder is missing
14:404 00:025 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
14:427 00:022 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi was found
14:450 00:022 OCB: Adding entry type (T:32|F:0|G:0) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(2,GPT,E1AEF707-C5E5-44DA-817E-006278661EC0,0x109000,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi
14:472 00:022 OCB: Trying to get label from \EFI\Microsoft\Boot\.contentDetails
14:498 00:026 OCB: Trying to get label from \EFI\Microsoft\Boot\.disk_label.contentDetails
14:530 00:032 OCB: Registering entry Windows (T:32|F:0|G:0|E:0) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(2,GPT,E1AEF707-C5E5-44DA-817E-006278661EC0,0x109000,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi
14:561 00:030 OCBP: APFS recovery volume handle missing - \EFI\Microsoft\Boot\
14:597 00:035 OCB: APFS recovery is not present - Not Found
14:629 00:032 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(4,GPT,D588E1BA-30F2-4B06-BE5B-DD110EAE950F,0x143000,0x3CE53FC6)
14:659 00:029 OCBP: Blessed file is missing
14:685 00:025 OCBP: Blessed folder is missing
14:714 00:029 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
14:744 00:030 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
14:809 00:064 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
14:830 00:020 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(5,GPT,C6098FAE-0175-43E5-8267-EDA840510DB6,0x3CF97000,0xF9000)
14:849 00:018 OCBP: Blessed file is missing
14:873 00:024 OCBP: Blessed folder is missing
14:894 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
14:916 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
14:938 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
14:961 00:022 OCB: Adding bless entry on disk - PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(2,MBR,0xA47A94BC,0x64800,0x1C3F800)
14:985 00:024 OCBP: BlessedFileHEX (1/3 156) - 02 01 0C 00 D0 41 03 0A 01 00 00 00 01 01 06 00 01 08 01 01 06 00 03 00 03 05 06 00 03 00 04 01 2A 00 02 00 00 00 00 48 06 00 00 00 00 00 00 F8 C3 01 00 00 00 00 BC 94 7A A4 00 00 00 00 00 00
15:007 00:021 OCBP: BlessedFileHEX (2/3 156) - 00 00 00 00 00 00 01 01 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00
15:041 00:034 OCBP: BlessedFileHEX (3/3 156) - 65 00 73 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00
15:067 00:026 OCBP: BlessedFileDP - PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(2,MBR,0xA47A94BC,0x64800,0x1C3F800)/\System\Library\CoreServices\boot.efi
15:089 00:021 OCBP: Blessed file is valid
15:112 00:022 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(2,MBR,0xA47A94BC,0x64800,0x1C3F800)/\System\Library\CoreServices\boot.efi
15:142 00:029 OCB: Trying to get label from \System\Library\CoreServices\.contentDetails
15:173 00:031 OCB: Trying to get label from \System\Library\CoreServices\.disk_label.contentDetails
15:204 00:030 OCB: Registering entry macOS Base System (T:2|F:0|G:0|E:1) - PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(2,MBR,0xA47A94BC,0x64800,0x1C3F800)/\System\Library\CoreServices\boot.efi
15:233 00:029 OCBP: APFS recovery volume handle missing - \System\Library\CoreServices\
15:263 00:030 OCB: APFS recovery is not present - Not Found
15:324 00:061 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0xA,0x0)/Pci(0x0,0x0)/Sata(0x1,0xFFFF,0x0)/HD(6,GPT,5906D912-AFD6-4110-91E6-8301965237EE,0x3D090800,0x37635800)
15:345 00:020 OCBP: Blessed file is missing
15:367 00:021 OCBP: Blessed folder is missing
15:388 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
15:411 00:022 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
15:435 00:023 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
15:464 00:029 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0C645BFEA1736E4189DDF681A9F1D84F)
15:486 00:021 OCBP: APFS Volume Info - 73A03698 (131072, FE5B640C-73A1-416E-89DD-F681A9F1D84F, 16)
15:508 00:022 OCBP: APFS Container Info - 72E51818 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
15:532 00:024 OCBP: BlessedFileHEX (1/5 266) - 02 01 0C 00 D0 41 03 0A 02 00 00 00 01 01 06 00 01 01 01 01 06 00 00 00 01 01 06 00 00 09 01 01 06 00 00 00 03 12 0A 00 03 00 FF FF 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 60 2D
15:554 00:021 OCBP: BlessedFileHEX (2/5 266) - 6A 74 00 00 00 00 9A 80 4B A0 DC 72 EF 42 8C A4 11 53 89 85 12 54 02 02 04 03 24 00 F7 FC 74 BE 7C 0B F3 49 91 47 01 F4 04 2E 68 42 0C 64 5B FE A1 73 6E 41 89 DD F6 81 A9 F1 D8 4F 04 04 8A 00
15:576 00:021 OCBP: BlessedFileHEX (3/5 266) - 5C 00 34 00 35 00 33 00 41 00 36 00 30 00 31 00 46 00 2D 00 33 00 36 00 43 00 37 00 2D 00 34 00 31 00 46 00 32 00 2D 00 41 00 41 00 41 00 43 00 2D 00 30 00 39 00 34 00 35 00 30 00 31 00 41 00
15:598 00:022 OCBP: BlessedFileHEX (4/5 266) - 33 00 46 00 34 00 34 00 34 00 5C 00 63 00 6F 00 6D 00 2E 00 61 00 70 00 70 00 6C 00 65 00 2E 00 69 00 6E 00 73 00 74 00 61 00 6C 00 6C 00 65 00 72 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00
15:620 00:021 OCBP: BlessedFileHEX (5/5 266) - 66 00 69 00 00 00 7F FF 04 00
15:641 00:020 OCBP: BlessedFileDP - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0C645BFEA1736E4189DDF681A9F1D84F)/\453A601F-36C7-41F2-AAAC-094501A3F444\com.apple.installer\boot.efi
15:662 00:021 OCBP: Blessed file is valid
15:683 00:021 OCBP: 18 filesystems for APFS - Success
15:704 00:021 OCBP: APFS Volume Info - 738A1B98 (131072, FE5B640C-73A1-416E-89DD-F681A9F1D84F, 16)
15:728 00:023 OCBP: APFS Container Info - 72E50B98 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
15:786 00:058 OCBP: APFS match container E03B23F5-F291-40C5-AC7C-A4046691D91B vs E03B23F5-F291-40C5-AC7C-A4046691D91B for 15 of 18 - 1
15:808 00:021 OCBP: Missing partition FE5B640C-73A1-416E-89DD-F681A9F1D84F on preboot - Not Found
15:834 00:026 OCBP: No APFS booter 15 of 18 for FE5B640C-73A1-416E-89DD-F681A9F1D84F - Not Found
15:857 00:023 OCBP: APFS Volume Info - 72E51898 (131072, 453A601F-36C7-41F2-AAAC-094501A3F444, 0)
15:879 00:021 OCBP: APFS Container Info - 72E51798 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
15:899 00:019 OCBP: APFS match container E03B23F5-F291-40C5-AC7C-A4046691D91B vs E03B23F5-F291-40C5-AC7C-A4046691D91B for 16 of 18 - 1
15:923 00:023 OCBP: Found partition 453A601F-36C7-41F2-AAAC-094501A3F444 on preboot
15:944 00:021 OCBP: Want predefined list for APFS 16 at 453A601F-36C7-41F2-AAAC-094501A3F444
15:967 00:022 OCBP: Predefined 453A601F-36C7-41F2-AAAC-094501A3F444 \System\Library\CoreServices\boot.efi is missing - Not Found
15:989 00:022 OCBP: Predefined 453A601F-36C7-41F2-AAAC-094501A3F444 \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
16:011 00:021 OCBP: Predefined 453A601F-36C7-41F2-AAAC-094501A3F444 \EFI\BOOT\BOOTX64.EFI is missing - Not Found
16:033 00:021 OCBP: No APFS booter 16 of 18 for 453A601F-36C7-41F2-AAAC-094501A3F444 - Not Found
16:055 00:021 OCBP: APFS Volume Info - 72E51798 (131072, 3EAC2B5B-7C88-4F55-A0C4-7D749A7551A5, 4)
16:076 00:021 OCBP: APFS Container Info - 72E51898 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
16:098 00:021 OCBP: APFS match container E03B23F5-F291-40C5-AC7C-A4046691D91B vs E03B23F5-F291-40C5-AC7C-A4046691D91B for 17 of 18 - 1
16:119 00:021 OCBP: Missing partition 3EAC2B5B-7C88-4F55-A0C4-7D749A7551A5 on preboot - Not Found
16:137 00:018 OCBP: No APFS booter 17 of 18 for 3EAC2B5B-7C88-4F55-A0C4-7D749A7551A5 - Not Found
16:168 00:030 OCBP: APFS Volume Info - 72E52798 (131072, 75DFF9E1-9CBA-43C6-85BD-5B8F1A1337D7, 😎
16:228 00:060 OCBP: APFS Container Info - 72E52998 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
16:248 00:019 OCBP: APFS match container E03B23F5-F291-40C5-AC7C-A4046691D91B vs E03B23F5-F291-40C5-AC7C-A4046691D91B for 18 of 18 - 1
16:272 00:023 OCBP: Missing partition 75DFF9E1-9CBA-43C6-85BD-5B8F1A1337D7 on preboot - Not Found
16:294 00:021 OCBP: No APFS booter 18 of 18 for 75DFF9E1-9CBA-43C6-85BD-5B8F1A1337D7 - Not Found
16:316 00:021 OCBP: APFS bless for E03B23F5-F291-40C5-AC7C-A4046691D91B:<null string> is Not Found
16:337 00:021 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0C645BFEA1736E4189DDF681A9F1D84F)/\453A601F-36C7-41F2-AAAC-094501A3F444\com.apple.installer\boot.efi
16:359 00:021 OCB: Trying to get label from \453A601F-36C7-41F2-AAAC-094501A3F444\com.apple.installer\.contentDetails
16:390 00:031 OCB: Trying to get label from \453A601F-36C7-41F2-AAAC-094501A3F444\com.apple.installer\.disk_label.contentDetails
16:422 00:032 OCB: Registering entry macOS Installer (T:2|F:0|G:0|E:0) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0C645BFEA1736E4189DDF681A9F1D84F)/\453A601F-36C7-41F2-AAAC-094501A3F444\com.apple.installer\boot.efi
16:453 00:030 OCBP: APFS Container Info - 72E52798 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
16:484 00:030 OCBP: 18 filesystems for APFS - Success
16:518 00:033 OCBP: APFS Volume Info - 72E52698 (131072, FE5B640C-73A1-416E-89DD-F681A9F1D84F, 16)
16:550 00:031 OCBP: APFS Container Info - 72E52998 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
16:581 00:030 OCBP: APFS match container E03B23F5-F291-40C5-AC7C-A4046691D91B vs E03B23F5-F291-40C5-AC7C-A4046691D91B for 15 of 18 - 1
16:615 00:034 OCBP: Missing partition FE5B640C-73A1-416E-89DD-F681A9F1D84F on preboot - Not Found
16:645 00:030 OCBP: No APFS booter 15 of 18 for FE5B640C-73A1-416E-89DD-F681A9F1D84F - Not Found
16:676 00:030 OCBP: APFS Volume Info - 72E52698 (131072, 453A601F-36C7-41F2-AAAC-094501A3F444, 0)
16:705 00:029 OCBP: APFS Container Info - 72E52998 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
16:736 00:030 OCBP: APFS match container E03B23F5-F291-40C5-AC7C-A4046691D91B vs E03B23F5-F291-40C5-AC7C-A4046691D91B for 16 of 18 - 1
16:800 00:063 OCBP: Found partition 453A601F-36C7-41F2-AAAC-094501A3F444 on preboot
16:821 00:020 OCBP: Want predefined list for APFS 16 at 453A601F-36C7-41F2-AAAC-094501A3F444
16:842 00:021 OCBP: Predefined 453A601F-36C7-41F2-AAAC-094501A3F444 \System\Library\CoreServices\boot.efi is missing - Not Found
16:864 00:021 OCBP: Predefined 453A601F-36C7-41F2-AAAC-094501A3F444 \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
16:885 00:021 OCBP: Predefined 453A601F-36C7-41F2-AAAC-094501A3F444 \EFI\BOOT\BOOTX64.EFI is missing - Not Found
16:907 00:021 OCBP: No APFS booter 16 of 18 for 453A601F-36C7-41F2-AAAC-094501A3F444 - Not Found
16:929 00:021 OCBP: APFS Volume Info - 72E52898 (131072, 3EAC2B5B-7C88-4F55-A0C4-7D749A7551A5, 4)
16:951 00:021 OCBP: APFS Container Info - 72E52818 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
16:972 00:021 OCBP: APFS match container E03B23F5-F291-40C5-AC7C-A4046691D91B vs E03B23F5-F291-40C5-AC7C-A4046691D91B for 17 of 18 - 1
16:994 00:021 OCBP: Missing partition 3EAC2B5B-7C88-4F55-A0C4-7D749A7551A5 on preboot - Not Found
17:016 00:021 OCBP: No APFS booter 17 of 18 for 3EAC2B5B-7C88-4F55-A0C4-7D749A7551A5 - Not Found
17:045 00:029 OCBP: APFS Volume Info - 72E52898 (131072, 75DFF9E1-9CBA-43C6-85BD-5B8F1A1337D7, 😎
17:067 00:021 OCBP: APFS Container Info - 72E52818 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
17:089 00:022 OCBP: APFS match container E03B23F5-F291-40C5-AC7C-A4046691D91B vs E03B23F5-F291-40C5-AC7C-A4046691D91B for 18 of 18 - 1
17:110 00:020 OCBP: Missing partition 75DFF9E1-9CBA-43C6-85BD-5B8F1A1337D7 on preboot - Not Found
17:129 00:019 OCBP: No APFS booter 18 of 18 for 75DFF9E1-9CBA-43C6-85BD-5B8F1A1337D7 - Not Found
17:149 00:019 OCBP: APFS bless for E03B23F5-F291-40C5-AC7C-A4046691D91B:453A601F-36C7-41F2-AAAC-094501A3F444\com.apple.installer\ is Not Found
17:173 00:023 OCBP: APFS Volume Info - 72E52798 (131072, 453A601F-36C7-41F2-AAAC-094501A3F444, 0)
17:194 00:021 OCBP: APFS Container Info - 72E52898 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
17:251 00:057 OCBP: APFS recovery info 0/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:272 00:021 OCBP: APFS recovery info 1/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:294 00:021 OCBP: APFS recovery info 2/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:316 00:022 OCBP: APFS recovery info 3/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:338 00:022 OCBP: APFS recovery info 4/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:358 00:019 OCBP: APFS recovery info 5/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:383 00:025 OCBP: APFS recovery info 6/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:412 00:028 OCBP: APFS recovery info 7/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:434 00:022 OCBP: APFS recovery info 8/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:457 00:023 OCBP: APFS recovery info 9/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:479 00:022 OCBP: APFS recovery info 10/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:501 00:022 OCBP: APFS recovery info 11/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:524 00:022 OCBP: APFS recovery info 12/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:546 00:021 OCBP: APFS recovery info 13/18 due to 00000000-0000-0000-0000-000000000000/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Not Found
17:566 00:020 OCBP: APFS Volume Info - 72E52898 (131072, FE5B640C-73A1-416E-89DD-F681A9F1D84F, 16)
17:588 00:021 OCBP: APFS Container Info - 72E52798 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
17:606 00:018 OCBP: APFS recovery info 14/18 due to E03B23F5-F291-40C5-AC7C-A4046691D91B/E03B23F5-F291-40C5-AC7C-A4046691D91B/10 - Success
17:629 00:023 OCBP: APFS Volume Info - 72E52798 (131072, 453A601F-36C7-41F2-AAAC-094501A3F444, 0)
17:695 00:065 OCBP: APFS Container Info - 72E52898 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
17:716 00:020 OCBP: APFS recovery info 15/18 due to E03B23F5-F291-40C5-AC7C-A4046691D91B/E03B23F5-F291-40C5-AC7C-A4046691D91B/0 - Success
17:735 00:019 OCBP: APFS Volume Info - 72E52898 (131072, 3EAC2B5B-7C88-4F55-A0C4-7D749A7551A5, 4)
17:759 00:023 OCBP: APFS Container Info - 72E52798 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
17:780 00:021 OCBP: APFS recovery info 16/18 due to E03B23F5-F291-40C5-AC7C-A4046691D91B/E03B23F5-F291-40C5-AC7C-A4046691D91B/4 - Success
17:802 00:021 OCFS: Filename \453A601F-36C7-41F2-AAAC-094501A3F444\ has trailing slash
17:824 00:021 OCFS: Filename \453A601F-36C7-41F2-AAAC-094501A3F444\ has trailing slash
17:846 00:021 OCB: Matched fs 72CB5598
17:868 00:022 OCB: Adding entry type (T:1|F:1|G:0) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,5B2BAC3E887C554FA0C47D749A7551A5)/\453A601F-36C7-41F2-AAAC-094501A3F444\
17:889 00:021 OCB: Trying to get label from \453A601F-36C7-41F2-AAAC-094501A3F444\.contentDetails
17:911 00:021 OCB: Trying to get label from \453A601F-36C7-41F2-AAAC-094501A3F444\.disk_label.contentDetails
17:933 00:022 OCB: Trying to get recovery from \453A601F-36C7-41F2-AAAC-094501A3F444\SystemVersion.plist
17:956 00:022 OCB: Registering entry Recovery (T:4|F:1|G:0|E:0) - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,5B2BAC3E887C554FA0C47D749A7551A5)/\453A601F-36C7-41F2-AAAC-094501A3F444\
17:975 00:019 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,1F603A45C736F241AAAC094501A3F444)
17:998 00:022 OCBP: APFS Volume Info - 72E52718 (131072, 453A601F-36C7-41F2-AAAC-094501A3F444, 0)
18:019 00:020 OCBP: APFS Container Info - 72E51998 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
18:052 00:033 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,5B2BAC3E887C554FA0C47D749A7551A5)
18:077 00:025 OCBP: APFS Volume Info - 72E52718 (131072, 3EAC2B5B-7C88-4F55-A0C4-7D749A7551A5, 4)
18:108 00:030 OCBP: APFS Container Info - 72E51998 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
18:170 00:062 OCB: Adding bless entry on disk - PciRoot(0x2)/Pci(0x1,0x1)/Pci(0x0,0x0)/Pci(0x9,0x0)/Pci(0x0,0x0)/Sata(0x3,0xFFFF,0x0)/HD(2,GPT,A04B809A-72DC-42EF-8CA4-115389851254,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E1F9DF75BA9CC64385BD5B8F1A1337D7)
18:190 00:020 OCBP: APFS Volume Info - 72E52718 (131072, 75DFF9E1-9CBA-43C6-85BD-5B8F1A1337D7, 😎
18:214 00:023 OCBP: APFS Container Info - 72E51998 (1, E03B23F5-F291-40C5-AC7C-A4046691D91B)
18:236 00:021 OCB: Adding fs 2007C5F5 for 1 custom entries and nvram reset (aux shown)
18:257 00:021 OCB: Adding custom entry OpenShell.efi (tool) -> OpenShell.efi
18:279 00:021 OCB: Registering entry OpenShell.efi (T:128|F:0|G:0|E:0) - <nil>
18:301 00:022 OCB: Adding system entry Reset NVRAM
18:323 00:021 OCB: Registering entry Reset NVRAM (T:256|F:0|G:0|E:0) - <nil>
18:344 00:021 OCB: Showing menu...
18:368 00:023 OCUI: Console attributes: 0
18:390 00:021 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
18:413 00:022 OCB: Trying to get image from .VolumeIcon.icns
18:444 00:031 OCB: OcGetBootEntryIcon - Windows in <null string> (volume icon) - Not Found
18:466 00:021 OCUI: Console attributes: 0
18:487 00:020 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
18:508 00:021 OCB: Trying to get image from .VolumeIcon.icns
18:529 00:021 OCB: OcGetBootEntryIcon - macOS Base System in <null string> (volume icon) - Not Found
18:551 00:021 OCUI: Console attributes: 0
18:572 00:021 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
18:629 00:057 OCB: Trying to get image from 453A601F-36C7-41F2-AAAC-094501A3F444\.VolumeIcon.icns
18:651 00:021 OCB: Trying to get image from .VolumeIcon.icns
18:672 00:021 OCB: OcGetBootEntryIcon - macOS Installer in 453A601F-36C7-41F2-AAAC-094501A3F444\ (volume icon) - Not Found
18:694 00:021 OCUI: Console attributes: 0
18:716 00:021 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
18:739 00:023 OCB: Trying to get image from 453A601F-36C7-41F2-AAAC-094501A3F444\.VolumeIcon.icns
18:761 00:021 OCB: Trying to get image from .VolumeIcon.icns
18:783 00:022 OCB: OcGetBootEntryIcon - Recovery in 453A601F-36C7-41F2-AAAC-094501A3F444\ (volume icon) - Not Found
18:813 00:029 OCUI: Console attributes: 0
18:836 00:022 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
18:858 00:021 OC: Got label 0 icon 0 for type 128 - OpenShell.efi
18:879 00:021 OCB: OcGetBootEntryIcon - OpenShell.efi (tool) - Not Found
18:902 00:022 OCUI: Console attributes: 0
18:923 00:021 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
18:944 00:020 OC: Got label 0 icon 0 for type 256 - ResetNVRAM
18:966 00:021 OCB: OcGetBootEntryIcon - Reset NVRAM (tool) - Not Found
29:665 10:699 OCB: Should boot from 2. macOS Base System (T:2|F:0|G:0|E:1|DEF:0)
29:689 00:023 OCB: Perform boot macOS Base System to dp PciRoot(0x1)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x3,0x0)/HD(2,MBR,0xA47A94BC,0x64800,0x1C3F800)/\System\Library\CoreServices\boot.efi (0/0)
29:767 00:078 OCI4: Manifest (2738) for 65666962 parse fail with code 1
29:795 00:027 OCI4: Verifying digest 48 (C09D16B7) override 0 48 (00000000)
29:866 00:071 OCSB: Verified IMG4 without issues
29:897 00:030 OCB: Arch filtering 731D3018(621112)->731D3018(621112) caps 4 - Success
29:928 00:030 OCB: Matching <> args on type 2 0
29:959 00:031 OCABC: VMware Mac installed on 733D8798 - Success
29:992 00:032 OCABC: Found safe mode legacy p1 at off 7D20
30:023 00:030 OCABC: Trying safe mode next legacy match
30:054 00:030 OCABC: Found safe mode legacy p1 at off 7F0F
30:084 00:030 OCABC: Trying safe mode next legacy match
30:118 00:033 OCABC: Patching safe mode new at off 1979B
30:150 00:032 OCABC: MMIO devirt start
30:181 00:030 OCABC: MMIO devirt 0xA2100000 (0x81 pages, 0x8000000000000001) skip 0
30:212 00:031 OCABC: MMIO devirt 0xA3180000 (0x81 pages, 0x8000000000000001) skip 0
30:242 00:030 OCABC: MMIO devirt 0xEF100000 (0x181 pages, 0x8000000000000001) skip 1
30:272 00:029 OCABC: MMIO devirt 0xFA180000 (0x81 pages, 0x8000000000000001) skip 1
30:298 00:025 OCABC: MMIO devirt 0xFA300000 (0x100 pages, 0x8000000000000001) skip 1
30:332 00:034 OCABC: MMIO devirt 0xFEA00000 (0x100 pages, 0x8000000000000001) skip 1
30:363 00:030 OCABC: MMIO devirt 0xFEC00000 (0x1 pages, 0x8000000000000001) skip 1
30:424 00:061 OCABC: MMIO devirt 0xFEC10000 (0x1 pages, 0x8000000000000001) skip 1
30:445 00:020 OCABC: MMIO devirt 0xFED00000 (0x1 pages, 0x8000000000000001) skip 1
30:468 00:023 OCABC: MMIO devirt 0xFED40000 (0x5 pages, 0x8000000000000001) skip 1
30:490 00:021 OCABC: MMIO devirt 0xFED80000 (0x10 pages, 0x8000000000000001) skip 1
30:512 00:021 OCABC: MMIO devirt 0xFEDC2000 (0xE pages, 0x8000000000000001) skip 1
30:533 00:021 OCABC: MMIO devirt 0xFEDD4000 (0x2 pages, 0x8000000000000001) skip 1
30:556 00:022 OCABC: MMIO devirt 0xFEE00000 (0x100 pages, 0x8000000000000001) skip 1
30:577 00:021 OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x8000000000000001) skip 1
30:599 00:021 OCABC: MMIO devirt 0x1080000000 (0x10400 pages, 0x8000000000000001) skip 0
30:621 00:022 OCABC: MMIO devirt 0x6F00000000 (0x10400 pages, 0x8000000000000001) skip 0
30:644 00:022 OCABC: MMIO devirt 0x6F30000000 (0x10400 pages, 0x8000000000000001) skip 0
30:666 00:022 OCABC: MMIO devirt 0xCDB0000000 (0x10400 pages, 0x8000000000000001) skip 0
30:687 00:021 OCABC: MMIO devirt end, saved 1065992 KB
30:717 00:029 OCABC: Only 176/256 slide values are usable!
30:741 00:024 OCABC: Valid slides - 80-255
30:772 00:030 AAPL: [EB|#LOG:INIT] 2021-04-05T16:45:45
30:802 00:030 AAPL: [EB|#VERSION] bootbase.efi 422.140.3~2 (Official), built 2020-06-07T17:23:12-0700
30:832 00:029 AAPL: [EB|#BUILD] BUILD-INFO[306]:{"DisplayName":"bootbase.efi","DisplayVersion":"422.140.3~2","RecordUuid":"D49FA16E-32C0-433B-A742-7405C713BE39","BuildTime":"2020-06-07T17:23:12-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"422.140.3","BuildVersion":"2","BuildConfiguration":"Release","BuildType":"Official"}
30:862 00:030 AAPL: [EB|#H:IS] 0
30:922 00:060 AAPL: [EB|#WL:MODE] 0
30:943 00:021 AAPL: [EB|#CONFIG:SRC] <default>
30:965 00:021 AAPL: [EB|#CONFIG| 0] boot-save-log : 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) <default>
30:987 00:022 AAPL: [EB|#CONFIG| 1] wake-save-log : 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) <default>
31:009 00:022 AAPL: [EB|#CONFIG| 2] console : 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) <default>
31:031 00:021 AAPL: [EB|#CONFIG| 3] serial : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
31:053 00:022 AAPL: [EB|#CONFIG| 4] embed-log-dt : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
31:074 00:020 AAPL: [EB|#CONFIG| 5] timestamps : 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) <default>
31:096 00:021 AAPL: [EB|#CONFIG| 6] log-level : 0x0000000000000001 (0x0000000000000001 & 0x0000000000000001) <default>
31:118 00:021 AAPL: [EB|#CONFIG| 7] breakpoint : 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) <default>
31:151 00:033 AAPL: [EB|#CONFIG| 8] kc-read-size : 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) <default>
31:182 00:031 AAPL: [EB|#H:IS] 0
31:213 00:030 AAPL: [EB|#WL|0] 0x01 0x01 0 0x00
31:244 00:030 AAPL: [EB|#BRD:NV] Mac-7BA5B2D9E42DDD94
31:275 00:030 OCOS: OS set: <null> Mac OS X 10.15
31:305 00:030 OCOS: OS set: Apple Inc. Mac OS X 10.15
31:335 00:029 AAPL: [EB|#WL|1] 0x01 0x01 2 0x00
31:366 00:031 AAPL: [EB|#B:RRVAR] fdff09000000
31:431 00:064 AAPL: [EB|`BST:IDT] {
31:453 00:022 AAPL: [EB|`BST:IDT] }
31:475 00:021 AAPL: [EB|#WL|2] 0x01 0x01 3 0x00
31:494 00:018 AAPL: [EB|#WL|3] 0x01 0x01 4 0x00
31:519 00:024 AAPL: [EB|#BRD:NV] Mac-7BA5B2D9E42DDD94
31:541 00:022 AAPL: [EB|#WL|4] 0x01 0x01 5 0x00
31:563 00:021 AAPL: [EB|`H:CHK] BM: 0x0000000000000000
31:592 00:028 AAPL: [EB|`H:CHK] Err(0xE) @ GV boot-signature
31:614 00:021 AAPL: [EB|#WL|5] 0x01 0x01 23 0x0E
31:636 00:022 AAPL: [EB|`H:CPM] Err(0xE), (24, 24) @ GV Persistent-memory-note
31:659 00:022 AAPL: [EB|#SB:P] 0x1
31:680 00:021 AAPL: [EB|`B:MN] BM: +SB
31:703 00:022 AAPL: [EB|#LIMG:DP] Acpi(PNP0A03,1)/Pci(8|1)/Pci(0|3)/Usb(3, 0)/HD(Part2,SigA47A94BC)
31:725 00:021 AAPL: [EB|#LIMG:FP] \System\Library\CoreServices\boot.efi
31:746 00:020 AAPL: [EB|#LIMG:OPT] ()
31:767 00:021 AAPL: [EB|#RPS] R?0 P?0 S?0
31:790 00:023 AAPL: [EB|`OPT:LXF] 'LF (\\System\\Library\\CoreServices\\com.apple.Boot.plist)
31:811 00:020 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: \\System\\Library\\CoreServices\\com.apple.Boot.plist, DP: 0
31:834 00:022 AAPL: [EB|`LD:OFS] Err(0xE) @ OPEN (\\System\\Library\\CoreServices\\com.apple.Boot.plist)
31:892 00:058 AAPL: [EB|`OPT:LXF] Err(0xE) @ 'LF
31:915 00:022 AAPL: [EB|`OPT:LXF] 'LF (Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist)
31:937 00:021 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist, DP: 0
31:968 00:031 AAPL: [EB:#KF] ()
31:992 00:024 AAPL: [EB|#MBA:CL] ()
32:014 00:021 AAPL: [EB|#MBA:NV] (slide=181)
32:036 00:021 AAPL: [EB|#MBA:KF] ()
32:057 00:021 AAPL: [EB|#MBA:OUT] (slide=181 chunklist-security-epoch=0 -chunklist-no-rev2-dev)
32:080 00:022 AAPL: [EB|`CSR:S] csr-active-config = 0x00000040
32:102 00:022 AAPL: [EB|#OPT:BM] 0x204000
32:124 00:022 AAPL: [EB|`OPT:LXF] 'LF (\\System\\Library\\CoreServices\\PlatformSupport.plist)
32:146 00:022 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: \\System\\Library\\CoreServices\\PlatformSupport.plist, DP: 0
32:171 00:025 AAPL: [EB|#B:VAw]
32:193 00:021 AAPL: [EB|#P:CPR] N
32:215 00:021 AAPL: [EB|#P:MPI] N
32:236 00:021 AAPL: [EB|#P:BPI] N
32:258 00:022 AAPL: [EB|`CS:CSKSD] {
32:279 00:020 AAPL: [EB|`CS:CSKSD] Err(0xE) @ GV 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF:boot-info-payload
32:305 00:025 AAPL: [EB|`G:CS] } Ok(0)
32:376 00:071 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: <null string>, DP: 1
32:442 00:066 AAPL: [EB|`B:SBS] SZ: 621112
32:475 00:032 AAPL: [EB|#B:SHA] 4f3bba9614aa0dbae1943ab55b83beac7e278986
32:506 00:030 AAPL: [EB|`WL:PWLFNV] Err(0xE) @ GV wake-failure
32:537 00:030 AAPL: [EB|`WL:DT] Err(0xE) @ WL:PWLFNV
32:563 00:026 AAPL: [EB|`WL:PWLFRTC] ! @ RTC:R
32:594 00:030 AAPL: [EB|`WL:DT] Err(0xE) @ WL:PWLFRTC
32:626 00:031 AAPL: [EB|`LD:LKC] SB -> (System\Library\PrelinkedKernels\immutablekernel)
32:657 00:030 AAPL: [EB|`LD:LKC] BPDK -> (System\Library\PrelinkedKernels\immutablekernel.development)
32:687 00:030 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: System\\Library\\PrelinkedKernels\\immutablekernel.development, DP: 0
32:721 00:033 AAPL: [EB|`LD:OFS] Err(0xE) @ OPEN (System\\Library\\PrelinkedKernels\\immutablekernel.development)
32:752 00:030 AAPL: [EB|`LD:LKC] BPDK,!R -> (System\Library\PrelinkedKernels\immutablekernel)
32:783 00:031 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: System\\Library\\PrelinkedKernels\\immutablekernel, DP: 0
33:122 00:338 OC: Kext reservation size info 55F000 exe 1F73000
33:151 00:028 OC: Trying 64-bit XNU hook on System\Library\PrelinkedKernels\immutablekernel
34:501 01:350 OC: Result of 64-bit XNU hook on System\Library\PrelinkedKernels\immutablekernel (C24F175F) is Success
34:542 00:041 OCAK: Read kernel version 19.6.0 (190600)
34:571 00:028 OCAK: 64-bit cata_BS_algrey - commpage_populate -remove rdmsr replace count - 1
34:628 00:057 OC: Kernel patcher result 0 for kernel (cata_BS_algrey - commpage_populate -remove rdmsr) - Success
34:650 00:021 OCAK: 64-bit cpu_topology_sort -disable _x86_validate_topology replace count - 1
34:671 00:021 OC: Kernel patcher result 1 for kernel (cpu_topology_sort -disable _x86_validate_topology) - Success
34:696 00:024 OCAK: 64-bit cata_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4 replace count - 1
34:718 00:021 OC: Kernel patcher result 2 for kernel (cata_BS_algrey - cpuid_set_cache_info - cpuid 0x8000001D instead 4) - Success
34:742 00:024 OCAK: 64-bit cata_BS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package replace count - 1
34:764 00:021 OC: Kernel patcher result 3 for kernel (cata_BS_algrey - cpuid_set_cache_info - don't set cpuid_cores_per_package) - Success
34:788 00:024 OCAK: 64-bit cata_BS_algrey - cpuid_set_generic_info - remove wrmsr replace count - 1
34:810 00:022 OC: Kernel patcher result 4 for kernel (cata_BS_algrey - cpuid_set_generic_info - remove wrmsr) - Success
34:834 00:024 OCAK: 64-bit cata_BS_algrey - cpuid_set_generic_info - set flag=1 replace count - 1
34:856 00:021 OC: Kernel patcher result 5 for kernel (cata_BS_algrey - cpuid_set_generic_info - set flag=1) - Success
34:882 00:025 OCAK: 64-bit cata_BS_algrey - cpuid_set_generic_info - disable check to allow leaf7 replace count - 1
34:904 00:021 OC: Kernel patcher result 6 for kernel (cata_BS_algrey - cpuid_set_generic_info - disable check to allow leaf7) - Success
34:941 00:036 OCAK: 64-bit cata_BS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD replace count - 1
34:978 00:036 OC: Kernel patcher result 7 for kernel (cata_BS_algrey - cpuid_set_info - GenuineIntel to AuthenticAMD) - Success
35:011 00:033 OCAK: 64-bit cata_BS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN replace count - 1
35:041 00:030 OC: Kernel patcher result 8 for kernel (cata_BS_algrey - cpuid_set_cpufamily - force CPUFAMILY_INTEL_PENRYN) - Success
35:072 00:030 OCAK: 64-bit cata_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16 replace count - 1
35:102 00:030 OC: Kernel patcher result 9 for kernel (cata_BS_algrey - cpuid_set_info - jmp to calculations and set cpuid_cores_per_package - 10.15/10.16) - Success
35:167 00:065 OCAK: 64-bit cata_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16 replace count - 1
35:188 00:021 OC: Kernel patcher result 10 for kernel (cata_BS_algrey - cpuid_set_info - cores and threads calculations - 10.15/10.16) - Success
35:282 00:093 OCAK: 64-bit cata_BS_algrey - i386_init - remove rdmsr (x3) replace count - 3
35:308 00:025 OC: Kernel patcher result 11 for kernel (cata_BS_algrey - i386_init - remove rdmsr (x3)) - Success
35:329 00:021 OCAK: 64-bit cata_BS_algrey - tsc_init - remove Penryn check to execute default case replace count - 1
35:350 00:020 OC: Kernel patcher result 12 for kernel (cata_BS_algrey - tsc_init - remove Penryn check to execute default case) - Success
35:374 00:024 OCAK: 64-bit cata_BS_algrey - tsc_init - grab DID and VID from MSR replace count - 1
35:396 00:022 OC: Kernel patcher result 13 for kernel (cata_BS_algrey - tsc_init - grab DID and VID from MSR) - Success
35:421 00:025 OCAK: 64-bit cata_algrey - lapic_init - remove version check and panic - 10.15 replace count - 1
35:442 00:021 OC: Kernel patcher result 14 for kernel (cata_algrey - lapic_init - remove version check and panic - 10.15) - Success
35:474 00:031 OC: Kernel patcher skips kernel (BS_NoOne - lapic_init - remove version check and panic - 10.16) patch at 15 due to version 200000 <= 190600 <= 209999
35:525 00:050 OCAK: 64-bit PanicKextDump replace count - 1
35:556 00:030 OCAK: Patch success kext dump
35:594 00:037 OCAK: 64-bit PowerStateTimeout replace count - 1
35:624 00:030 OCAK: Patch success power state
35:654 00:030 OCAK: Skipping SegmentJettison on 190600
35:730 00:075 OCAK: Reducing 64-bit prelink size from 44EC000 to 422B000 via plist
35:781 00:051 OC: Prelinked injection Lilu.kext () - Success
35:827 00:046 OC: Prelinked injection VirtualSMC.kext () - Success
35:901 00:073 OC: Prelinked injection AMDRyzenCPUPowerManagement.kext () - Success
36:035 00:134 OCAK: Vtable patching failed for kext com.zxystd.AirportItlwm
36:066 00:030 OC: Prelinked injection AirportItlwm.kext () - Invalid Parameter
36:120 00:053 OC: Prelinked injection AppleALC.kext () - Success
36:161 00:041 OCAK: Dependency com.apple.driver.usb.AppleUSBHostPlatformProperties was not found for kext com.apple.iokit.IOUSBHostFamily
36:224 00:062 OC: Prelinked injection IntelBluetoothFirmware.kext () - Success
36:255 00:031 OC: Prelinked injection IntelBluetoothInjector.kext () - Success
36:294 00:039 OC: Prelinked injection NVMeFix.kext () - Success
36:336 00:041 OC: Prelinked injection SMCAMDProcessor.kext () - Success
36:381 00:044 OC: Prelinked injection SmallTreeIntel82576.kext () - Success
36:423 00:042 OC: Prelinked injection WhateverGreen.kext () - Success
36:454 00:031 OC: Prelink size 88432640 kext offset 69382144 reserved 32976896
36:505 00:050 OCAK: 64-bit Aquantia BigSur replace count - 0
36:535 00:030 OC: Prelinked patcher result 16 for com.apple.driver.AppleEthernetAquantiaAqtion (Aquantia BigSur) - Not Found
36:563 00:027 OCAK: Patch success dummy AppleIntelCPUPowerManagement
36:649 00:086 OC: Prelinked status - Success
37:276 00:626 AAPL: [EB|#SB:HW] j137ap\0
37:305 00:028 AAPL: [EB|#SB:MF] (System\\Library\\PrelinkedKernels\\immutablekernel.j137ap.im4m)
37:369 00:064 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: System\\Library\\PrelinkedKernels\\immutablekernel.j137ap.im4m, DP: 0
37:398 00:028 OCI4: Verifying digest 48 (C24F175F) override 1 48 (C24F175F)
38:019 00:621 OCI4: Matching override 8D27FDC9 with 8D27FDC9 - success
38:045 00:025 AAPL: [EB|#SB:MKRN]
38:077 00:032 AAPL: [EB|`LD:LKFS] } Ok(0)
38:099 00:021 AAPL: [EB|`LD:LKC] } Ok(0)
38:125 00:025 AAPL: [EB|#FWFM] 0xFF9FFF3F
38:147 00:022 AAPL: [EB|#FWFT] 0xFD8FF53E
38:169 00:021 AAPL: [EB|#CSR:OUT] 0x00000040
38:194 00:024 AAPL: [EB|`BST:FBS] {
38:225 00:030 AAPL: [EB|`BST:FBS] BA.ADSZ: 0
38:256 00:031 AAPL: [EB|`BST:FBS] BA.KSDSZ: 0
38:286 00:030 OCSMC: SmcReadValue Key 4D535463 Size 1
38:317 00:031 OCSMC: SmcReadValue Key 4D534163 Size 2
38:348 00:030 AAPL: [EB|`B:WFDW] Err(0xE), 0 @ LocHB 71B4903C-14EC-42C4-BDC6-CE1449930E49
38:377 00:029 AAPL: [EB|#LOG:DT] 2021-04-05T16:45:52
38:408 00:030 AAPL: [EB|#LOG:EXITBS:START] 2021-04-05T16:45:52

mSedek · April 5, 2021

4 minutes ago, fabiosun said:

Sorry @mSedekare you using an OC debug version?

otherwise no complete log i think

Im on a relase version, ok ill reboot with the changes and if i got no log, then Ill change to a debug version

Edited April 5, 2021 by mSedek

fabiosun · April 5, 2021

you have to change (slide 144 and alcid=1 are unrelated to this no debug output)

fabiosun · April 5, 2021

Hi @Renatoi give 2 advices

one check your MMIO (i think first two are important and you have set them to 0 (skip to 0)

you have to build a proper list based on your bios configuration and bios version

then you should remove on your config all device properties declaration (i think @Arrakishas in it) and see if you can boot easily

Vega 64 does not need of much stuff to work (only WEG but it is not mandatory)

Renato · April 5, 2021

4 minutes ago, fabiosun said:

Hi @Renatoi give 2 advices

one check your MMIO (i think first two are important and you have set them to 0 (skip to 0)

you have to build a proper list based on your bios configuration and bios version

then you should remove on your config all device properties declaration (i think @Arrakishas in it) and see if you can boot easily

Vega 64 does not need of much stuff to work (only WEG but it is not mandatory)

Hi Trekintosh, I will have a look. I used Arrakis' EFI as I have the same motherboard (albeit I have a 3970). Let me have a look (first I need to google and understand what you are saying, I am no opecore expert) give it a shot and get back to you

fabiosun · April 5, 2021

@Renato

a simple and detailed explanation of MMIO part

it is useful to achieve full functionality for your rig

Arrakis · April 5, 2021

@Renato

As Fabiosun says you can remove the properties in the red rectangle.

Renato · April 5, 2021

3 minutes ago, Arrakis said:

@Renato

As Fabiosun says you can remove the properties in the red rectangle.

Hi, I actually have the titanridge card. I will delete it the reference to start with however, per the say: Before running one has to learn how to walk 🙂

mSedek · April 5, 2021

2 hours ago, fabiosun said:

you have to change (slide 144 and alcid=1 are unrelated to this no debug output)

hello, well I changed to OC debug and finally got the logs, changed accordingly my mmiowhitelist following all the procedures and kind of worked.. reboot does reboot but shut down also reboot.. any ideas?

Edited April 5, 2021 by mSedek

Ploddles · April 5, 2021

6 minutes ago, mSedek said:

hello, well I changed to OC debug and finally got the logs, changed accordingly my mmiowhitelist following all the procedures and kinf of worked.. reboot does reboot but shut down also reboot.. any ideas?

The reboot on shutdown is usually fixed by disabling Wake on Lan in the BIOS.

On a general issue -

Quite a long list in the new OC 0.6.8 changelog. Just glanced through them so I don't know if there is any big benefit for us. Will try it at a later date.

Edited April 5, 2021 by Ploddles

mSedek · April 5, 2021

8 minutes ago, Ploddles said:

The reboot on shutdown is usually fixed by disabling Wake on Lan in the BIOS.

ok now that worked perfectly... got a 100% functional system now..

gotta love you all guys 🥰

Edited April 5, 2021 by mSedek

Sign In

trx40 [Discussion] - TRX40 Bare Metal - Vanilla Patches

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 1 member

Important Information
